  • Vibration Level
    Vibration Level
  • Reliability
    C14
    Reliability

    New, robust, straightforward pivot design is maintenance-free and increases unit uptime.

    Greaseless sealed bearing design with construction-grade seals help increase machine longevity.

    No daily grease points—a Ditch Witch exclusive—means less hassle and prep to keep your trenchers rental-ready.

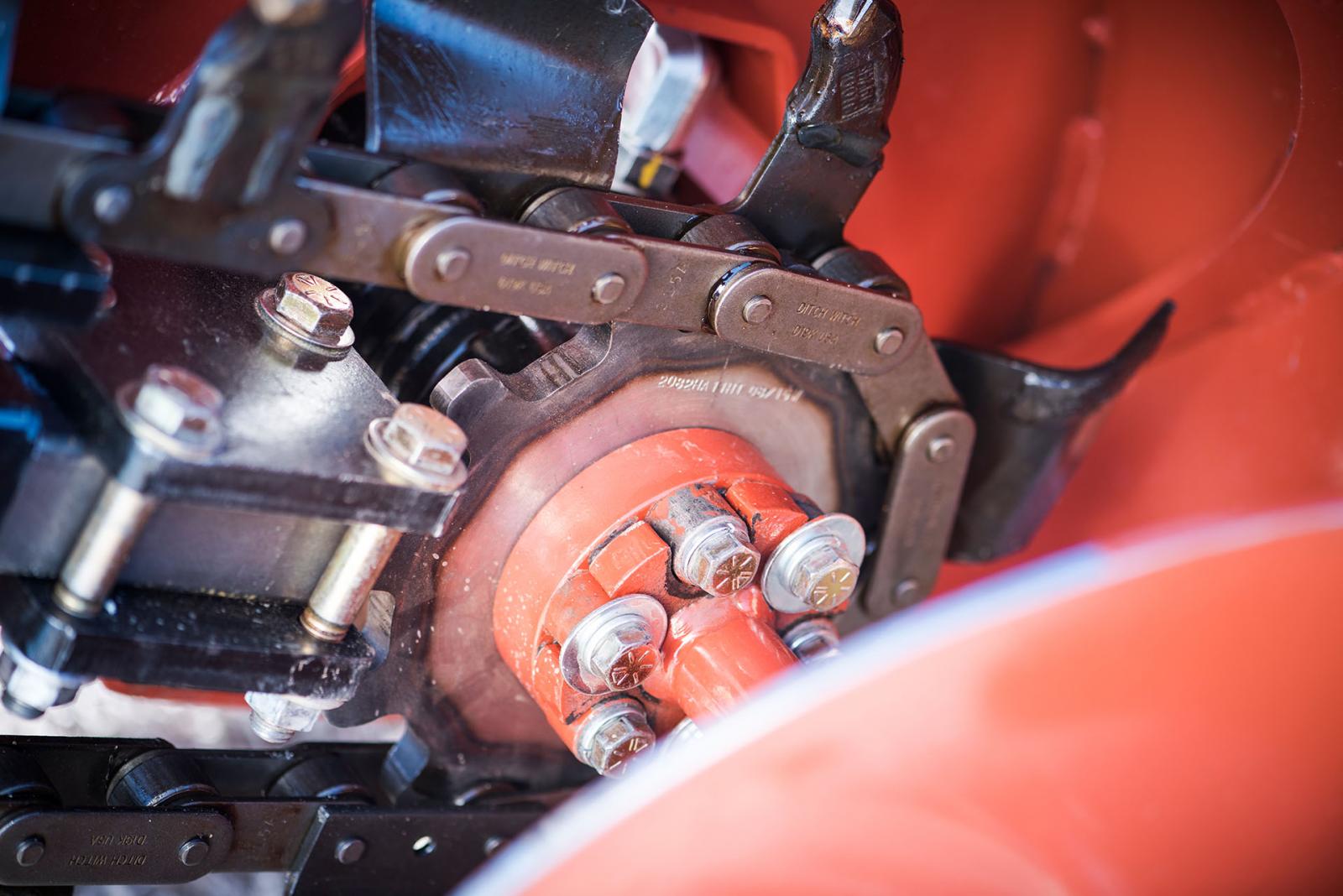

    Standard outboard bearing support stabilizes the headshaft and auger, for reliable productivity trench after trench.

    Simple, open design allows for quick, easy service access.

  • Fluid Capacites
    Fluid Capacites Fuel 1.7 gal Hydraulic 7 gal
  • Trench Size (max)
    Trench Size (max) Depth 24 in Width 6 in
  • Power
    Power Briggs & Stratton Briggs & Stratton 2100 Series Fuel Gasoline Cooling Air Number of Cylinders 1 Manufactures Net HP rating 13.5 hp 10 kW Rated Speed 3600 rpm Fuel Consumption @ Rated Power 1.3 gph 4.9 lph Starting Rope pull
  • Offset Rear Tires
    C14
    Offset Rear Tires

    Exclusive, patent-pending offset rear tire design delivers balanced traction and optimal weight distribution for increased production over competitive rubber-tire units.

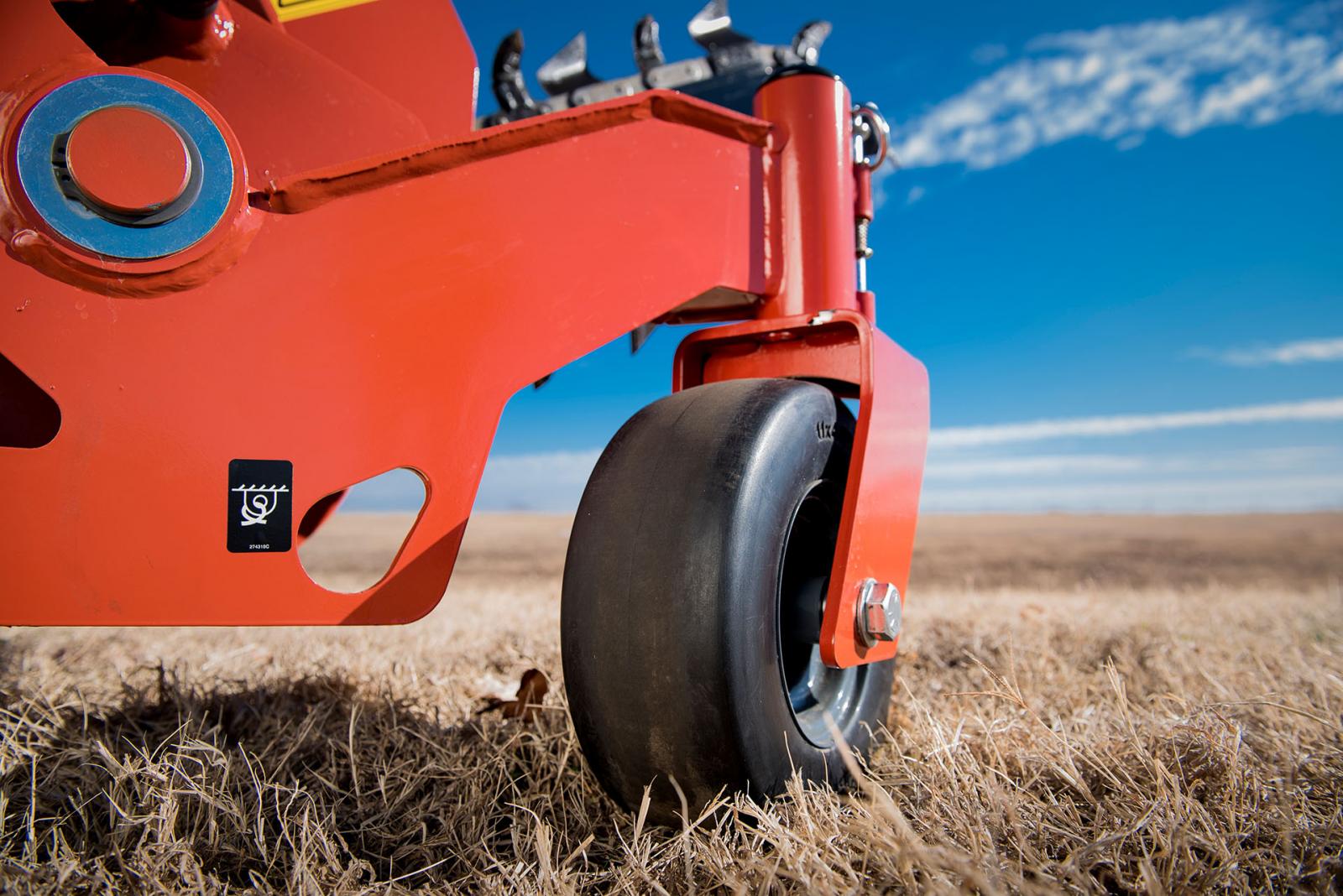

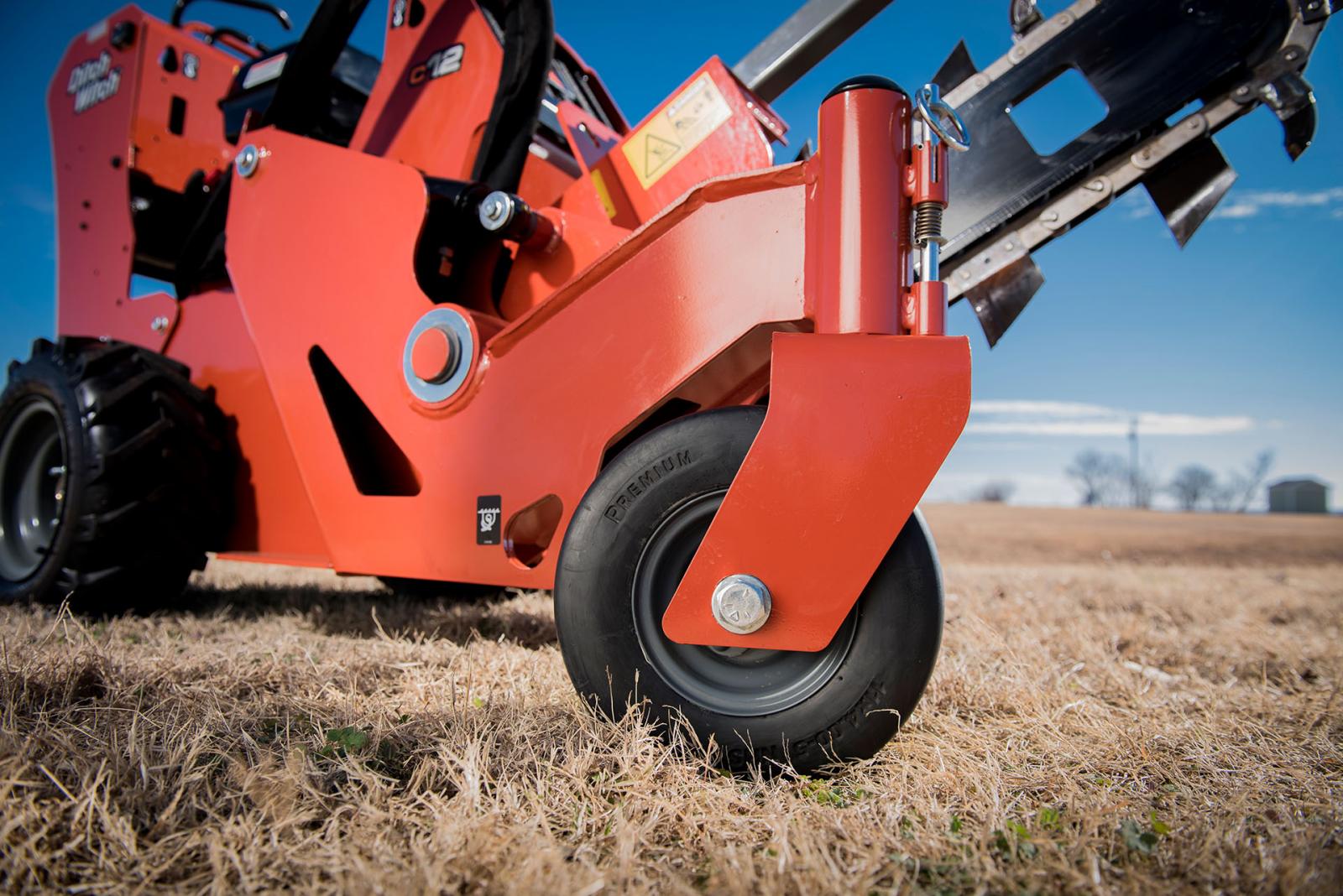

    Patent-pending pivoting trail wheel allows easier turning, better maneuverability, and smother operation on rough terrain or pavement.

    Flat-free tires require no maintenance and deliver increased uptime for rental customers.

  • Hydraulic System
    Hydraulic System Digging drive pump capacity 6 gpm Ground Drive Dual Speed Transit 7.5 gpm Digging 1.5 gpm Filtration 10 micron absolute
  • Superior Support
    C14
    Superior Support

    Ditch Witch equipment is backed by 170 dealer locations worldwide, each with genuine Ditch Witch parts in stock plus factory-trained service and expert advice to help deliver a superior return on investment for your rental equipment.

  • Power
    C14
    Power

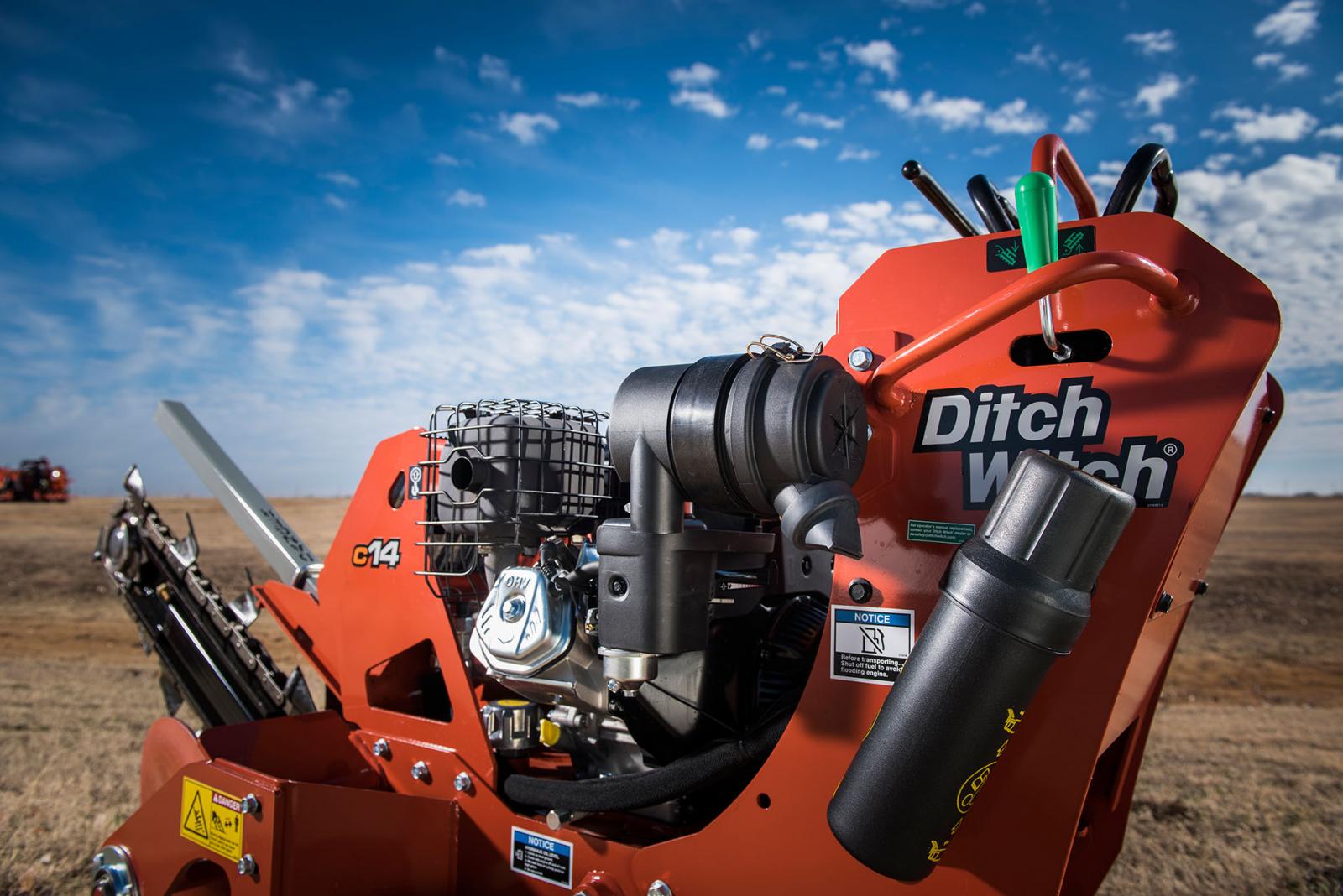

    Reliable 13.5-hp (10-kW) Briggs and Stratton® XR 2100 Series engine keeps the C14 performing for rental income you can count on, year after year.

    Up to 24” (609.6 mm) digging depth for efficient installation of pipe and cable.

    Newly designed hydraulic system eliminates vertical shafts and belts, resulting in a simple, reliable unit with no linkages to adjust.

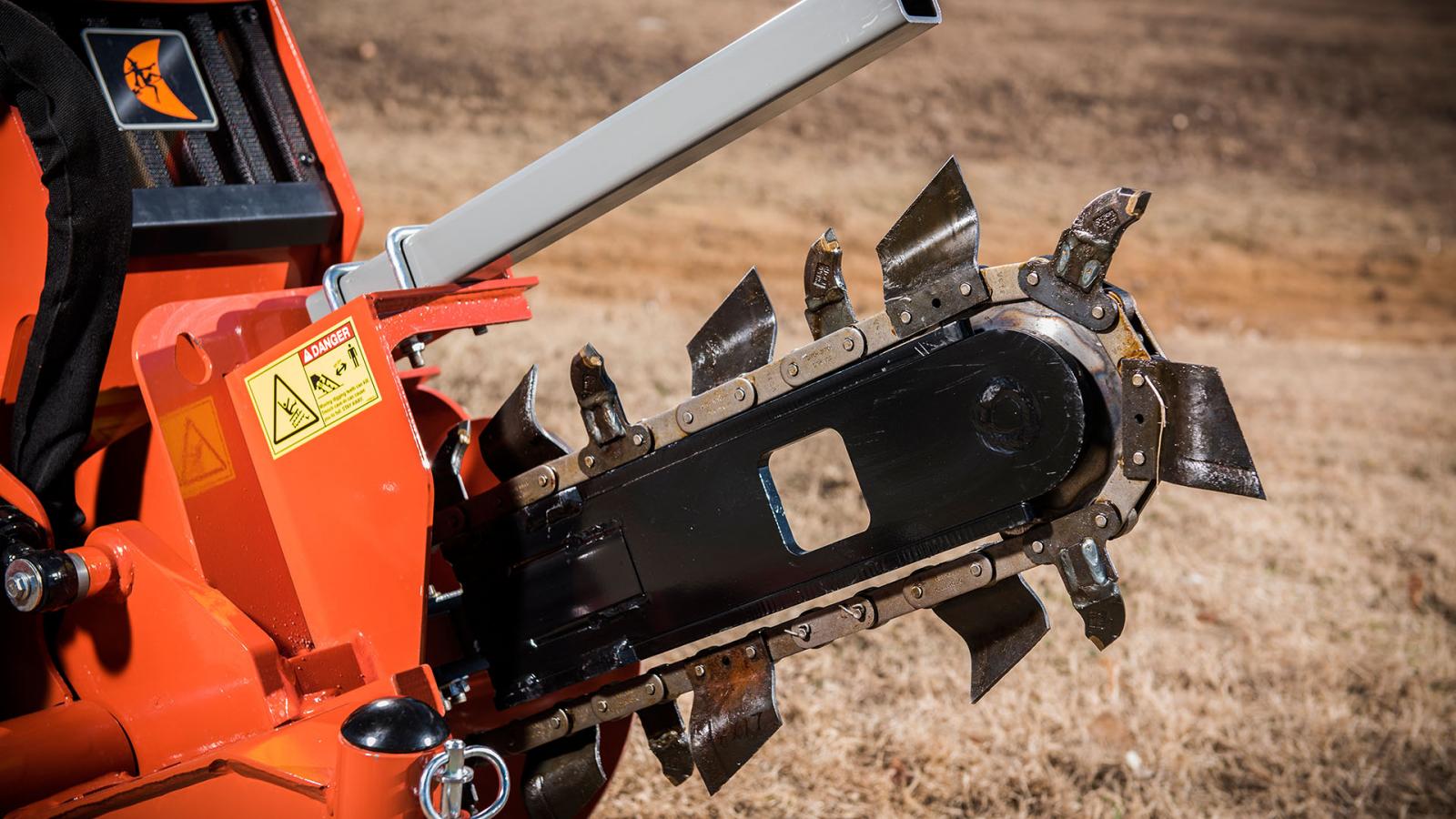

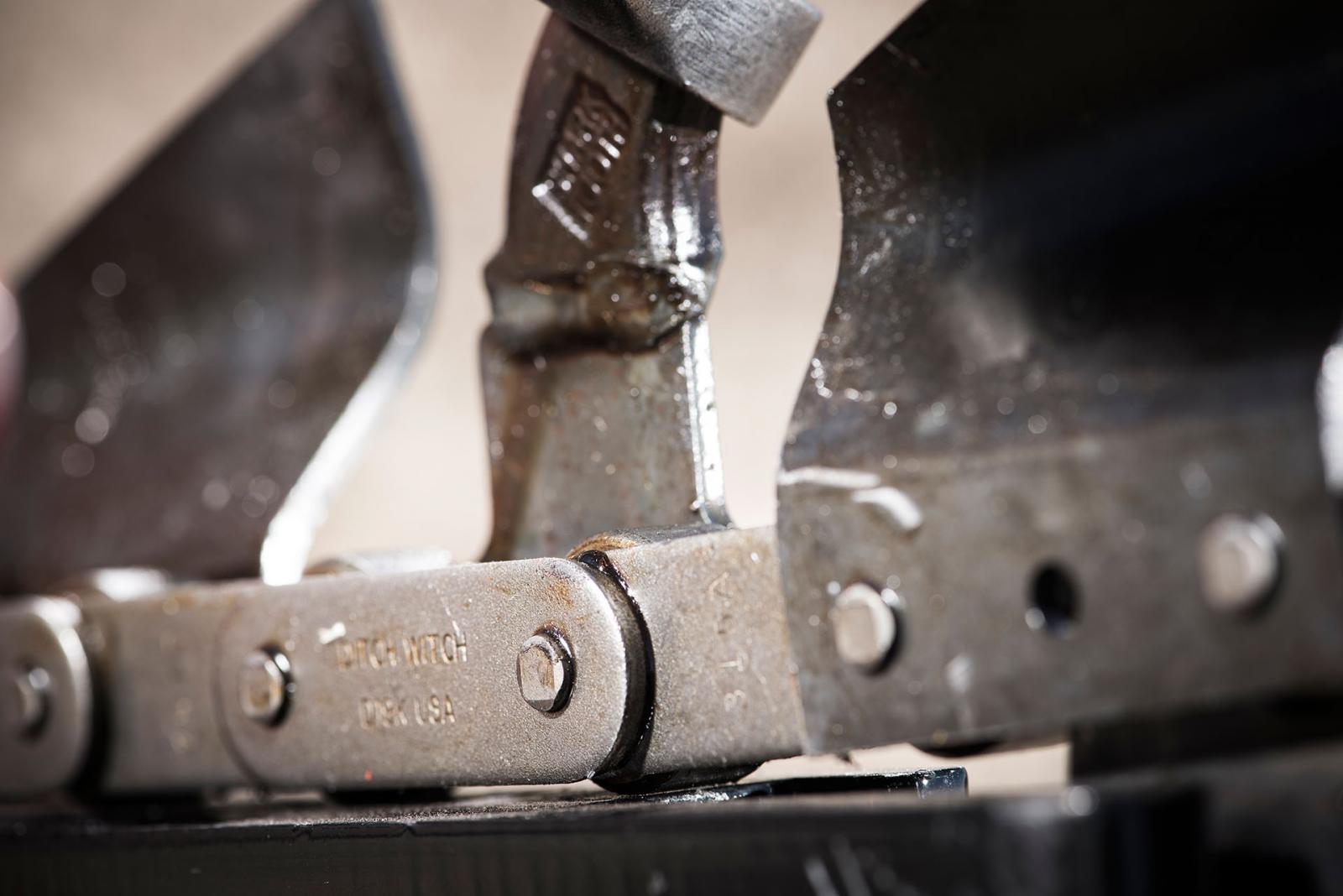

    Utilizes the Ditch Witch 35K digging system, specifically designed to work with Ditch Witch trenchers to optimize production.

  • Ease of Use
    C14
    Ease of Use

    Hydrostatic, skid-steer style steering provides easier operation.

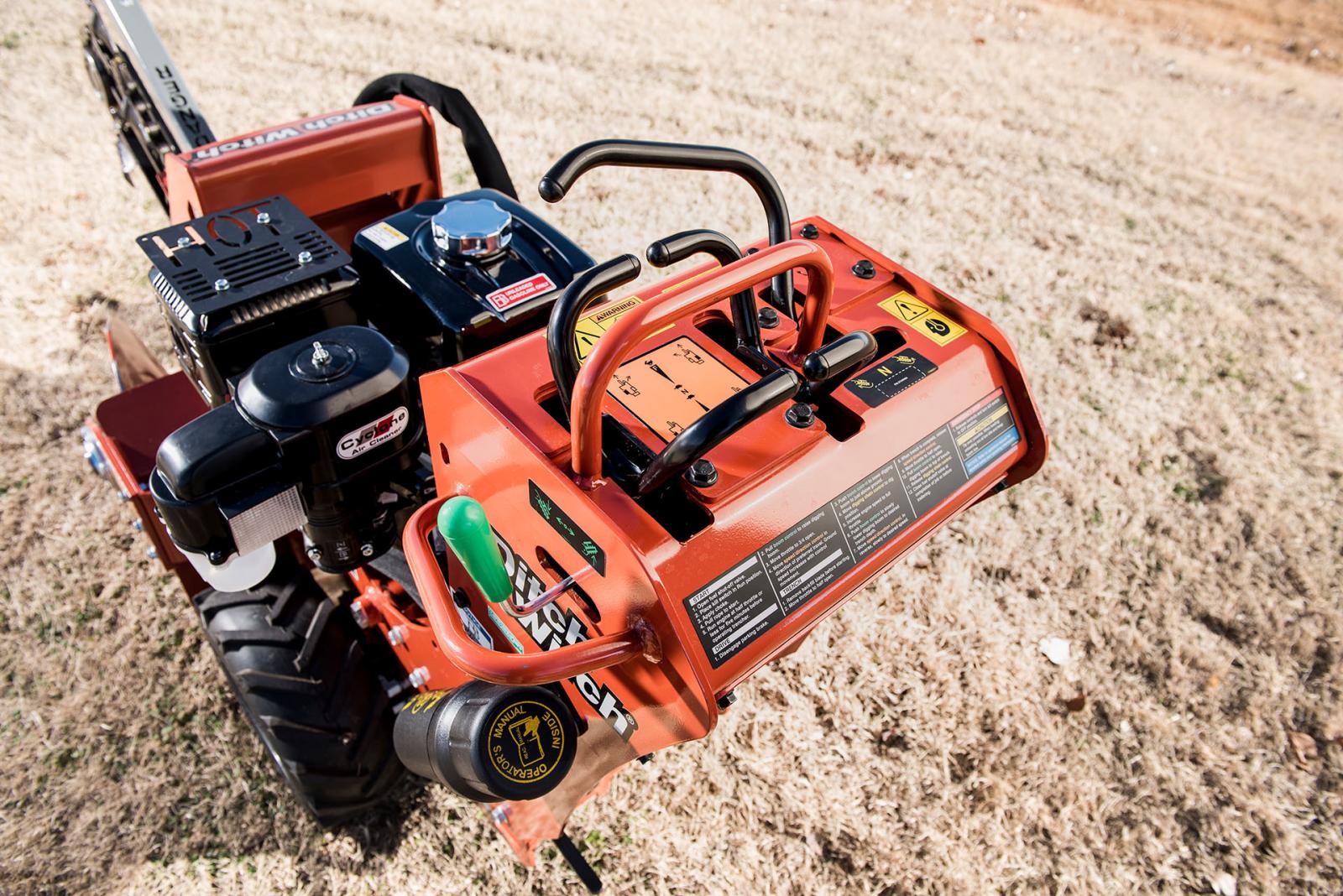

    Redesigned easy-touch controls are smoother and lighter for less operator fatigue and increased machine responsiveness.

    Increased visibility of the workstation improves operator productivity.

  • Options
    C14
    Options

    Our easy-to-operate backfill blade is much faster and less expensive than shovels, increasing productivity and rental revenue.

    Ditch Witch also offers the S3C Trailer, a single-axle design with a new rail system for easy loading and unloading of equipment of up to 3,500 lb (1,588 kg).

  • Operation
    Operation Travel Speed (Fwd) TBD Travel Speed (Rev) TBD Diggin Chain Speed (Std)SUM 33/35K 351 ft/min Spoils Handling Auger, single, open end Auger Diameter 17 in Trencher Cleaner Type Mechainical Trench Cleaner Size 4-6 in Operating weight (up to) TBD
  • Noise Level
    Noise Level Operator TBD Overall TBD
  • Dimensions
    Dimensions U.S. Metric Width 31.5 in 800 mm CL to Right 17.3 in 439 mm CL to Left 14 in 356 mm Headshaft 13 in 330 mm Length (Up to) 84 in 2.1 m Height, Transport (Up to) 48 in 1.2 m
  • Power Train
    Power Train Ground drive Hydraulic, Infinite variable from zero to maximum, speed and direction control Digging Chain Drive Hydraulic direct drive, one speed forward, reverse Pump Drive Direct to dngine Track Width 16 x 6.5-8 Hydraulic Direct Drive Digging Chain 33K/35K Ground Pressure TBD
