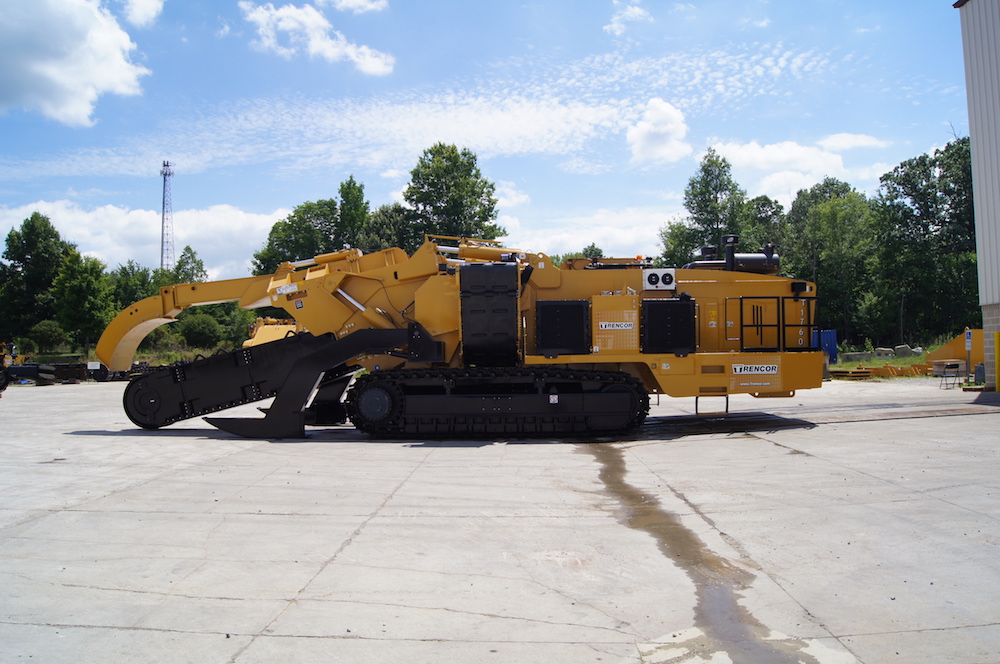

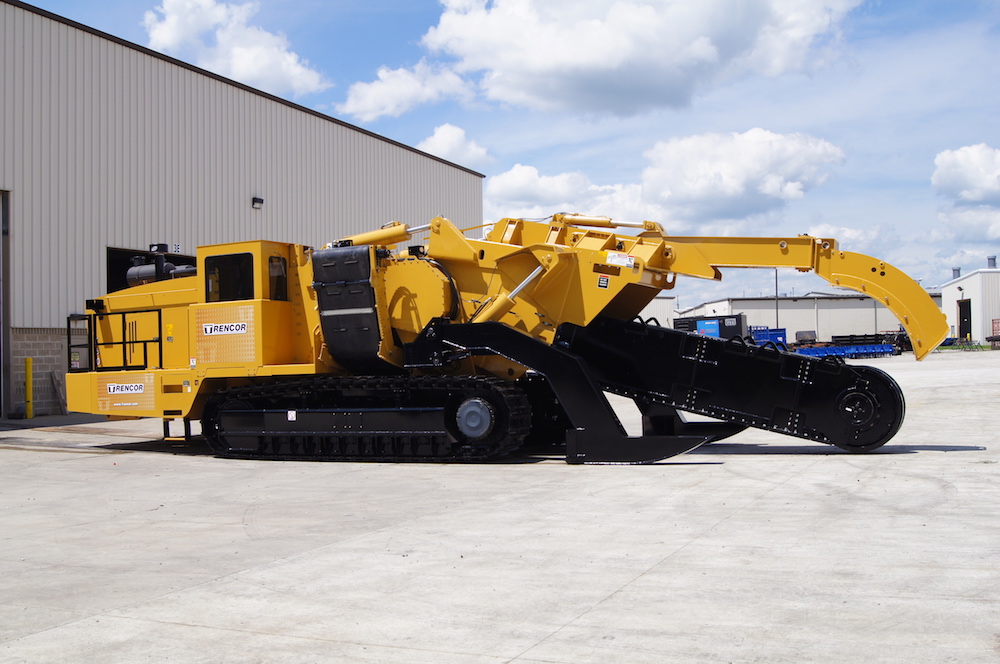

  • Chain Speed - FT/MIN (M/MIN)
    • FIRST GEAR210
    • SECOND GEAR288
    • THIRD GEAR373
    • FOURTH GEAR488
    • FIFTH GEARN/A
    • REVERSE GEAR85
  • Dimensions - IN (mm)
    • MACHINE LENGTH, NO ATTACHMENTS436.0 (11074)
    • MACHINE WIDTH, NO ATTACHMENTS165.2 (4196)
    • MACHINE OVERALL WIDTH169.0 (4293)
    • MACHINE OVERALL HEIGHT169.8 (4313)
    • TRACK WIDTH31.5 (800)
    • TRACK LENGTH189 (4801)
    • FRAME HEIGHT 21.0 (533)
    • FRAME WIDTH82 (2083)
    • DECK HEIGHT63.8 (1620)
    • CAB HEIGHT, LOWERED153 (3886)
    • CAB EXTENDED42 (1067)
    • FRONT OVERHANG HEIGHT26.6 (676)
    • FRONT OVERHANG DISTANCE162 (4115)
    • CONVEYOR BELT WIDTH42 (1067)
    • CONVEYOR LENGTH266 (6756)
    • DISCHARGE HEIGHT123 (3124)
    • DISCHARGE DISTANCE85 (2159)
    • MACHINE LENGTH, SHORT BOOM562 (14275)
    • DIGGING DEPTH, SHORT BOOM108 (2743)
    • CUTTING WIDTH RANGE16-72 (406-1829)
    • TAILWHEEL DIAMETER48 (1219)
    • TRACK CHAIN PITCH375; 10.25 (260.35)
    • DIGGING CHAIN PITCHD-8; 9 (228.6)
    • HEIGHT WITHOUT TRACKS131.7 (3345)
    • SHIPPING WIDTH164.8 (4186)
  • Engine
    • ENGINE MAKECAT
    • ENGINE MODELC27
    • POWER HP (Kw)950 @ 1800 RPM
    • TORQUE FT-LBS (N-m)3206 lb-ft @ 1200 RPM
    • U.S. GAL/hr (L/hr) FULL POWER47.5
    • FUEL CAPACITY U.S. GAL. (L)596 (2256)
    • HOURS PER FULL TANK - FULL POWER238 (900)
    • TRANSMISSIONAllison 8600
    • DEF CAPACITY U.S. GAL. (L)N/A
    • VARIABLE- REVERSING ENGINE COOLING FANHydraulic Drive
  • Weights - LB. (Kg)
    • MACHINE WEIGHT (MINER-NO CONVEYOR)216,000 (97978)
    • MINIMUM OPERATING WEIGHT246,000 (111588)
    • MAXIMUM OPERATING WEIGHT326,000 (147871)
    • SHIPPING WEIGHT (NO CWT, BOOM, TRACKS)141,000 (63958)
    • UNDERCARRIAGE WT TOTAL69,000 (31297)
    • COUNTERWEIGHT TOTAL7000
  • Chain Force - LB (KN)
    • FIRST GEAR141,664
    • SECOND GEAR103,303
    • THIRD GEAR79,784
    • FOURTH GEAR61,104
    • FIFTH GEARN/A
    • REVERSE GEAR607,838
    • GROUND SPEED LOW - MPH (KM/H).40 MPH
    • DRAWBAR PULL LOW (MAX) - LB (KN)233000
    • GROUND SPEED HIGH (MAX) - MPH (KM/H)1.5
    • DRAWBAR PULL HIGH - LB (KN)62000
    • GROUND BEARING NO ATTACH PSI (BAR)17.64
    • CONVEYOR SPEED - FT/MIN (M/MIN)1461
  • Standard Attachments - IN (mm)
    • BOOM WIDTH35 (889) 2-D8x20 (508)
    • TRENCH WIDTH X MAX DEPTH38-48 (965-1219) X 20'
    • BOOM WIDTH55 (1397) 3-D8x20 (508)
    • TRENCH WIDTH X MAX DEPTH58-68 (1473-1727) X 20'
    • BOOM WIDTH58.5 (1486) 3-D8x22 (559)
    • TRENCH WIDTH X MAX DEPTH62-72 (1562-1829) X 16'
    • PRIMARY BOOM DEPTH - FT (M)8 (2.44)
    • BOOM EXTENSIONS - FT (M)2 (.61), 4 (1.22), 8 (2.44)
    • STANDARD DIGGING DEPTHS - FT (M)8-20 (2.44-6.10)
