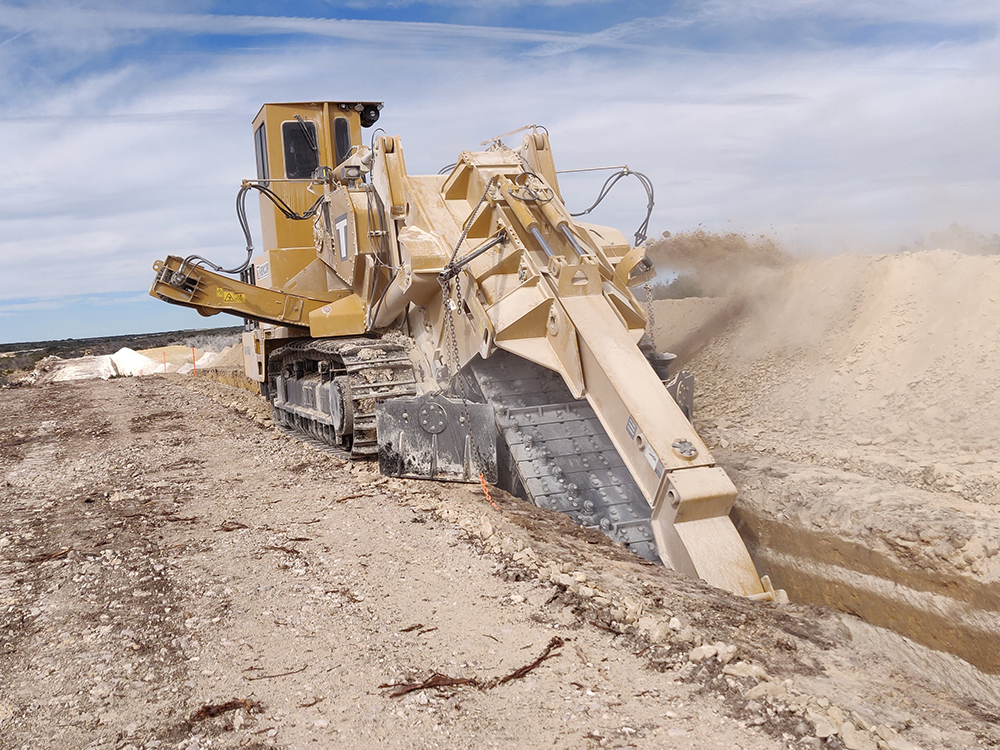

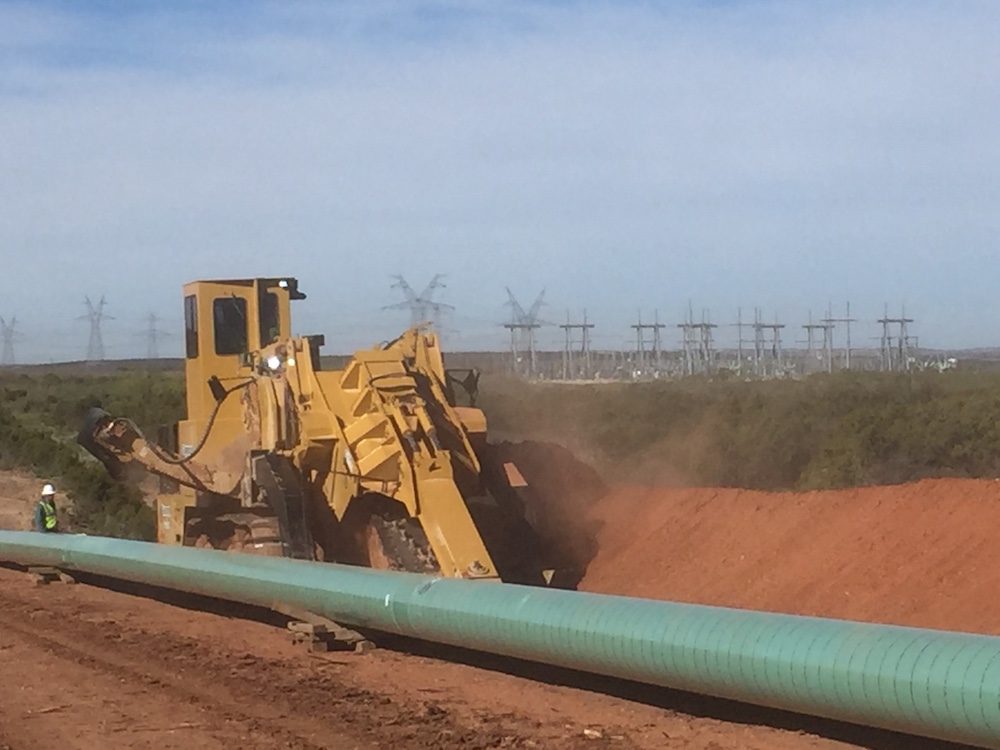

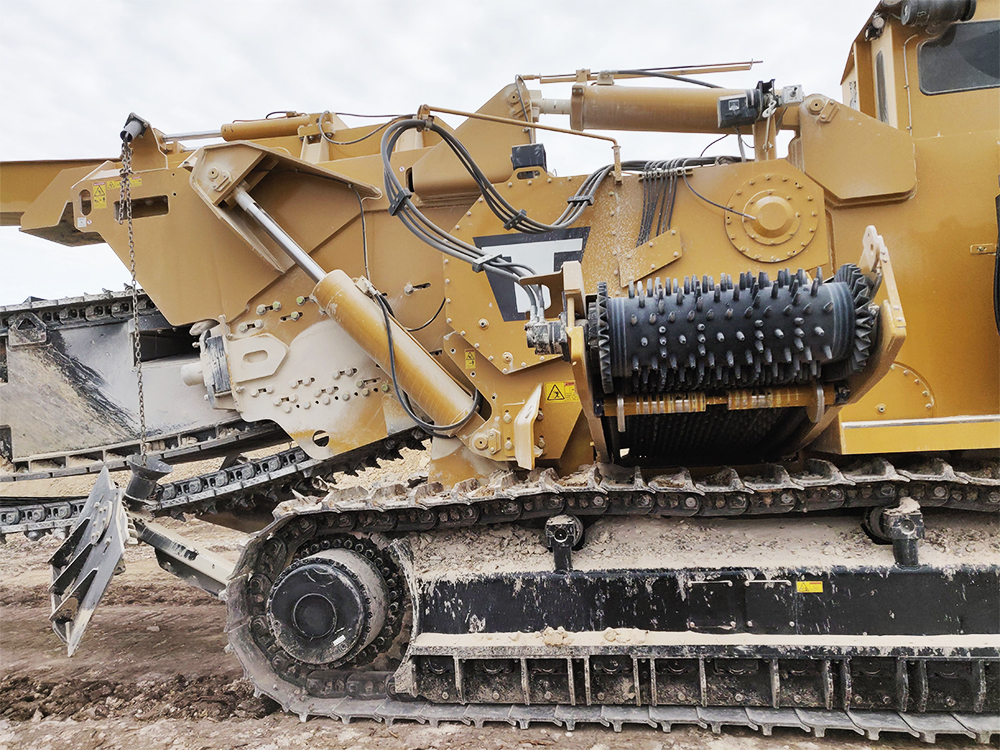

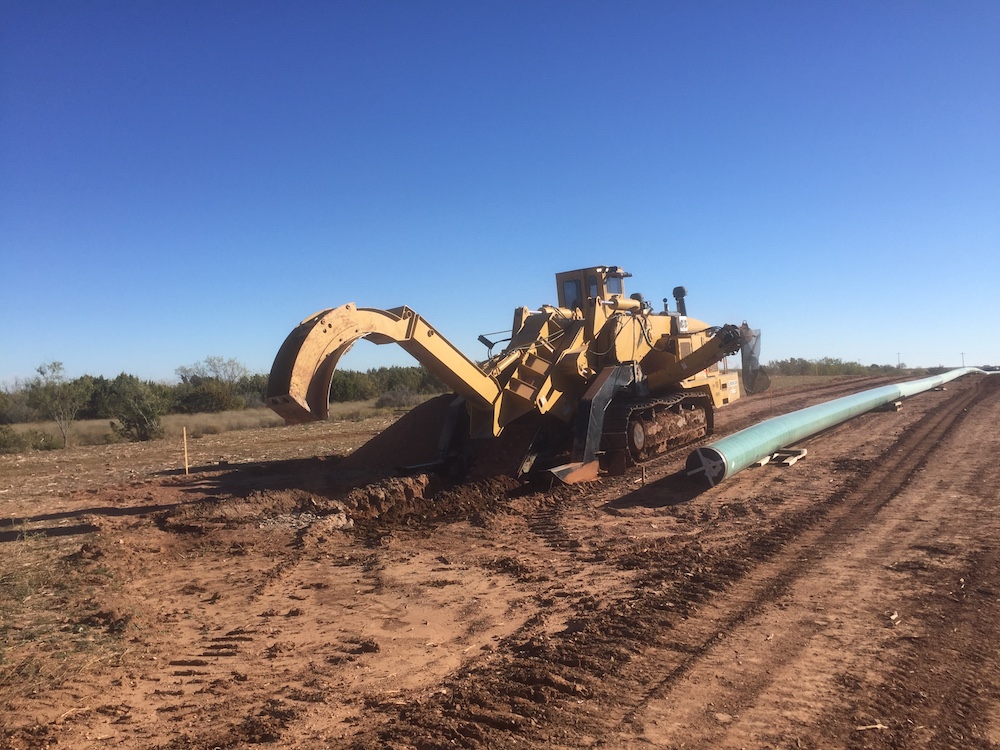

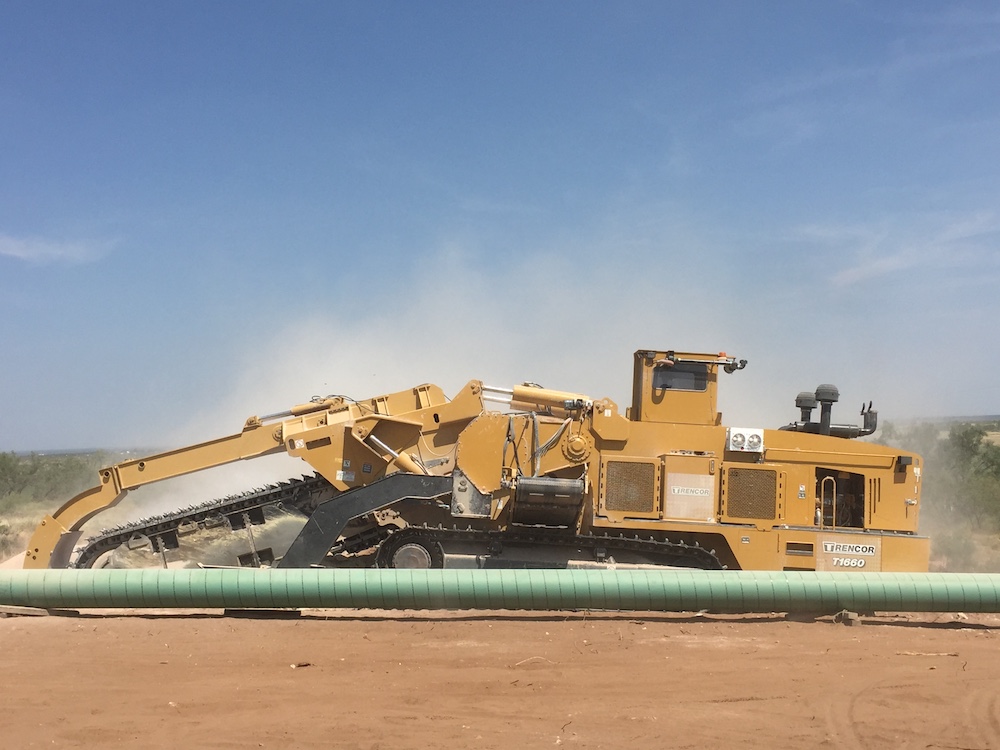

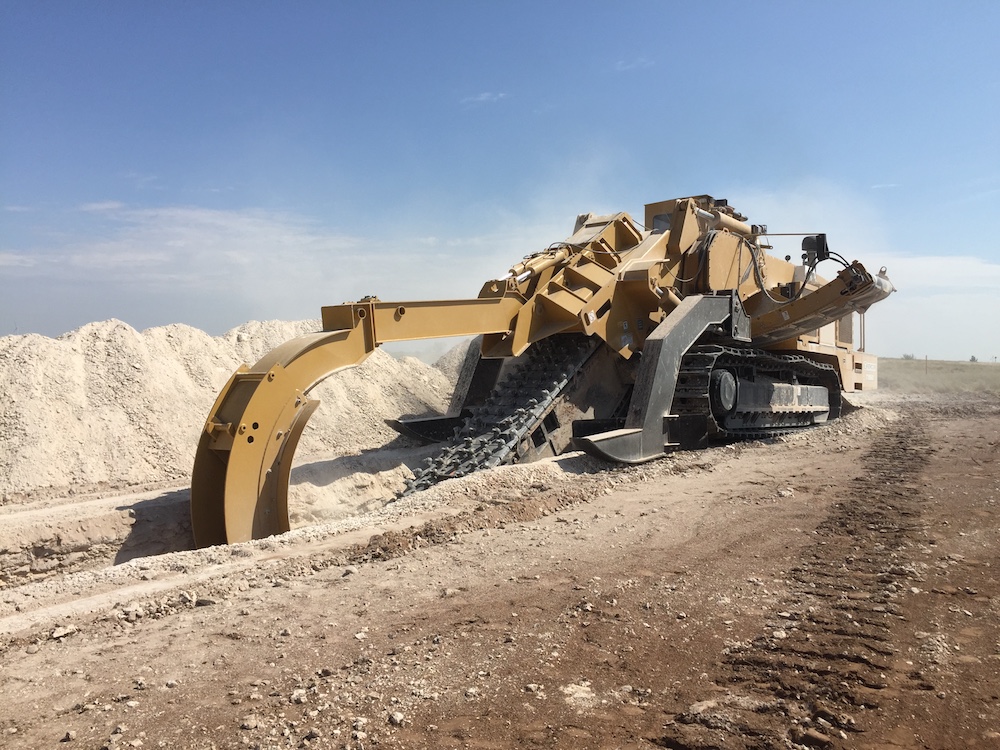

T16

Trencor
Trencor Trenchers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

FEATURES

Long life mechanical large track trenchers that provide unmatched performance for decades.

Increased horsepower to 950 HP C27 in Tier 4 and Tier 2
Built to withstand hard rock trenching
Clean trench bottom and re-usable backfill
Equipped with advanced load control software and PinPoint telematics

Features

+ Expand All
- Close All

Weights - LB. (Kg)
- MACHINE WEIGHT (MINER-NO CONVEYOR)210,000 (95256)
- MINIMUM OPERATING WEIGHT240,000 (108862)
- MAXIMUM OPERATING WEIGHT320,000 (145149)
- SHIPPING WEIGHT (NO CWT, BOOM, TRACKS)135,000 (61236)
- UNDERCARRIAGE WT TOTAL69,000 (31297)
- COUNTERWEIGHT TOTAL7000
Dimensions - In (mm)
- MACHINE LENGTH, NO ATTACHMENTS435.4 (11060)
- MACHINE WIDTH, NO ATTACHMENTS153.2 (3891)
- MACHINE OVERALL WIDTH153.2 (3891)
- MACHINE OVERALL HEIGHT169.8 (4313)
- SHIPPING WIDTH148.3 (3767)
Engine
- Engine MakeCAT
- Engine ModelC27
- POWER HP (Kw)950 @ 1800 RPM
- TORQUE FT-LBS (N-m)3206 lb-ft @ 1200 RPM
- U.S. GAL/hr (L/hr) FULL POWER47.5
- FUEL CAPACITY U.S. GAL. (L)596(2256)
- HYD CAPACITY U.S. GAL. (L)238(900)
- HOURS PER FULL TANK - FULL POWERN/A
- TRANSMISSIONAllison 8600
- DEF CAPACITY U.S. GAL. (L)N/A
- VARIABLE- REVERSING ENGINE COOLING FANHydraulic Drive
Chain Force - LB (KN)
- FIRST GEAR141664
- SECOND GEAR 103303
- THIRD GEAR79784
- FOURTH GEAR61104
- FIFTH GEARN/A
- REVERSE GEAR 607838
- GROUND SPEED LOW - MPH (KM/H).40 MPH
- DRAWBAR PULL LOW (MAX) - LB (KN)233,000
- GROUND SPEED HIGH (MAX) - MPH (KM/H)1.5
- DRAWBAR PULL HIGH - LB (KN)62000
- GROUND BEARING NO ATTACH PSI (BAR)17.64
- CONVEYOR SPEED - FT/MIN (M/MIN)1461
Chain Speed
- FIRST GEAR210
- SECOND GEAR288
- THIRD GEAR373
- FOURTH GEAR488
- FIFTH GEAR N/A
- REVERSE GEAR 85
Standard Attachments - In (mm)
- BOOM WIDTH27 (686) 2-D8x12 (305)
- TRENCH WIDTH X MAX DEPTH28-40 (711-1016) X 24'
- BOOM WIDTH35 (889) 2-D8x20 (508)
- TRENCH WIDTH X MAX DEPTH38-48 (965-1219) X 20'
- BOOM WIDTH55 (1397) 3-D8x20 (508)
- TRENCH WIDTH X MAX DEPTH58-60 (1473-1524) X 16'
- PRIMARY BOOM DEPTH - FT (M)8 (2.44)
- BOOM EXTENSIONS - FT (M)2 (.61), 4 (1.22), 8 (2.44)
- STANDARD DIGGING DEPTHS - FT (M)8-24 (2.44-7.32)
