  • Backfill Blade
    Backfill Blade U.S. Metric Blade width 80 in 2030 mm Blade height 17 in 430 mm Lift height above ground 26 in 660 mm Blade drop below ground 10 in 254 mm Maximum swing angle (left/right) 30° 30° Tilt angle (up/down) 12° 12°
  • Superior Support
    RT125
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • Vibrational Level
    Vibrational Level Average vibration transmitted to the operator’s hand during normal operation is 5.98 m/sec2. Average vibration transmitted to the operator’s whole body during normal operation does not exceed 0.64 m/sec2. Operator seat per ISO 6683 / SAE J386
  • Battery (2 used)
    Battery (2 used) Group 65, SAE res. Cap 165 min., SAE cold crank @ 0° F (-18° C), 875 amp Auxiliary power outlet - 12 volt, 10 amp
  • Power
    RT125
    Power

    121-hp (90-kW) turbocharged Tier 4 Deutz diesel engine keeps the RT125 running strong all day long.

    Standard four-wheel drive helps provide superb traction and mobility in all kinds of jobsite conditions and applications.

  • Dimensions
    Dimensions U.S. Metric Angle of approach 25° 25° Height 115 in 2920 mm Height 105 in. 2667 mm Nose to rear mount length 125 in 3175 mm Length - transport 154 in 3910 mm Wheelbase 79 in 2005 mm Width 82 in 2085 mm Tread 64 in 1625 mm
  • Rugged Design
    RT125
    Rugged Design

    Massive one-piece rigid frame design increases capacity and endurance; optional tilt-frame configuration helps you dig a vertical trench on uneven ground.

    Six-post Rollover Protective System (ROPS) includes a canopy; an enclosed cab and climate-control system are optional.

    Removable side panels provide easy access to service areas; engine service points are conveniently located, and the oil level can be checked without opening the engine enclosure.

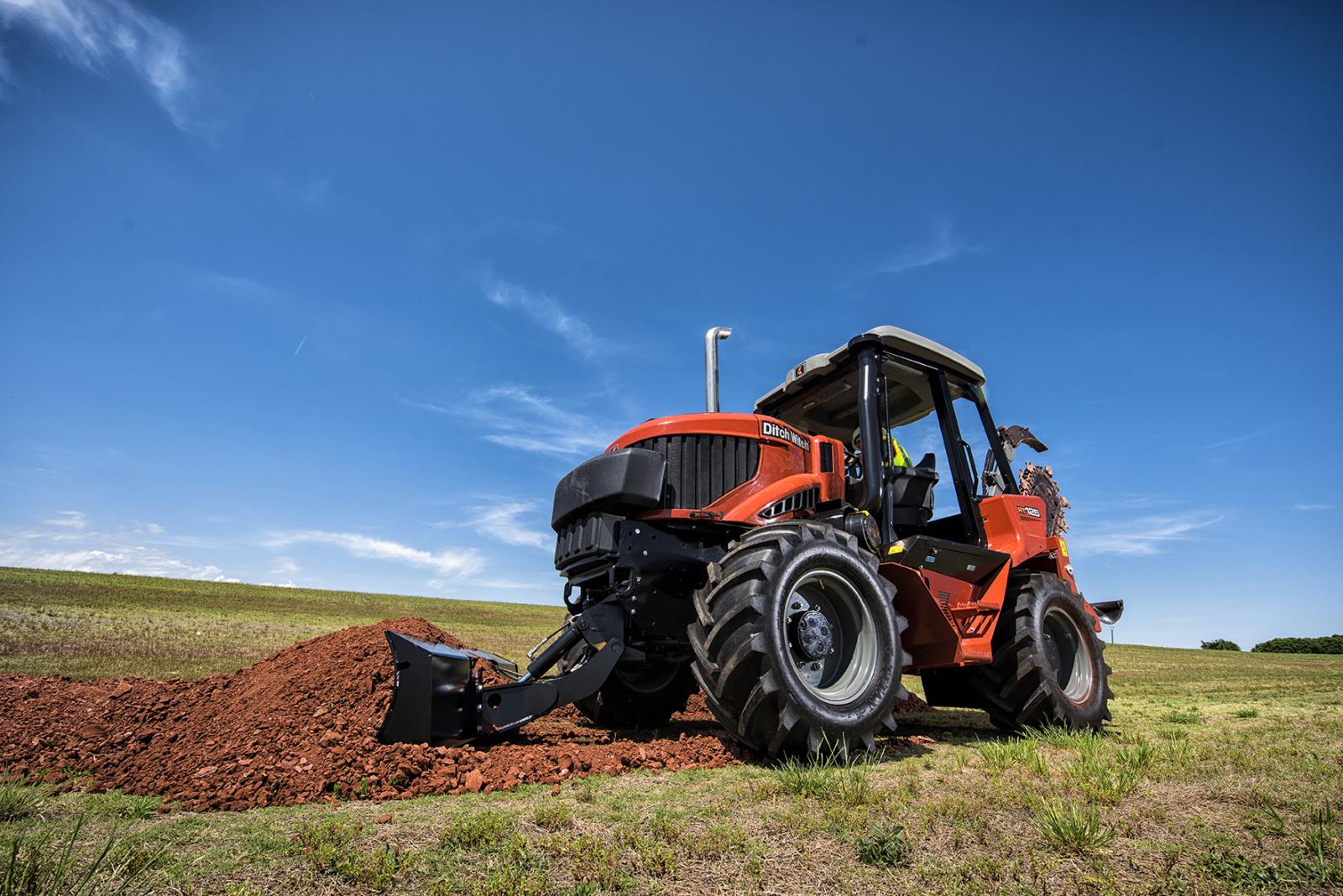

    Solid backfill blade lift arms and cast blade pivot increase structural strength of the backfill components.

    Durable steel hydraulic tank and fuel tanks make more efficient use of available space and are enclosed in a steel cradle.

  • Power Plant
    Power Plant Engine Deutz TCD3.6L4 Fuel Diesel Cooling Medium Liquid Injection Direct Aspiration Turbocharged, Charge Air Cooled Number of cylinders 4 U.S. Metric Displacement 221 in3 3.6 L Bore 3.86 in 98 mm Stroke 4.72 in 120 mm Manufacturer’s gross power rating (SAE J1995) 121 hp 90 kW Estimated net power rating (SAE J1349) 113 hp 84 kW Rated speed 2300 rpm 2300 r/min Maximum engine tilt angles (Longitudinal) 30° 30° Maximum engine tilt angles (Lateral) 30° 30° Emissions compliance (highly regulated countries) EPA Tier 4 Final EU Stage IV Emissions compliance (less regulated countries) EPA Tier 4i EU Stage IIIb
  • Hydraulic System
    Hydraulic System U.S. Metric Ground drive pump capacity @ 2300 rpm 27.5gpm 104 L/min Ground drive pump relief pressure @ 2300 rpm 5300 psi 365 bar Attachment pump capacity @ 2300 rpm 45 gpm 170.5 L/min Attachment pump relief pressure @ 2300 rpm 6500 psi 448 bar Auxiliary pump capacity @ 2300 rpm 5.1 gpm 19.3 L/min Auxiliary pump relief pressure @ 2300 rpm 3000 psi 206 bar Steering pump capacity @2300 rpm 8.6 gpm 32.5 L/min Steering pump relief pressure @2300 rpm 3000 psi 206 bar
  • Power Train
    Power Train Ground drive transmission hydrostatic Driven 2-speed Differentials planetary front and rear with rear steering Service brake Disc Type , foot operated Parking brake Disc Type, SAHR Tires 38x 18.00-20 NHS(TL) Attachment drive transmission hydrostatic
  • Fluid Capacities
    Fluid Capacities U.S. Metric Fuel tank 38 gal 144 L Engine oil 8.5 qt 8 L Hydraulic reservoir 25 gal 95 L Hydraulic system 30 gal 114 L Cooling system 4.25 gal. 16.1 L DEF tank 2.6 gal 10 L
  • Operation
    Operation U.S. Metric Forward speeds (Low/Low) .5 mph .8 k/h Forward speeds (Low/High) 1.3 mph 2.1 k/h Forward speeds (High/Low) 4.5 mph 7.2 k/h Forward speeds (High/High) 8.0 mph 12.87 k/h Reverse speeds (Low/Low) .5 mph .8 k/h Reverse speeds (Low/High) 1.3 mph 2.1 k/h Reverse speeds (High/Low) 3.2 mph 5.1 k/h Reverse speeds (High/High) 5.5 mph 8.8 k/h Vehicle clearance circle (SAE) wall to wall with backfill blade (Front steer only) 35 ft 10.7 m Vehicle clearance circle (SAE) wall to wall with backfill blade (Front and rear steer) 21 ft 6.4 m Ground clearance 14 in 356 mm Basic unit weight 9700 lb 4400 kg Maximum allowable tractor weight 22000lb 9979 kg Front counterweight 1300 lb 590 kg Side counterweight (each) 250 lb 114 kg
  • Productivity
    RT125
    Productivity

    Extraordinary versatility with a large selection of hydrostatic attachments to increase jobsite productivity.

    Dial control design gives the operator precise control of the ground drive speed and attachments, maximizing production.

    Cruise-control system senses engine load and automatically adjusts ground drive speed for maximum production.

    Custom designed backfill blade control with an electronic float provides excellent controllability at your fingertips.

  • Noise Levels
    Noise Levels Operator 91 dBA sound pressure per ISO 6394 Exterior 107 dBA sound power per ISO 6393. Unless otherwise specified, all figures are for standard equipment only. Specifications are called out according to SAE recommended procedures. Due to selected options, delivered equipment may not necessarily match that described. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured.
  • Operator's Station
    RT125
    Operator's Station

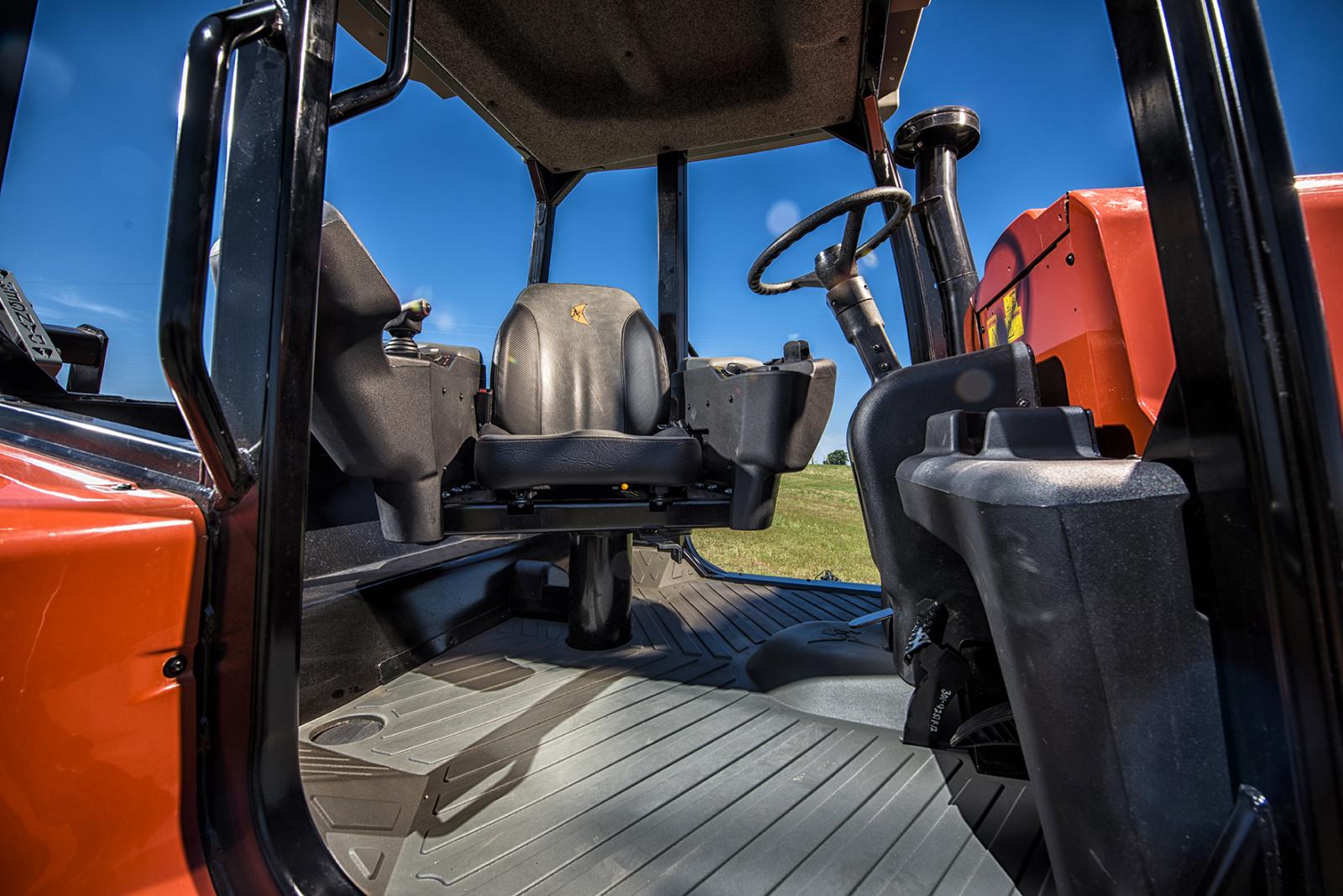

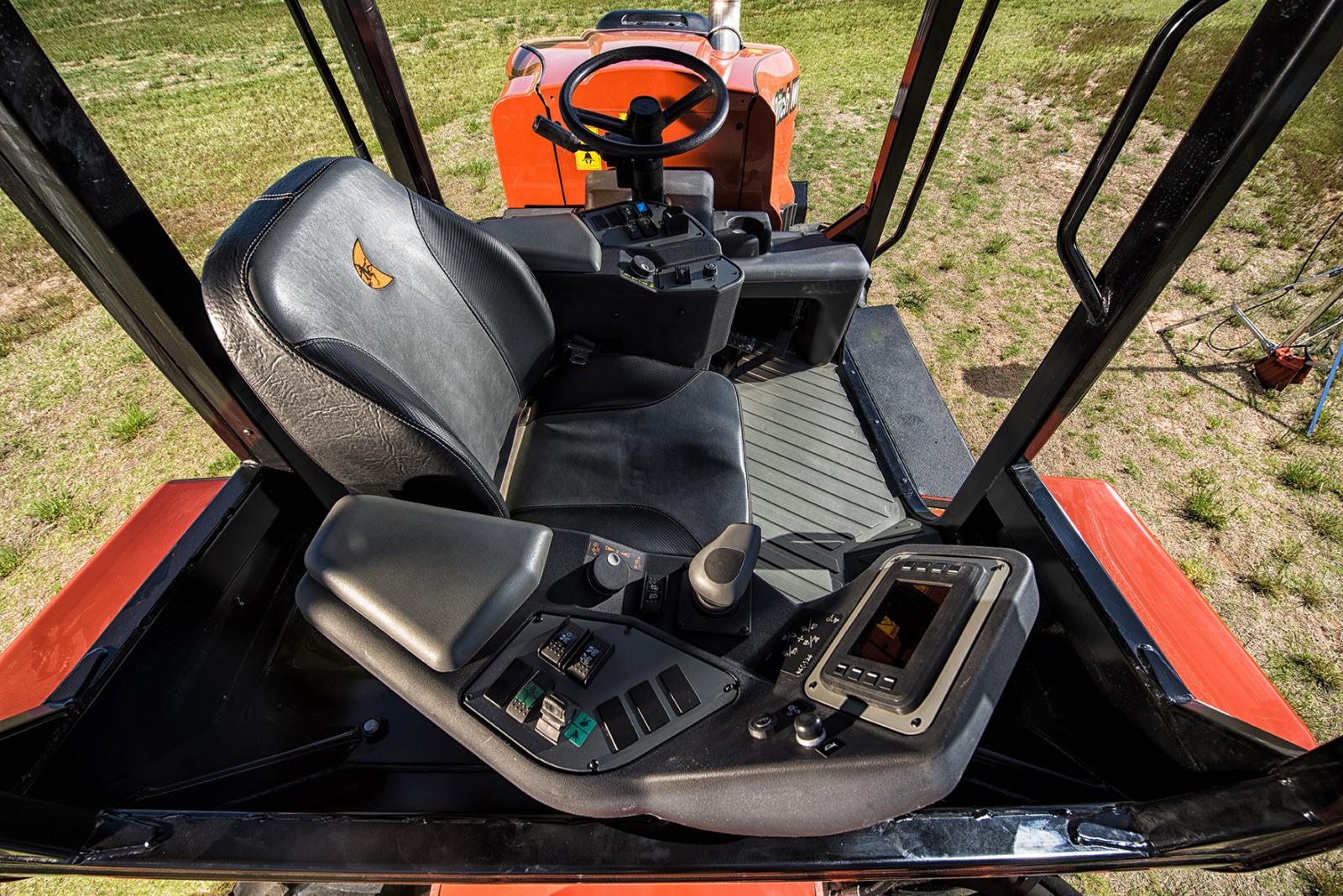

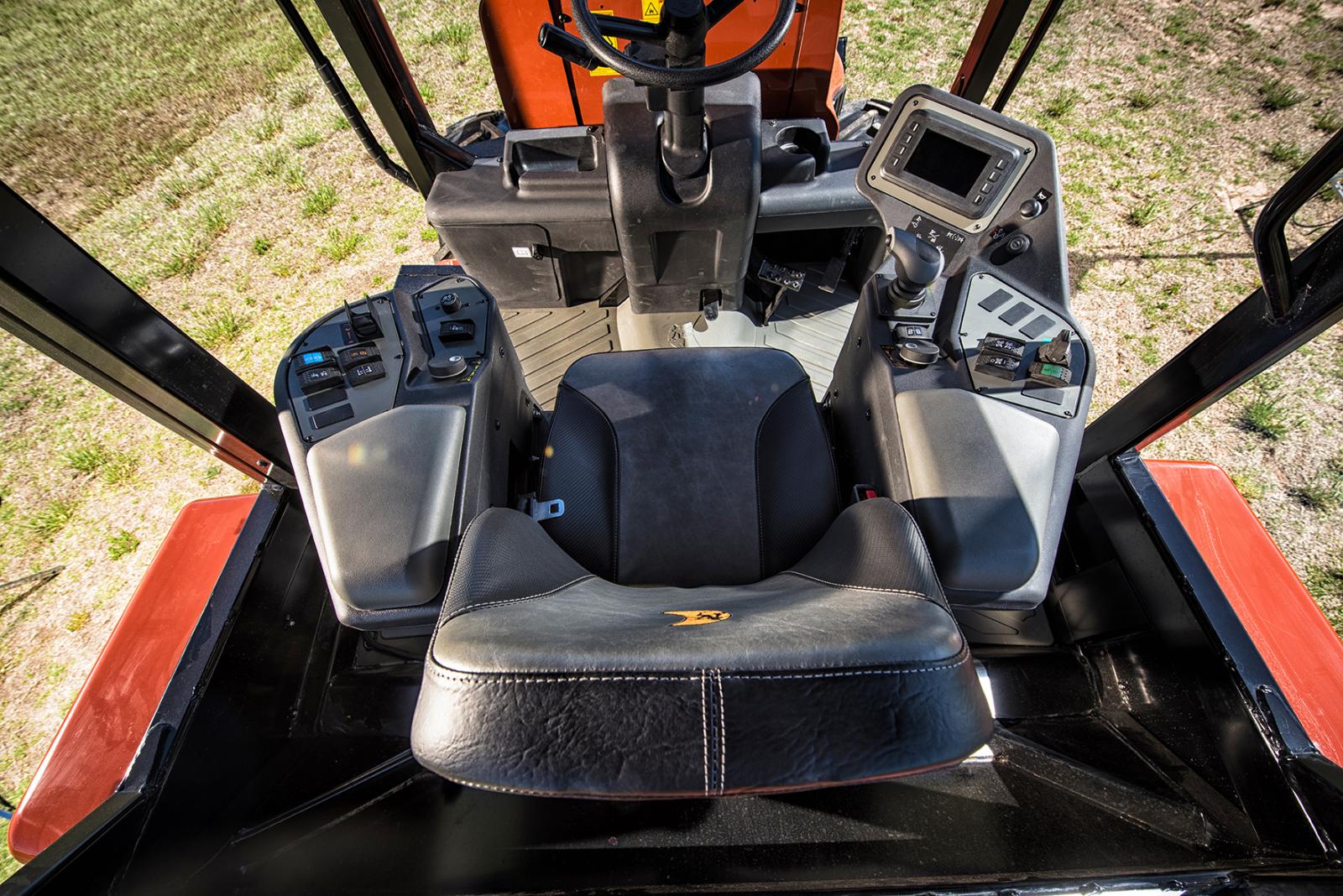

    Ergonomically designed rotating seat is the ultimate in comfort. The machine controls console rotates 120-degrees with the operator for easier, more comfortable operation.

    Cab design adds plenty of legroom for extreme comfort. Updated foot pedal design, easy-to-read gauges and controls, and a tilt steering column provide maximum productivity.

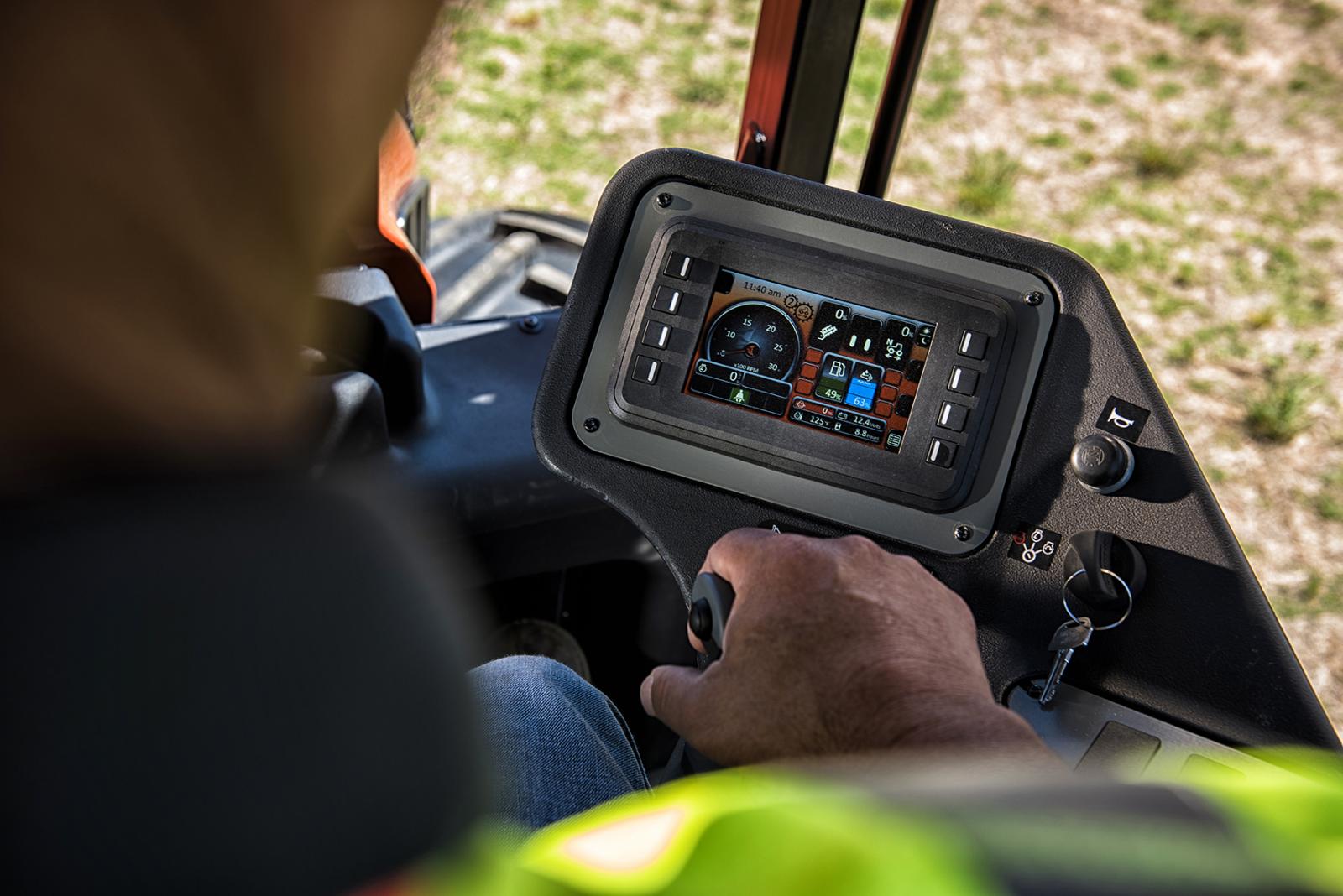

    5-inch color LCD engine display provides all engine information and diagnostics while rotating with the operator so it’s always there for you to easily view.

    Rubber isolators between the cab and frame reduce vibration and provides a comfortable ride for the operator.
