MT16 Microtrencher

  • Ditch Witch
  • Microtrencher

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

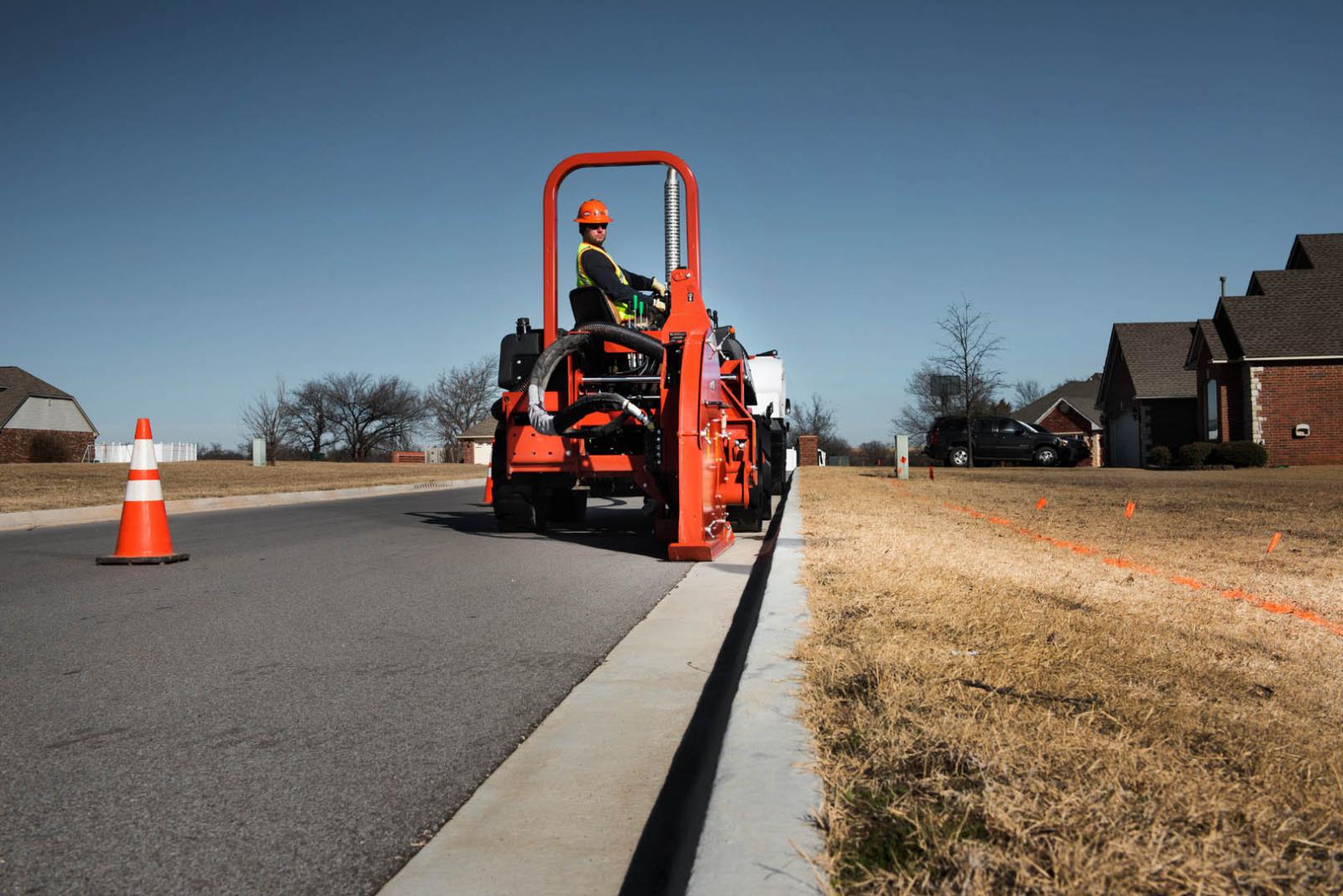

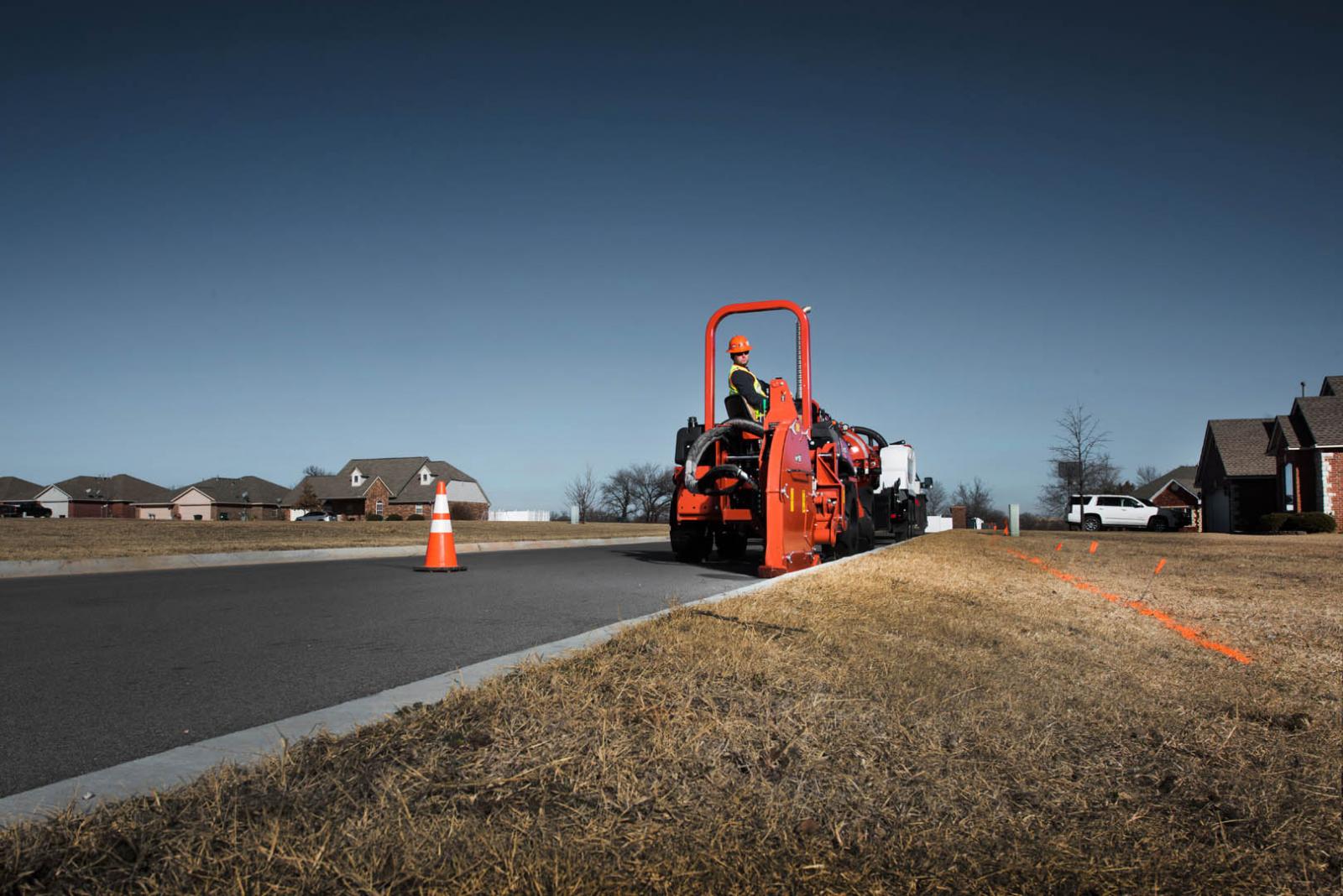

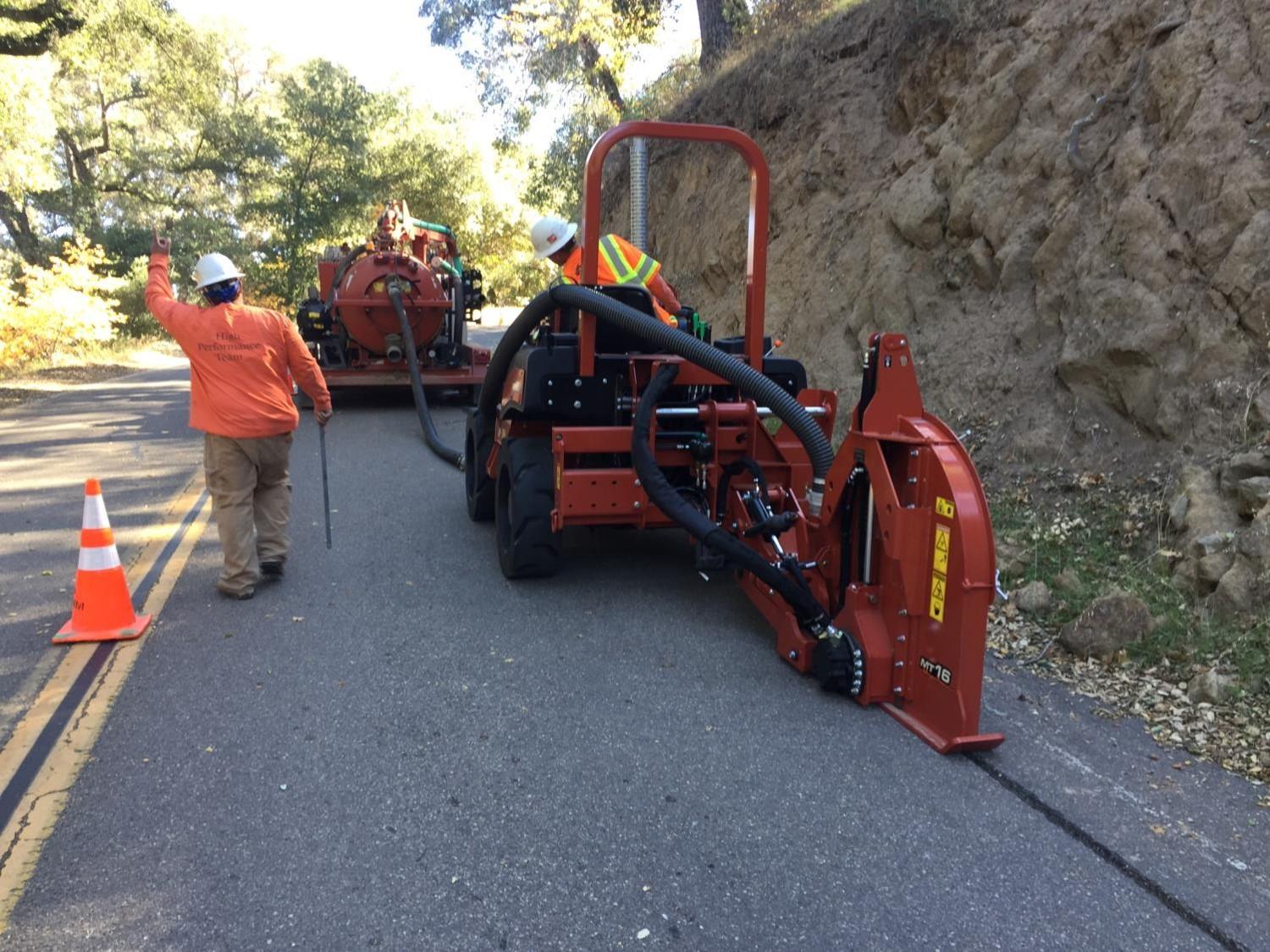

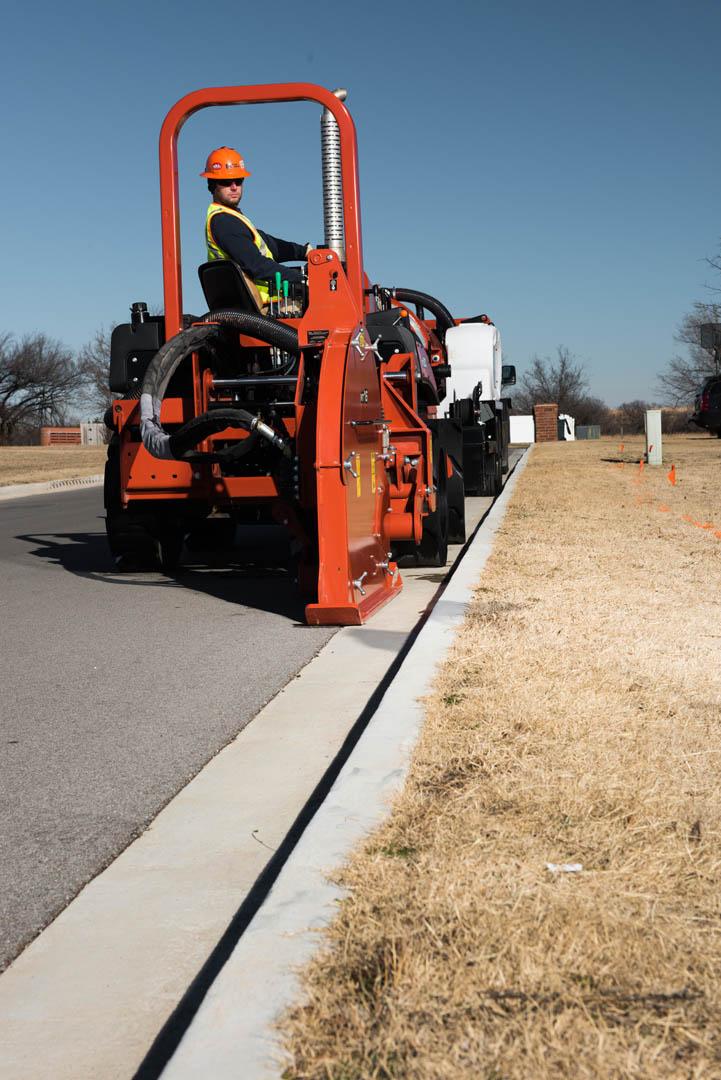

The innovative and powerful Ditch Witch MT16 microtrencher delivers clean, precise cuts through asphalt or concrete, helping utility contractors install fiber-optic cable along paved rights-of-way with ease. The MT16 reduces jobsite cost-per-foot compared to traditional installation methods with its unique saw blades and durable design. Compact yet construction-grade, the versatile MT16 is able to take on a variety of tough jobs in tight spaces. It is part of a complete microtrenching system, available for the Ditch Witch RT55 and RT80 ride-on trenchers, and for an HX75 vacuum excavator to handle dry, dusty spoils. All components of the system are designed and manufactured by the Ditch Witch organization to work together with unbeatable efficiency.

  • + Expand All
  • - Close All
  • Superior System
    MT16
    Superior System

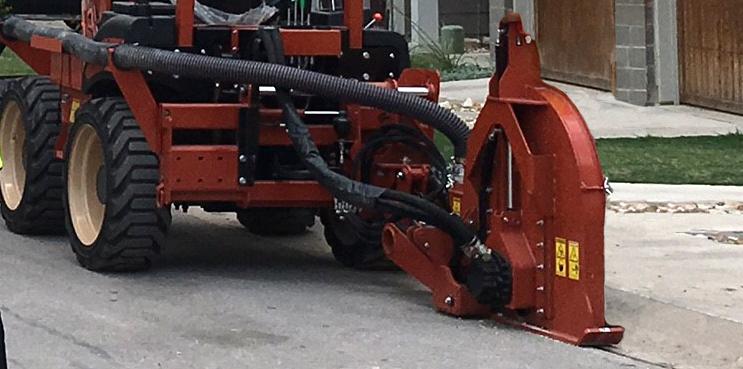

    The MT16 is part of a complete microtrenching system specifically designed and configured for the Ditch Witch RT55 and RT80 ride-on trenchers.

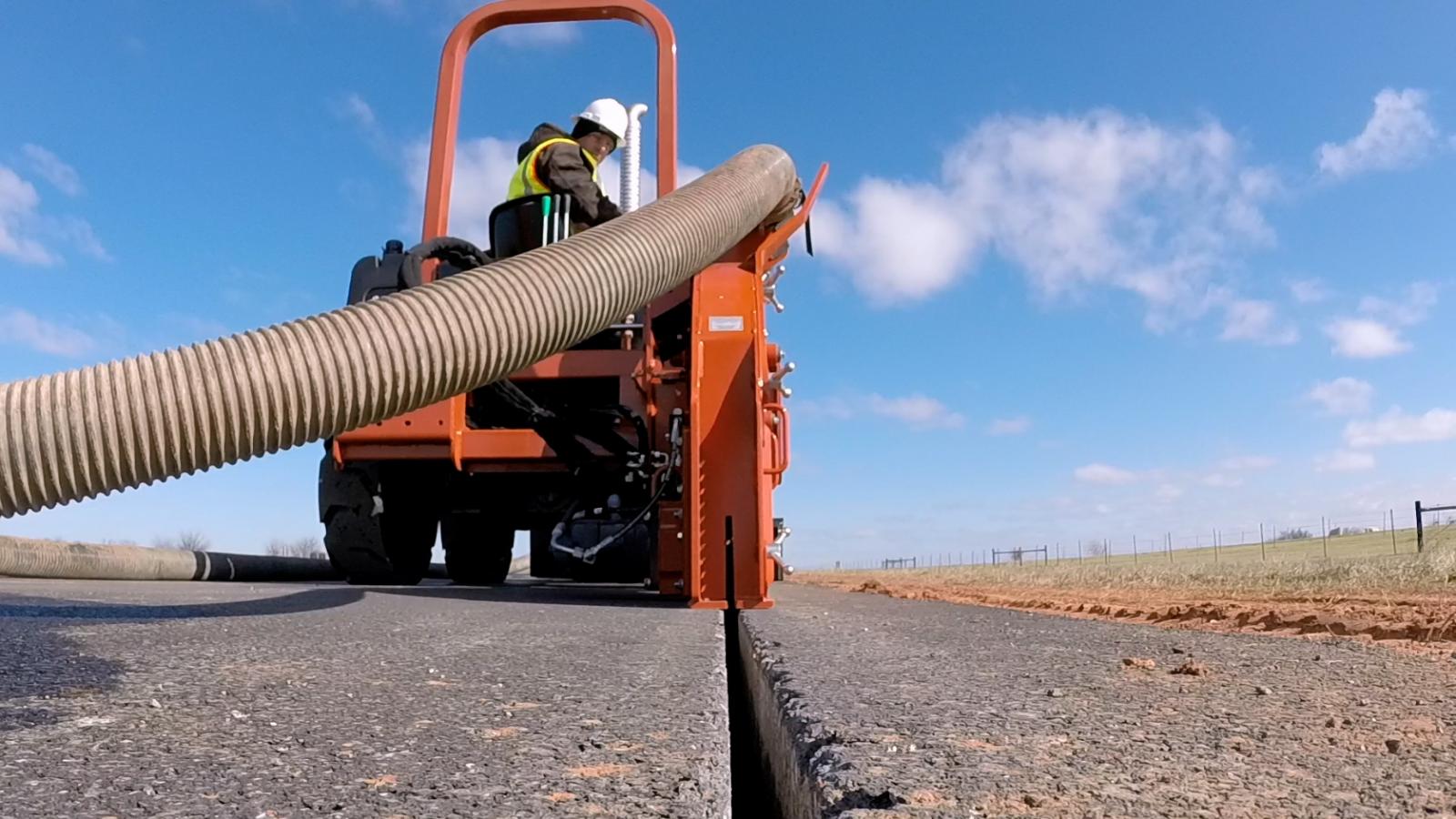

    Vacuum excavation is used to remove spoils created by the saw blade during trenching to reduce cleanup time and labor expense.?

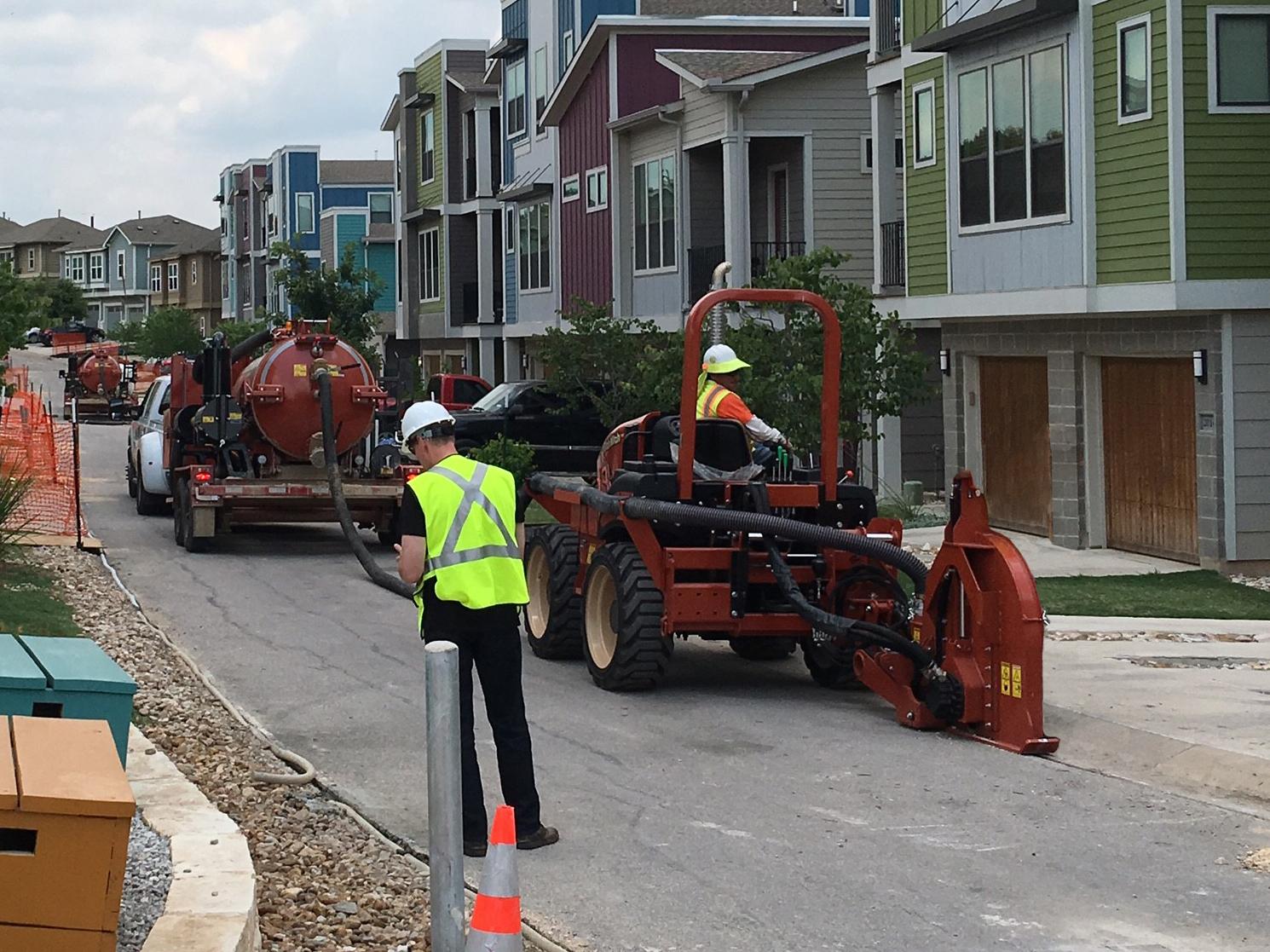

    The Ditch Witch HX75 vacuum excavator equipped with a cyclonic separator to handle the dry, dusty spoils produced by microtrenching can be positioned either in front of the trencher or to the rear depending on jobsite needs.

  • MT16
    MT16 U.S. Metric Angle of departure 20 Trench depth 0.0-16.0 in 0-406 mm Blade diameter 43 in 1092 mm Attachment height, transport 80.5 in 2045 mm Ground clearance at lowest point 11 in 279 mm Length, transport (from CL of rear axle) 93 in 2362 mm Working length (from CL of rear axle) 111 in 2819mm Length, transport (from front of attachment) 77 in 1956 mm Saw offset distance 24 in 610 mm CL saw to CL unit (minimum offset) 7 in 178 mm Width, max. working 74 in 1880 mm Trench width 0.50-1.5 in 12.7-38.1 mm CL unit to outside left tire 31x10 solid tires) 31.5 in 800 mm CL unit to end of traverse frame 27.7 in 704 mm Width - transport 67.5 in 1715mm Saw tilt adjustment +/- 6 Attachment weight (includes mount kit) 2,015 lb 914 kg Approximate minimum sawing radius - offset to right* 35 ft 10.7 m Saw motor displacement 57 in3 934cc Blade speed, variable 0-142 rpm Vibration transmitted to the operator’s during normal operation    Hand/Arm 5.2 m/sec2    Feet/Seat .32 m/sec2 Specifications are general and subject to change without notice. If exact measurements are required, equipment * Minimum sawing radius will depend on surface conditons and hardness of material being cut. Cut will be slightly wider in curved sections of the trench.
  • Worldwide Support
    MT16
    Worldwide Support

    Part of a complete Ditch Witch microtrenching system that includes a specially configured Ditch Witch RT45 or RT55 trencher and an FX60 vacuum excavator equipped with a cyclonic separator to handle the dry, dusty spoils produced by microtrenching.

    All Ditch Witch machines and devices are backed by a global network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.?

  • Efficient Cut
    MT16
    Efficient Cut

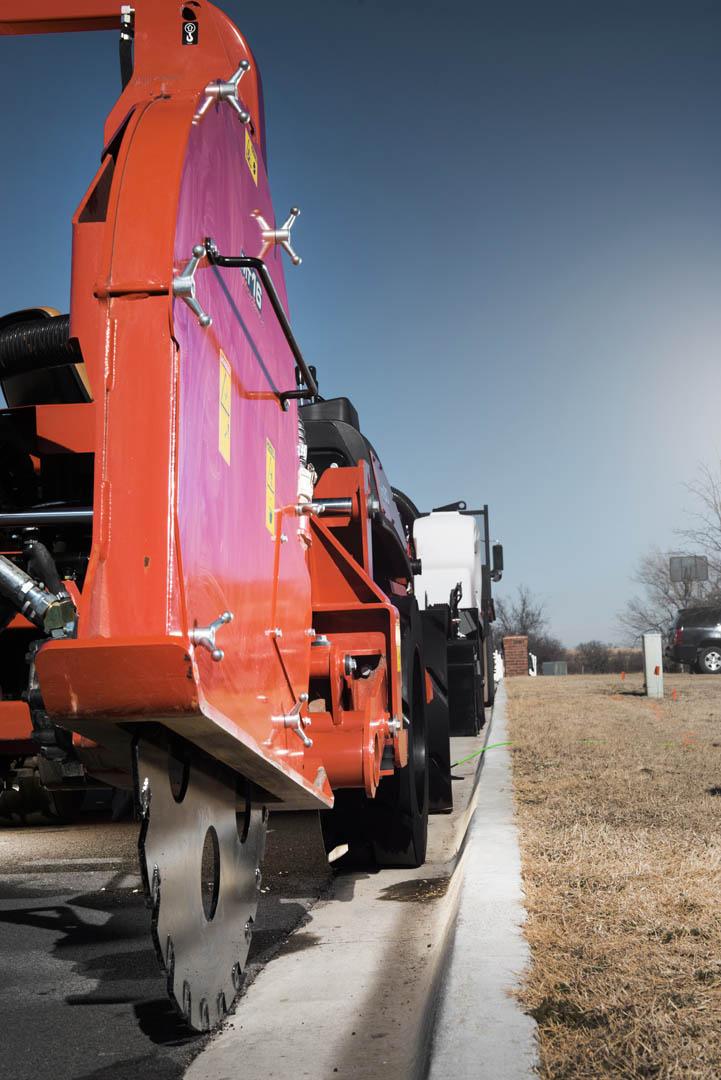

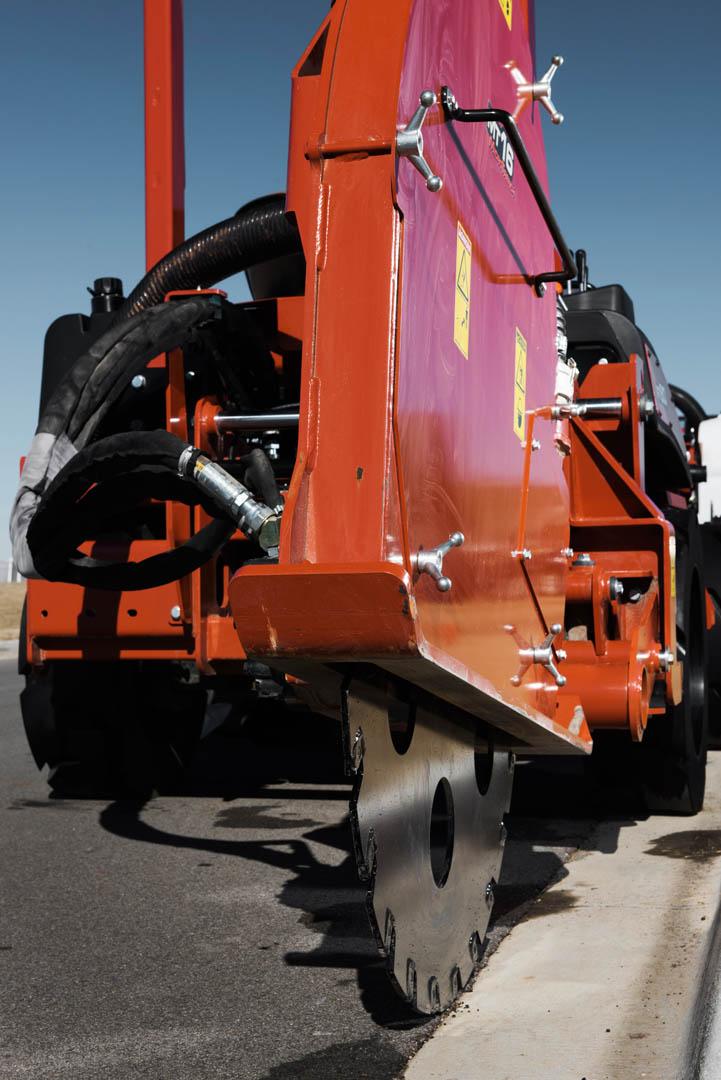

    The MT16 saw articulates/flexes up to 6 degrees when following the machine path to allow a tighter cut radius. This enables operators to effectively cut on a 90-degree street corner or cul-de-sac.?

    The narrow, small trench enables contractors to install fiber shallower than other utilities with minimal disruption to the surrounding infrastructure, saving time and money.?

    Designed specifically for faster fiber installation, the MT16 helps contractors reduce cost-per-foot beyond traditional installation methods. ?

  • Productivity
    MT16
    Productivity

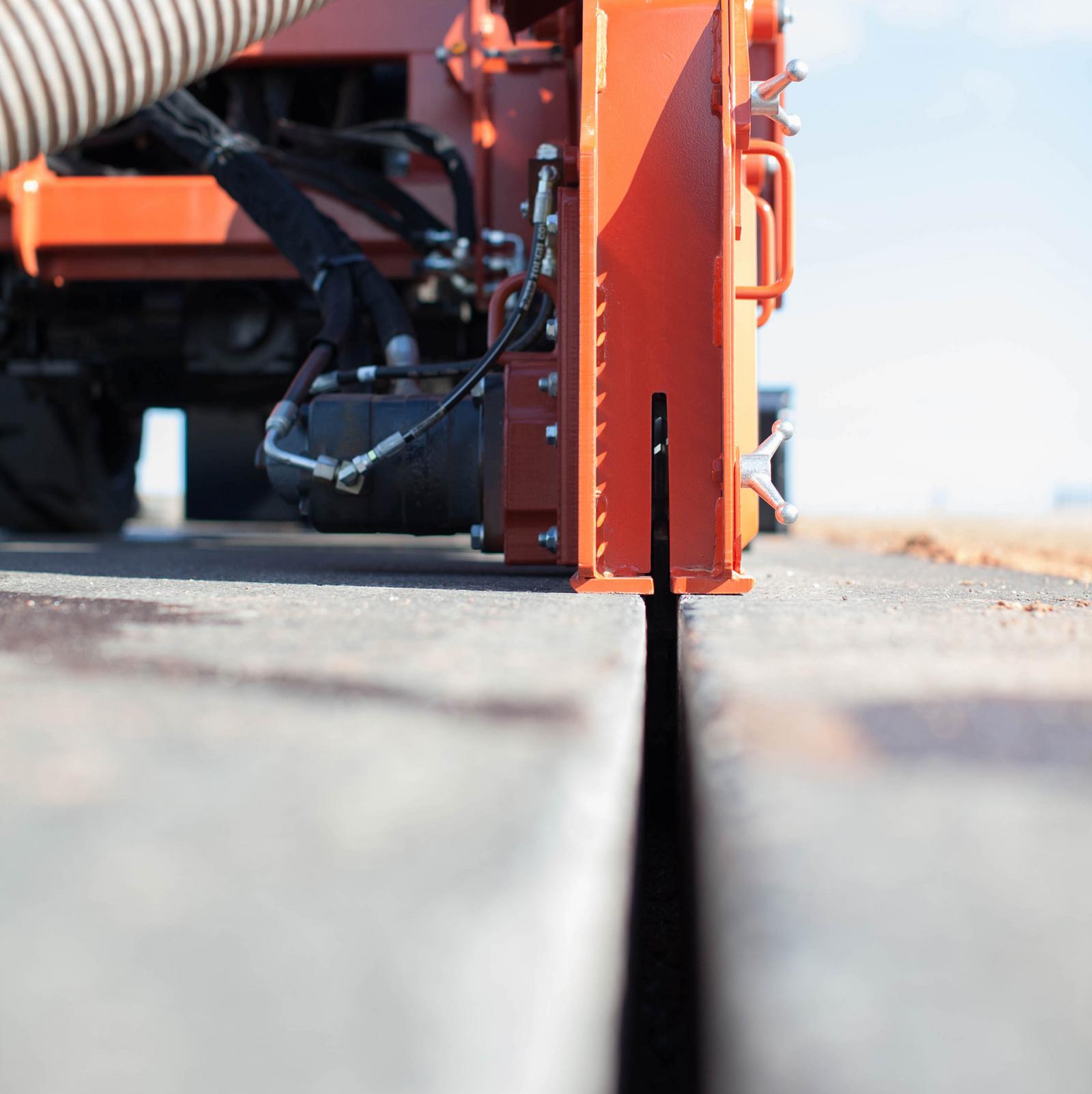

    The MT16 creates an ideal trench for fiber-optic cable installation—from 0.5 to 1.5 in (12.7 to 38.1 mm) wide and up to 16 in (406.4 mm) deep.?

    The narrow, small trench enables contractors to install fiber shallower than other utilities with minimal disruption to the surrounding infrastructure, saving time and money.?

    Designed specifically for faster fiber installation, the MT16 helps contractors reduce cost-per-foot beyond traditional installation methods. ?

  • Innovative
    MT16
    Innovative

    Ditch Witch provides the most dedicated offerings to support the deployment of underground fiber installation, including microtrenching systems.

    Based on direct feedback from underground construction operators, Ditch Witch microtrenching equipment is the industry leader, helping you get fiber jobs done efficiently with less time and expense.

    The versatile MT16 can also be used for other roadway applications, including cutting expansion joints, utility repair and maintenance.?

  • Durable Blades
    MT16
    Durable Blades

    Blades are easily changeable on a jobsite with standard hand tools, saving operators time on the job and improving productivity.

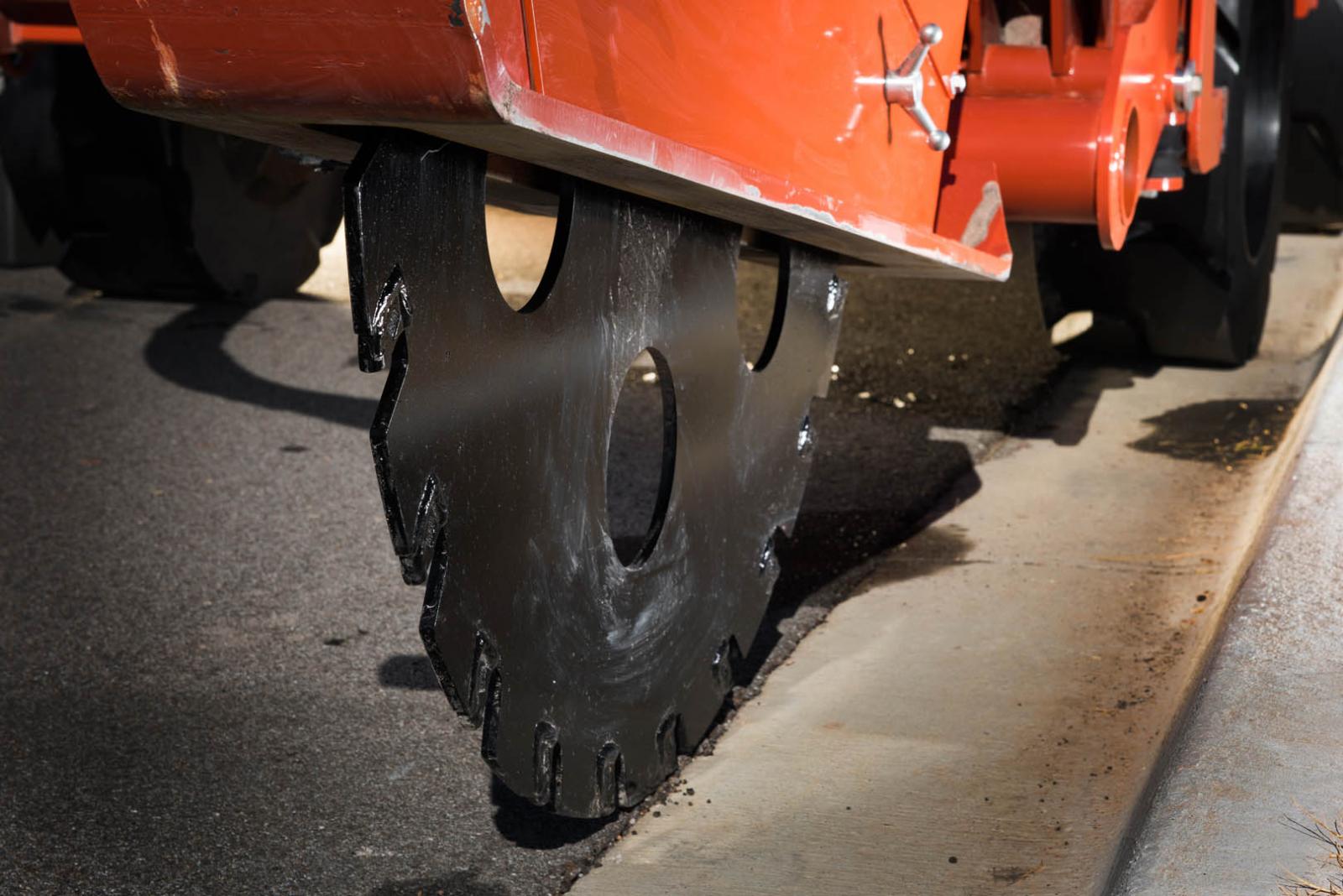

    The unit can be equipped with a variety of unique saw blades, each designed to cut precise, clean, narrow trenches in one quick, efficient pass.?

    Ditch Witch offers a complete lineup of saw blades ranging from standard carbide-tipped blades to the Ditch Witch-exclusive PDC blades with diamond embedded carbide.?

    The Ditch Witch-exclusive PDC blade further enhance machine performance and ROI. The durable, maintenance-free design is proven to last up to 10 times longer than standard blades.?
