Key Features & Specs

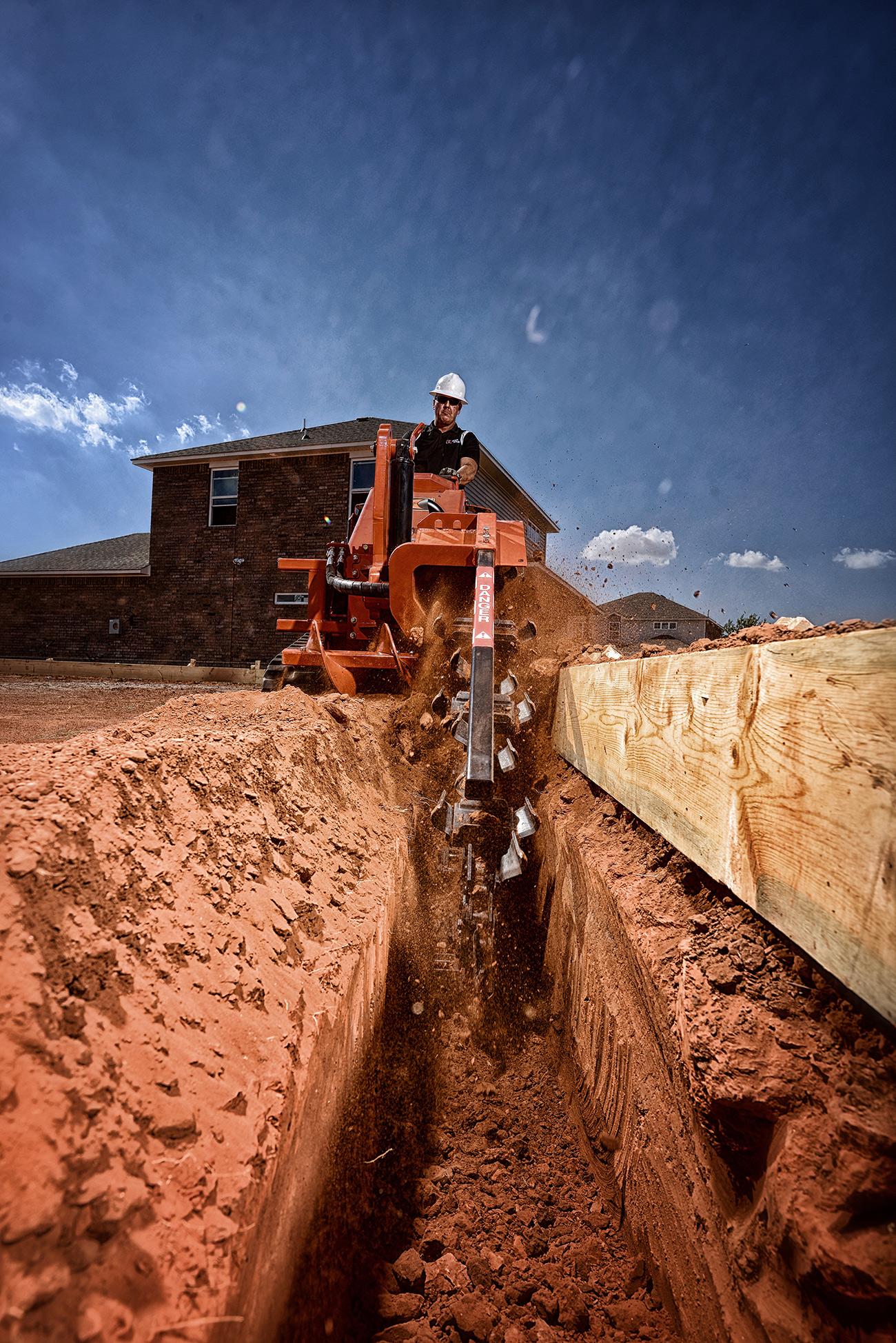

The construction-grade ST37X stand-on trencher is the most powerful and durable machine in its horsepower class with an integrated digging system. The innovative machine is ideal for creating footings on residential or commercial properties, installing drainage pipe and other trenching and landscape duties. The ST37X can trench up to 16 in (41 cm) wide and 36 in (91 cm) deep and creates cleaner, more consistent footings than an excavator, and in less time.
- + Expand All
- - Close All
-
DIMENSIONS
DIMENSIONS U.S. METRIC Height 57 in 1450 mm Length, w/out chain 104.5 in 2654 mm Length, w/36-in chain 130 in 3302 mm Width 42 in 1065 mm Width, excluding tracks 35 in 890 mm Wheelbase 43 in 1092 mm Ground clearance, min Center 7.4 in 188 mm Side 3.7 in 94 mm Angle of departure 27° Angle of approach 30° Trench depth, max 36 in 914 mm Trench width, max 16 in 406 mm Digging chain 50K Swing radius, front, 36-in chain 81 in 2057 mm Swing radius, rear 44 in 1120 mm Boom travel, up/down 60° Headshaft height 23 in 584 mm Centerline trench to outside edge of unit, right 4-20 in 102-508 mm Centerline trench to outside edge of unit, right 21-37 in 533-940 mm Headshaft overhang 18 in 457 mm -
POWER
POWER U.S. METRIC Engine Yanmar 3TNV88C Fuel Diesel Number of cylinders 3 Displacement 100.1 in3 1.64 L Bore 3.46 in 88 mm Stroke 3.54 in 90 mm Manufacturer's gross power rating 36.9 hp 27.5 kW Estimated net power rating 35.1 hp 26.2 kW Rated engine speed 3,000 rpm Tilt angle, fore and aft, max* 30° Tilt angle, side to side, max* 30° Emissions compliance EPA Tier 4 Final, EU Stage IIIA *Exceeding these operating angles will cause engine damage. This DOES NOT imply that the machine is stable to maximum angle of safe engine operation. -
Maximum Uptime
ST37XMaximum Uptime

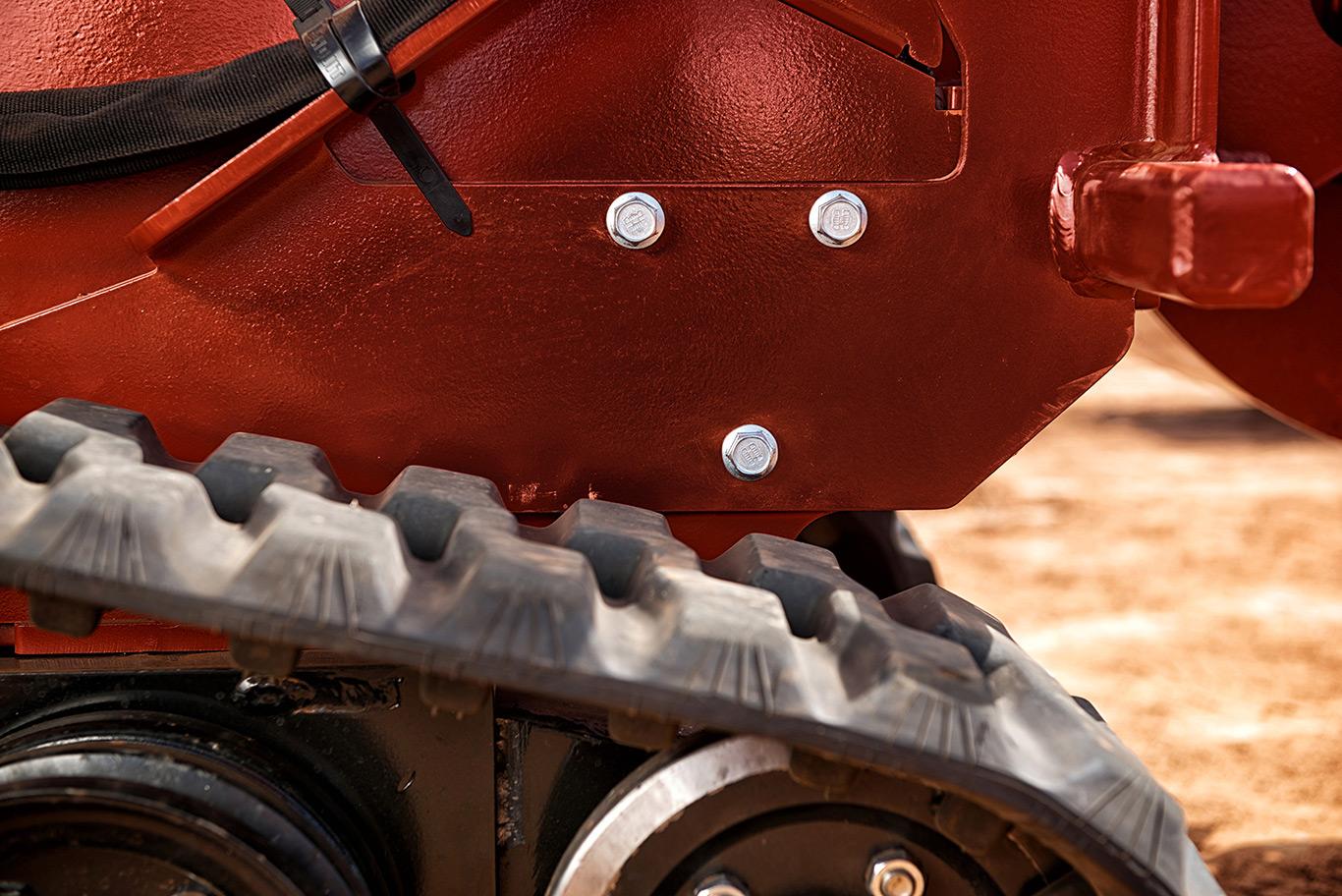

A low-maintenance track-tensioning system features a grease cylinder for easy adjustments and track removal, simplifying machine maintenance.
The machine’s belt-free design reduces maintenance time and increases uptime.
Single-point, lockable fuel and hydraulic fluid tanks improve security and provide peace of mind.
Leverages the common design and standard operation of other Ditch Witch compact units to ease operator training and further simplify machine maintenance.
-
Enhanced Productivity
ST37XEnhanced Productivity
Designed for jobsite versatility, the ST37X is the ideal machine for creating footings on residential or commercial properties, installing drainage pipe and other trenching and landscape tasks.

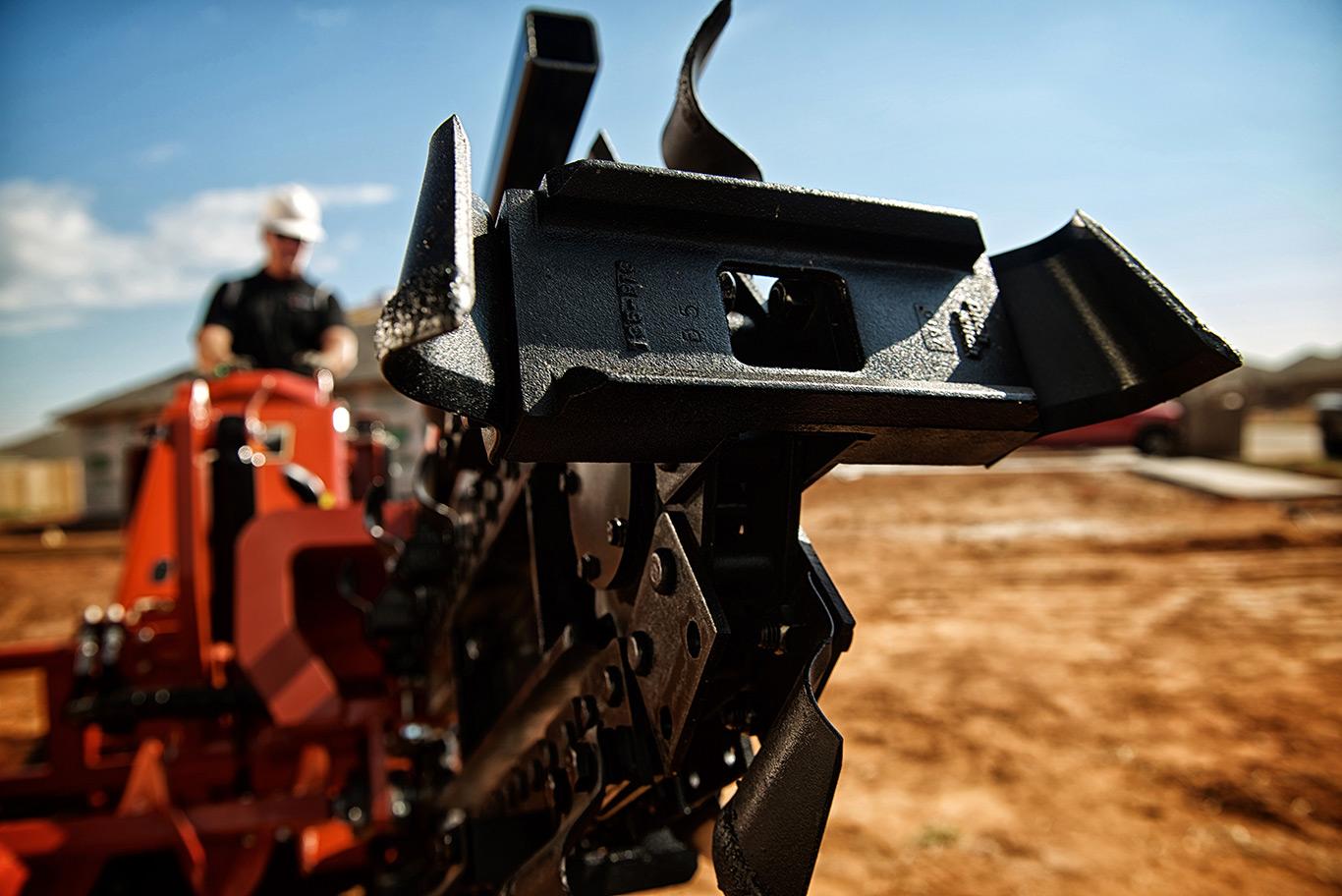

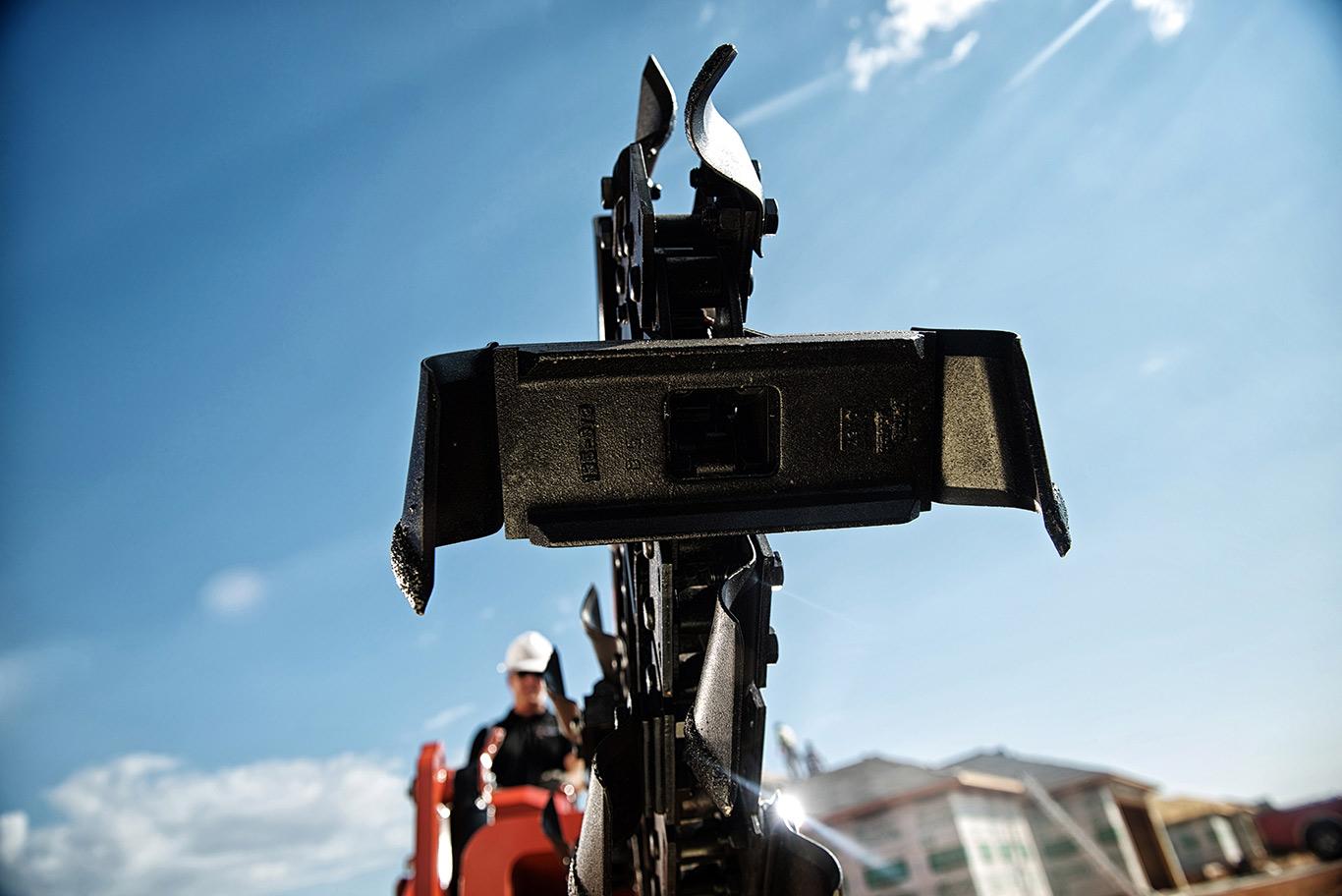

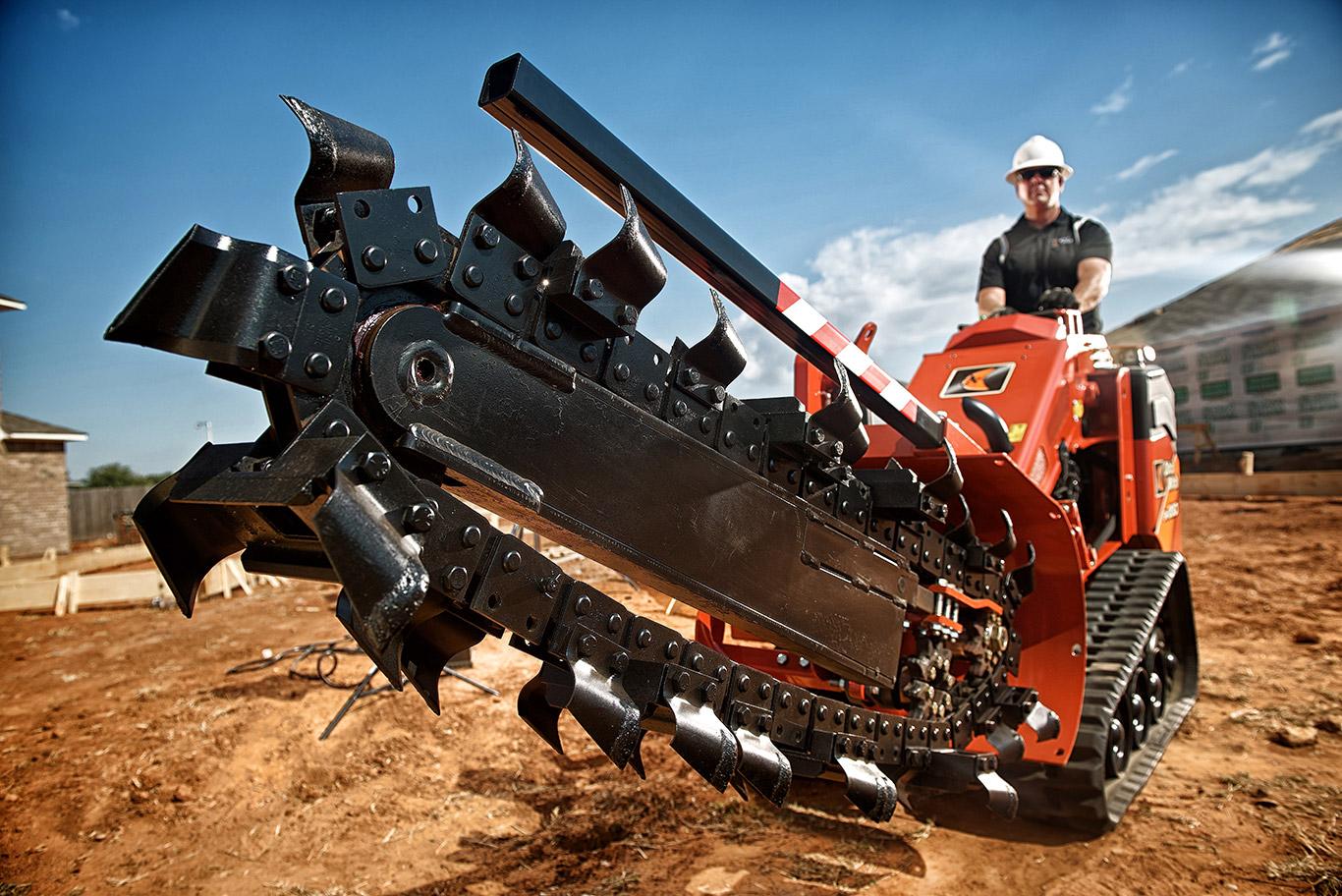

Heavy-duty chain with 50,000-lb tension creates a cleaner, more consistently deep and wide trench than an excavator can, and in less time.
Standard auto-throttle—incorporated into the LCD display—reduces engine throttle when there is no load on the engine for more efficient operations.
The machine’s compact package increases productivity on tight jobsites.
-
Comfortable Operator Platform
ST37XComfortable Operator Platform
Designed with operator comfort in mind, the machine is equipped with a best-in-class, 332-in2 (843-cm2) operator platform for outstanding comfort, stability and productivity during long working hours.
The spring-supported platform is larger and provides more ground clearance than the competition’s.
Standard dual-lever ground drive controls allow the operator to control each machine track independently for improved mobility on difficult jobsite conditions.

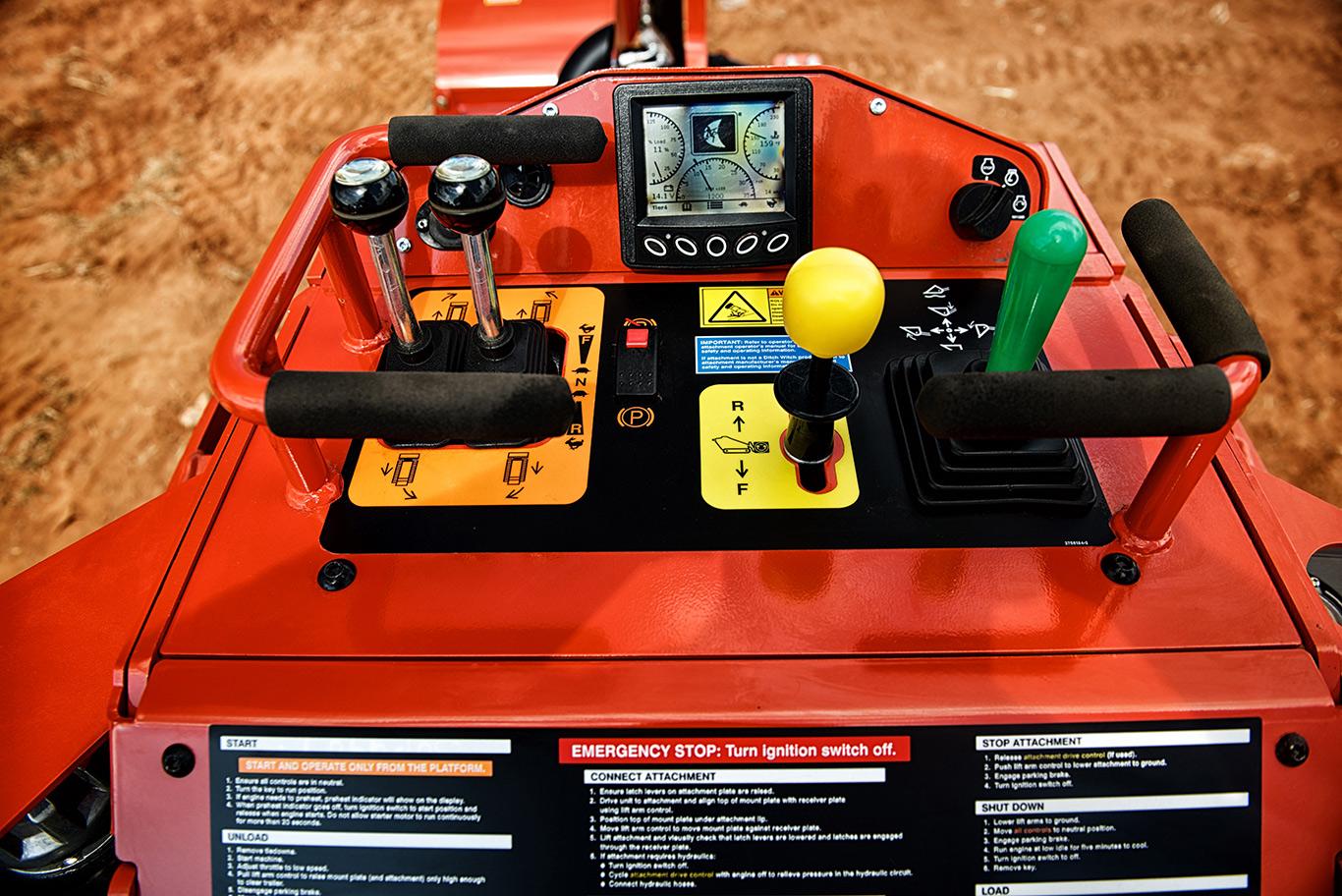

An advanced LCD display is mounted in the dash to provide direct visibility into engine diagnostics.
-
NOISE LEVEL
NOISE LEVEL Operator ear sound pressure 89 dBA Exterior sound power 103 dBA -
HYDRAULIC SYSTEM
HYDRAULIC SYSTEM U.S. METRIC Auxiliary circuit Double gear pump Combined flow rate 13.9 gpm 52.7 Lpm Pressure 3,625 psi 250 bar Ground drive Dual hydrostatic Pressure 3,625 psi 250 bar Flow rate 15 gpm 56.8 Lpm -
FLUID CAPACITIES
FLUID CAPACITIES U.S. METRIC Fuel tank 10.5 gal 40 L Hydraulic reservoir 9.2 gal 35 L Engine oil, w/filter 5 qt 4.7 L -
BATTERY
BATTERY SAE reserve capacity rating 110 min SAE cold crank @ 0ºF (-18ºC) 800 amps Electrical system 12V -
Best-in-Class Power
ST37XBest-in-Class Power
Powered by a Tier 4 Yanmar® diesel engine, the 37-hp (27.6-kW) machine provides best-in-class power for all machine functions.
Maximum 4.7-mph (7.6-km/h) ground drive speed, in both forward and reverse, enhances jobsite efficiency.
With a dedicated, integrated digging system, the machine allows for more power and increased productivity on footings and landscape jobs.
An auxiliary control foot pedal helps you maintain hydraulic flow to the trencher, freeing operator hands to control depth and ground speed.
-
Innovative, Construction-Grade Design
ST37XInnovative, Construction-Grade Design
Built for heavy-duty operation, the ST37X is designed for overall machine longevity and contractor ROI.
Designed for creating footings on residential and commercial properties, installing drainage pipe and other trenching and landscape duties, the machine trenches up to 16 in (41 cm) wide and up to 36 in (91 cm) deep.

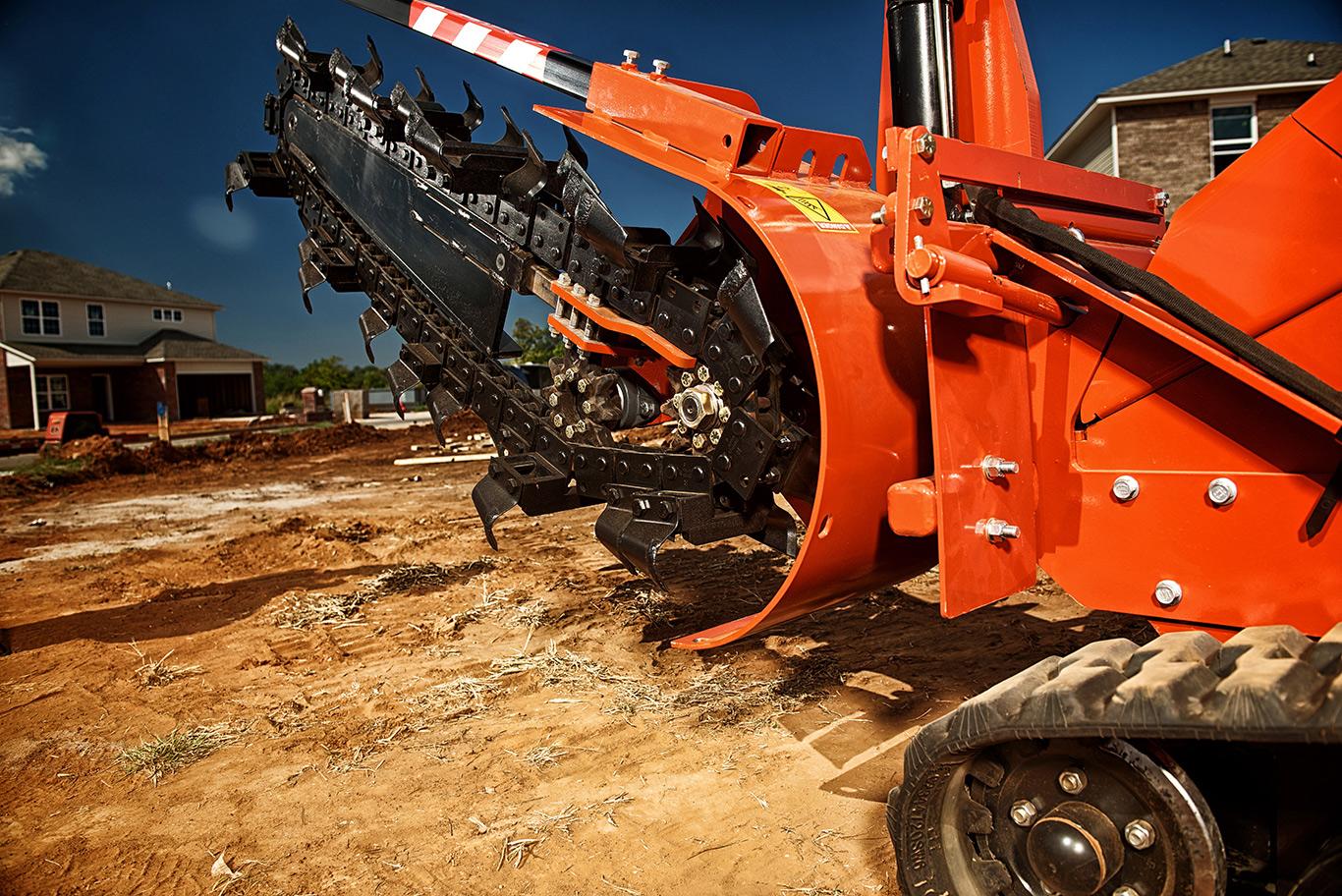

A multi-position trencher—centerline to offset digging—allows operators to trench directly next to the backer board.
With 43 in (109 cm) of track on the ground, the machine has the stability to effectively cross-trench for added jobsite versatility.
The machine has no daily maintenance points and no grease zerks, improving ease of maintenance and reducing total cost of ownership.
-
OPERATION
OPERATION U.S. METRIC Ground drive speed, max Forward/reverse 4.7 mph 7.6 km/h Ground pressure w/ 9-in (230-mm) tracks* 5.5 psi 0.38 bar Machine weight w/30-in boom, 12-in combo chain 4,110 lb 1864 kg * Includes machine weight, and 165-lb (75-kg) operator. Digging chain speed 402 fpm 7.6 km/h
