  • HYDRAULIC SYSTEM
    HYDRAULIC SYSTEM Auxiliary circuit Double gear pump Flow rate 12.0 gpm 45.4 l/min Pressure 3,000 psi 207 bar
  • POWER
    POWER Engine Kubota® D1105 Fuel Diesel Gross power rating (SAE J1995) 24.8 hp 18.5 kW Emissions compliance EPA Tier 4 Number of cylinders 3 Displacement 68.5 in3 1.12 L Bore 3.07 in 78 mm Stroke 3.09 in 78.4 mm Rated speed 3,000 rpm
  • Operator’s Station
    SK800
    Operator’s Station

    Designed specifically with the hardworking operator in mind, the SK800 is equipped with a best-in-class, 332-in2 (843-cm2) operator platform for outstanding comfort and productivity during long hours on the job.

    A spring-supported platform is integrated directly into the machine for enhanced durability and comfortability on the job.

    Ergonomic operator's station comes standard with dual-lever ground drive controls and an optional joystick, allowing the operator to control each track independently for improved maintenance and mobility on difficult jobsite conditions.

    An LCD display with programming improvements provides direct visibility into engine diagnostics.

  • Superior Support
    SK800
    Superior Support

    The SK800 leverages the common design and standard operation of other Ditch Witch skid steer models to streamline operator training and simplify machine maintenance.

    As with all Ditch Witch equipment, the SK800 is backed by a worldwide network of dealerships you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service and expert advice, your Ditch Witch dealership is your trusted partner on any job.

  • Power
    SK800
    Power

    An efficient, low-maintenance 24.8-hp (18.5-kW) Kubota diesel engine provides exceptional power to all machine functions.

    With an 911-lb (413-kg) rated operating capacity and an 83-inch (210.82-cm) hinge-pin height, the SK800 enables productive loading and the ability to handle heavy-duty tasks.

    Equipped with 4.8-mph (7.7-km/h) ground drive speed in both forward and reverse for enhanced jobsite efficiency.

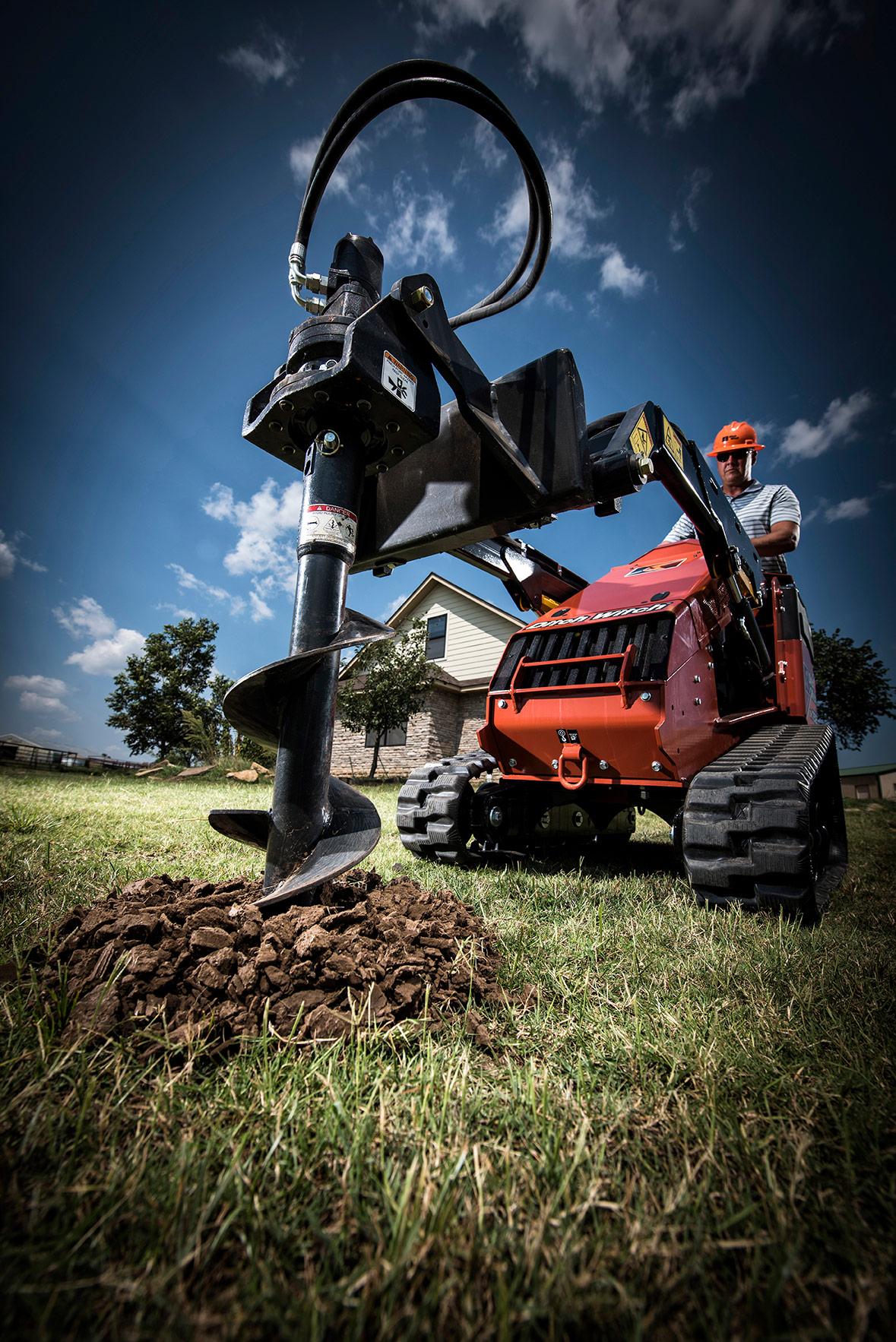

    Accepts a variety of attachments for a wide range of utility, landscaping, plumbing and other underground construction tasks, improving customer ROI.

  • FLUID CAPACITIES
    FLUID CAPACITIES Fuel tank capacity 10.5 gal 40 L Engine oil, w/filter 5 qt 4.7 L Hydraulic reservoir capacity 9.2 gal 35 L
  • OPERATION
    OPERATION Ground drive speed Forward/reverse 4.3 mph 6.9 km/h Ground pressure 7-in (180-mm) tracks 5.2 psi 0.36 bar 9-in (230-mm) tracks 4.3 psi 0.29 bar
  • Rugged, Low-Maintenance Design
    SK800
    Rugged, Low-Maintenance Design

    The rugged, construction-grade design is built for heavy-duty operation, improving machine durability, longevity and overall machine ROI.

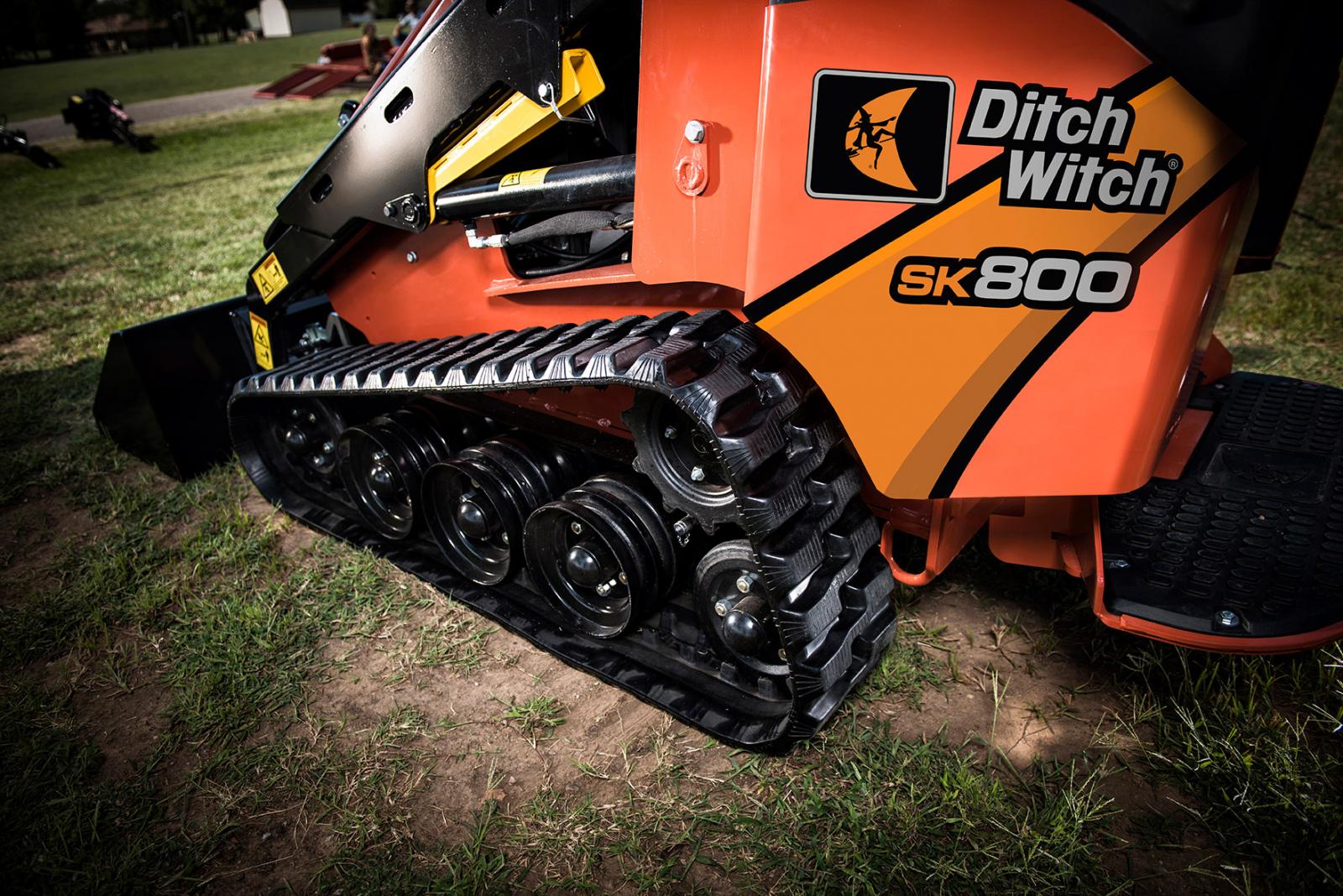

    An innovative high-drive track system features bolt-on sprockets and wide track rollers for enhanced stability, longer track life and ease of maintenance.

    Low-maintenance, track-tensioning system is equipped with a grease cylinder for easy adjustment and track removal, improving machine longevity and minimizing downtime.

  • BATTERY
    BATTERY SAE reserve capacity rating 110 min SAE cold crank @ 0°F (-18°C) 800 amps Electrical system 12V
  • DIMENSIONS (STD)
    DIMENSIONS (STD) U.S. METRIC Operating height, max std. bucket 105 in 2.67 m Overall height of machine 57 in 1.45 m Overall length of machine, std. bucket 105 in 2.67 m Overall length of loader, no attachment 86 in 2.19 m Machine weight, no attachment, fluids full 2,920 lb 1324 kg Hinge pin height, max 83 in 2.10 m Wheelbase/track length 43 in 1.09 m Machine width Max, w/9-in (230-mm) tracks 42 in 107 cm Min, w/7-in (180-mm) tracks 36 in 91 cm Ground clearance, min Center 8.9 in 226 mm Side 3.7 in 94 mm Rated operating capacity 35% of tipping capacity 911 lb 413 kg Tipping capacity 2,602 lb 1,180 kg Angle of departure 27°
  • NOISE LEVEL
    NOISE LEVEL Operator ear sound pressure 89 dBA Sound power 100 dBA
  • Productivity
    SK800
    Productivity

    Industry-leading power to the attachment provides unbeatable productivity, especially when operating hydraulic attachments, and increases jobsite cycle times.

    Advanced attachment-latching system for simple, secure connection of the attachments.

    A two-way, easy-to-use auxiliary control foot pedal enables operators to maintain hydraulic flow to the attachment while freeing their hands to control depth and ground speed.

    A single-point, lockable fuel and hydraulic fluid tank improve security and provide rental companies peace of mind.
