Key Features & Specs
The Ditch Witch® SK752 mini skid steer is construction-grade, through and through. A rugged design and durable build delivers outstanding performance on the toughest jobsites. Add in an improved operator station with an extremely high and large stand-on platform, and you’ve got the comfort and ease of use you need for more productivity, job after job.
- + Expand All
- - Close All
-
Power
Power Engine Kubota® D1105 Fuel Diesel Gross power rating (SAE J1995) 24.8 hp 18.5 kW Emissions compliance EPA Tier 4 EU Stage IIIA Number of cylinders 3 Displacement 68.5 in3 1.12 L Bore 3.07 in 78 mm Stroke 3.09 in 90 mm Rated speed 3,000 rpm -
Operator's Station
SK752Operator's Station

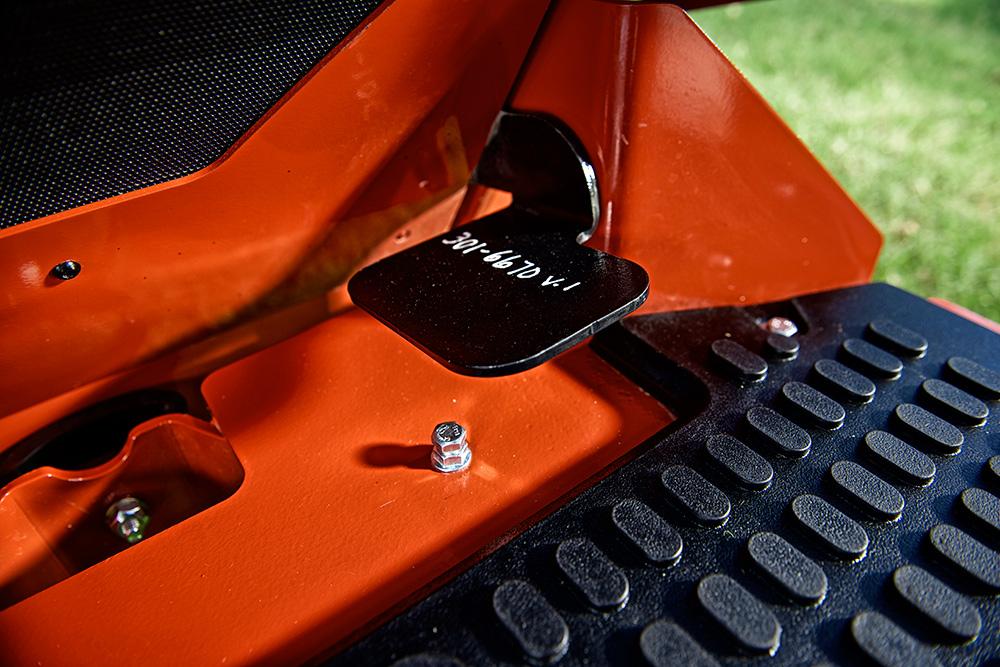

Two?way auxiliary control foot pedal enables you to maintain hydraulic flow to the attachment, freeing up your hands to control depth and ground speed.

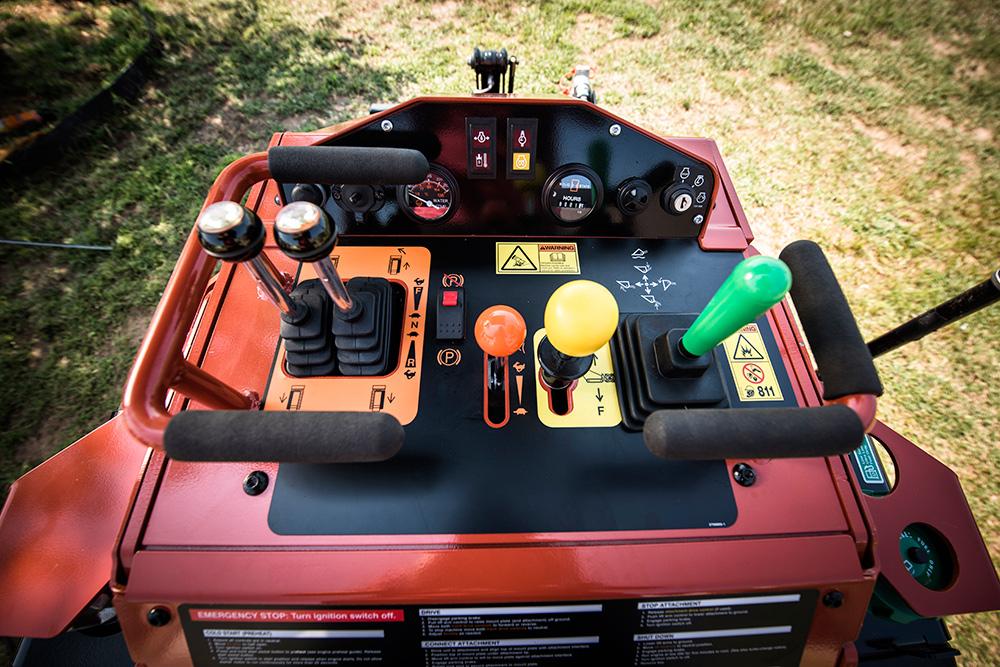

Customer?driven control placement for optimized comfort and efficiency; the ergonomic operator’s station has standard dual?lever ground drive controls, with an optional single?lever joystick available.
The 332?in2 (843?cm2) platform is larger and provides more ground clearance than the competition’s; increasing operator comfort and stability while keeping the worksite visible.
Single?point, lockable fuel and hydraulic fluid tanks for improved security.
-
Power
SK752Power

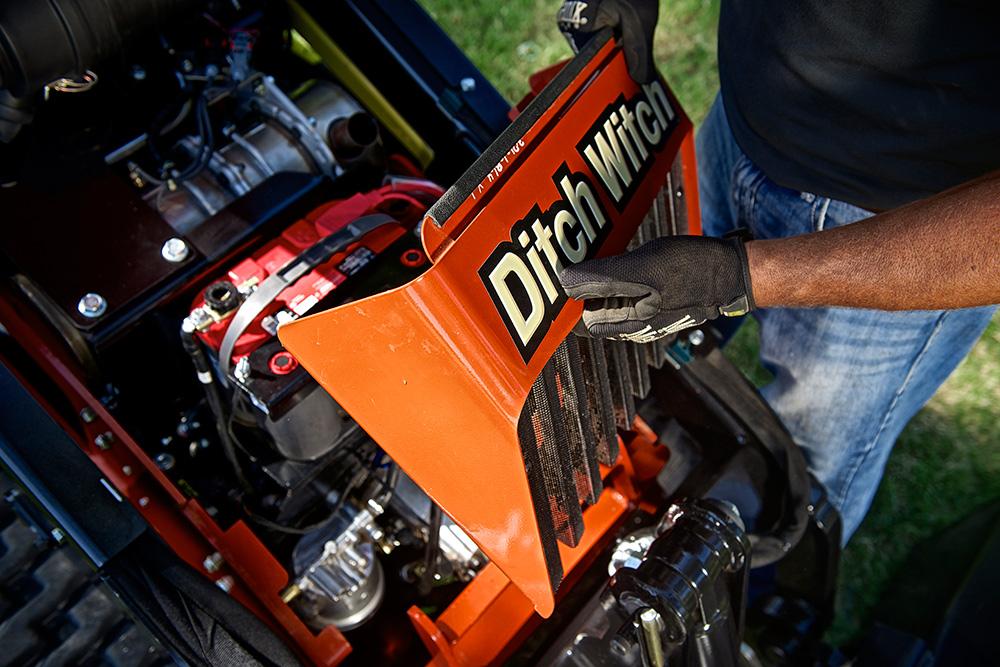

Efficient, low?maintenance Kubota® diesel engines provide outstanding power for all machine functions—24.8 hp (18.5 kW).
Directly coupled hydraulic pump design eliminates worries about slipping, squeaking and breaking.
-
Operation
Operation Ground drive speed Forward / reverse 4.8 mph 7.7km/h Ground pressure* (ISO/CD 16754) 7-in (180-mm) tracks 5.2 psi 0.36 bar 9-in (230-mm) tracks 4.3 psi 0.29 bar -
Hydraulic System

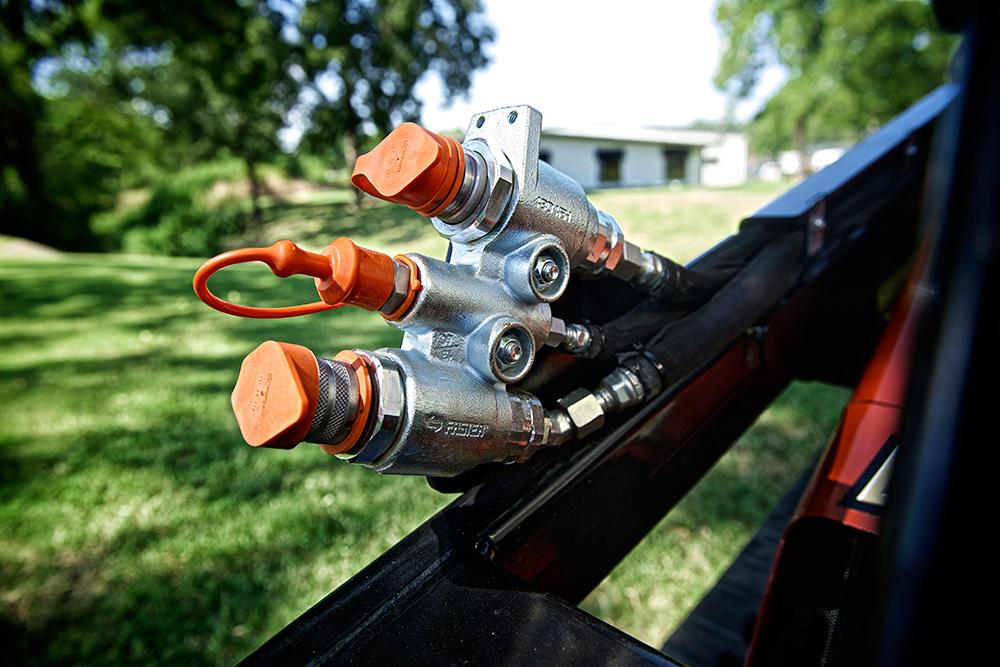

Hydraulic System Auxiliary circuit Double gear pump Flow rate (Pump #1) 6.5 gpm 24 l/min Flow rate (Pump #2) 5.5 gpm 21 l/min Pressure 3,000 psi 207 bar Dual hydrostatic ground pumps Flow rate 15 gpm 56.8 l/min Pressure 3,625 psi 250 bar -
Rugged Design
SK752Rugged Design
Standard hydraulic parking brake allows for easy engagement and disengagement.
Construction?grade components built for long?lasting, heavy?duty operation.
-
Superior Support
SK752Superior Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
-
Productivity
SK752Productivity
Exceptional power to the attachment provides unbeatable productivity; accepts dozens of attachments for a wide range of utility, landscaping, plumbing, and other underground construction tasks.

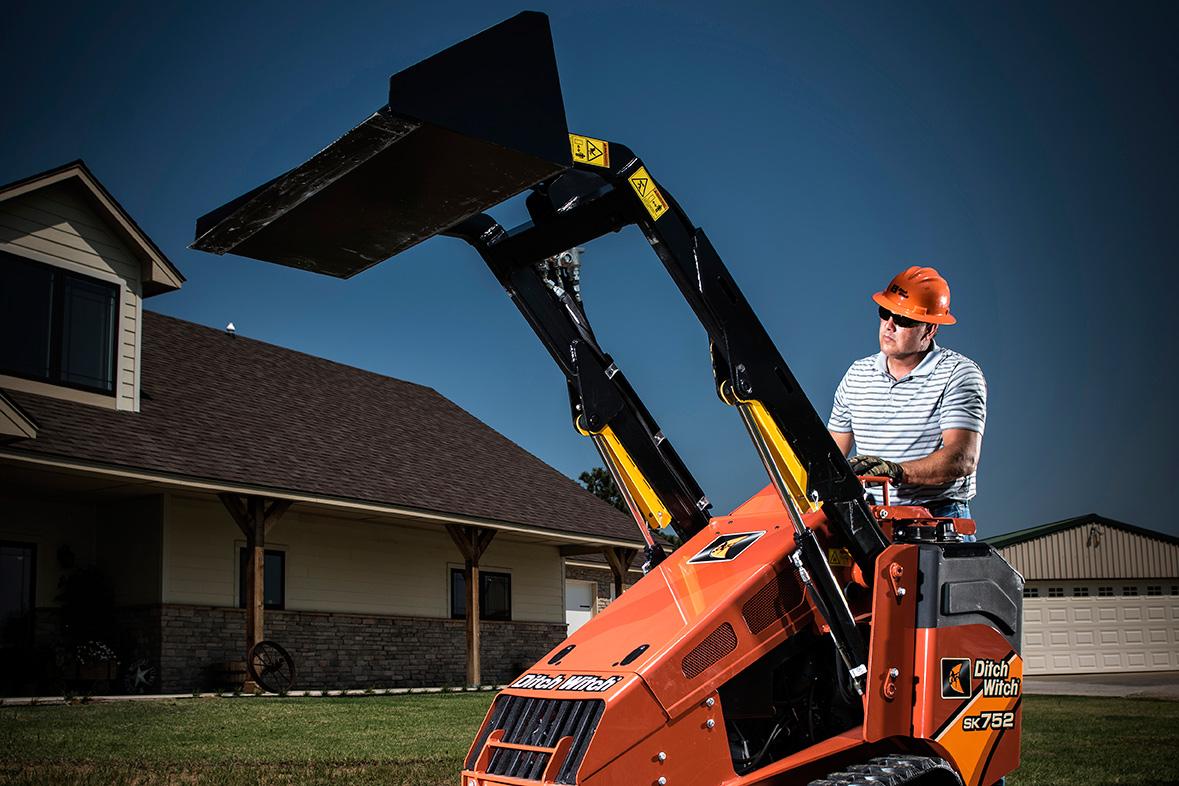

800?lb (362.9?kg) rated operating capacity and an 83?inch (210.82-cm) hinge?pin height enables more productive loading.

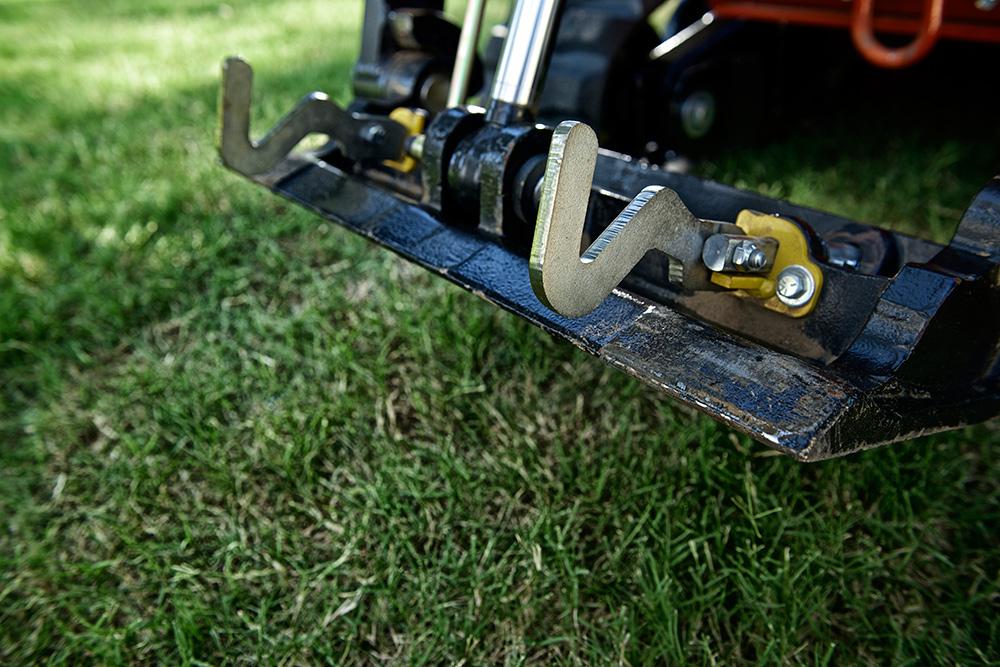

Advanced attachment latching system for simple, secure connections.
-
Battery
Battery SAE reserve capacity rating 110 min SAE cold crank @ 0°F (-18°C) 800 amps Electrical system 12V -
Noise Level
Noise Level Operator ear sound pressure 87 dBA Exterior sound power 100 dBA -
Fluid Capacities
Fluid Capacities Fuel tank capacity 10.5 gal 40 L Engine oil, w/filter 5 qt 4.7 L Hydraulic reservoir capacity 9.2 gal 35 L -
Dimensions (STD)
Dimensions (STD) U.S Metric Operating height, max std. bucket 105 in 2.67 m Overall height of machine 57 in 1.45 m Overall length of machine, std. bucke 105 in 2.67 m Overall length of loader, no attachment 86 in 2.19 m Machine weight (no attachment, fluids full) 2,926 lb 1327 kg Hinge pin height, max 83 in 2.10 m Wheelbase/track length 43 in 1.09 m Machine width Max, w/9-in (230-mm) tracks 42 in 107 cm Min, w/7-in (180-mm) tracks 36 in 91 cm Ground clearance, min Center 8.9 in 226 mm Side 3.7 in 94 mm Rated operating capacity 35% of tipping capacity 860 lb 390 kg Angle of departure 27° -
Undercarriage
SK752Undercarriage
Low?maintenance track tensioning system features a grease cylinder for easy adjustment and track removal, delivering longer life and minimizing downtime.

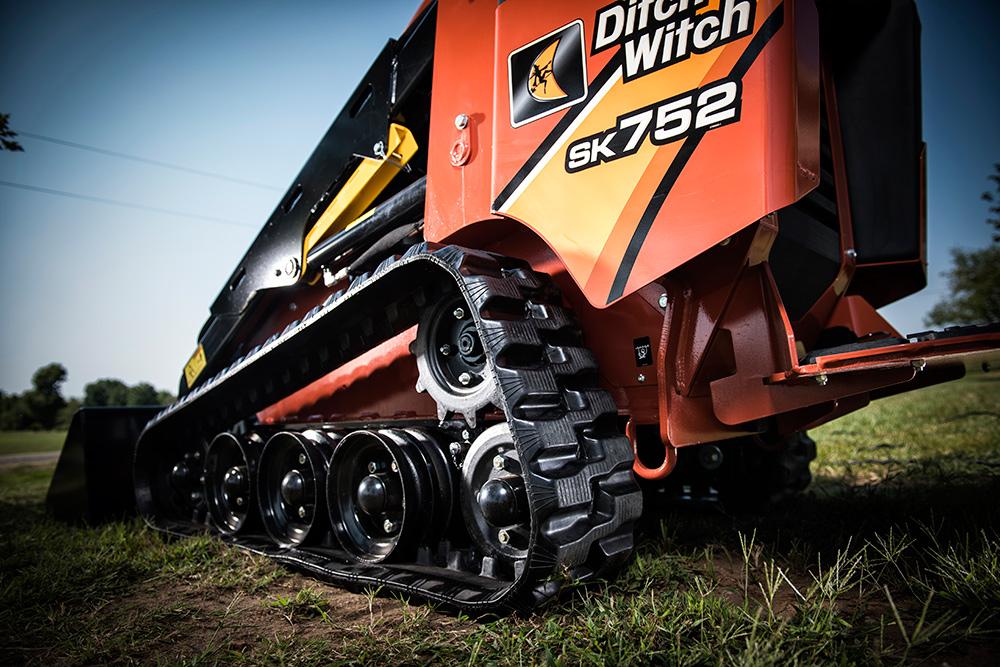

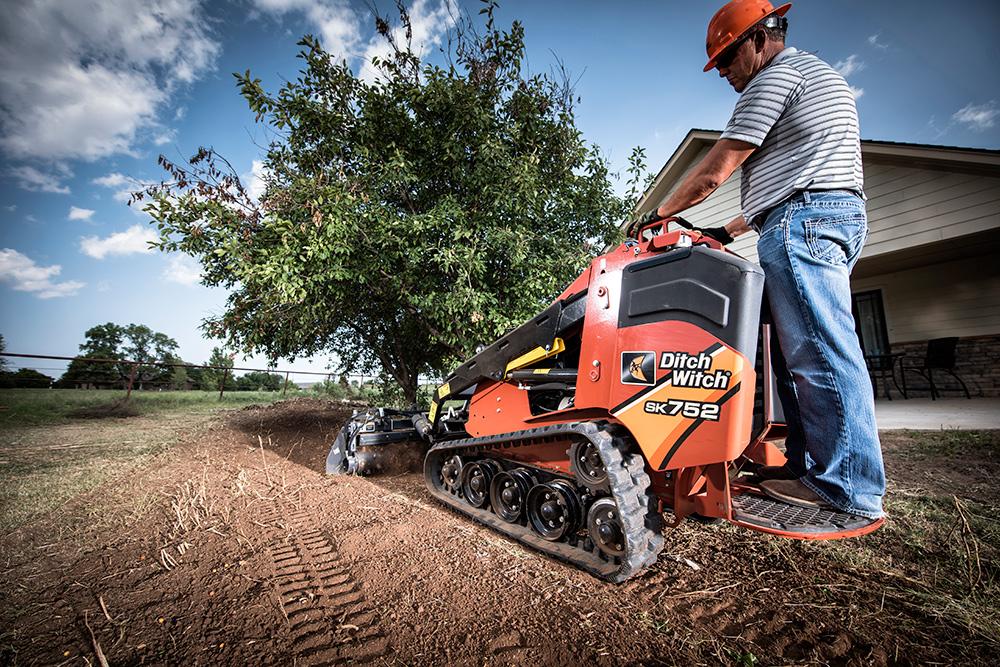

Innovative high?drive track system features bolt?on sprockets and wide track rollers for greater stability, longer track life and easy maintenance.
4.7?mph (7.6?km/h) ground drive speed (in both forward and reverse) enhances jobsite efficiency and productivity.
The SK752 comes standard with tracks that are 42 inches (107 cm) wide, with optional 36?inch (91?cm) narrow tracks.
