  • Productivity
    SK1550
    Productivity

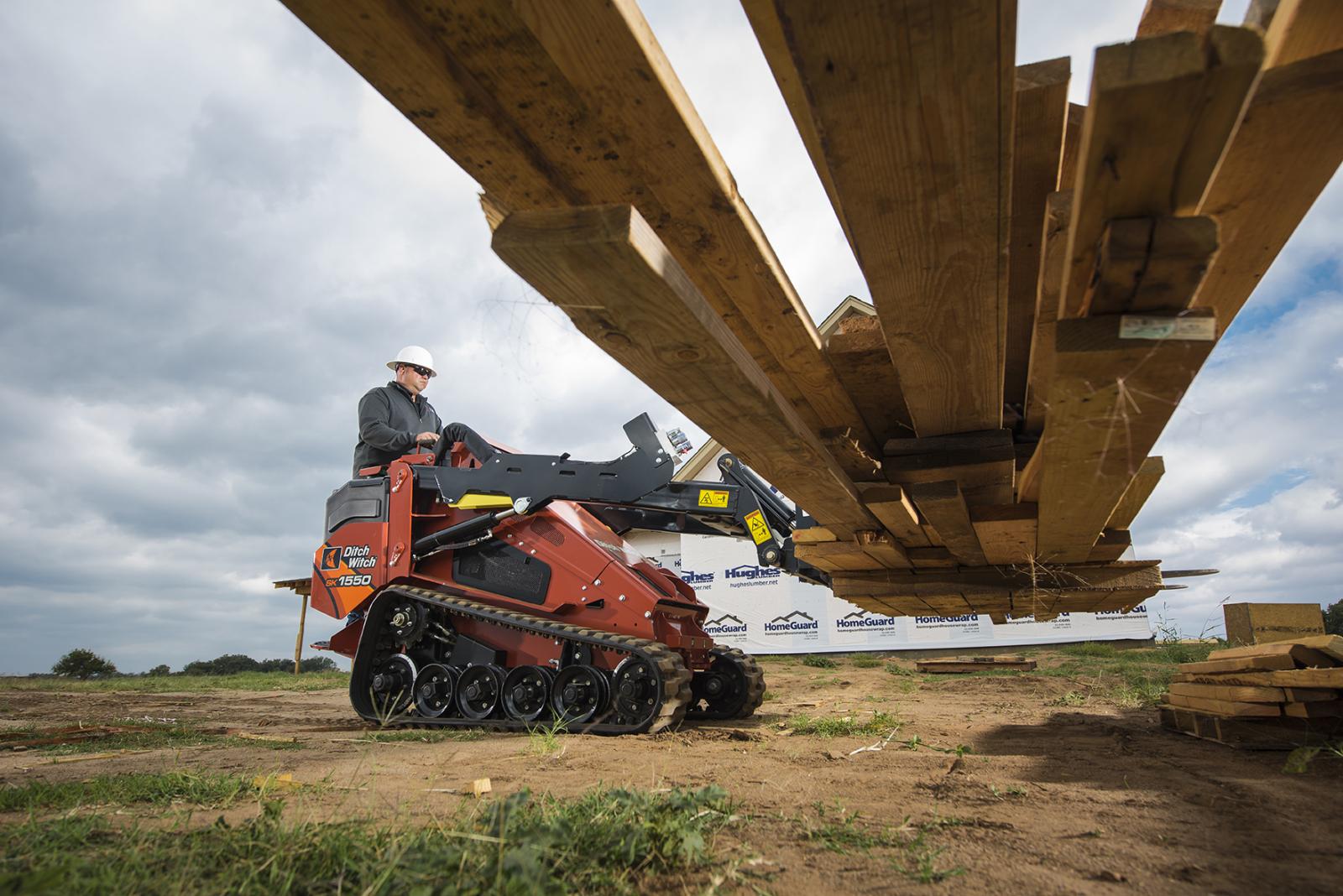

    Best-in-class 1,558-lb (707-kg) rated operating capacity for lifting heavier loads.

    Exceptional 9-inch (230-mm) ground clearance for improved productivity on challenging terrain.

    More than 50 percent higher capacity than all other mini skid steers in its size class

    The SK1550 is equipped with a 94-inch (2.4-m) hinge-pin height which provides flexible loading and unloading for a wide range of dump sites.

    The machine is capable of 4.7-mph (7.6-km/h) ground drive speed both forward and in reverse, improving jobsite cycle times.

  • Operation
    Operation U.S. Metric Ground drive speed Forward/reverse 4.7 mph 7.6 km/h Ground pressure* (ISO/CD 16754) 10.4-in (265-mm) tracks 4.1 psi 0.28 bar
  • Power
    SK1550
    Power

    Powered by a 44-hp (32.8 kW) Tier 4 Yanmar® turbo-charged diesel engine, the machine is equipped to handle tasks typically suited for traditional skid-steer loaders.

    Directs 34.5 hp (25.7 kW) to the attachment for efficient and productive use of high-capacity attachments.

    Auxiliary flow control with low, medium and high flow settings allows operators to make adjustments to attachment flow and run attachments at their most efficient rate.

  • Noise Level
    Noise Level U.S. Metric Operator ear sound pressure 88 dBA Exterior sound power 102 dBA
  • Hydraulic System
    Hydraulic System U.S. Metric Auxiliary circuit Double gear pump Flow Rate Low 3 gpm 11.4 l/min Flow Rate Medium 13 gpm 49.2 l/min Flow Rate High 16 gpm 60.5 l/min Pressure 3,700 psi 255 bar
  • Dimensions
    Dimensions U.S. Metric Operating height, max, 60-in bucket 128.4 in 3.3 m Overall length of machine, std. bucket 124 in 3.16 m Overall length of loader, no attachment (E) 99.7 in 2.53m Overall machine height 58.5 in 1.45 m Hinge pin height, max 94.5 in 2.4 m Wheelbase/track length 50.6 in 1.29 m Machine width 46.1 in 117.09 cm Ground clearance, min. Center 9.1 in 231.1 mm Side 4.7 in 119.4 mm Angle of departure 23.4¡ Tipping Capacity 4,450 lb 2,019 kg Rated operating capacity (35 % of tipping capacity) 1,558 lb 707 kg Machine weight (no attachment, fluids full) 3,990 lb 1810 kg Weighted Tipping Capacity 5,650 lb 2,563 kg Weighted Operating Capacity (35% of tipping capacity) 1,978 lb 897 jg Weighted Machine Weight 4,470 lb 2,028 kg
  • Rugged Design
    SK1550
    Rugged Design

    Durable build and innovative design provides the industry’s smoothest ride, plus unrivaled maneuverability and stability when carrying heavy loads.?

    With 3,700 psi and maximum 16 gpm, the SK1550 directs substantial pressure to the attachment, increasing machine versatility.?

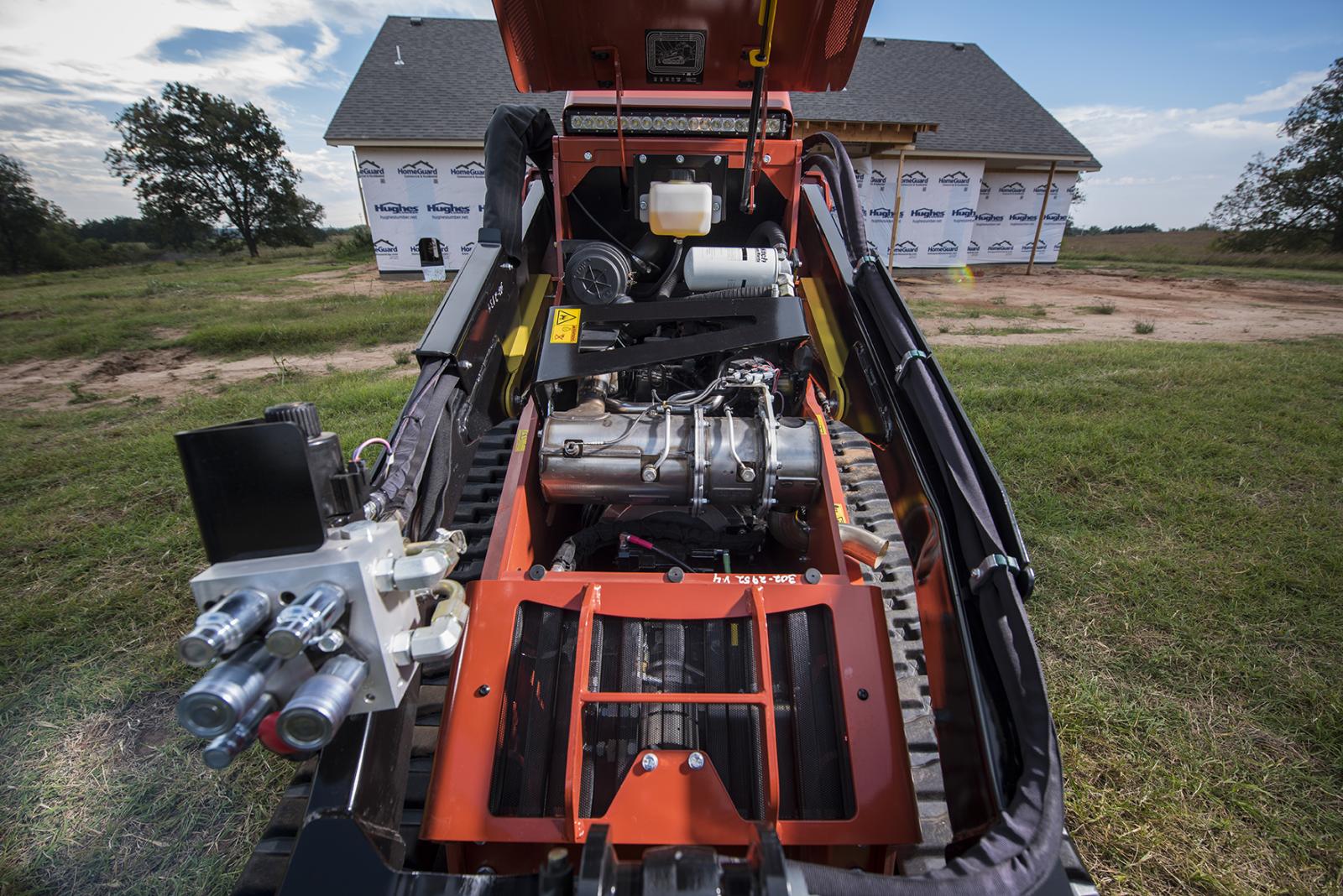

    Dual auxiliary connections allow operators the ability to utilize advanced attachments for enhanced productivity when handling heavier loads, including logs, trees and sod.

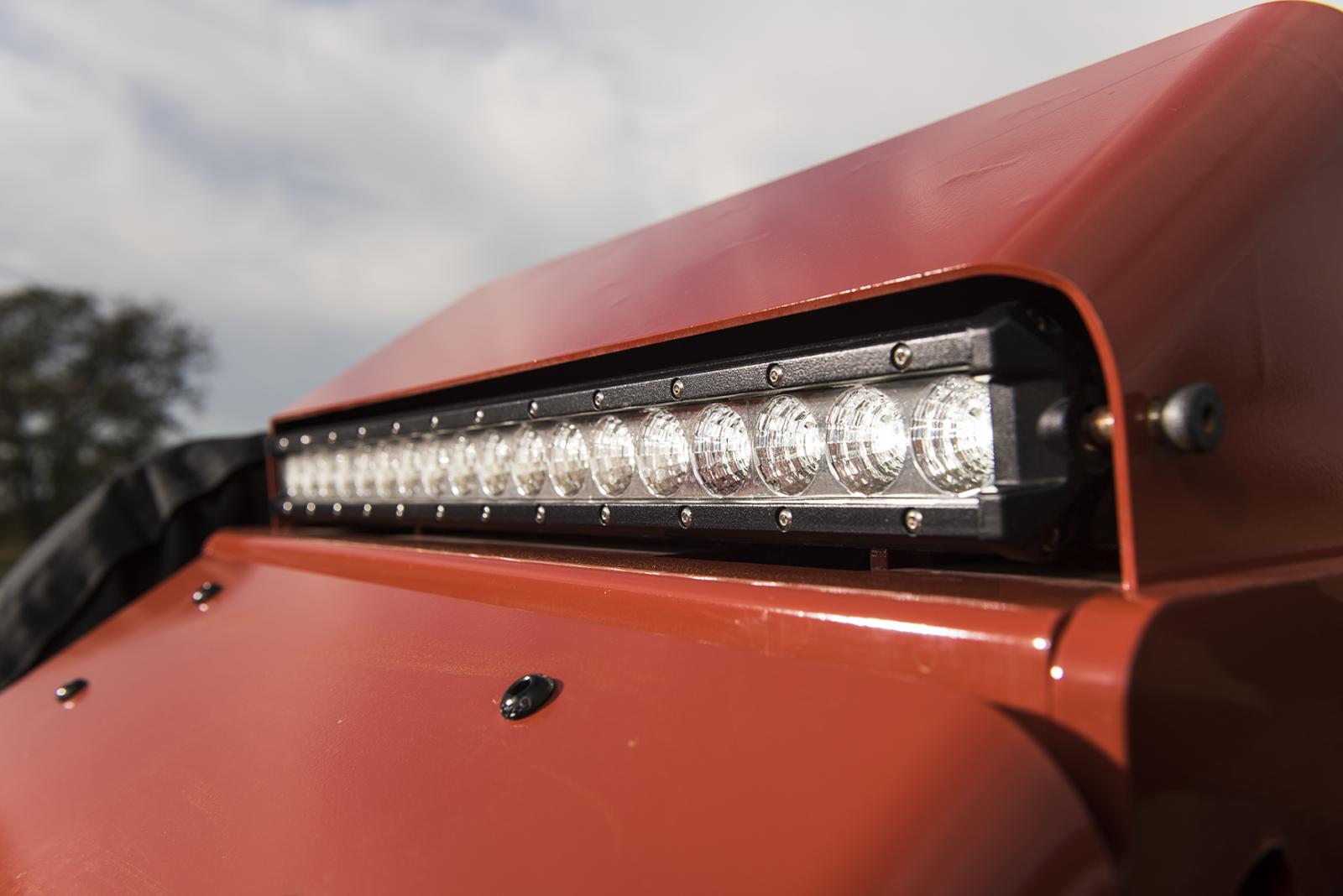

    Includes front and back LED lights for increased safety during nighttime and low-light jobs.

    High-capacity attachments designed specifically for the SK1550, including a new trencher and vibratory plow, leverage high flow capabilities to improve jobsite versatility and productivity.

    Auto-throttle matches engine speed to load demand providing greater fuel efficiency.

  • Operator's Station
    SK1550

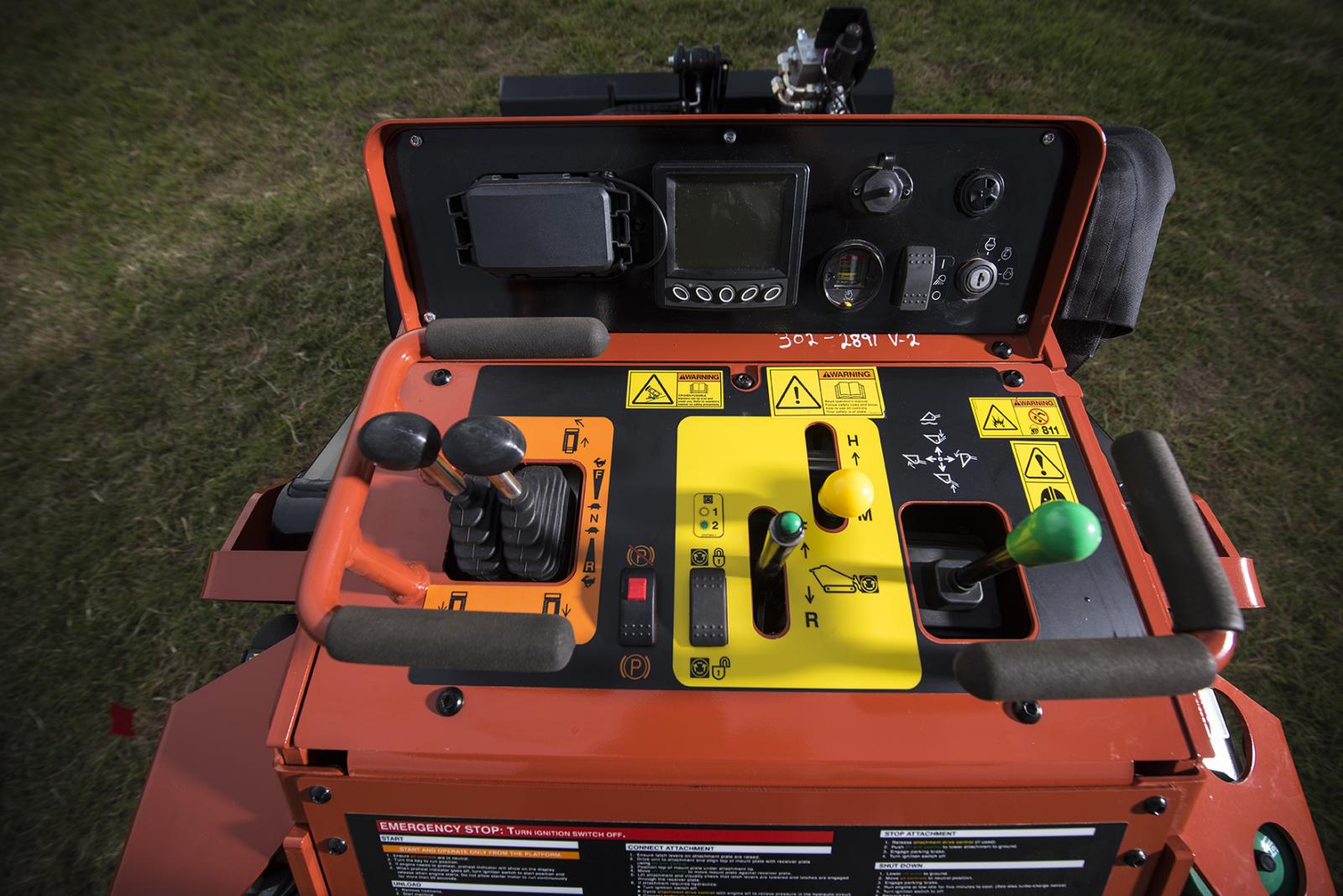

    Operator's Station

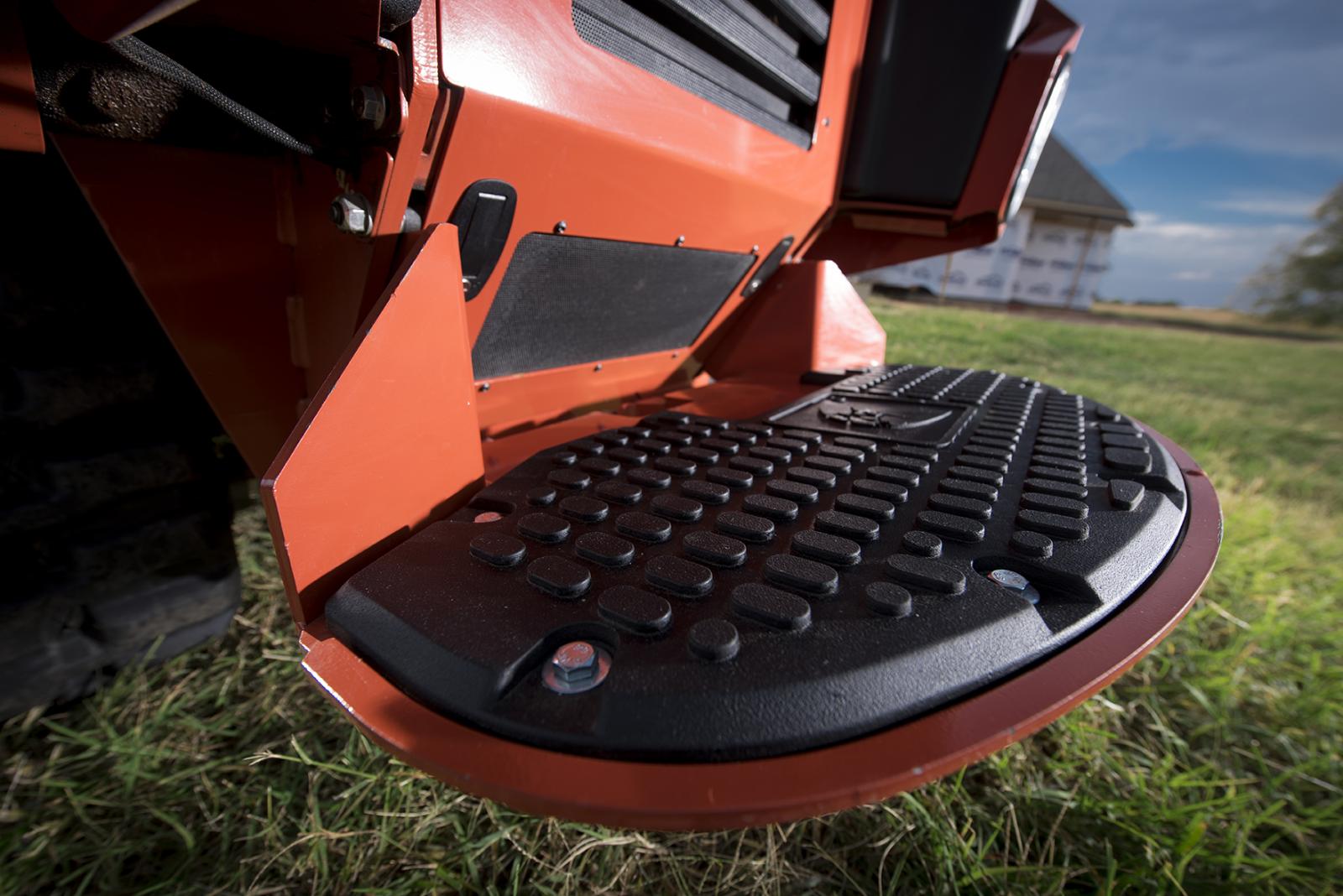

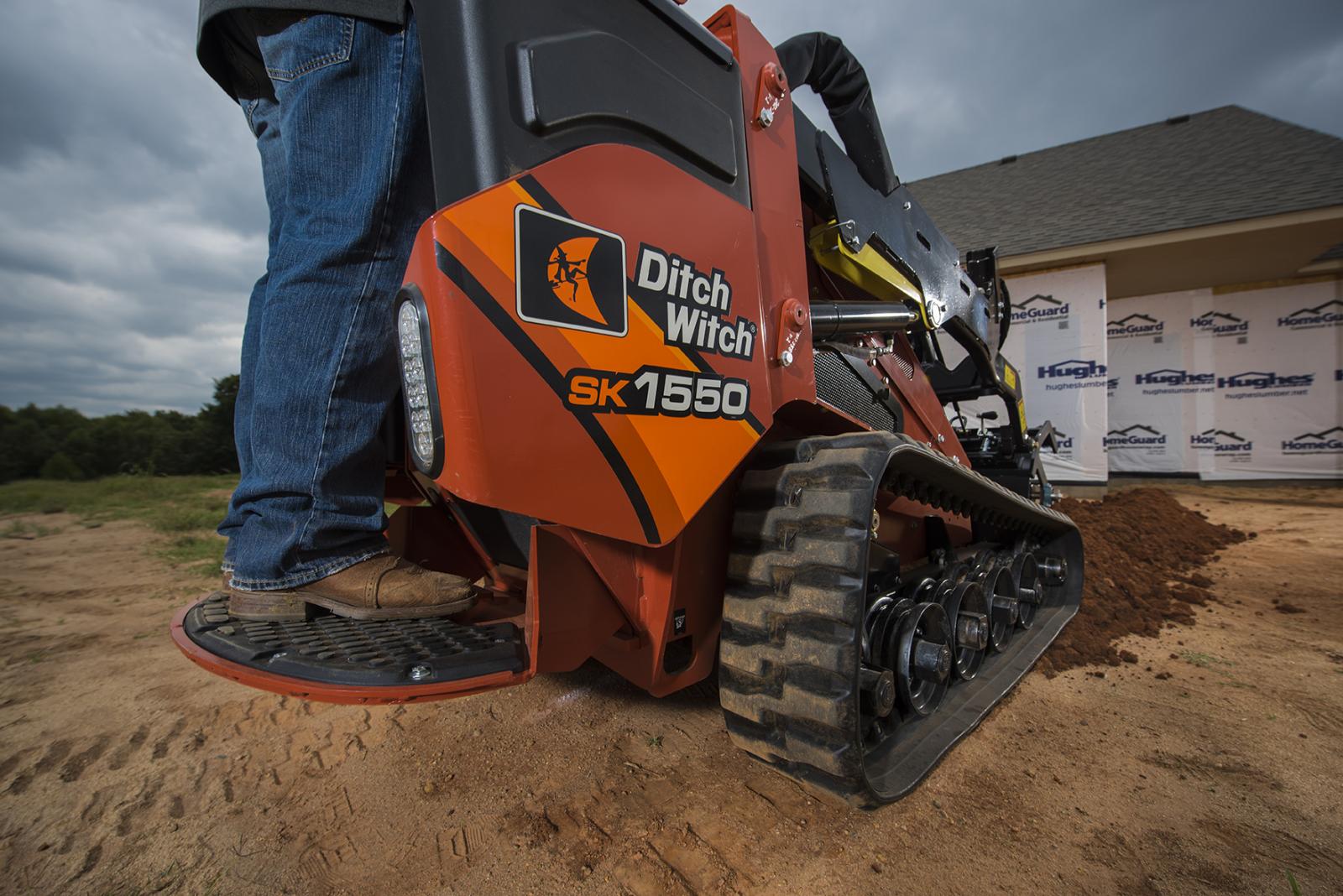

    Designed specifically for landscape, irrigation and tree-handling jobs, the SK1550 is equipped with a best-in-class, 332-in2 (843-cm2) operator platform for improved comfort and stability during long hours on the job.

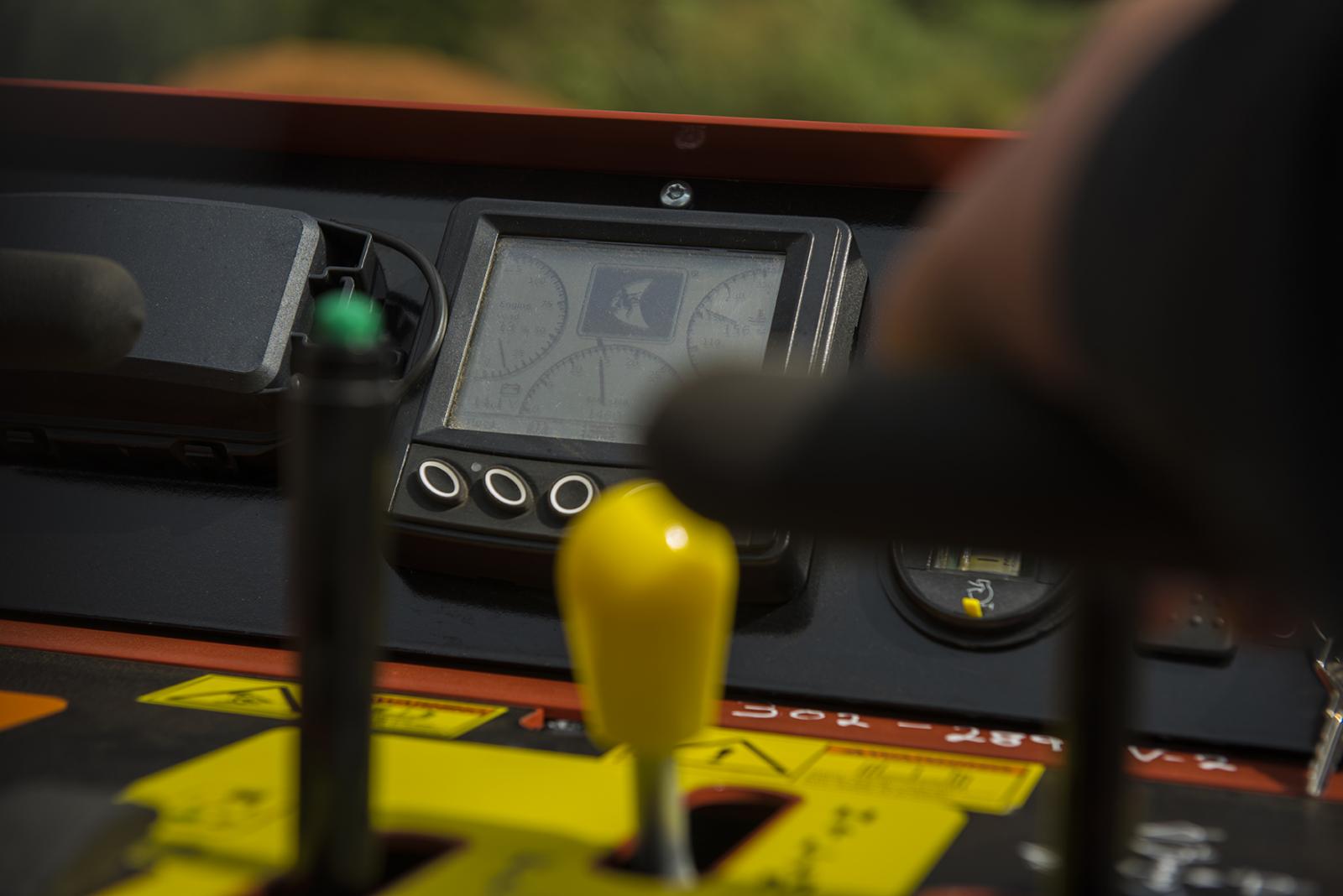

    LCD display screen provides direct visibility and real-time intel into all engine diagnostics.

    Ergonomic operator's station comes standard with dual-lever ground drive controls allowing the operator to control each track independently for precise mobility.

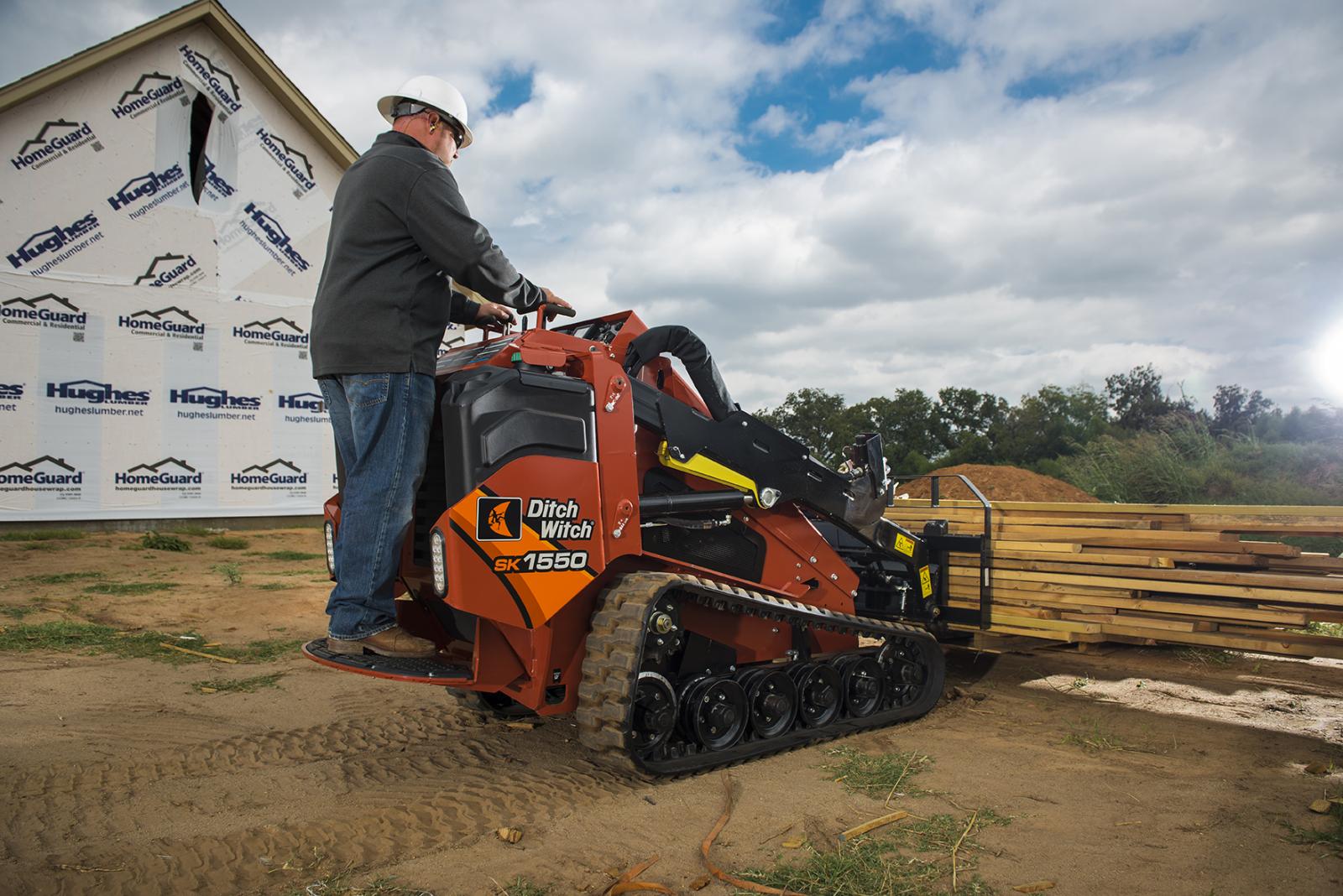

    The open, standing operator station provides excellent visibility to all machine functions and the jobsite and reduces operator fatigue with improved ease of access over traditional skid steer loaders.

    Equipped with an auxiliary detent switch, which frees the operator’s hands and feet for improved comfort during long hours on a job.

  • Fluid Capacities
    Fluid Capacities U.S. Metric Fuel tank capacity 10.5 gal 40 L Engine oil, w/filter 5 qt 4.7 L Hydraulic reservoir capacity 9.2 gal 35 L
  • Simplified Maintenance
    SK1550
    Simplified Maintenance

    No daily maintenance or daily grease zerks for reduced cost of ownership and easy upkeep.

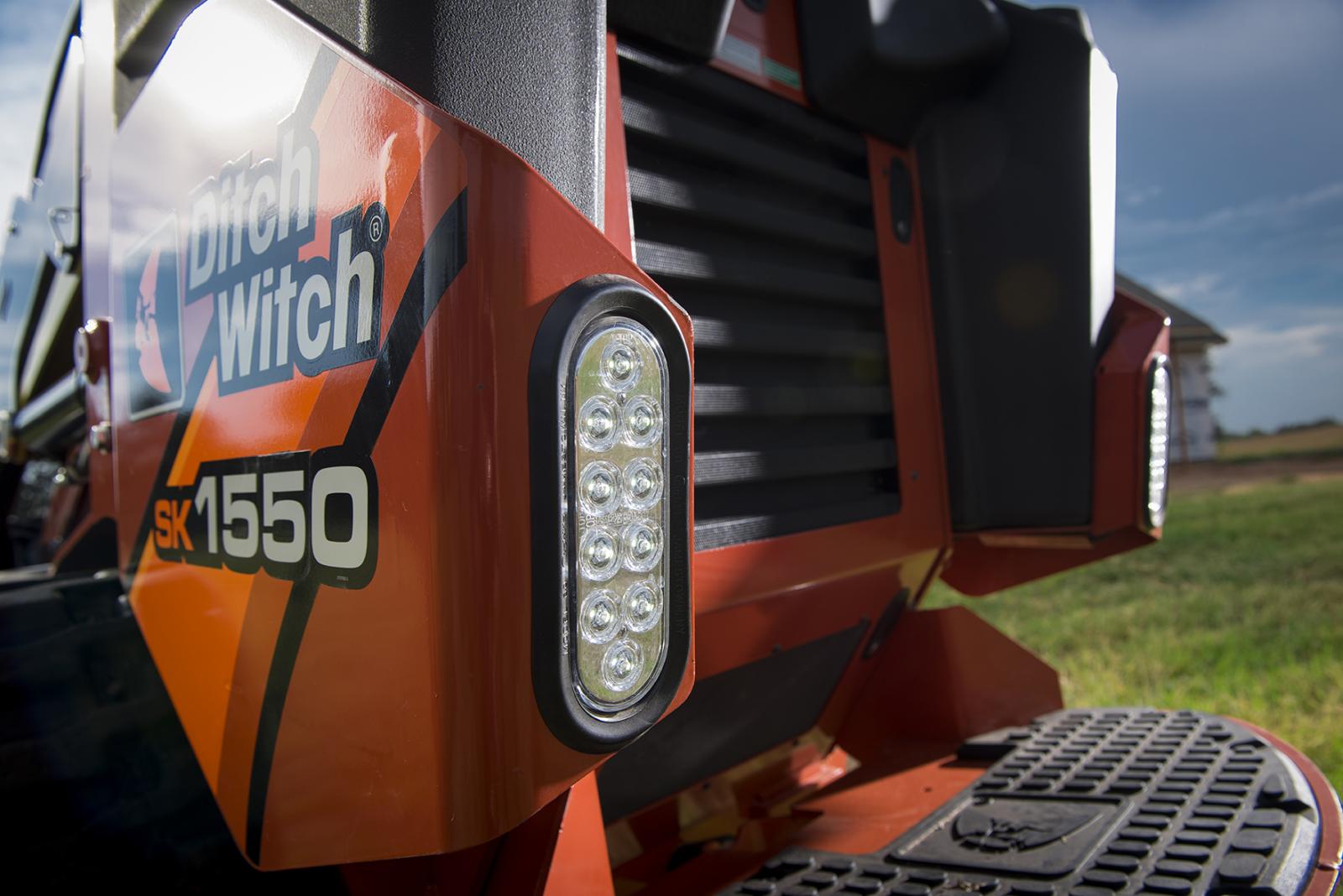

    ?Equipped with front and back LED lights, the machine allows operation at night or in low-light conditions increasing jobsite safety.



    The construction-grade, durable design is made for heavy-duty jobs, leading to extended machine life and increasing overall ROI.

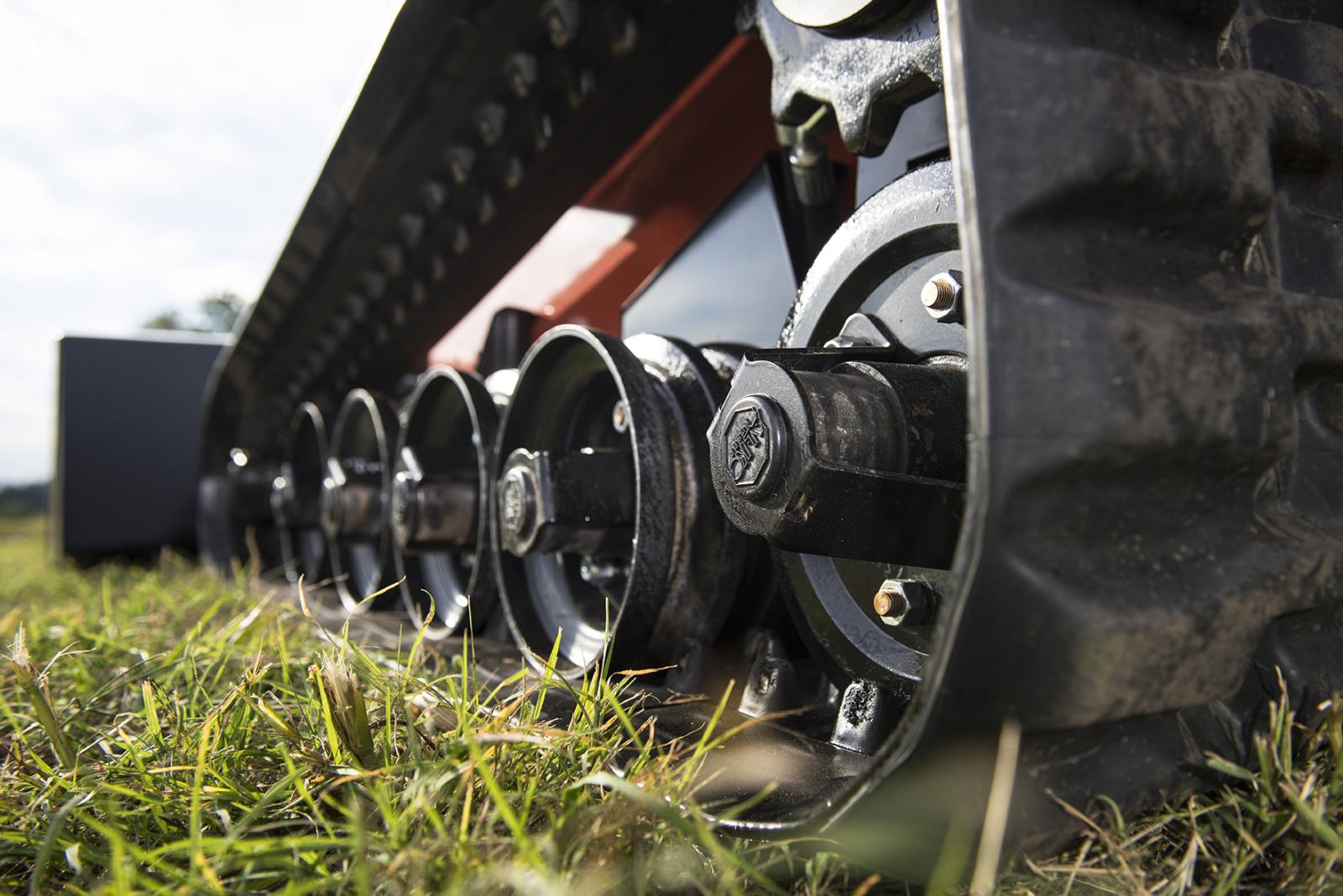

    Unique open track design gives the SK1550 fewer obstructions allowing debris to escape track system.

  • Power
    Power U.S. Metric Engine Yanmar® Fuel Diesel Gross power rating (SAE J1995) 43.5 hp 32.4 kW Emissions compliance EPA Tier 4 Final EU Stage IIIA Number of cylinders 3 Displacement 95.8 in3 1.57 L Bore 3.39 in 86 mm Stroke 3.54 in 90 mm Rated speed 3,000 rpm
  • Battery
    Battery U.S. Metric SAE reserve capacity rating 110 min SAE cold crank @ 0°F (-18°C) 800 amps Electrical system 12V
