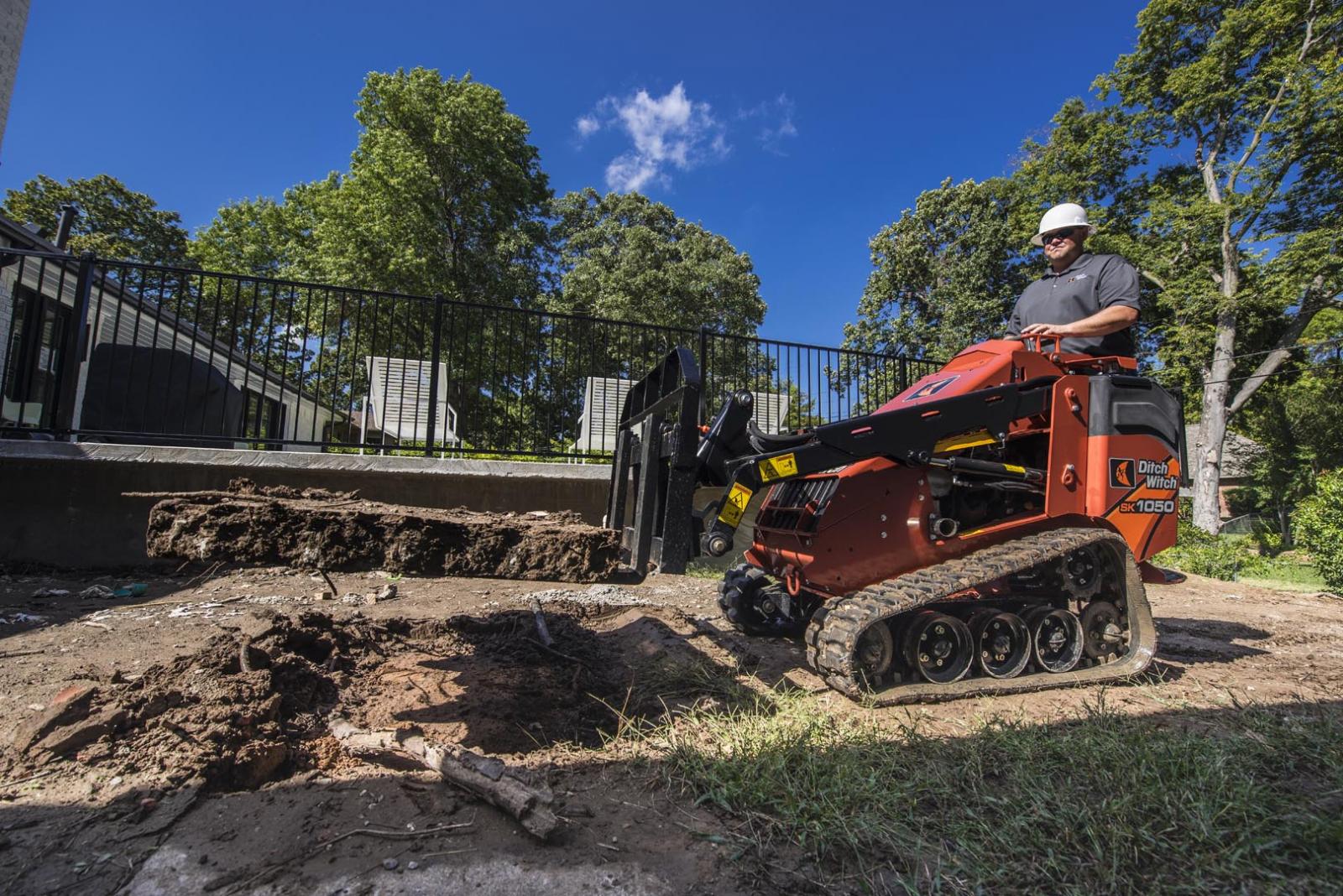

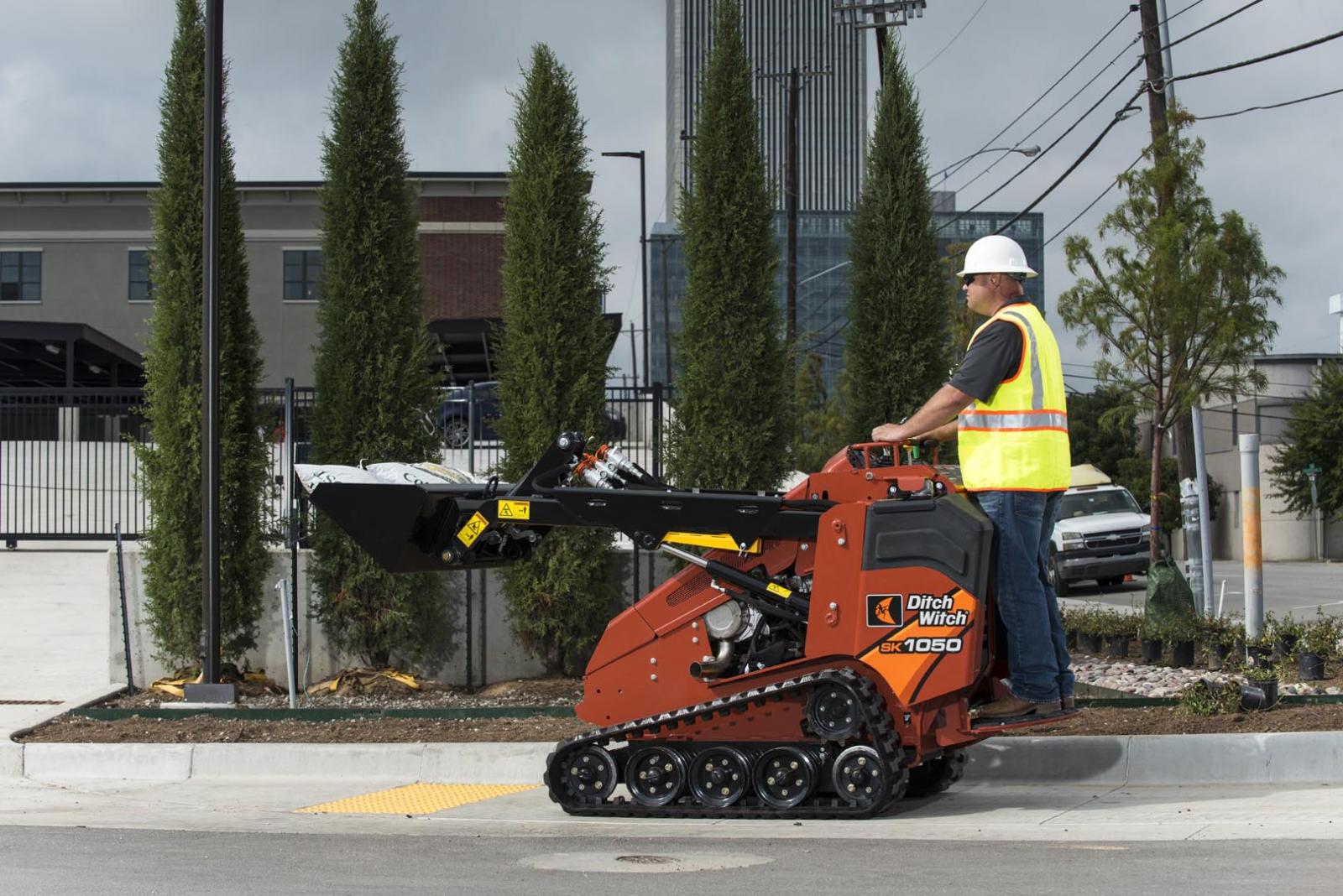

SK1050 MINI SKID STEER
- Ditch Witch
- Bucket Attachments
Find Your Nearest Location
Key Features & Specs

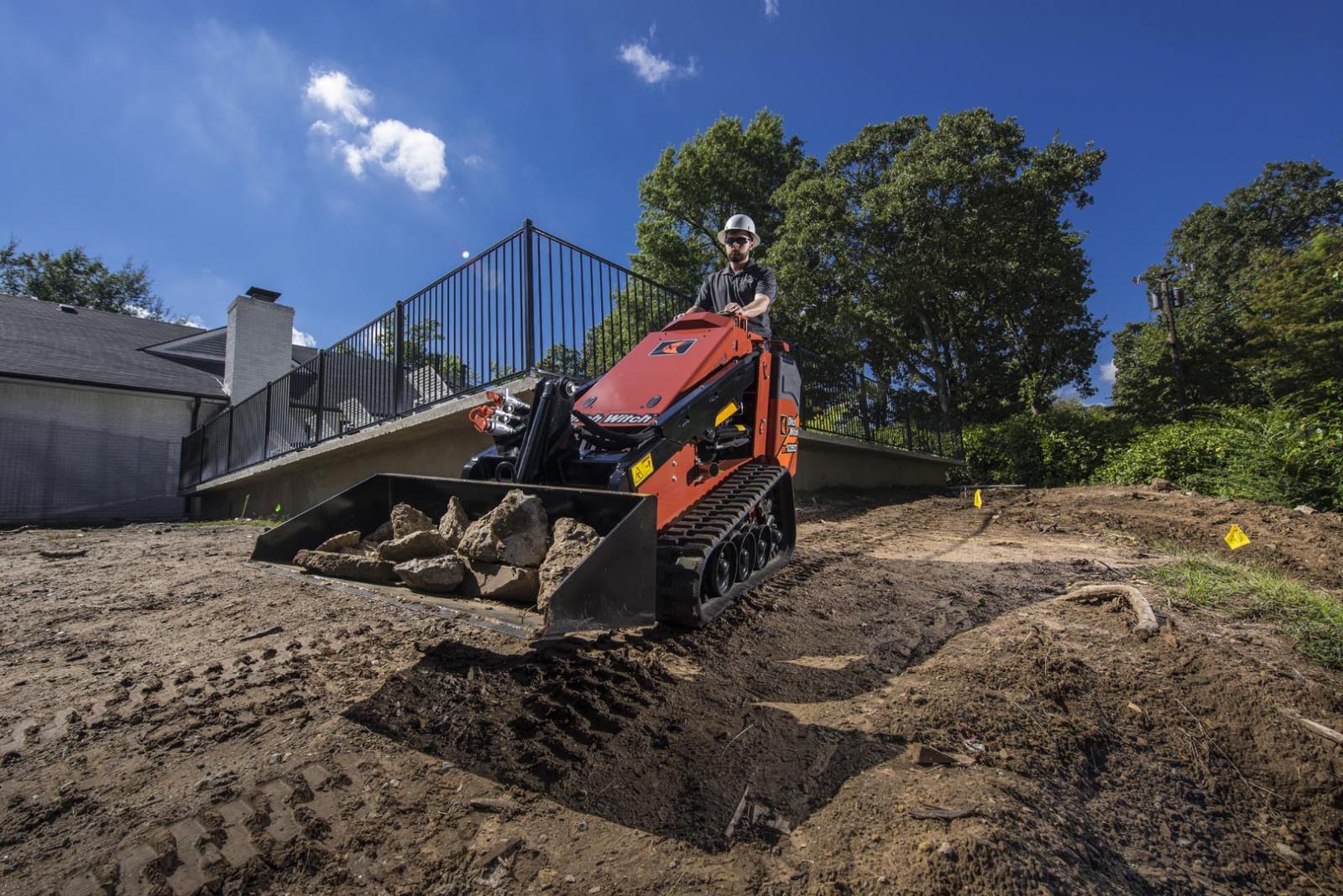

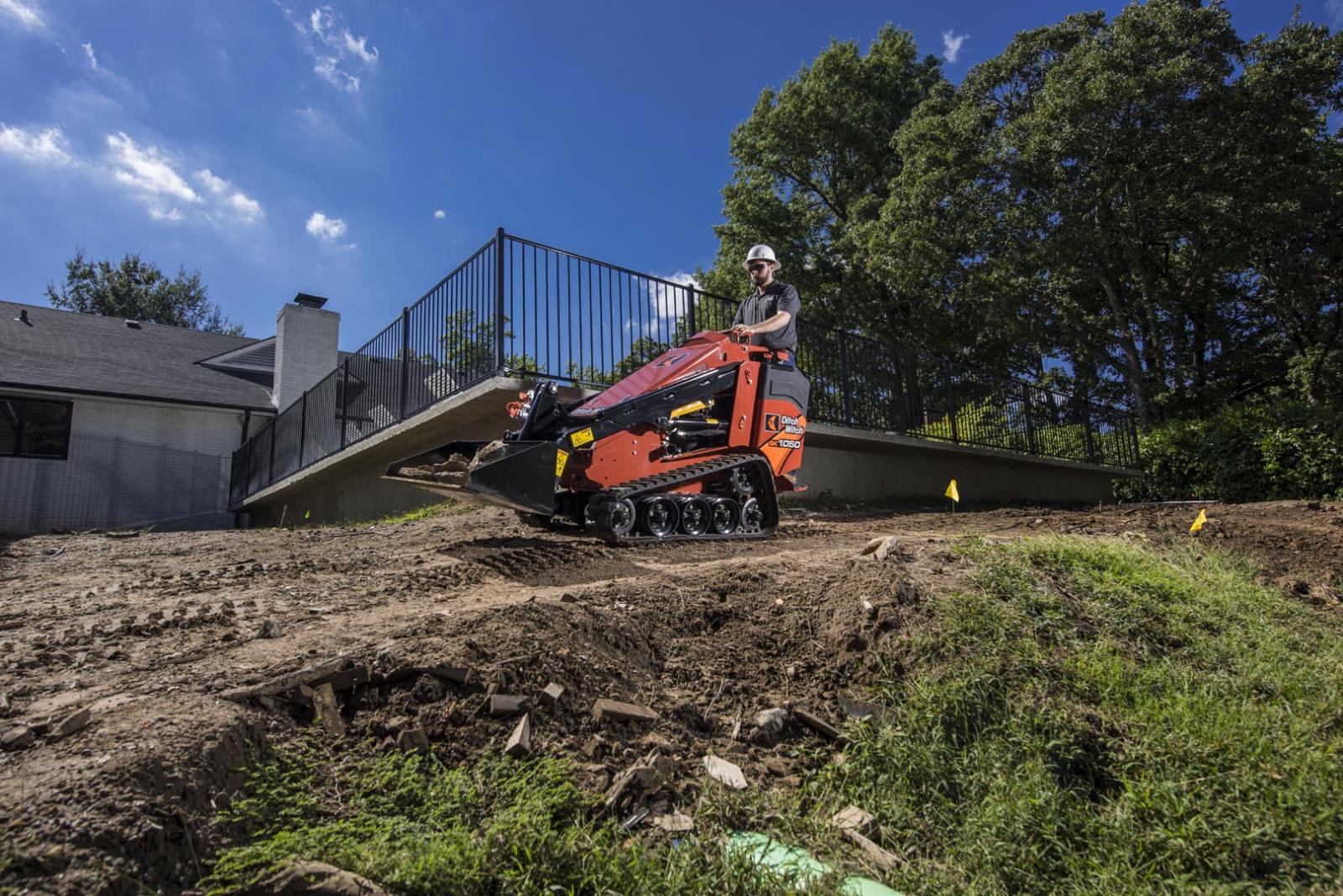

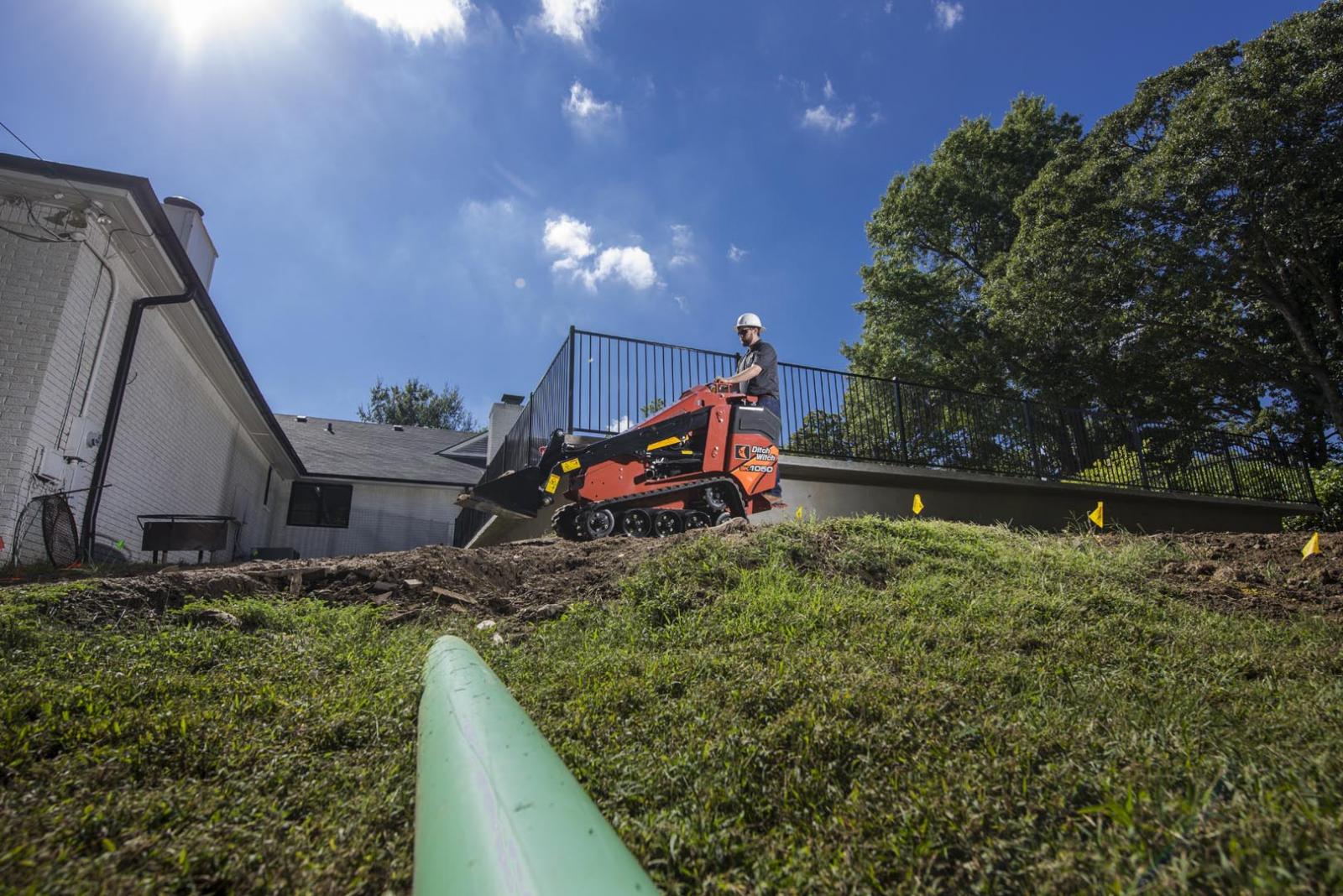

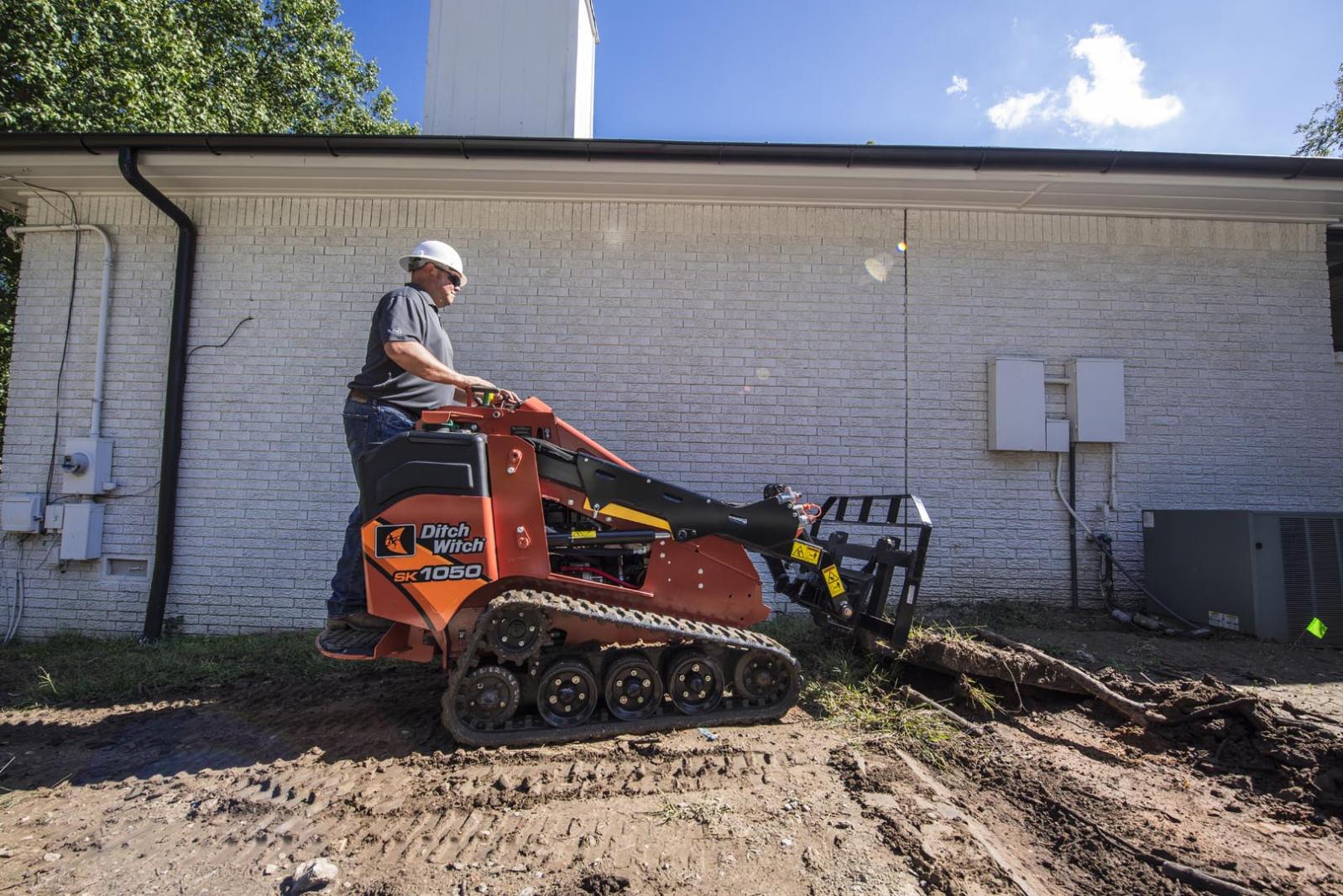

Ideally suited for a variety of demanding jobsites, the Ditch Witch SK1050 mini skid steer improves versatility and productivity by directing more hydraulic power to the attachment. The durable, construction-grade design eases operator maintenance for improved ROI, and outperforms all other working machines in its class. Designed specifically for the hardworking operator in mind, the best-in-class, spring-supported operator platform improves comfort for long hours on the job.
- + Expand All
- - Close All
-
Operator Comfort
SK1050Operator Comfort
Designed specifically with the hardworking operator in mind, the SK1050 is equipped with a best-in-class, 332-in2 (843-cm2) operator platform for outstanding comfort and productivity during long hours on the job.
A spring-supported platform is integrated directly into the machine for enhanced durability and comfortability on the job.
Ergonomic operator's station comes standard with dual-lever ground drive controls and an optional joystick, allowing the operator to control each track independently for improved maintenance and mobility on difficult jobsite conditions.
Incorporating customer feedback, the machine features a repositioned muffler now on the side, allowing exhaust to escape without affecting operator comfort.

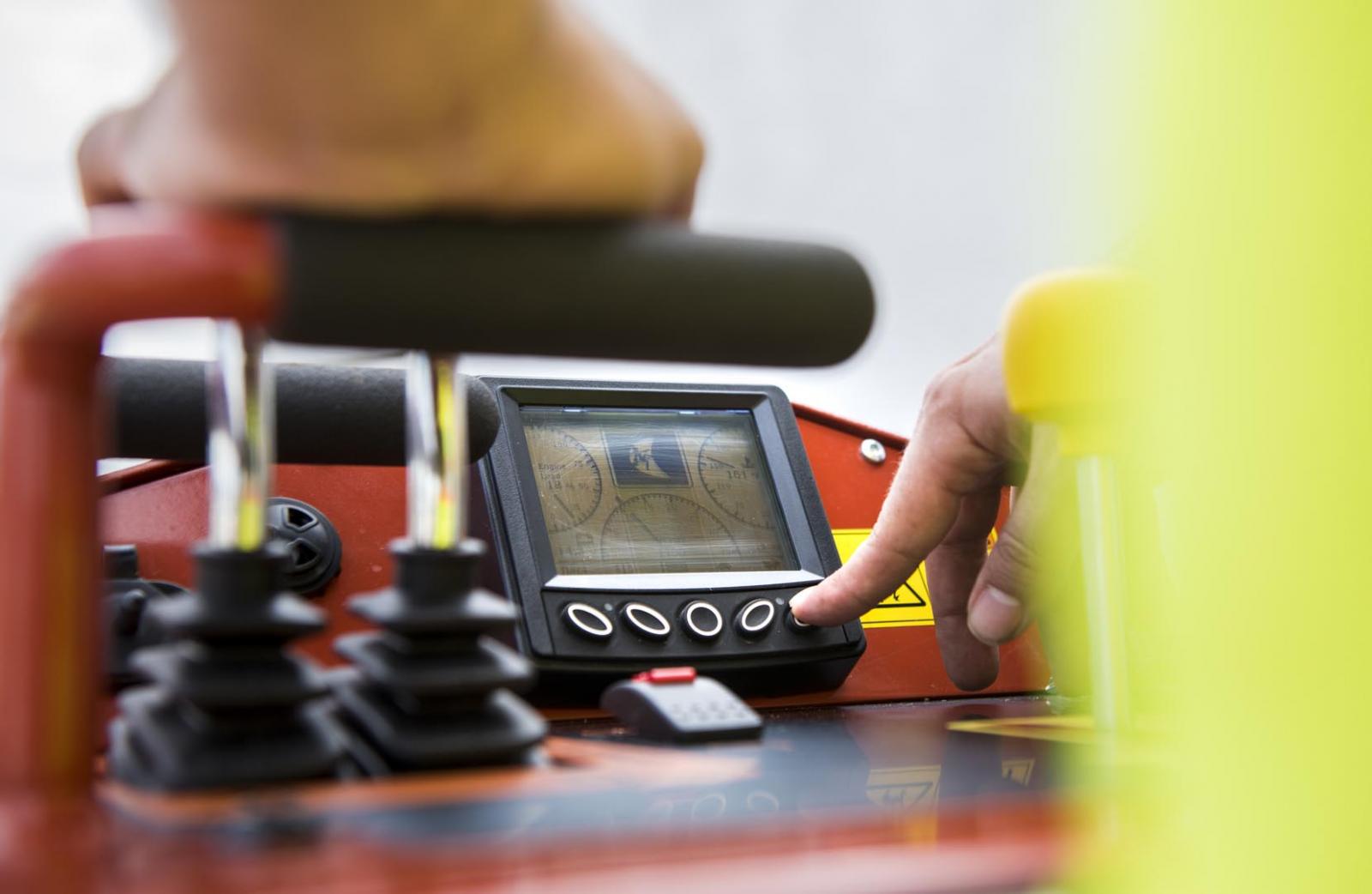

An LCD display with programming improvements provides direct visibility into engine diagnostics.
An easy-to-use auxiliary-control foot pedal allows operators to maintain hydraulic flow to the attachment while freeing their hands to control depth and ground speed.
-
OPERATION
OPERATION Ground drive speed Forward/reverse 4.7 mph 7.6 km/h Ground pressure* (ISO/CD 16754) 9-in (230-mm) tracks 4.9 psi 0.34 bar * Includes machine weight, 175-lb (80-kg) bucket, and 165-lb (75-kg) operator -
Construction-Grade
SK1050Construction-Grade
Built for heavy-duty operation, the robust design of the lift arms, rollers and undercarriage, improves overall machine longevity and ROI.

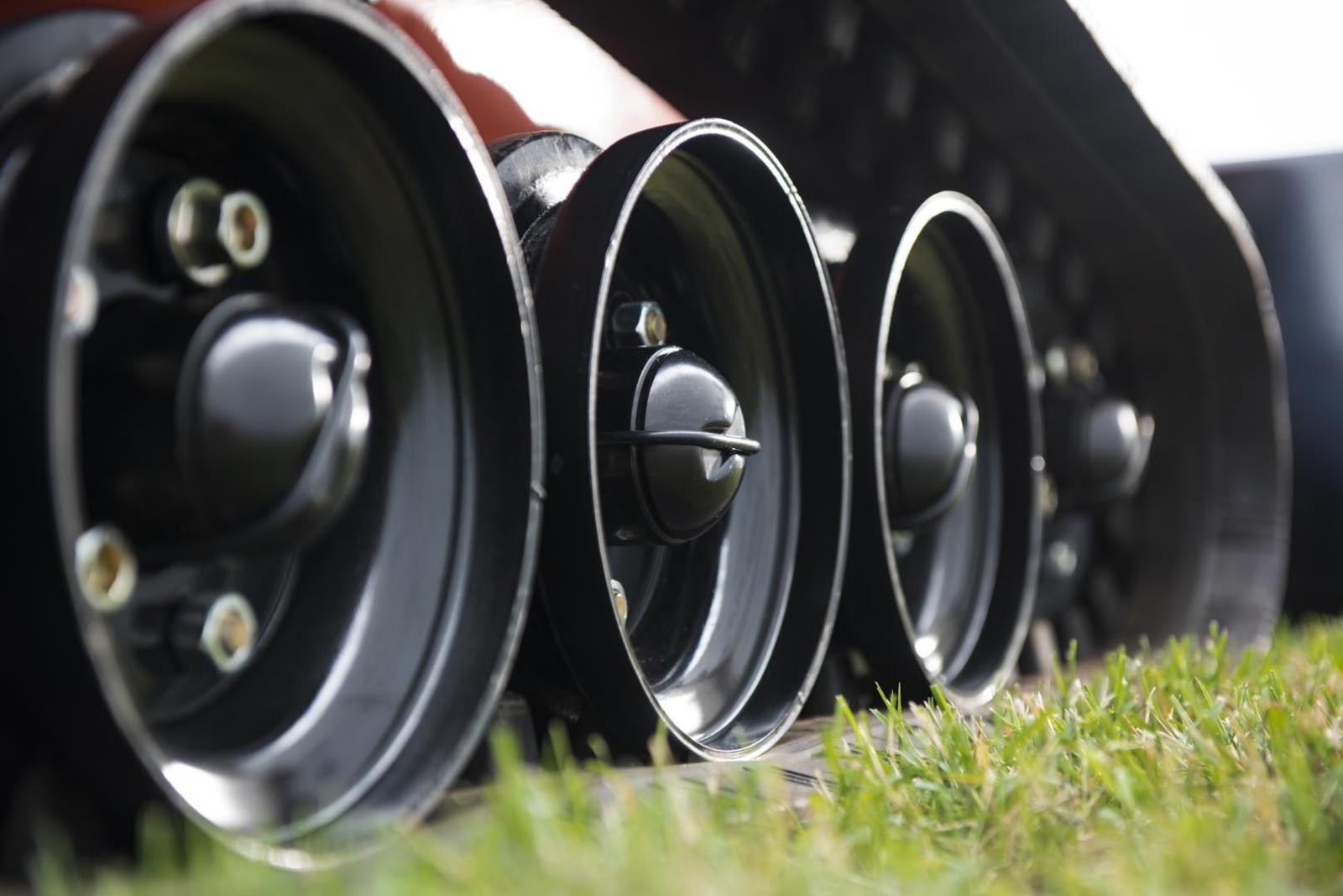

A high-drive track system includes bolt-on, interchangeable rollers—a Ditch Witch exclusive—for longer lasting performance.
Easy access to the machine undercarriage helps keep the machine in proper worker order.
With no daily maintenance points and no grease zerks, ease of maintenance is improved and total cost of ownership (TCO) reduced.
Low-maintenance gauge track-tensioning system features a grease cylinder for easy adjustment and track removal, improving track life and reducing downtime.
A standard hydraulic brake improves operator engagement and disengagement.
-
DIMENSIONS (STD)
DIMENSIONS (STD) U.S METRIC Operating height, max std. bucket 105 in 2667 mm Overall height of machine 57 in 1450 mm Overall length of machine, std. bucket 105 in 2670 mm Overall length of loader, no attachment 86 in 2190 mm Machine weight (no attachment, fluids full) 3,435 lb 1558 kg Hinge pin height, max 83 in 2108 mm Wheelbase/track length 43 in 1092 mm Track width 42 in 1065 mm Ground clearance, min Center 7.4 in 188 mm Side 3.7 in 94 mm Rated operating capacity 35% of tipping capacity 1,062 lb 482 kg Angle of departure 27° -
Superior Power
SK1050Superior Power
Equipped with a 37-hp Tier 4 Yanmar® diesel engine, the SK1050 directs 30 hp to the attachment, giving operators the power to tackle an assortment of challenging tasks.
The SK1050’s attachment horsepower, combined with 13.9 gpm auxiliary flow and 3,625 psi (250 bar), results in quicker jobsite cycle times, making your crews more efficient.
Standard auto-throttle reduces engine throttle when stepping off the platform for greater fuel efficiency.
The machine is capable of 4.7-mph (7.6-km/h) ground drive speed both forward and in reverse, improving jobsite cycle times and decreasing overall labor costs.
-
Greater Productivity
SK1050Greater Productivity
Best-in-class, 83-inch (2.1-m) hinge-pin height enables more flexible and efficient loading and unloading at a wide range of dump heights and improved operating capacity ensures the machine can withstand maximum weight at maximum height.
1,062-lb (482-kg) rated operating capacity with exceptional stability allows operators to effectively maneuver jobsites while carrying heavier loads.
At 3,625 psi (250 bar), the SK1050 provides more hydraulic pressure to the attachment than comparable industry models, also leading to increased cycle times—saving time and money.
When enabled, standard auto-throttle reduces engine RPM after periods of sustained inactivity for better fuel economy.
-
NOISE LEVEL
NOISE LEVEL Operator ear sound pressure 89 dBA Exterior sound power 103 dBA -
Added Versatility
SK1050Added Versatility

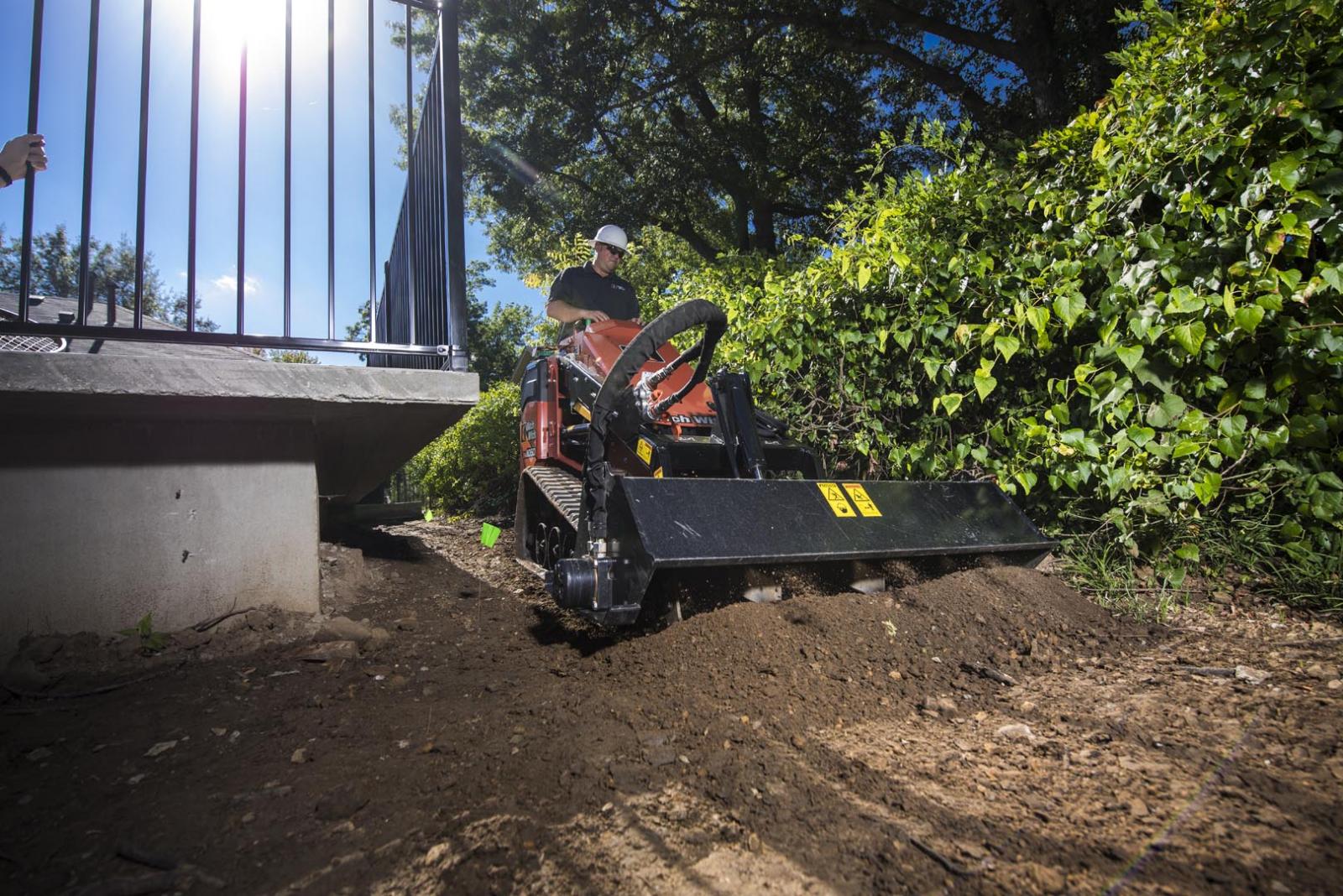

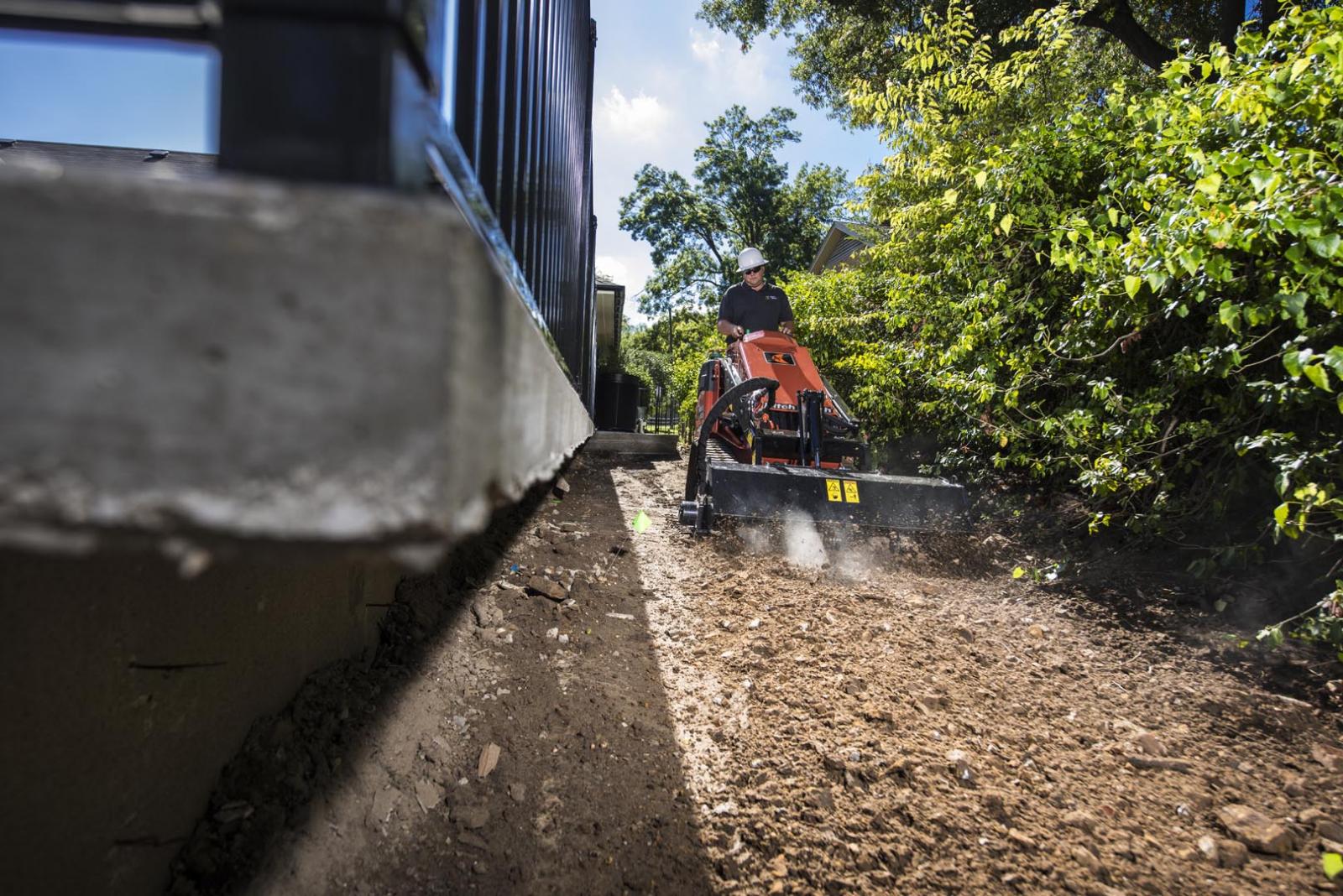

The SK1050 accepts many attachments to suit a variety of hardscape, landscape, utility, plumbing and irrigation jobs, making it one of the most versatile machines on the market.
Industry-leading power to the attachment provides unbeatable productivity, especially when operating hydraulic attachments, and increases jobsite cycle times.
Advanced attachment-latching system for simple, secure connection of the attachments.
-
FLUID CAPACITIES
FLUID CAPACITIES U.S METRIC Fuel tank capacity 10.5 gal 40 L Engine oil, w/filter 5 qt 4.7 L Hydraulic reservoir capacity 9.2 gal 35 L -
POWER
POWER U.S METRIC Engine Yanmar 3TNV88C Fuel Diesel Gross power rating (SAE J1995) 36.9 hp 27.5 kW Emissions compliance EPA Tier 4 Final EU Stage IIIA Number of cylinders 3 Displacement 100.1 in³ 1.64 L Bore 3.46 in 88 mm Stroke 3.54 in 90 mm Rated speed 3,000 rpm -
HYDRAULIC SYSTEM
HYDRAULIC SYSTEM U.S METRIC Auxiliary circuit Double gear pump Flow rate 13.9 gpm 52.6 L/min Pressure 3,625 psi 250 bar -
BATTERY
BATTERY SAE reserve capacity rating 110 min SAE cold crank @ 0°F (-18°C) 800 amps Electrical system 12V -
Superior Support
SK1050Superior Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
