Key Features & Specs

With the new JT60 horizontal directional drill, you’ll recognize many of the features you’ve grown to appreciate: the proven, intuitive electronics and the rugged and reliable undercarriage, to name two. And in no time you’ll appreciate the JT60’s more powerful rotational torque—an increase of 4,000 ft·lb (5423 N·m) over its predecessor the JT4020—and 60,000 lb (267 kN) of thrust and pullback. It’s the more powerful combination you needed—the combination you asked for—to work more efficiently with less downtime.

  • + Expand All
  • - Close All
  • Dimensions
    Dimensions Length 331 in 8.41 m Width 87 in 2.21 m Height 101 in 2.57 m Operating mass 31,080 lb 14,098 kg Entry angle 10-16° Angle of approach 18° Angle of departure 13°
  • Drilling Fluid System
    Drilling Fluid System Pressure, max 1,300 psi 90 bar Flow, max 150 gpm 560 l/min
  • Innovative Design
    JT60
    Innovative Design

    Proven, industry-leading pipe-loading system is simple, easy to use and is designed to increase productivity, saving you time, money and effort.

    Wireless operation system gives you remote control of ground drive, stabilizers, dual pivot, and stake down functionality allowing for more efficient jobsite setup.

    Increase uptime with a simple yet durable, customer-driven design.

    Dual rear independent stabilizers give you the confidence to set up on uneven terrain.

    Easy to service, with all daily maintenance points in one location that is easily accessed through removable doors.

  • Power
    JT60
    Power

    60,000 lb (267 kN) thrust and pullback with 9,000 ft·lb (12,240 N·m) rotational torque—the powerful combination you need for outstanding productivity on big installation jobs.

    Choice of a 190-gross-hp (142-kW) Tier 3 or 200-gross-hp (149-kW) Tier 4 Cummins® diesel engine.

    Double rack-and-pinion thrust drive is field-proven and engineered to push/pull through long, tough bores.

    Ditch Witch drill pipes are manufactured to be stronger and more durable. The JT60 has three drill pipe options that you keep your drills and business moving forward.

  • Fluid Capacities
    Fluid Capacities Hydraulic reservoir 36 gal 136 L Fuel tank 55 gal 208 L Engine lubrication oil, w/ filter 19 qt 18 L Engine cooling system 31 qt 29 L Antifreeze tank 16 gal 60 L DEF Tank 3.6 gal 13.6 L
  • Productivity
    JT60
    Productivity

    Onboard, enclosed 150-gpm (560-l/min) fluid pump for productive drilling at greater distances; flow rate can be operated simultaneously with thrust/pullback and rotation.

    Simple, intuitive carve mode reduces operator fatigue; compatible with superior TriHawk® HD housings and bits for exceptional productivity.

    Heavy-duty, planetary-driven anchor system enables you to use full machine thrust in tough jobsite conditions, improving productivity.

    Two-speed thrust drive motors provide exceptional low-speed drilling control and the ability to reach the high speeds necessary for rapidly loading drill pipes.

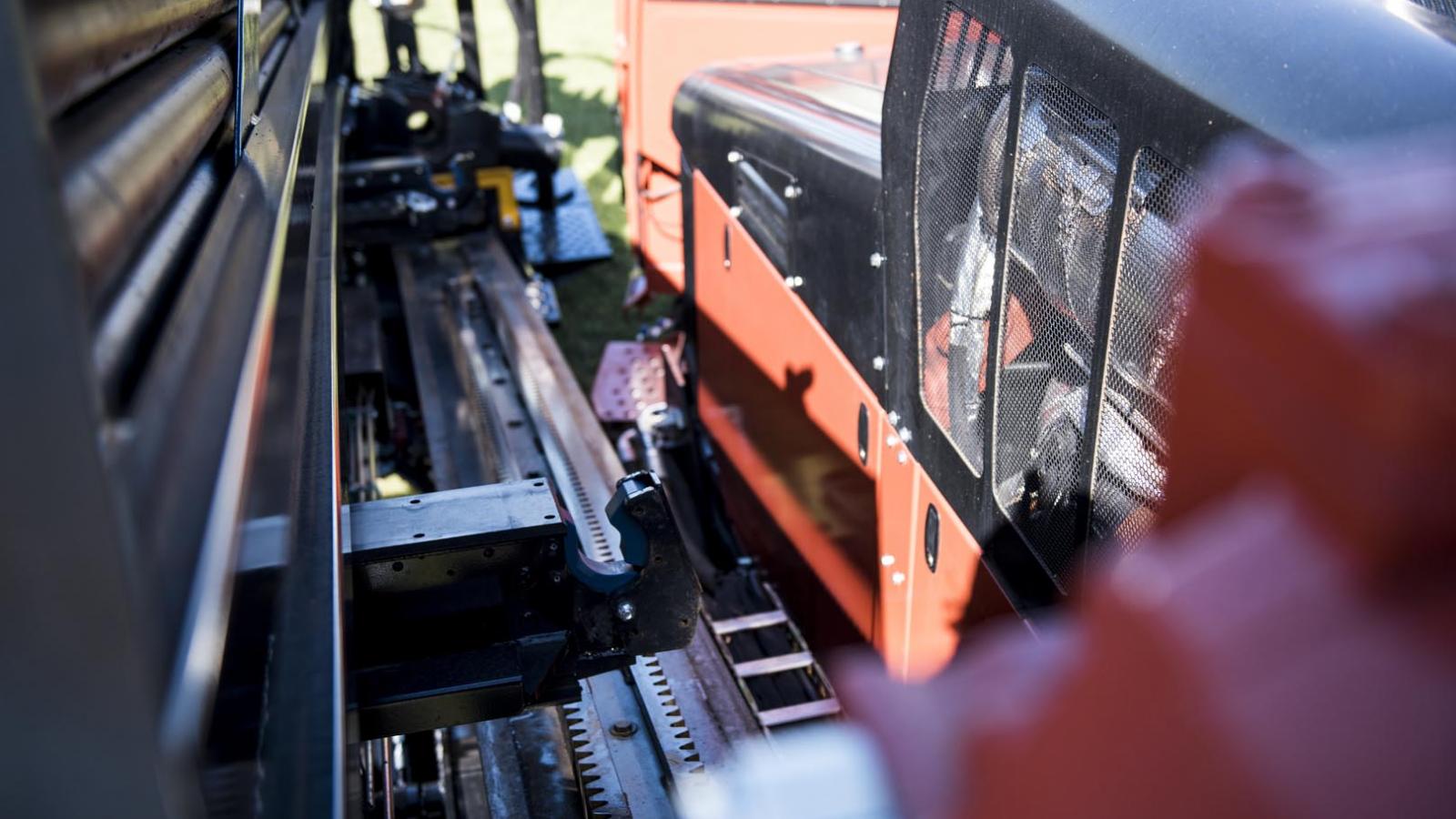

    Open-top vise wrenches are angled toward the operator, lending an excellent view of the tool joint when making up and breaking out pipes.

    Wireline platform option available.

  • POWER PIPE FORGED (#900)
    POWER PIPE FORGED (#900) Length of dril pipe, nominal 180 in 4.57 m Diameter of drill pipe, tool joint end 3.25 in 83 mm Diameter of drill pipe 2.88 in 73 mm Bend radius, min 169 ft 52 m Weight of drill pipe 180 lb 82 kg Weight of drill pipe and large box (28 pipe) 5,040 lb 2,285 kg Weight of drill pipe and small box (16 pipe) 2,880 lb 1,306 kg
  • Superior Support
    JT60
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service and expert advice, your Ditch Witch dealer has it all for you.

  • Power (Tier 3)
    Power (Tier 3) Engine Cummins® QSB6.7 Fuel Diesel Cooling medium Liquid Injection Direct Aspiration Turbocharged & charge air cooled Number of cylinders 6 Displacement 4.08 in3 6.7 L Bore 4.21 in 107 mm Stroke 4.88 in 124 mm Manufacturer’s gross power rating 190 hp 142 kW Rated speed 2,200 rpm Emissions compliance EPA Tier 3 Stage IIIA
  • Vibration Level
    Vibration Level Average vibration transmitted to the operator’s hand and whole body during normal operation does not exceed 2.5 and 0.5 m/sec2 respectively. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
  • Operator's Station
    JT60
    Operator's Station

    Open-top vise wrenches are angled toward the operator, lending an excellent view of the tool joint when making up and breaking out pipes.

    Dual-pivot drill frame allows for steep entry angles without raising the tracks off the ground—no need to constantly readjust the machine even when the terrain is muddy or steep; operator station stays level for maximized comfort.

    Fully enclosed, climate-controlled cab features instrument panel gauges positioned for visibility, with conveniently placed controls and an excellent view of the tool joint.

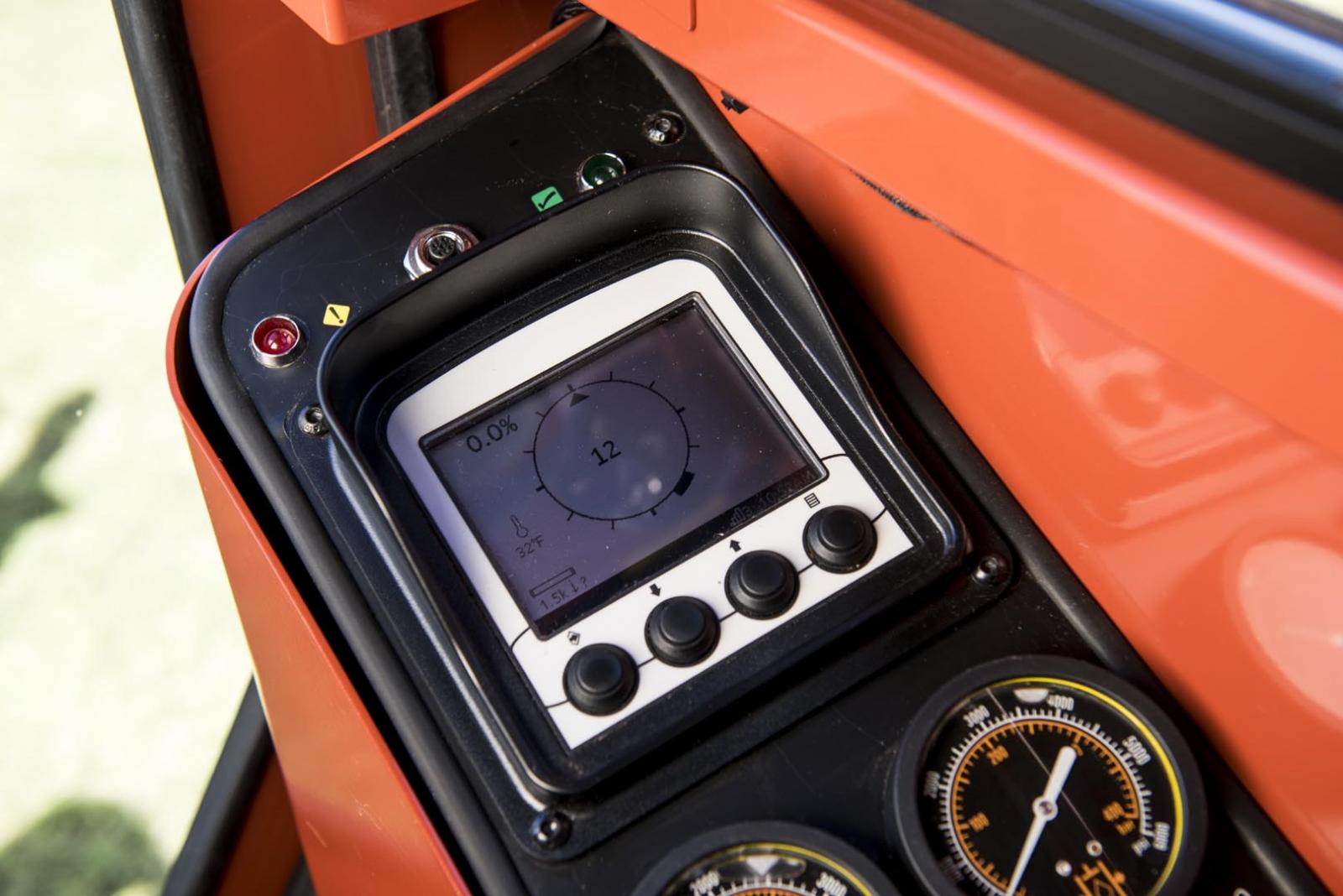

    Operator’s station features an ergonomic seat, color LCD engine display, higher visibility, and an intuitive joystick that controls all drilling functions.

  • Power Pipe® HD (2.46-4)
    Power Pipe® HD (2.46-4) Length of dril pipe, nominal 180 in 4.57 m Diameter of drill pipe, tool joint end 3.5 in 89 mm Diameter of drill pipe 3.06 in 78 mm Bend radius, min 170 ft 52 m Weight of drill pipe, lined 187 lb 85 kg Weight of drill pipe and large box (28 pipe) 5,236 lb 2,375 kg Weight of drill pipe and small box (16 pipe) 2,992 lb 1,357 kg
  • Operation
    Operation U.S. Metric Spindle speed, max 240 rpm Spindle speed (AT inner spindle), max 250 rpm Spindle torque, max 9,000 ft·lb 12200 N·m Spindle torque (AT inner spindle), max 2,000 ft·lb 2700 N·m Carriage thrust travel speed 100 fpm 30.5 m/min Carriage pullback travel speed 100 fpm 30.5 m/min Thrust force 60,000 lb 267 kN Pullback force 60,000 lb 267 kN Bore diameter 5 in 127 mm Backreamer diameter Variable Ground travel speed Forward/reverse 2.5 mph 4 km/h
  • Battery (2 used)
    Battery (2 used) SAE reserve capacity rating 195 min SAE cold crank rating @ 0°F (-18°C) 950 amps
  • Power (Tier 4)
    Power (Tier 4) Engine Cummins QSB6.7 Fuel Diesel Cooling medium Liquid Injection Direct Aspiration Turbocharged & charge air cooled Number of cylinders 6 Displacement 408 in3 6.7 L Bore 4.21 in 107 mm Stroke 4.88 in 124 mm Manufacturer's gross power rating 200 hp 149 kW Rated speed 2,200 rpm Emissions compliance EPA Tier 4 EU Stage IV
  • Noise level
    Noise level Operator sound pressure per ISO 6394 < or = 81 dBA Exterior sound power per ISO 6394 < or = 106 dBA
