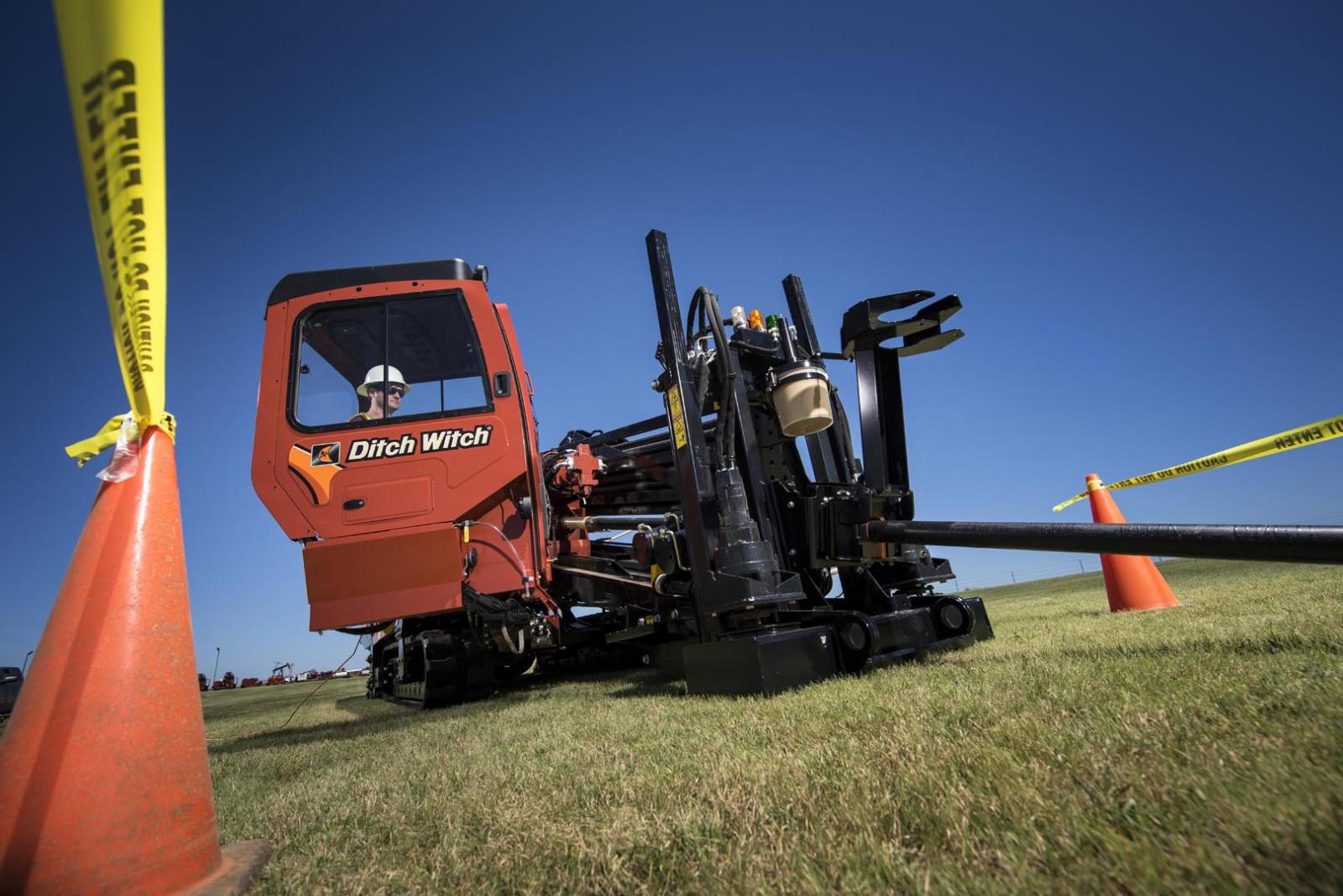

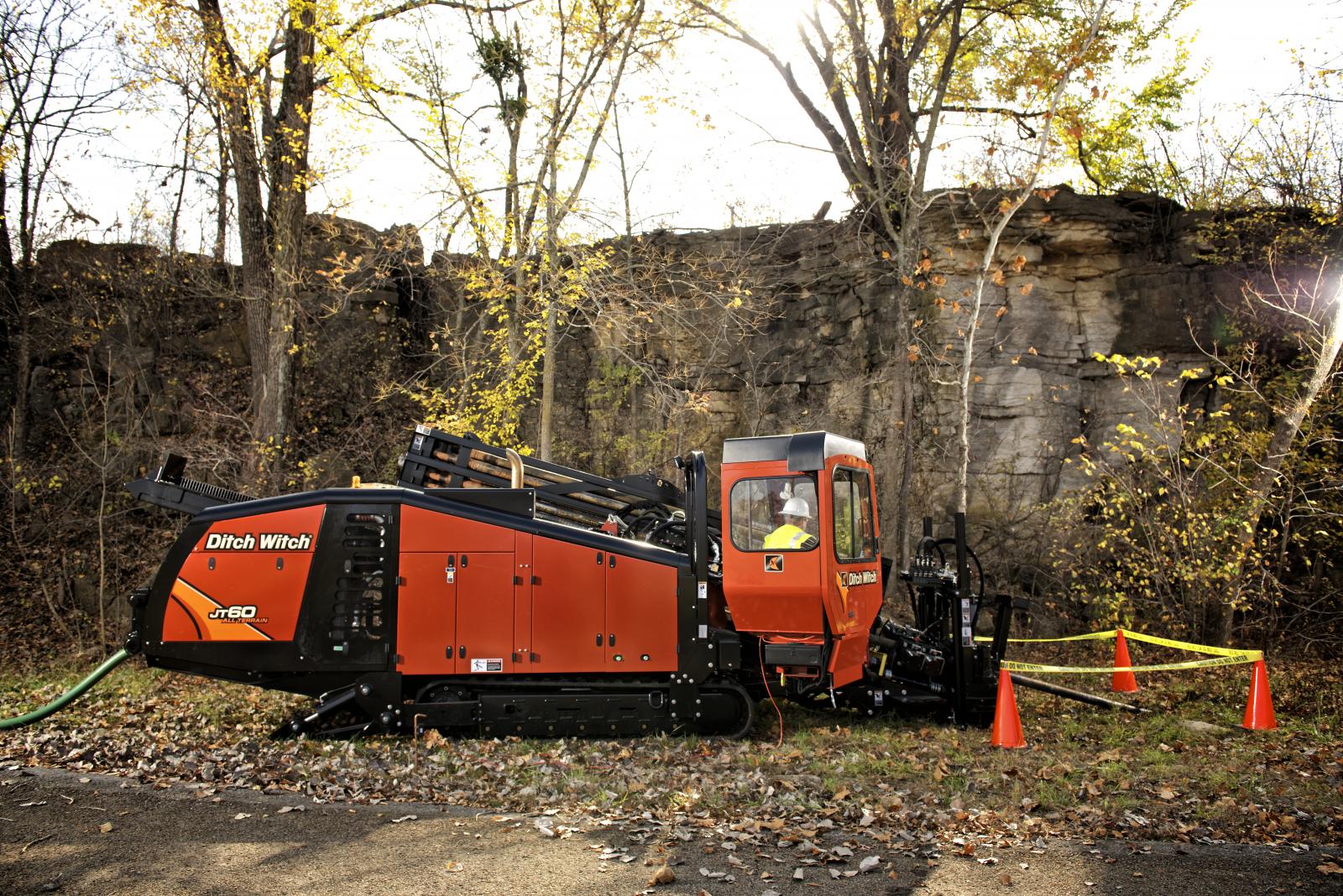

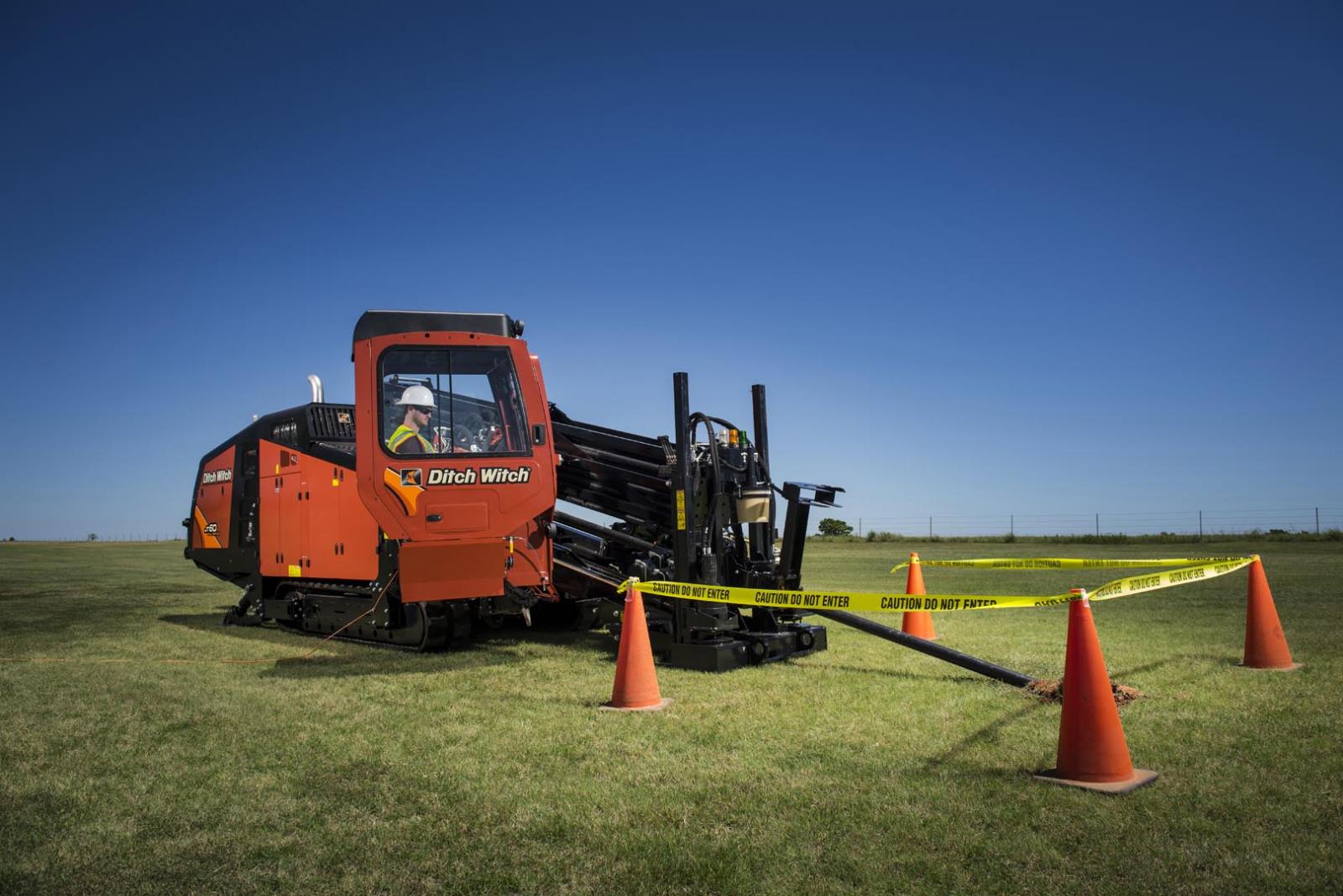

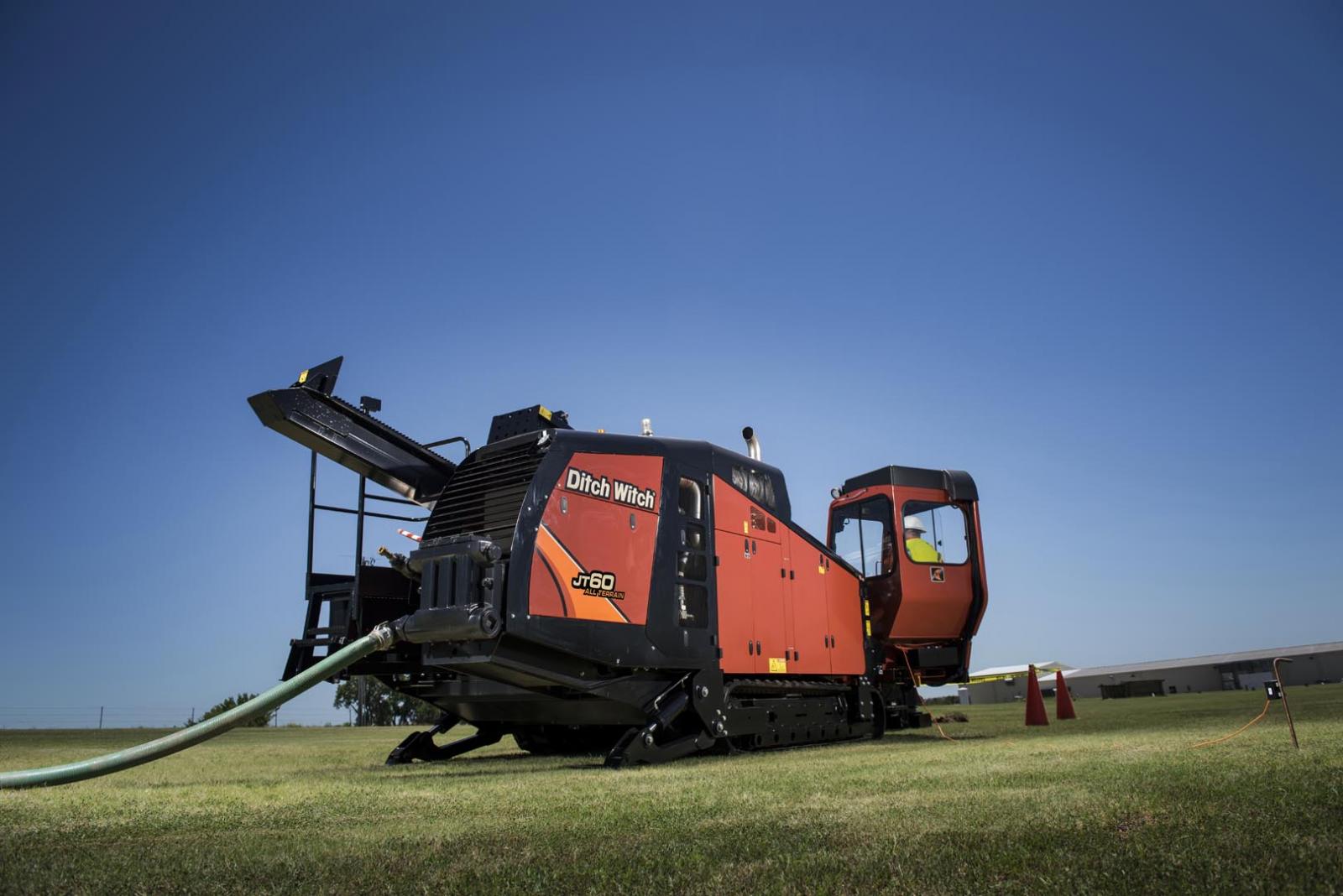

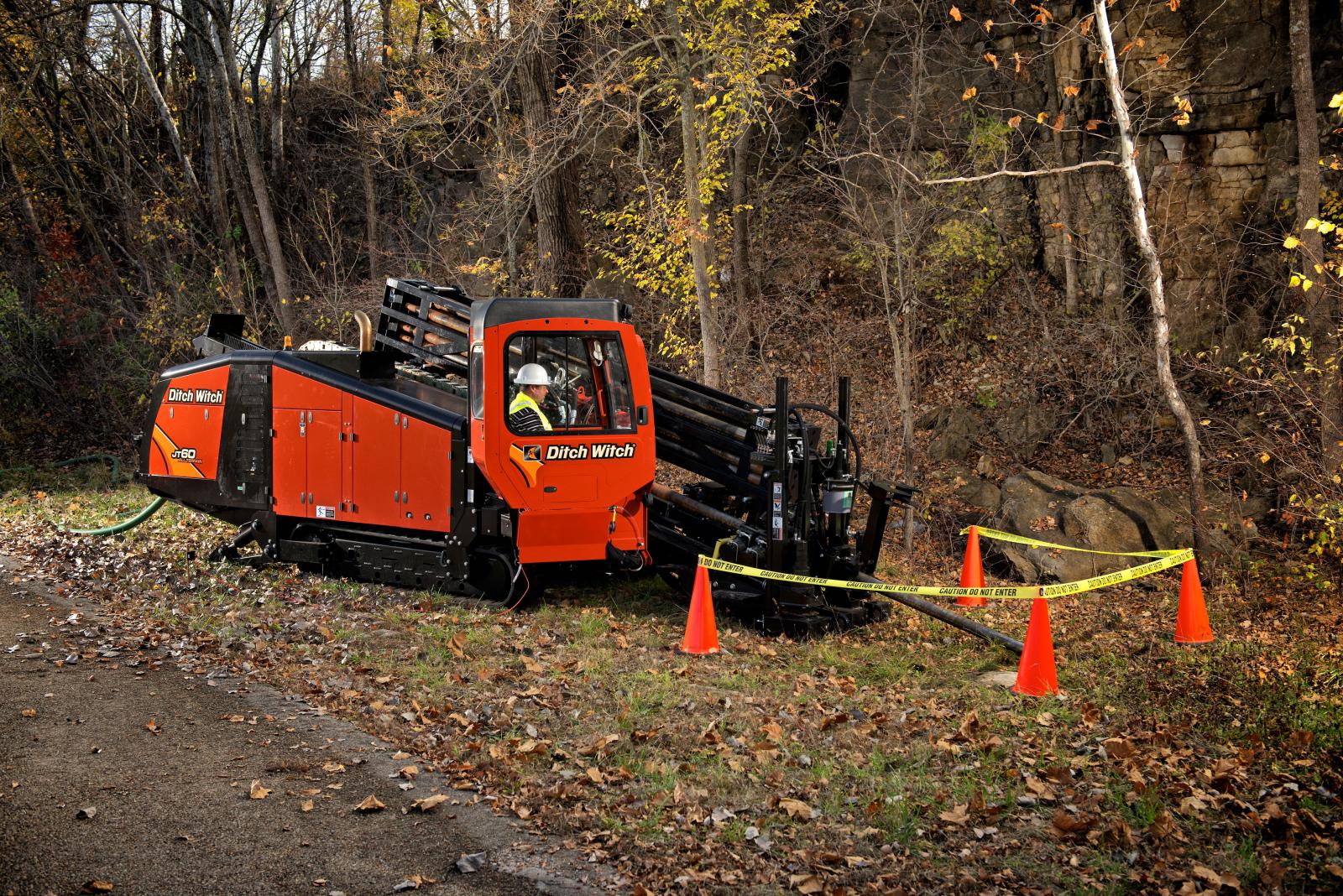

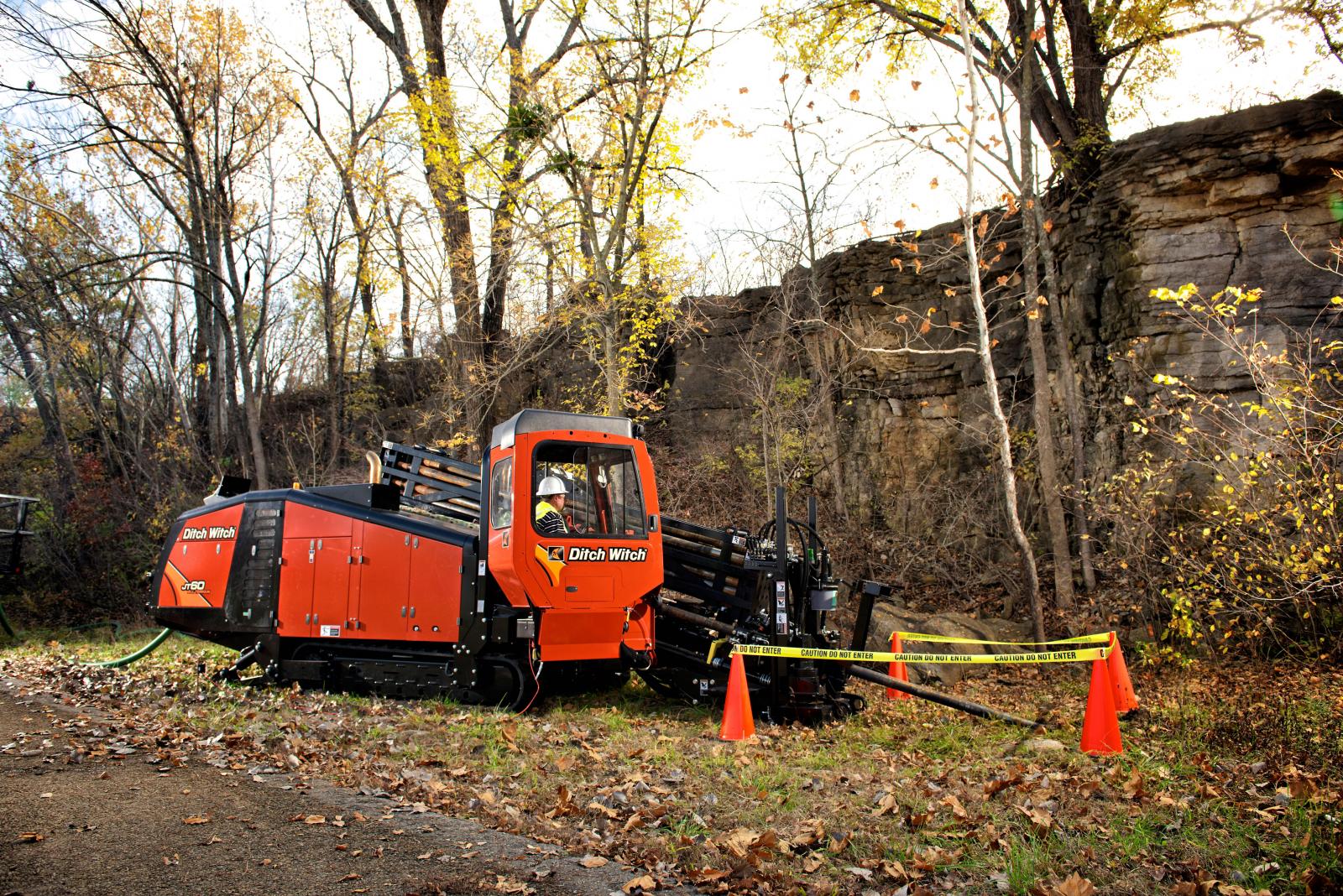

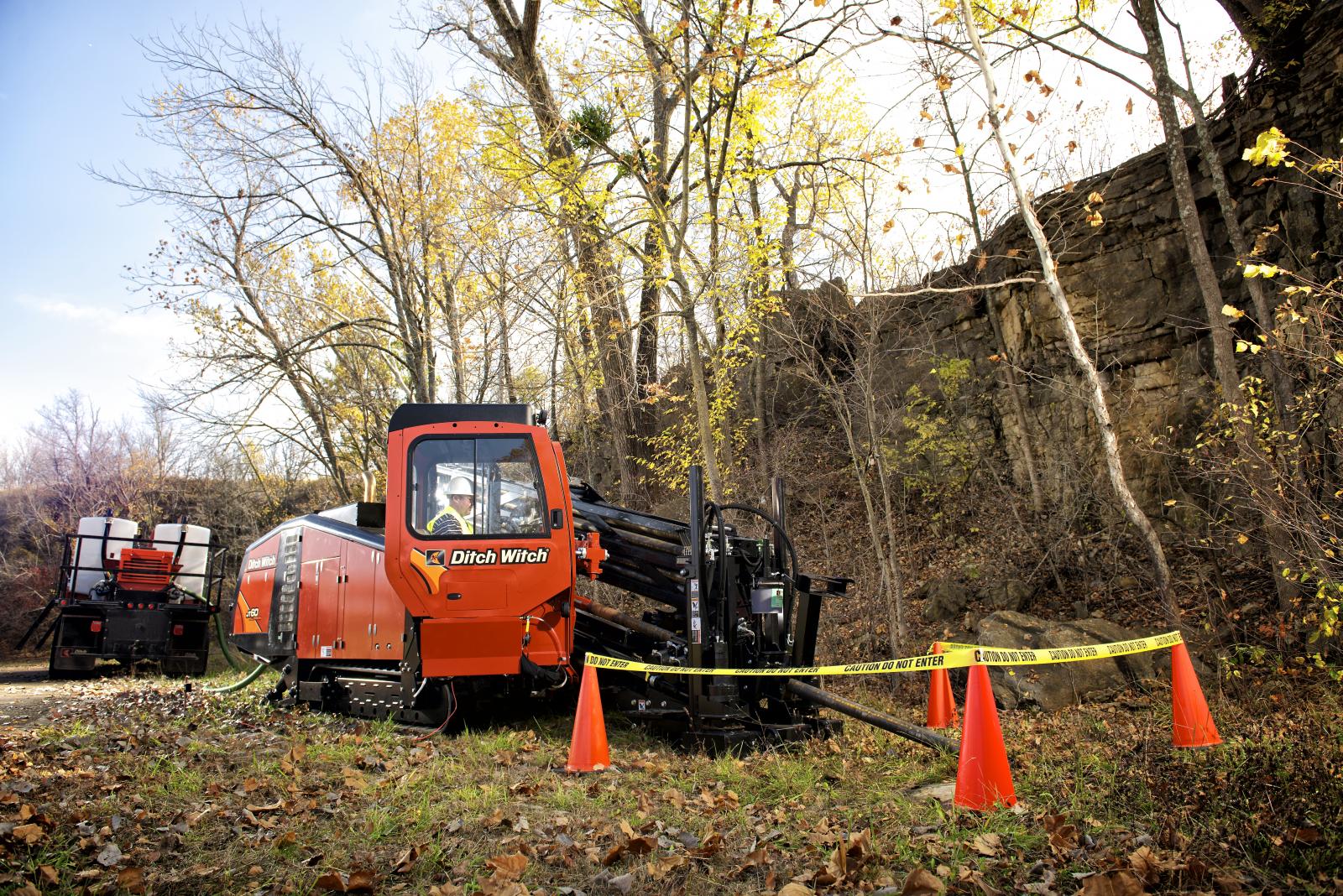

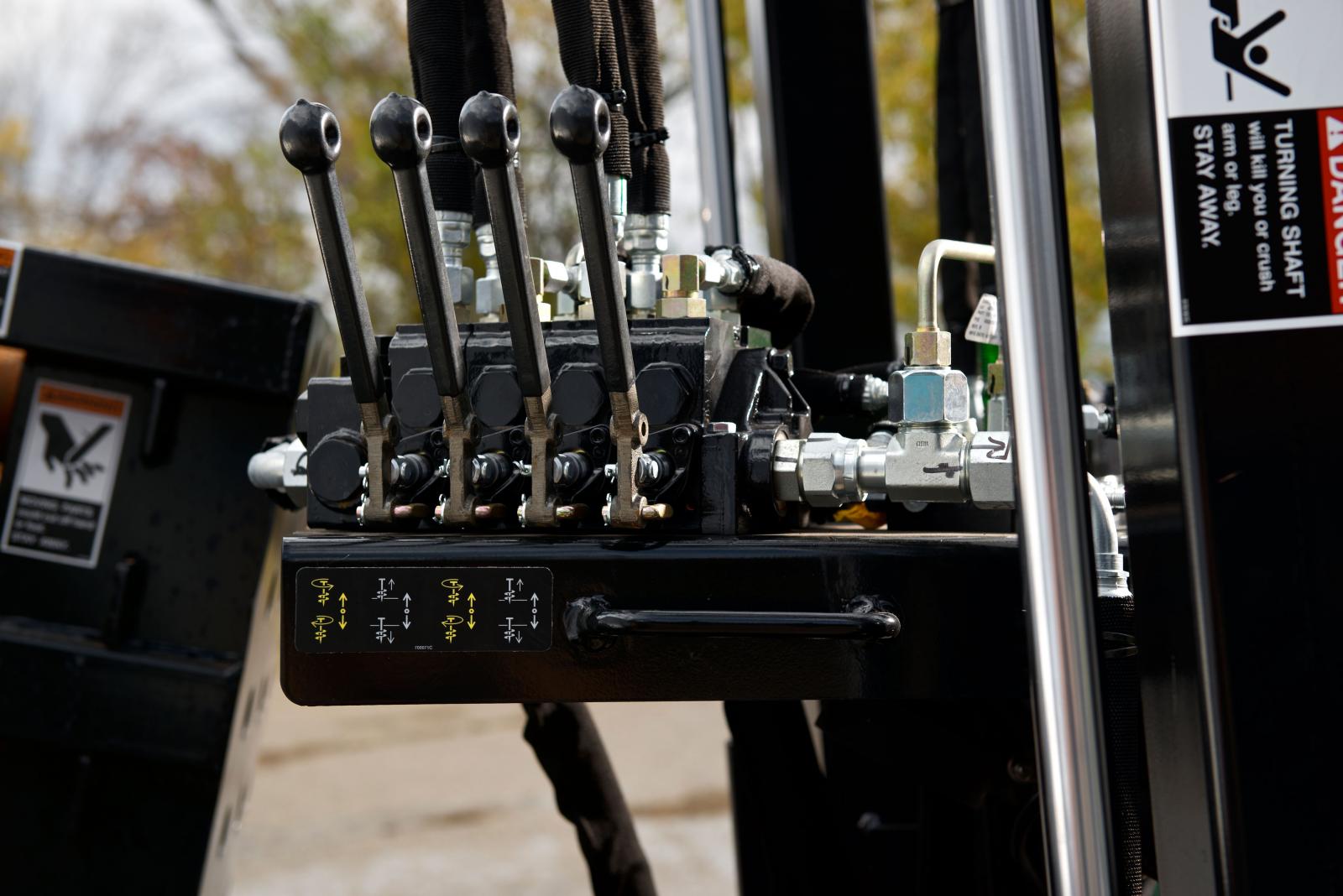

JT60 All Terrain Directional Drill

  • Ditch Witch
  • Directional-Drills

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Every Ditch Witch All Terrain directional drill stands apart from competitors by virtue of its patented, two-pipe All Terrain drilling system, which delivers more power to the bit than any other rock-drilling system in its class, resulting in unbeatable productivity in the widest range of ground formations. With the JT60 All Terrain, you also get a uniquely powerful combination of rotational torque, thrust and pullback, plus intuitive carve mode and many other features requested specifically by customers.

  • + Expand All
  • - Close All
  • POWER PIPE® HD (2.46-4)
    POWER PIPE® HD (2.46-4) Length of drill pipe, nominal 180 in 4.57 m Diameter of drill pipe, tool joint end 3.5 in 89 mm Diameter of drill pipe 3.06 in 78 mm Bend radius, min 170 ft 52 m Weight of drill pipe, lined 187 lb 85 kg Weight of drill pipe & large box (28 pipe) 5,236 lb 2,375 kg Weight of drill pipe & small box (16 pipe) 2,992 lb 1,357 kg
  • BATTERY (2 USED)
    BATTERY (2 USED) SAE reserve capacity rating 195 min SAE cold crank rating @ 0°F (-18°C) 950 amps
  • Superior Support
    JT60 All Terrain
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service and expert advice, your Ditch Witch dealer has it all for you.

  • Operator's Station
    JT60 All Terrain
    Operator's Station

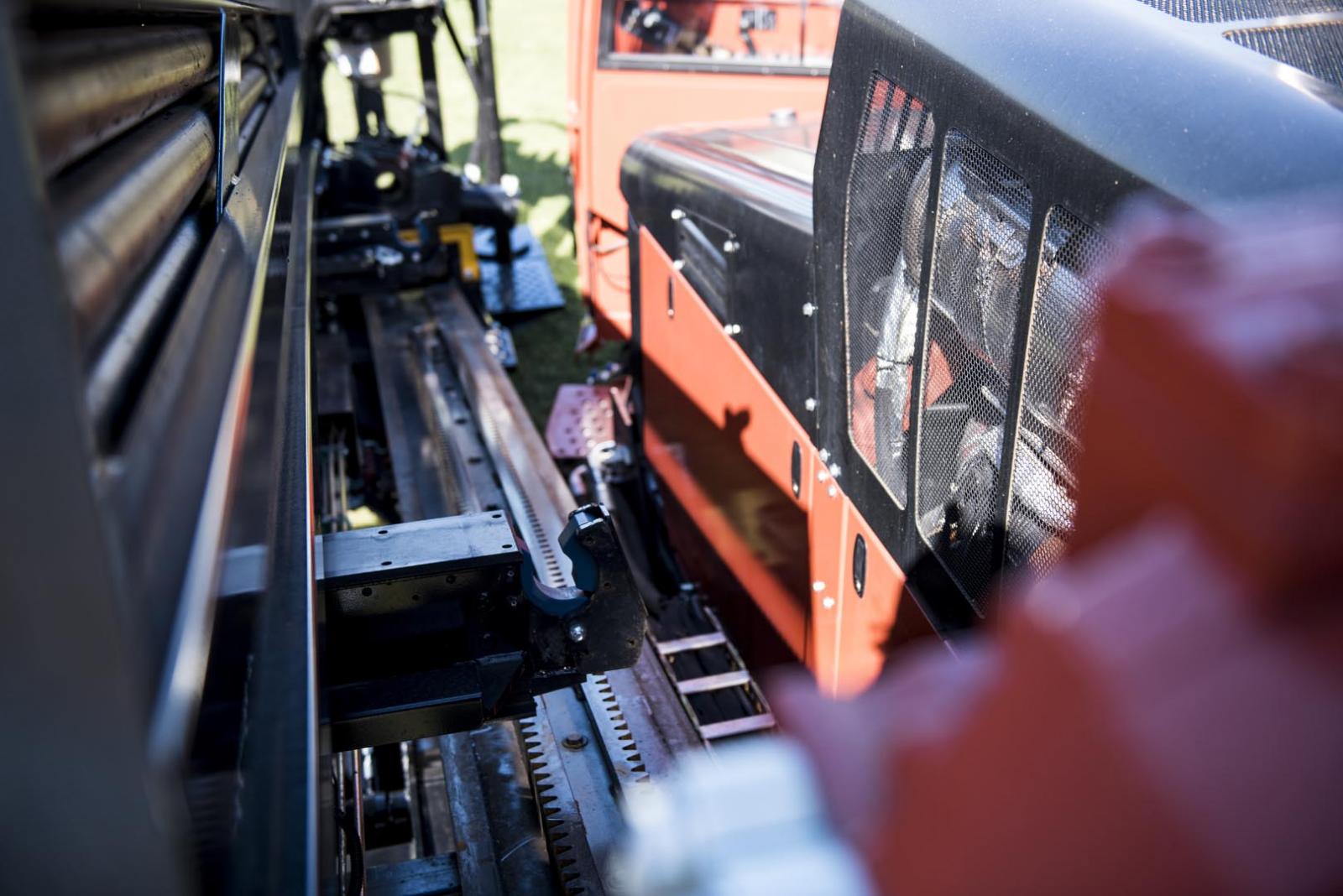

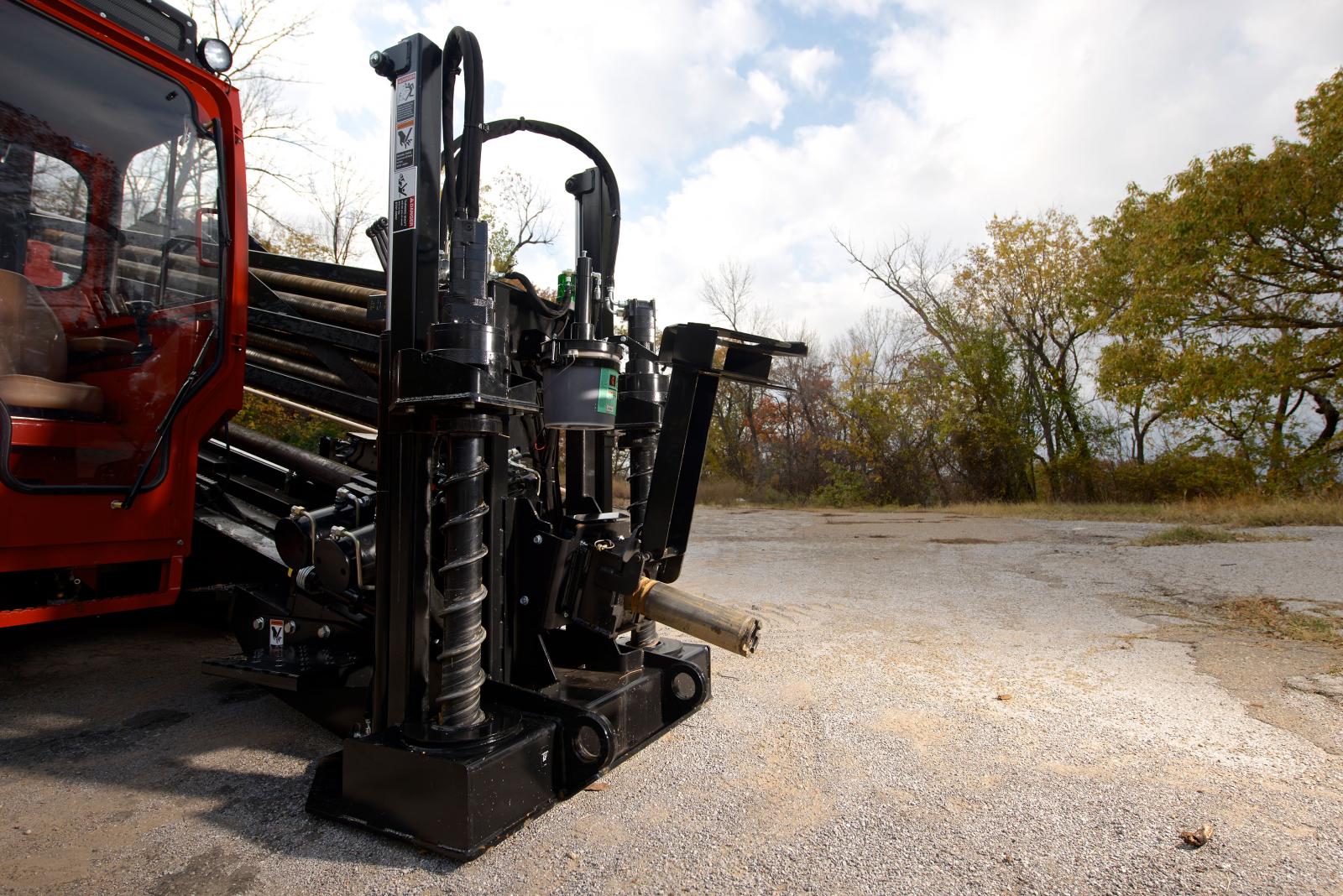

    Open-top vise wrenches are angled toward the operator for an excellent view of the tool joint when making up and breaking out pipes.

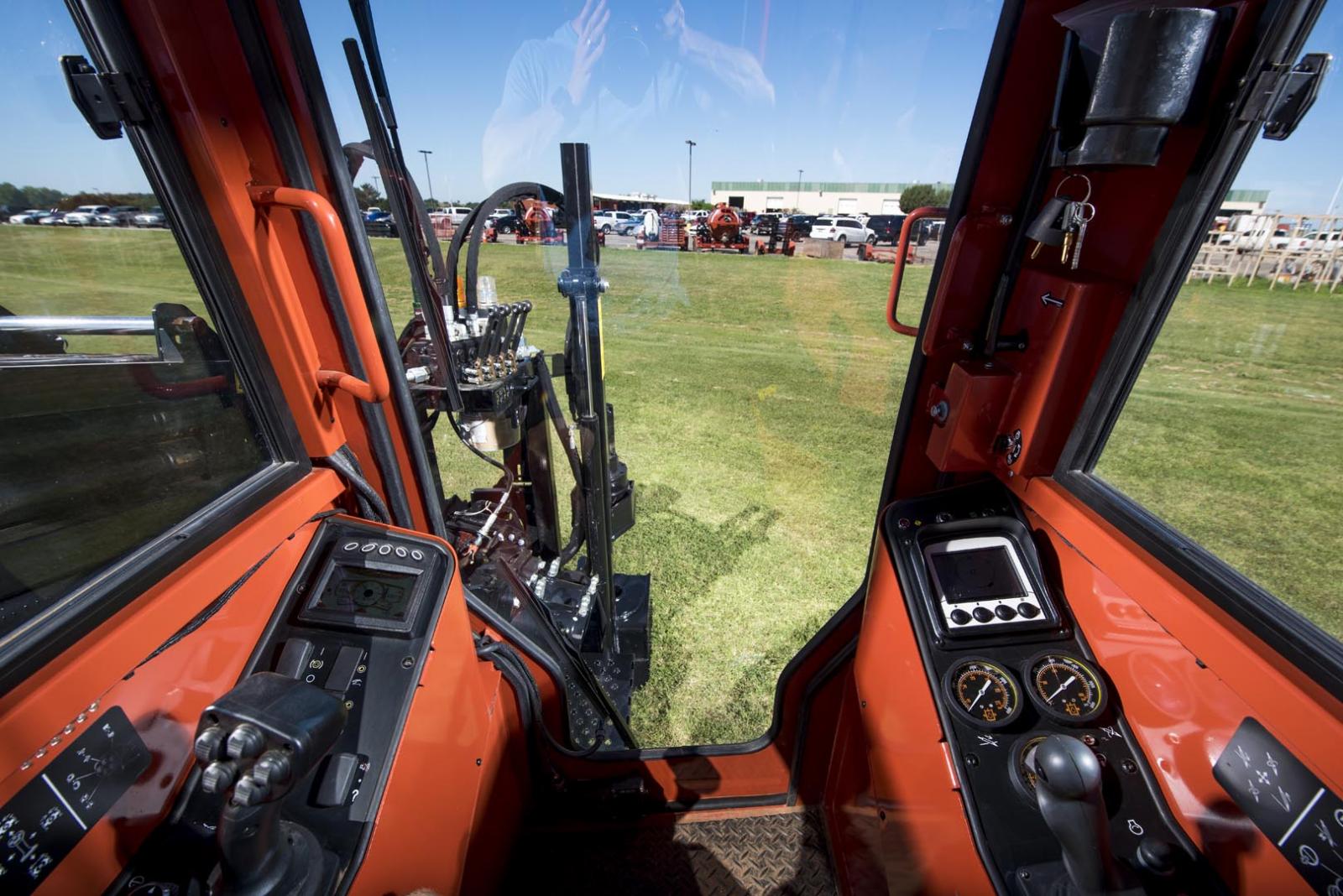

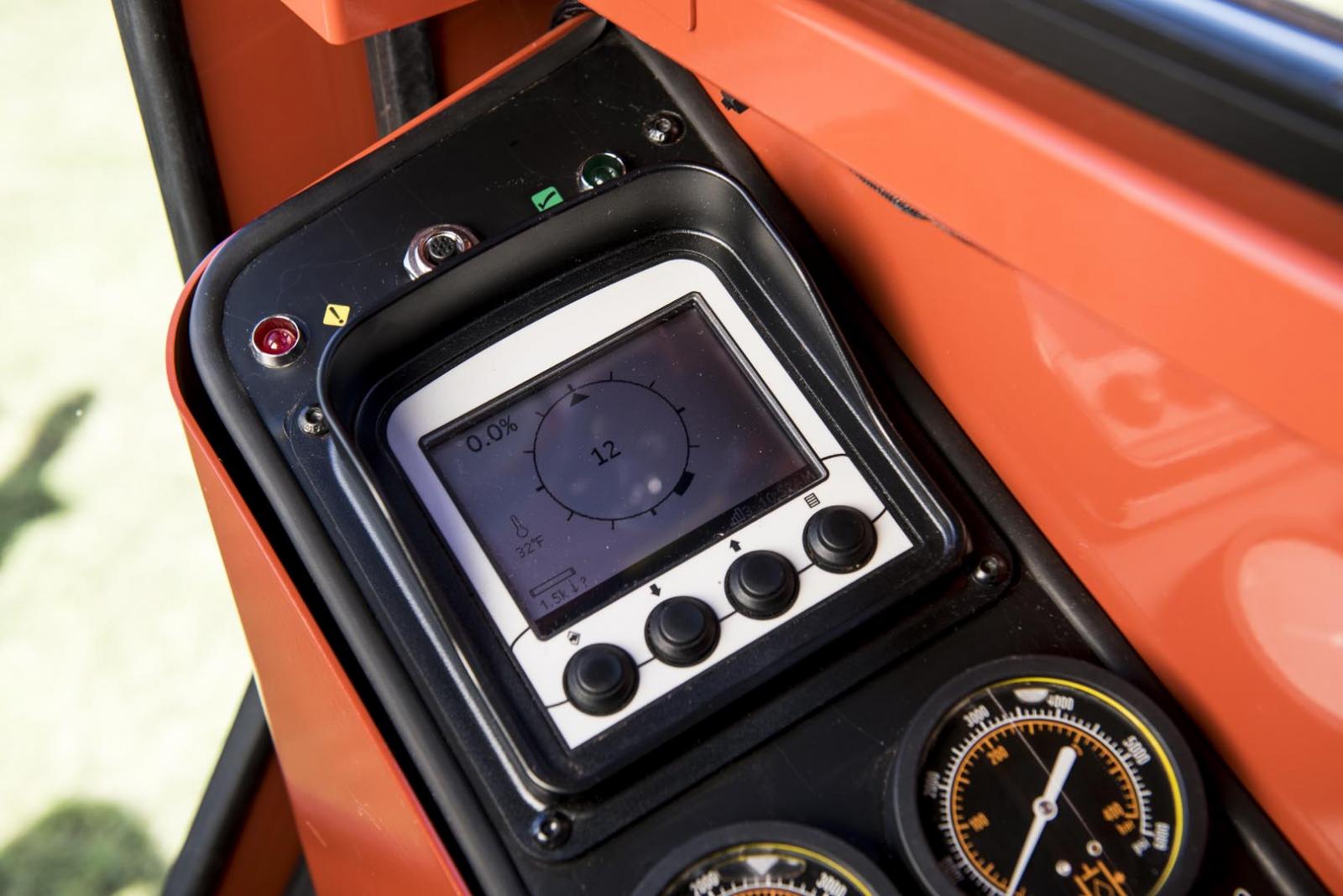

    Fully enclosed, climate-controlled cab features instrument panel gauges positioned for visibility, with conveniently placed controls and an excellent view of the tool joint.

    Dual-pivot drill frame allows steep entry angles without raising the tracks off the ground—no need to constantly readjust the machine even when the terrain is muddy or steep; operator station stays level for maximized comfort.

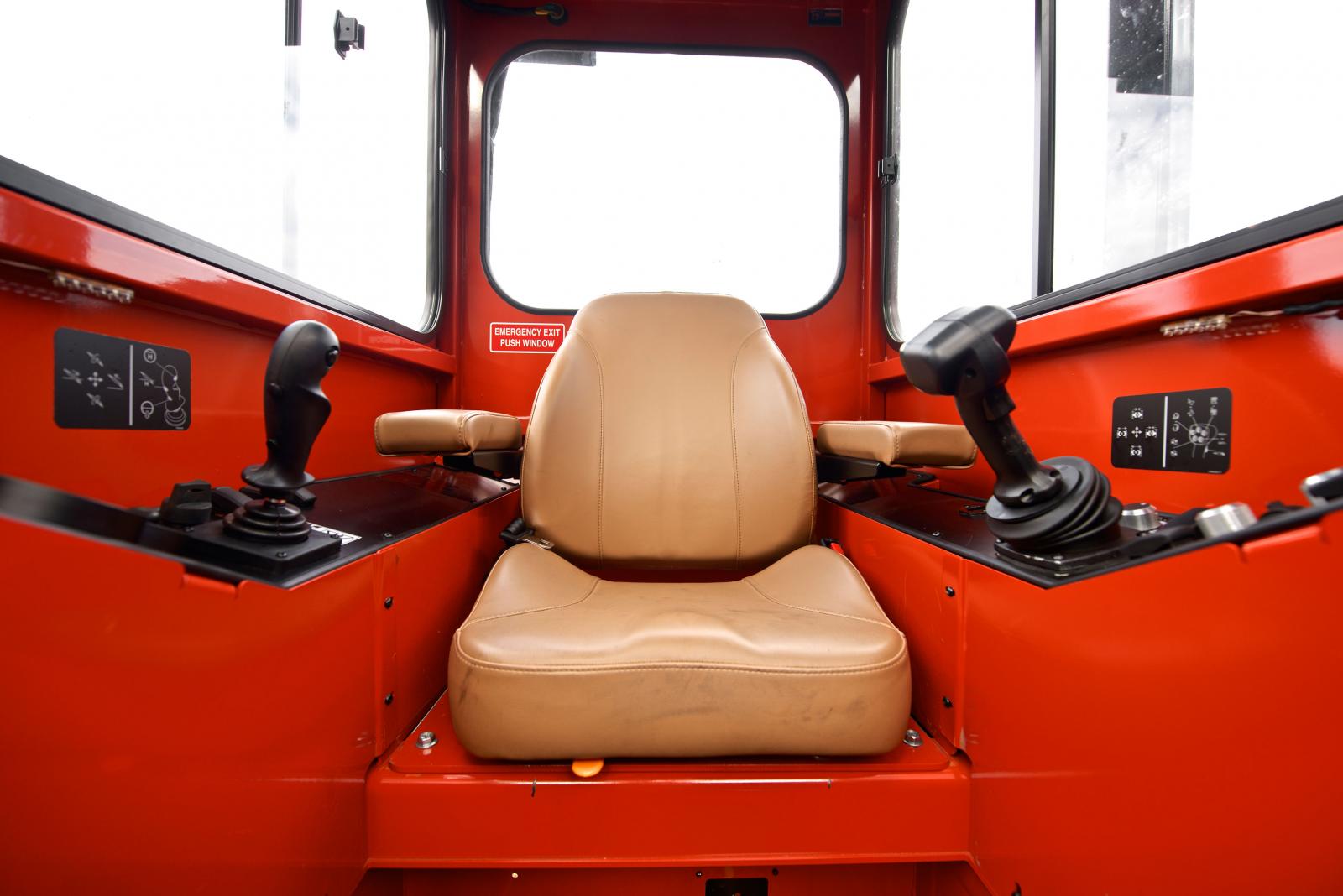

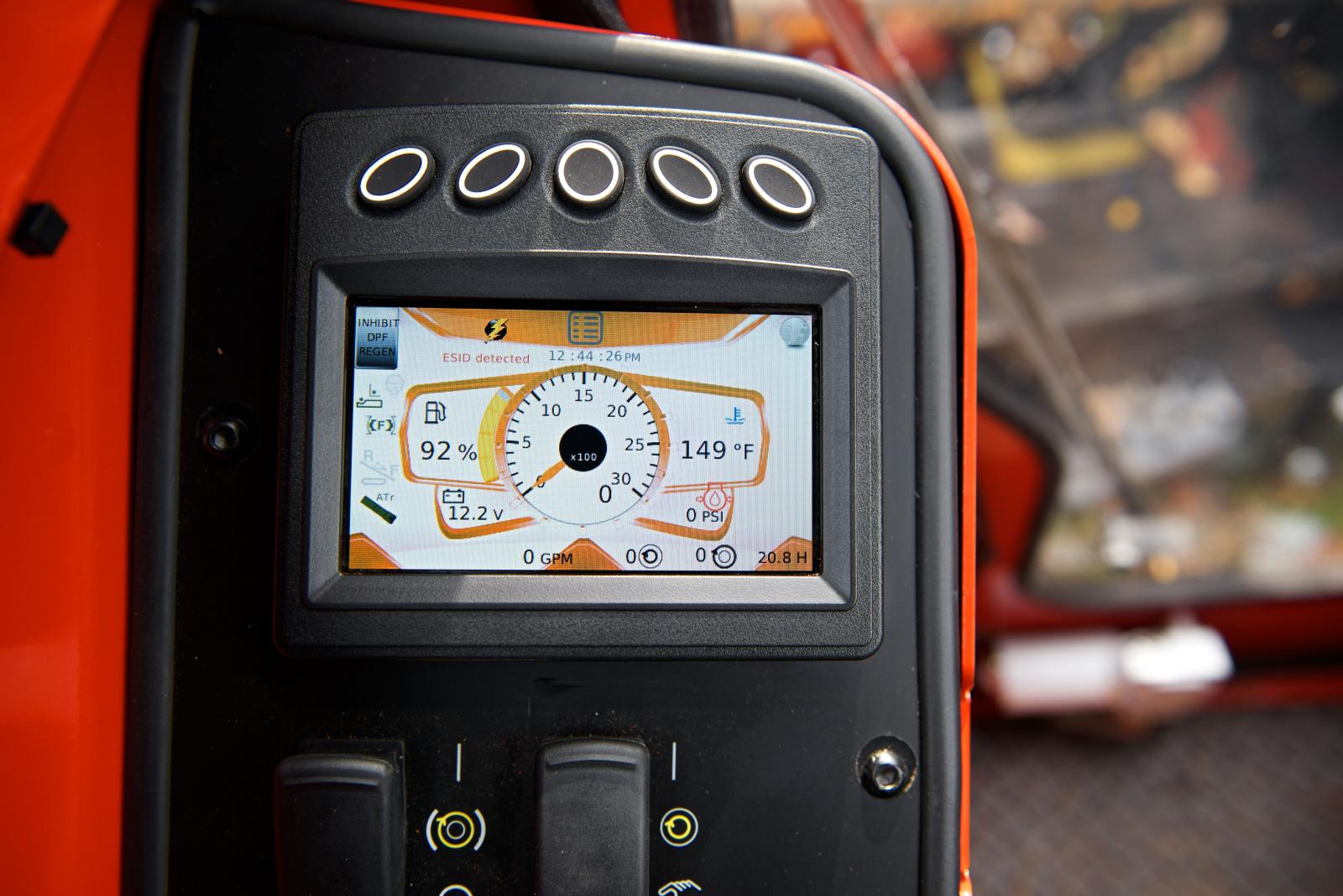

    Operator’s station features an ergonomic seat, color LCD engine display, excellent visibility, and an intuitive joystick that controls all drilling functions.

  • POWER (TIER 4)
    POWER (TIER 4) Engine Cummins QSB6.7 Fuel Diesel Cooling medium Liquid Injection Direct Aspiration Turbocharged & charge air cooled Number of cylinders 6 Displacement 408 in3 6.7 L Bore 4.21 in 107 mm Stroke 4.88 in 124 mm Manufacturer’s gross power rating 200 hp 149 kW Rated speed 2,200 rpm Emissions compliance EPA Tier 4i EU Stage IIIB
  • Fluid Capacities
    Fluid Capacities Hydraulic reservoir 36 gal 136 L Fuel tank 55 gal 208 L Engine lubrication oil, w/filter 20 qt 19 L Engine cooling system 31 qt 29 L Antifreeze tank 16 gal 60 L DEF Tank 3.6 gal 13.6 L
  • Power
    JT60 All Terrain
    Power

    60,000 lb (267 kN) thrust and pullback with 9,000 ft·lb (12240 N·m) rotational torque—the powerful combination you need for outstanding productivity on big installation jobs.

    Choice of a 200-gross-hp (149-kW) Tier 4 Cummins® or 190-gross-hp (142-kW) Tier 3 diesel engine.

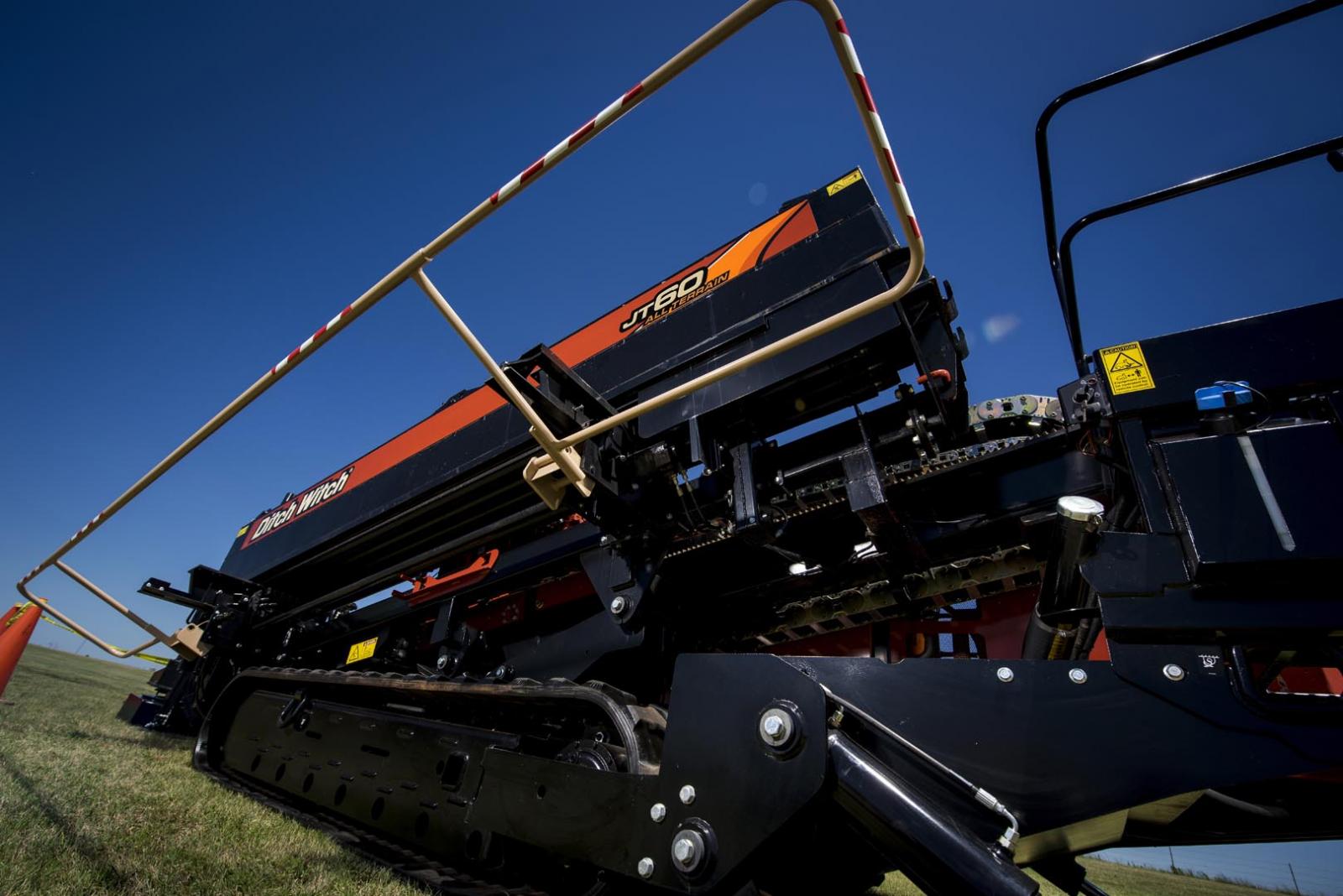

    Double rack-and-pinion thrust drive is field-proven and engineered to push/pull through long, tough bores.

    Ditch Witch drill pipes are manufactured to be stronger and more durable than the competition. The JT60 All Terrain has drill pipes specially designed to withstand rock drilling forces so you keep your drills and business moving forward.

  • Drilling Fluid System
    Drilling Fluid System Pressure, max 1,300 psi 90 bar Flow, max 150 gpm 560 l/min
  • POWER (TIER 3)
    POWER (TIER 3) Engine Cummins® QSB6.7 Fuel Diesel Cooling medium Liquid Injection Direct Aspiration Turbocharged & charge air cooled Number of cylinders 6 Displacement 408 in3 6.7 L Bore 4.21 in 107 mm Stroke 4.88 in 124 mm Manufacturer’s gross power rating 190 hp 142 kW Rated speed 2,200 rpm Emissions compliance EPA Tier 3 EU Stage IIIA
  • POWER PIPE FORGED (#900)
    POWER PIPE FORGED (#900) Length of drill pipe, nominal 180 in 4.57 m Diameter of drill pipe, tool joint end 3.25 in 83 mm Diameter of drill pipe 2.88 in 73 mm Bend radius, min 169 ft 52 m Weight of drill pipe 180 lb 82 kg Weight of drill pipe & large box (28 pipe) 5,040 lb 2,285 kg Weight of drill pipe & small box (16 pipe) 2,880 lb 1,306 kg
  • Operation
    Operation Spindle speed, max 240 rpm Spindle torque (AT inner spindle), max 250 rpm Spindle torque, max 9,000 ft·lb 12200 N·m Spindle torque (AT inner spindle), max 2,000 ft·lb 2700 N·m Carriage thrust travel speed 100 fpm 30.5 km/h Carriage pullback travel speed 100 fpm 30.5 km/h Thrust force 60,000 lb 267 kN Pullback force 60,000 lb 267 kN Bore diameter 6.25 in 159 mm Backream diameter Variable Ground travel speed Forward/reverse 2.5 mph 4 km/h
  • Productivity
    JT60 All Terrain
    Productivity

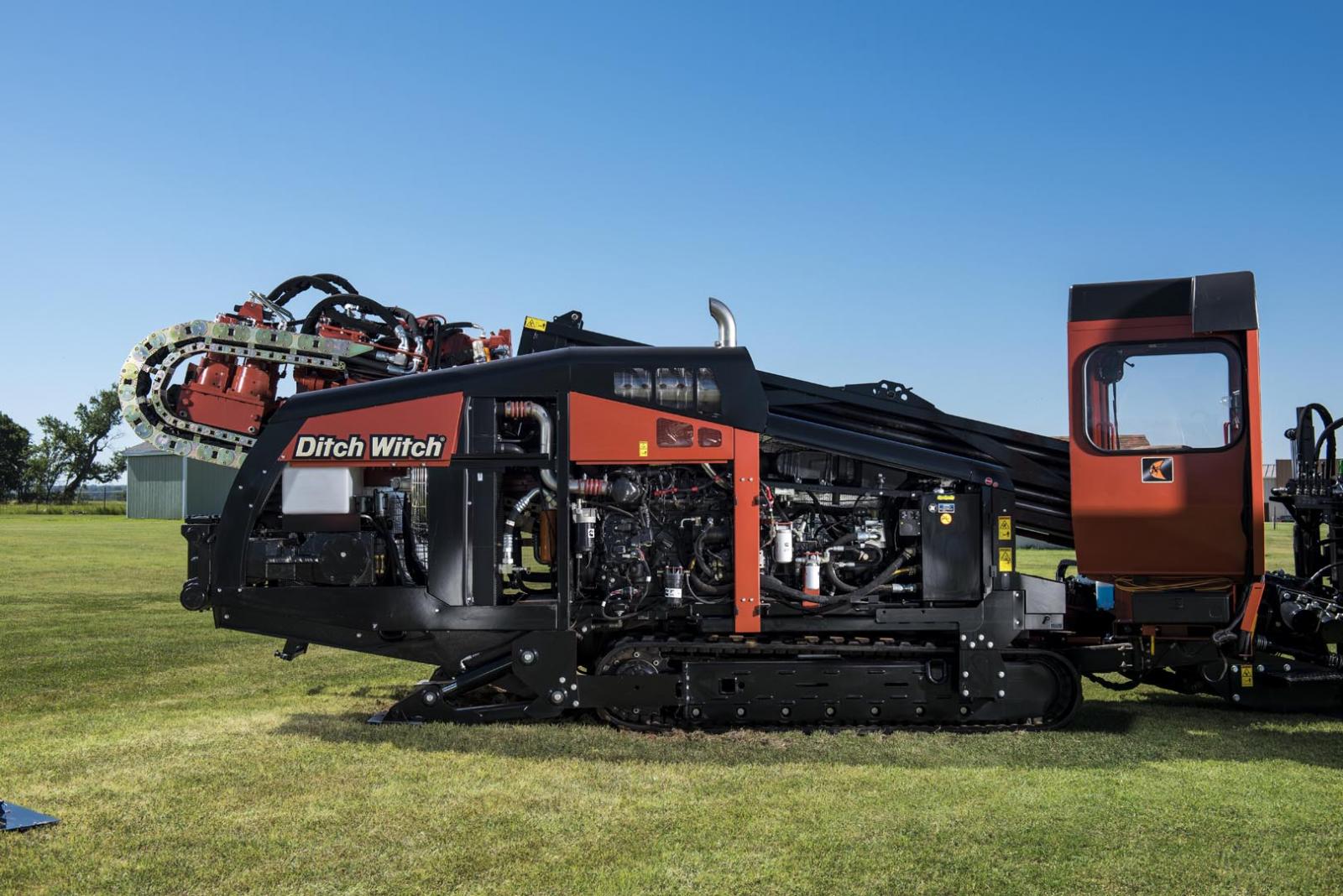

    Proven, industry-leading pipe-loading system is simple, easy to use and designed to increase speed with automation, saving you time, money and effort.

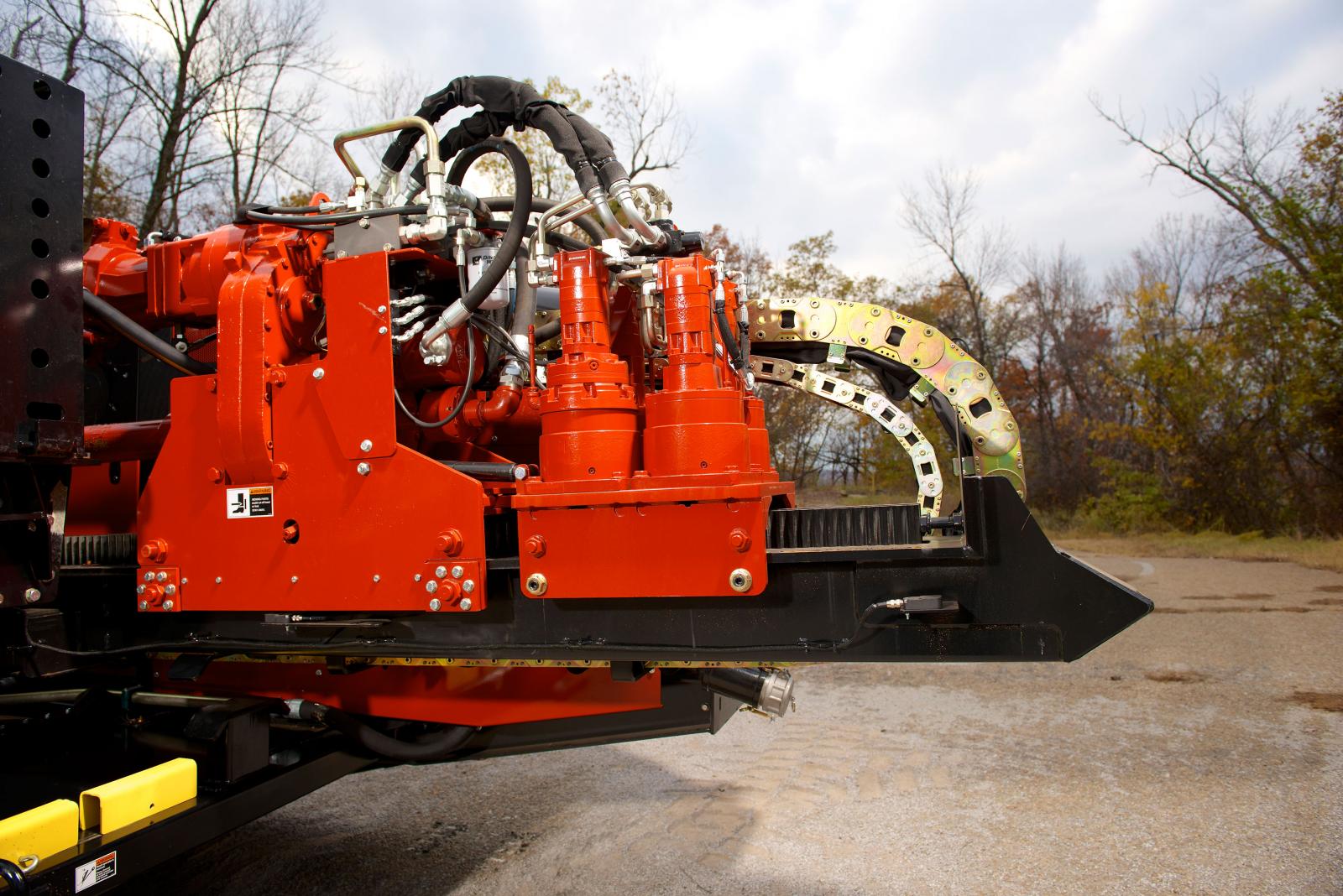

    Heavy-duty, planetary-driven anchor system enables you to use full machine thrust when needed, improving jobsite productivity.

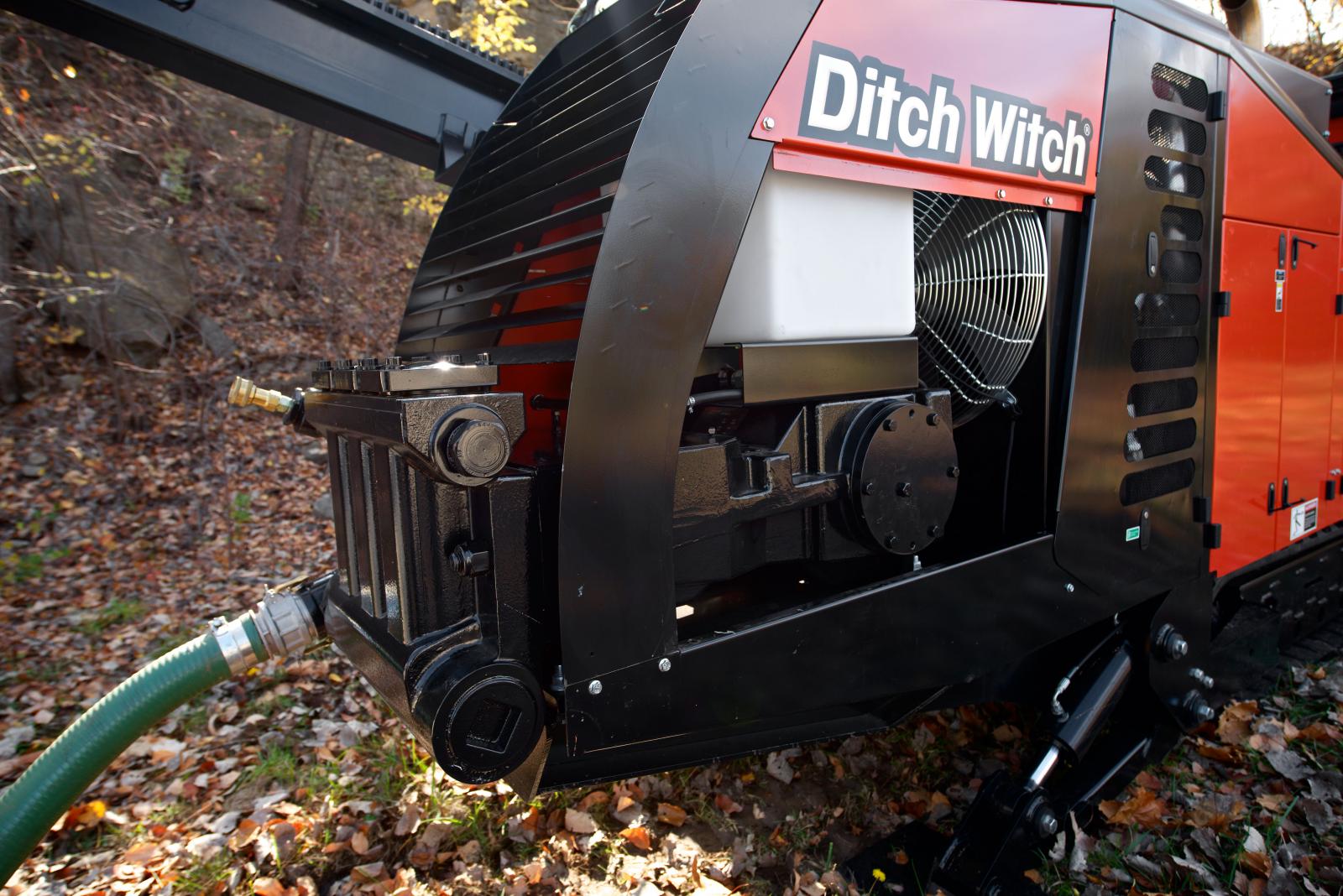

    Onboard, enclosed 150-gpm (560-l/min) fluid pump for productive drilling at greater distances. Flow rate can be operated simultaneously with thrust/pullback and rotation.

    Two-speed thrust drive motors provide exceptional low-speed drilling control as well as the ability to reach the high speeds necessary for rapidly loading drill pipes.

    Wireline platform option available.

  • NOISE LEVEL
    NOISE LEVEL Operator sound pressure per ISO 6394 < or = 81 dBA Exterior sound power per ISO 6393 < or = 106 dBA
  • Innovative Design
    JT60 All Terrain
    Innovative Design

    Designed for greater uptime with a simple yet durable, customer-driven design.

    Dual rear independent stabilizers give you the confidence to set up on uneven terrain.

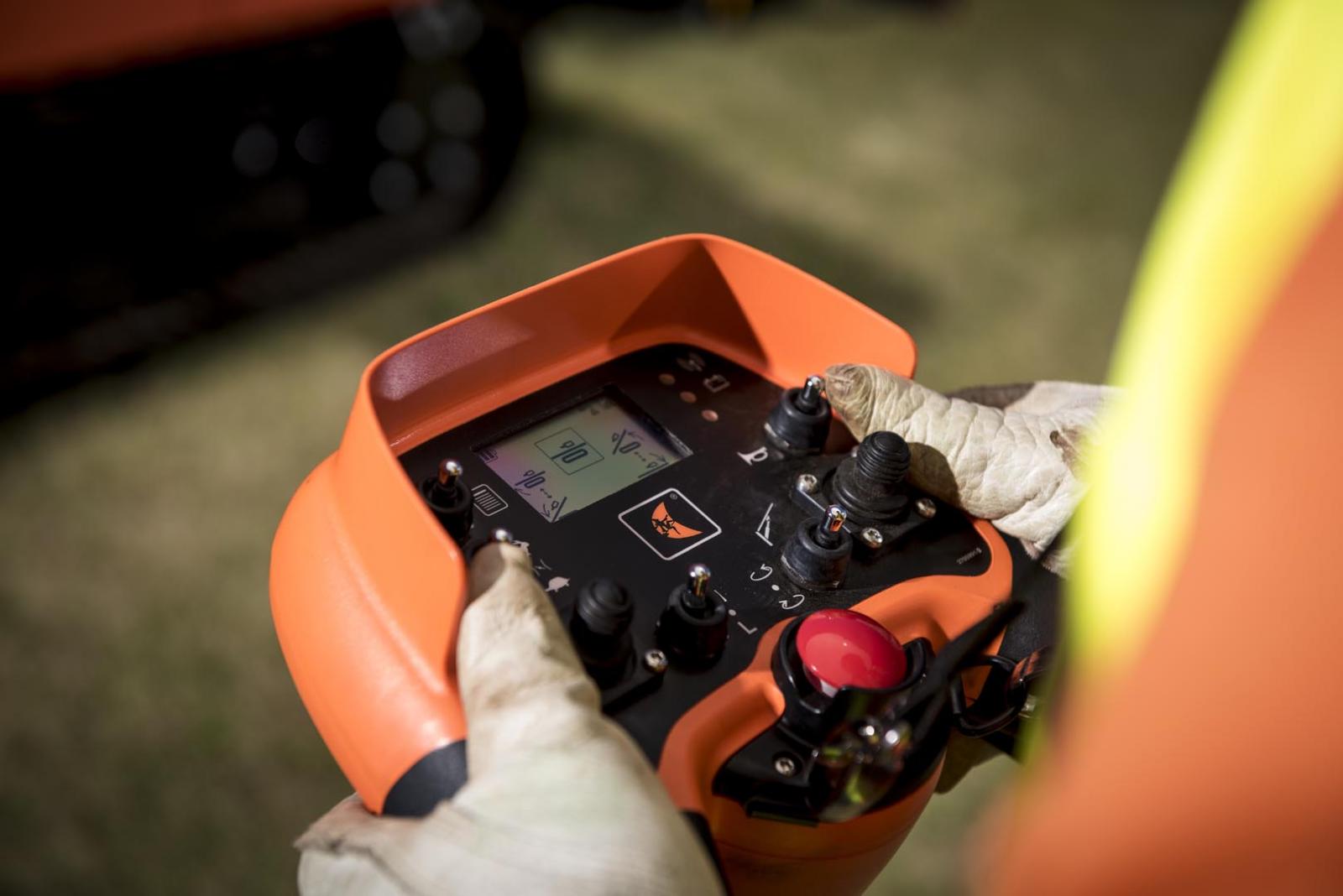

    Wireless operation system provides you remote control of ground drive, stabilizers, dual pivot and stake down functionality allowing for more efficient jobsite setup.

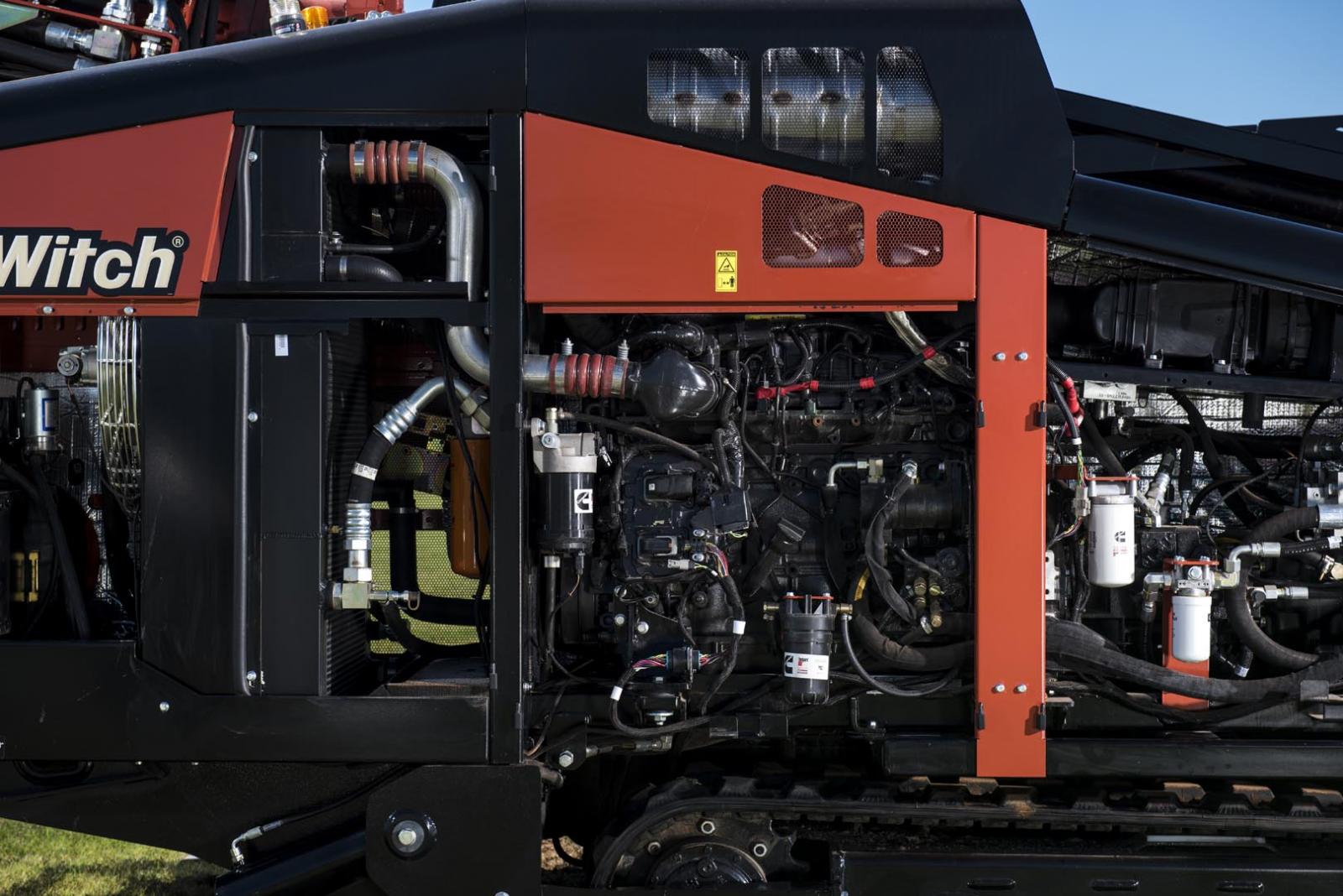

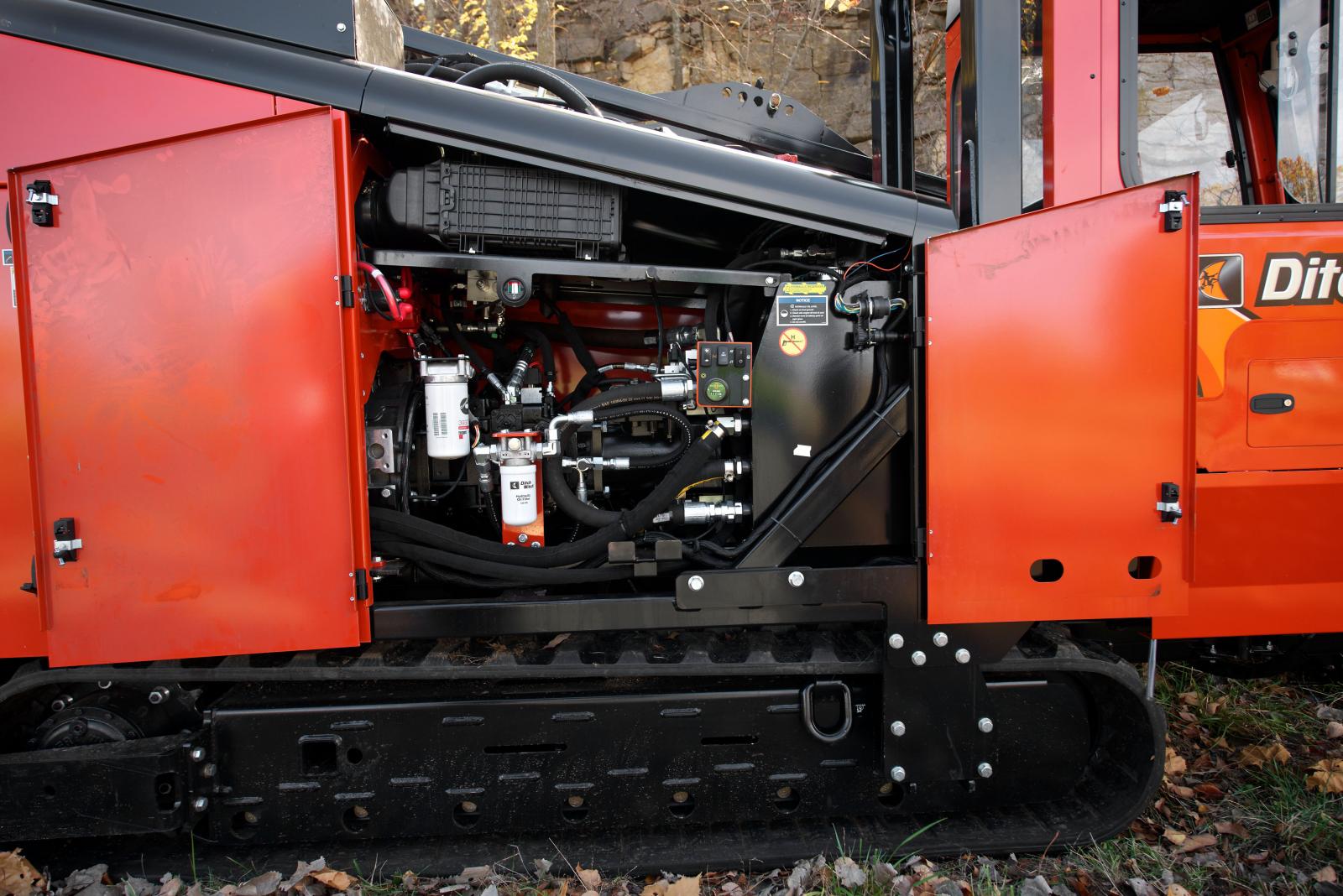

    Easy to service, with all daily maintenance points in one location that are easily accessed through removable doors.

  • Dimensions
    Dimensions Length 331 in 8.41 m Width 87 in 2.21 m Height 99 in 2.51 m Operating weight 31,250 lb 14175 kg Entry angle 10-16° Angle of approach 18° Angle of departure 13°
  • All Terrain
    JT60 AT
    All Terrain

    Industry-exclusive, patented two-pipe drilling system provides more power to the bit than any other rock-drilling system in its class and is the only technology to enable simultaneous drilling and steering through rock and hard soil conditions.

    The inner pipe works as a mechanical motor that drives the bit during the bore; the outer pipe thrusts the bit forward and steers the drill shaft. During backreaming, the outer pipe transmits full machine torque downhole.

    The Ditch Witch All Terrain technology enables rock drilling with very low fluid flow. Less fluid volume means less waste, less cleanup and less environmental impact.

    With its variable rotary drive, the JT60 All Terrain matches exact spindle speed and torque to power through varying ground formations.

  • ALL TERRAIN PIPE (3.25-4)
    ALL TERRAIN PIPE (3.25-4) Length of drill pipe, nominal 171 in 4.34 m Diameter of drill pipe, tool joint end 4.13 in 105 mm Diameter of drill pipe 3.63 in 92 mm Bend radius, min 205 ft 62 m Weight of drill pipe 268 lb 122 kg Weight of drill pipe & large box (18 pipe) 4,824 lb 2,187 kg Weight of drill pipe & small box (9 pipe) 2,412 lb 1,093 kg
  • VIBRATION LEVEL
    VIBRATION LEVEL Average vibration transmitted to the operator’s hand and whole body during normal operation does not exceed 2.5 and 0.5 m/sec2 respectively. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
