Key Features & Specs

Our customers wanted more power to perform all functions at once. Both the JT30 and its counterpart, the JT30 All Terrain, are the most powerful and quietest drills in their class—by a long shot. And both are products of direct customer feedback from years of experience in all types of job conditions. While we'd like to take all the credit for every innovative feature, we can't. But we will take full credit for being responsive to our customers' needs.

  • + Expand All
  • - Close All
  • POWER PIPE® HD
    POWER PIPE® HD U.S. METRIC Length 118 in 3 m Joint diameter 2.75 in 70 mm Pipe diameter 2.38 in 60 mm Bend radius, min 123 ft 37.5 m Weight of drill pipe, lined 88 lb 39 kg Weight of drill pipe & large box (48 pipe) 5,204 lb 2361 kg Weight of drill pipe & small box (24 pipe) 2,897 lb 1314 kg
  • DIMENSIONS
    DIMENSIONS U.S. METRIC Transport length 221 in 5.61 m Width 80 in 2.03 m Width w/cab 89 in 2.26 m Transport height 94 in 2.39 m Operating weight 17,080 lb 7747 kg Weight w/cab 17,975 lb 8153 kg Entry angle 10-16° Angle of approach 19° Angle of approach, w/cab 15° Angle of departure 18°
  • DRILLING FLUID SYSTEM (ON BOARD)
    DRILLING FLUID SYSTEM (ON BOARD) U.S. METRIC Pressure, max 1,500 psi 103 bar Flow, max 50 gpm 189 l/min

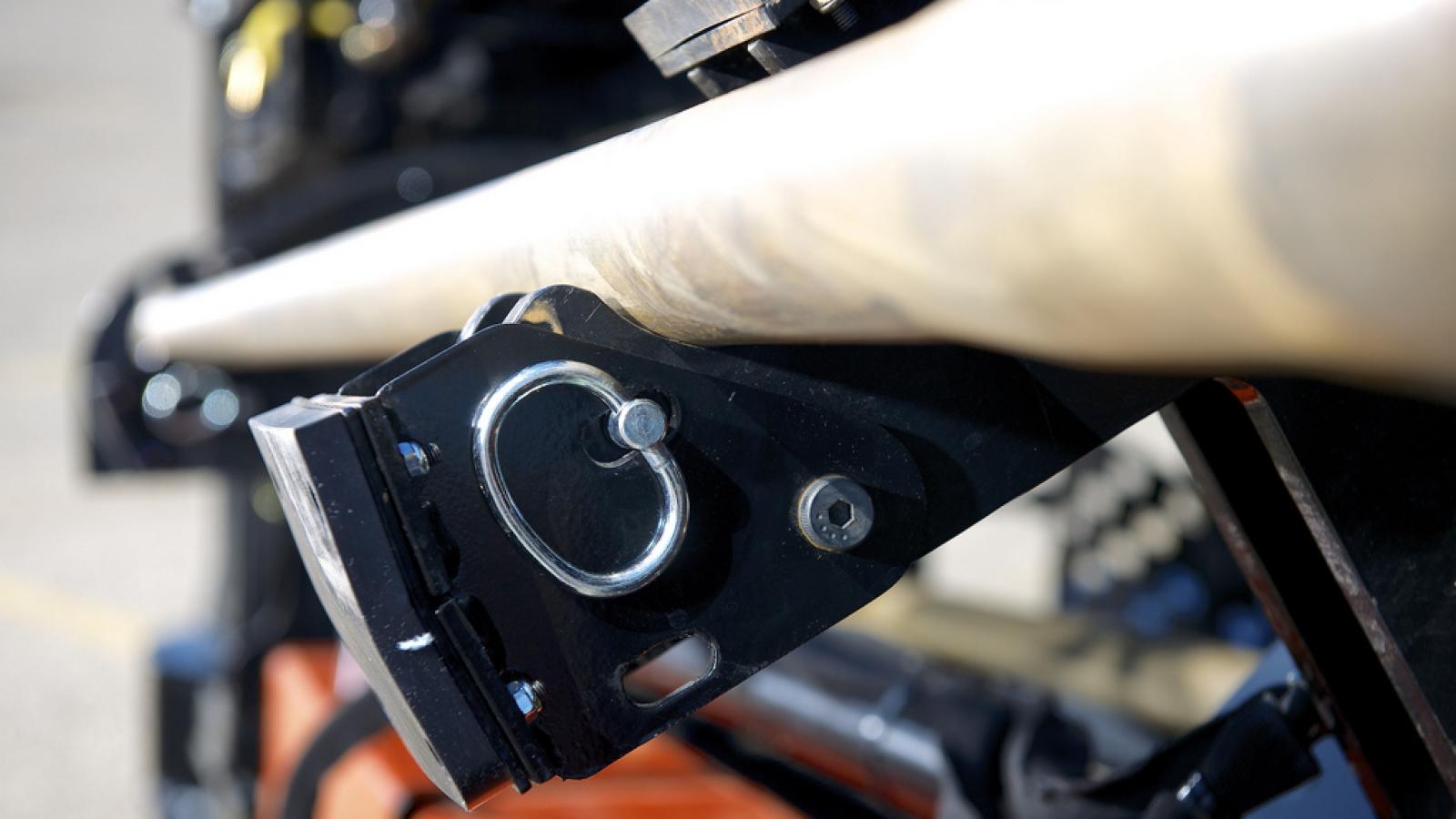

  • Innovative Design
    JT30
    Innovative Design

    Exclusive assisted makeup and breakout feature: JT30 automatically adjusts speed when making up and breaking out drill pipe, saving wear on pipe threads and reducing operator fatigue.

    Field-proven, heavy-duty rack and pinion thrust drive; welded-on double rack offers minimum maintenance and maximum reliability.

    With a narrower width (80 inches/2 m, w/o cab) than the competition, the JT30 is a higher-horsepower drill that can operate in tighter spaces.

    Advanced electronic system features improved diagnostics and customer-recommended electronic functions.

  • Power
    JT30
    Power

    160-gross-hp (119-kW), Tier 4 engine is the most powerful in its class; full power to all machine functions greatly enhances your overall productivity.

    Equipped with 24,800 lb (110 kN) of thrust and 30,000 lb (133 kN) of pullback force for efficient installation in tough soils.

  • POWER (TIER 4)
    POWER (TIER 4) Engine Cummins QSB4.5 Emissions compliance EPA Tier 4 EU Stage IV Fuel Diesel Cooling medium Liquid Injection Direct Aspiration Turbocharged & charge air cooled Number of cylinders 4 Displacement 275 in3 4.5 L Bore 4.21 in 107 mm Stroke 4.88 in 124 mm Manufacturer’s gross power rating 160 hp 119 kW Estimated net power rating 152 hp 113 kW Rated speed 2,300 rpm
  • NOISE LEVEL
    NOISE LEVEL Operator sound 86 dBA Operator sound w/cab 83 dBA Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
  • Superior Support
    JT30
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • FLUID CAPACITIES
    FLUID CAPACITIES U.S. METRIC Hydraulic reservoir 27 gal 102 L Fuel tank 48 gal 182 L Engine lubrication oil, w/filter 13.7 qt 13 L Engine cooling system 24 qt 22.7 L Antifreeze tank 8 gal 30 L Diesel exhaust fluid tank 5 gal 18.9 L
  • BATTERY
    BATTERY SAE reserve capacity rating 195 min SAE cold crank rating @ 0°F (-18°C) 950 amps
  • OPERATION
    OPERATION U.S. METRIC Spindle speed, max* 225 rpm 225 rpm Spindle torque, max 4000 ft·lb 5420 N·m Carriage thrust travel speed* 120 fpm 37 m/min Carriage pullback travel speed* 120 fpm 37 m/min Thrust force* 24,800 fpm 110 kN Pullback force* 30,000 lb 133 kN Ground travel speed Forward 2.4 mph 3.9 km/h Reverse 2.2 mph 3.5 km/h
  • POWER (TIER 3)
    POWER (TIER 3) Engine Cummins® QSB4.5 Emissions compliance EPA Tier 3 EU Stage IIIA Fuel Diesel Cooling medium Liquid Injection Direct Aspiration Turbocharged & charge air cooled Number of cylinders 4 Displacement 275 in3 4.5 L Bore 4.21 in 107 mm Stroke 4.88 in 124 kW Manufacturer’s gross power rating 148 hp 110 kW Rated speed 2,300 rpm
  • Productivity
    JT30
    Productivity

    Automated, intuitive carve mode reduces operator fatigue and error and is compatible with industry-leading TriHawk® HD housings and bits for exceptional efficiency and productivity.

    Heavy-duty anchor system enables you to push or pull with full machine thrust and depend on the JT30 remaining in place; better machine stability while drilling means a quick and more productive bore.

    Industry-exclusive, double-pivot drill frame allows steep entry angles without raising the tracks off the ground—no need to constantly readjust the machine even when the terrain is muddy or steep.

    Hinges on main and rear hoods allow easy access to all service points in the engine and mud pump; rear mud pump cover allows you to operate in colder conditions.

  • Operator's Station
    JT30
    Operator's Station

    Visibility enhanced by open-top vise wrenches and improved operator station; wrenches are angled toward the drill operator for an excellent view of the tool joint when making and breaking pipe, and all drill functions are clearly visible from operator station, with or without cab.

    Quietest directional drill in its class (max. 85 dBA operator sound pressure), so there’s less environmental impact, less disruption in urban areas and greater operator comfort.

    Optional cab features climate-controlled heat and air, for greater operator comfort and productivity.

  • POWER PIPE FORGED
    POWER PIPE FORGED U.S. METRIC Length 120 in 3.05 m Joint diameter 2.63 in 66.7 mm Pipe diameter 2.38 in 60 mm Bend radius, min 108.2 ft 33m Weight of drill pipe 73 lb 33 kg
