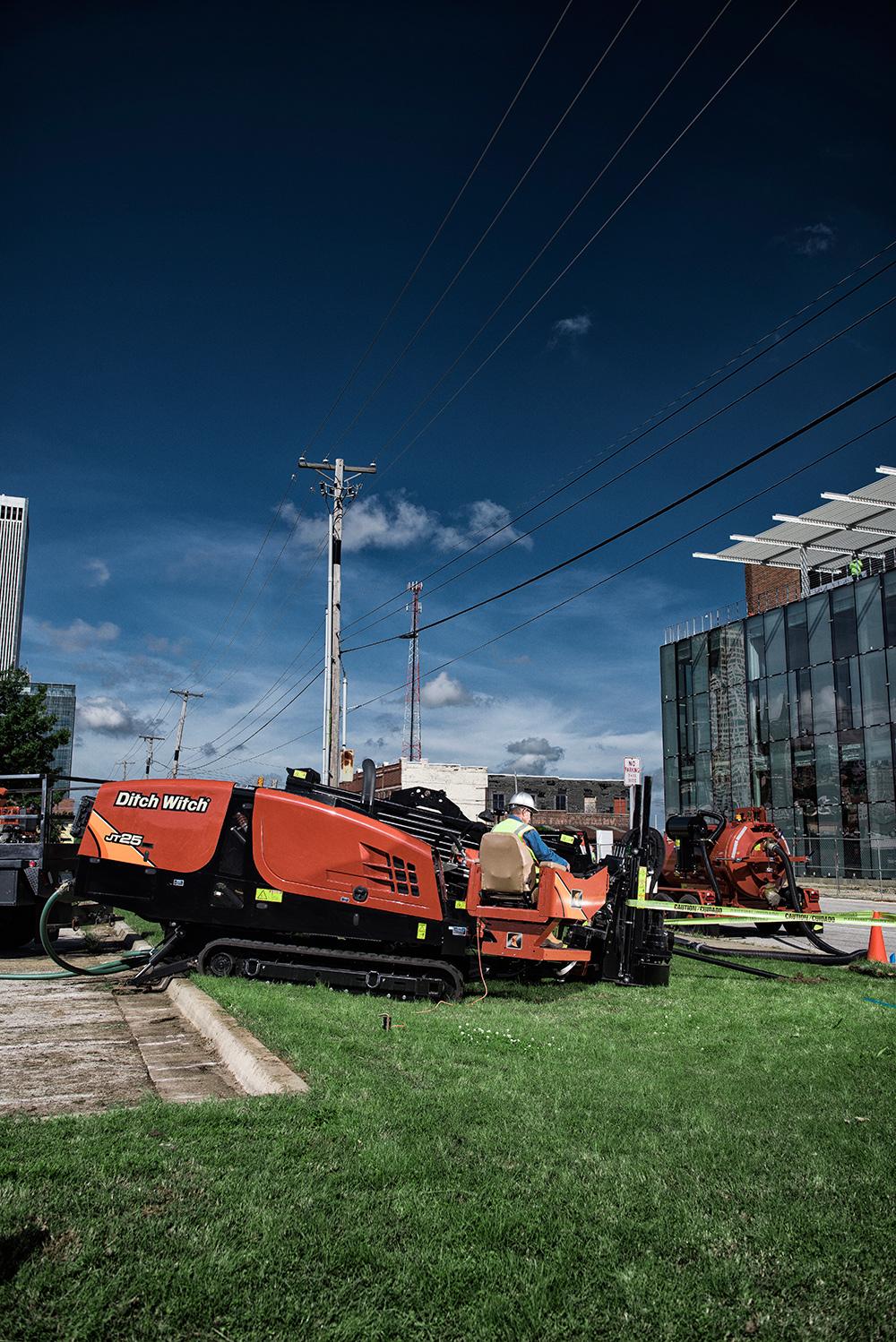

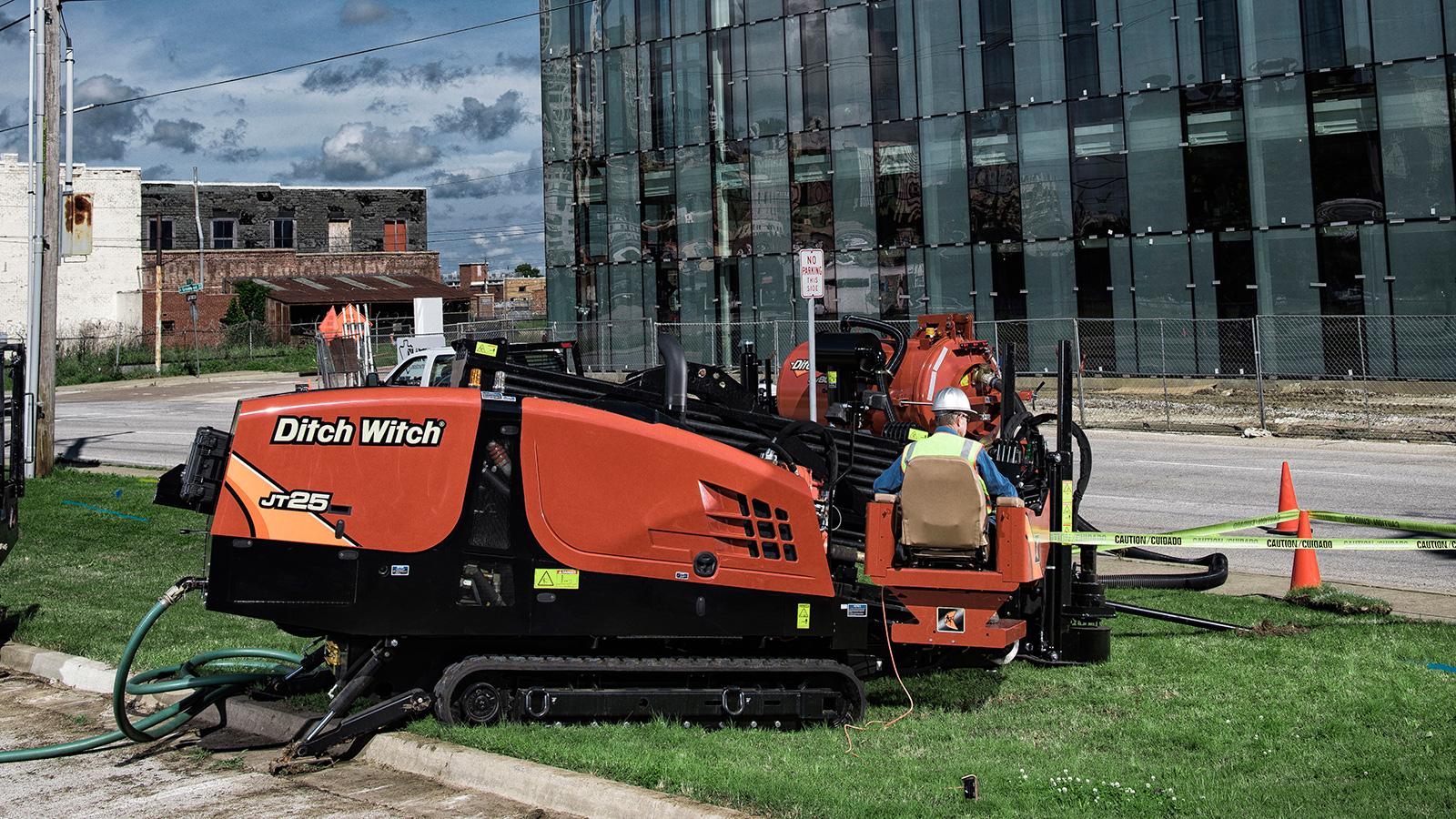

JT25 Directional Drill
- Ditch Witch
- Directional-Drills
Find Your Nearest Location
Key Features & Specs

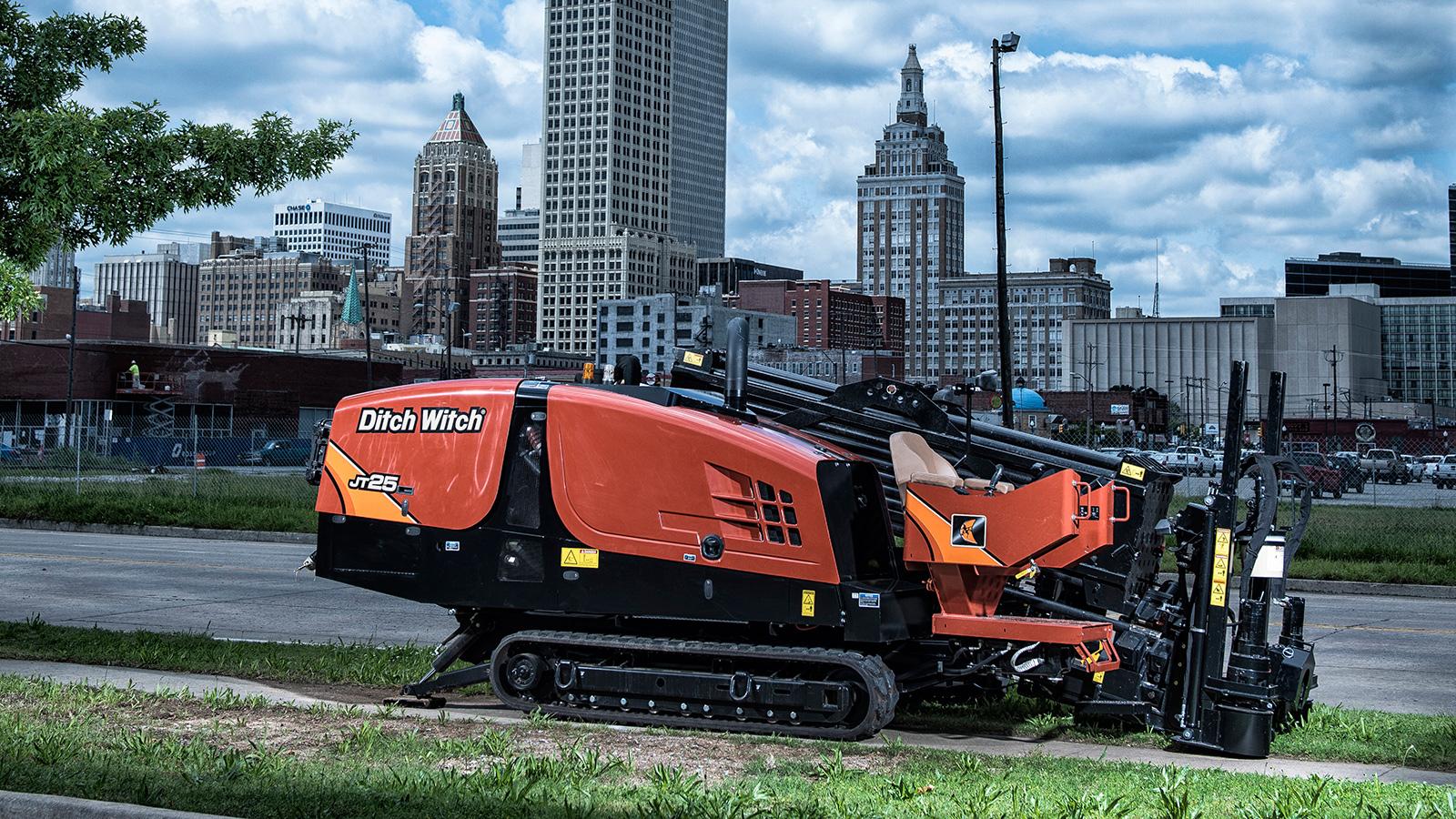

The Ditch Witch JT25 is an exceptionally powerful and productive horizontal directional drill designed specifically for—and with input from—the utility contractor. It features an exclusive rotational drive with 4,000 ft·lb (5420 N·m) of torque and 27,000 lb (120 kN) of thrust and pullback—just the ticket for utility backbone installs. But it’s not all power and brute force; the JT25 is one of the quietest and of one the most stable mid-size drill on the market. Which is good, because you and your JT25 are going to be working together a long, long time.
- + Expand All
- - Close All
-
POWER PIPE®
POWER PIPE® Length 118 in 3 m Joint diameter 2.75 in 70 mm Pipe diameter 2.38 in 60 mm Bend radius, min 123 ft 37.5 m Weight of drill pipe, lined 88 lb 40 kg Weight of drill pipe & large box (50 pipe) 5,647 lb 2562 kg Weight of drill pipe & small box (25 pipe) 2,770 lb 1,154 kg -
NOISE LEVEL
NOISE LEVEL Operator sound 85 dBA Operator sound w/cab 80 dBA Exterior sound power 104 dBA Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown. -
BATTERY (2 USED)
BATTERY (2 USED) SAE reserve capacity rating 195 min SAE cold crank rating @ 0°F (-18°F) 950 amps -
POWER (TIER 4)
POWER (TIER 4) Engine Cummins QSB4.5 Fuel Diesel Cooling medium Liquid Injection Direct Aspiration Turbocharged & charge air cooled Number of cylinders 4 Displacement 275 in3 4.5 L Bore 4.02 in 102 mm Stroke 5.42 in 138 mm Manufacturer’s gross power rating 130 hp 97 kW Rated speed 2,500 rpm Emissions compliance EPA Tier 4i Stage IIIB -

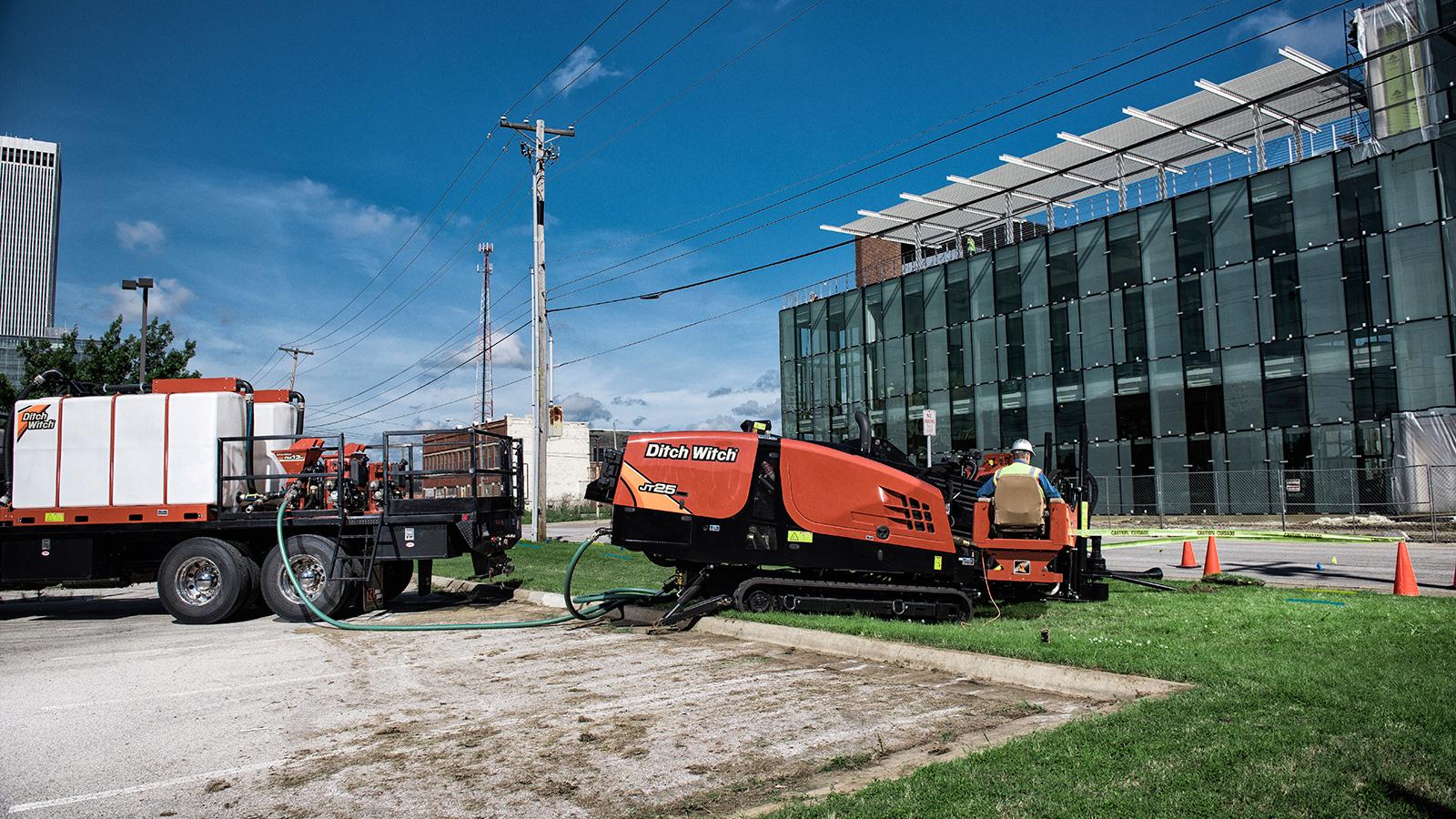

Power
JT25Power
27,000 lb (120 kN) of thrust and pullback provides the power to efficiently get the job done and move on to the next.

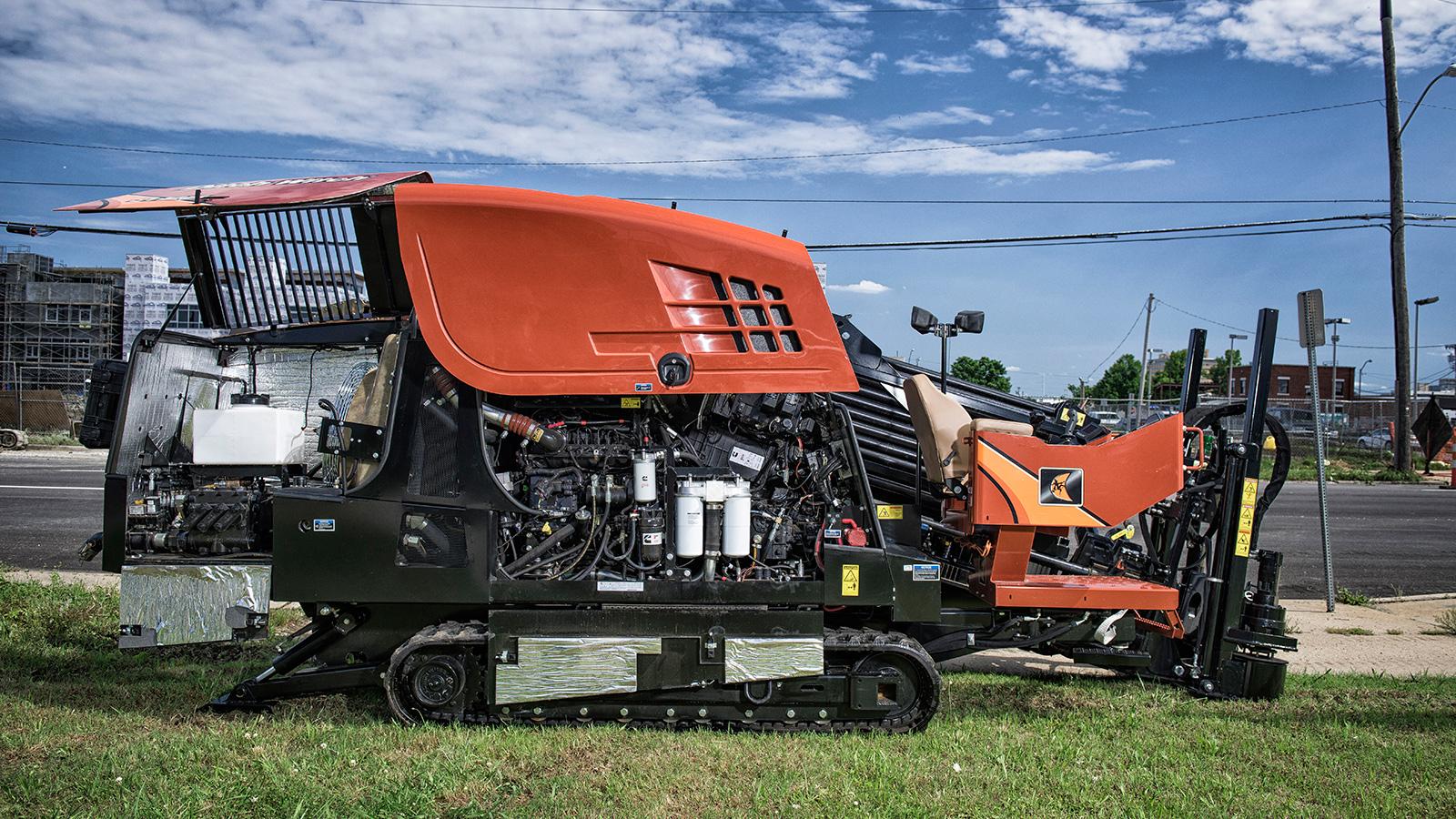

130-hp (97-kW) Tier 4 Cummins® diesel engine is not only the most powerful in its class, but also the quietest, for greater operator comfort.
Exclusive rotational drive with 4,000 ft·lb (5420 N·m) of torque; unique, single-motor system results in smoother operation and greater uptime.
-
Operation
Operation U.S. Metric Spindle speed, max 220 rpm Spindle torque, max 4,000 ft·lb 5420 N·m Carriage thrust travel speed 182 fpm 55 m/min Carriage pullback travel speed 190 fpm 58 m/min Thrust force 27,000 lb 120 kN Pullback force 27,000 lb 120 kN Ground travel speed Forward 2.8 mph 4.6 km/h Reverse 2.8 mph 4.6 km/h Daily average fuel usage (per hour) 3.2 gal 12 L -
Power (Tier 3)
Power (Tier 3) Engine Cummins® QSB4.5 Fuel Diesel Cooling medium Liquid Injection Direct Aspiration Turbocharged & charge air cooled Number of cylinders 4 Displacement 275 in3 4.5 L Bore 4.21 in 107 mm Stroke 4.88 in 124 mm Manufacturer’s gross power rating 130 hp 97 kW Rated speed 2,500 rpm Emissions compliance Tier 3 EPA Tier 3 EU Stage IIIA -

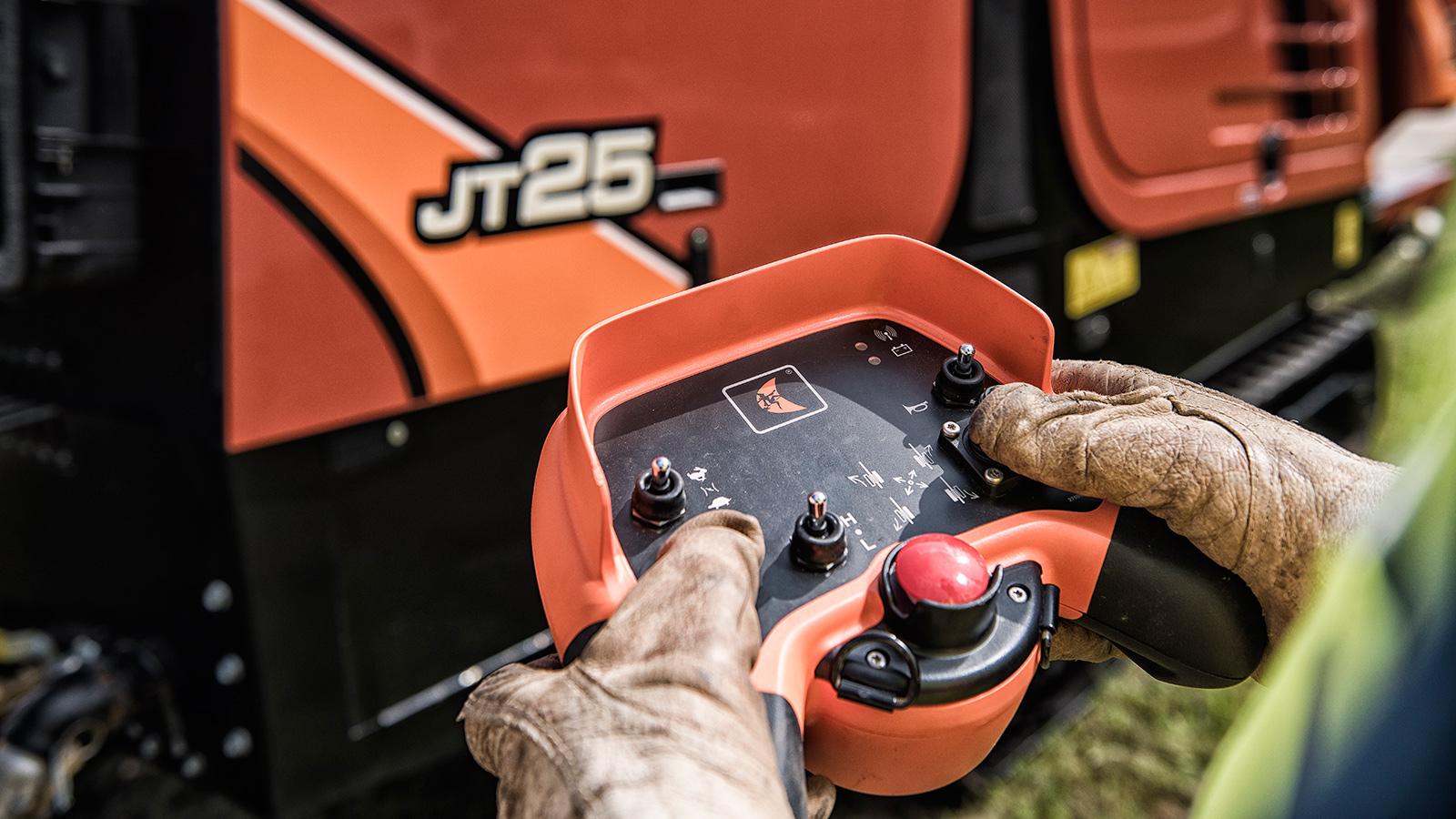

Operator's Station
JT25Operator's Station

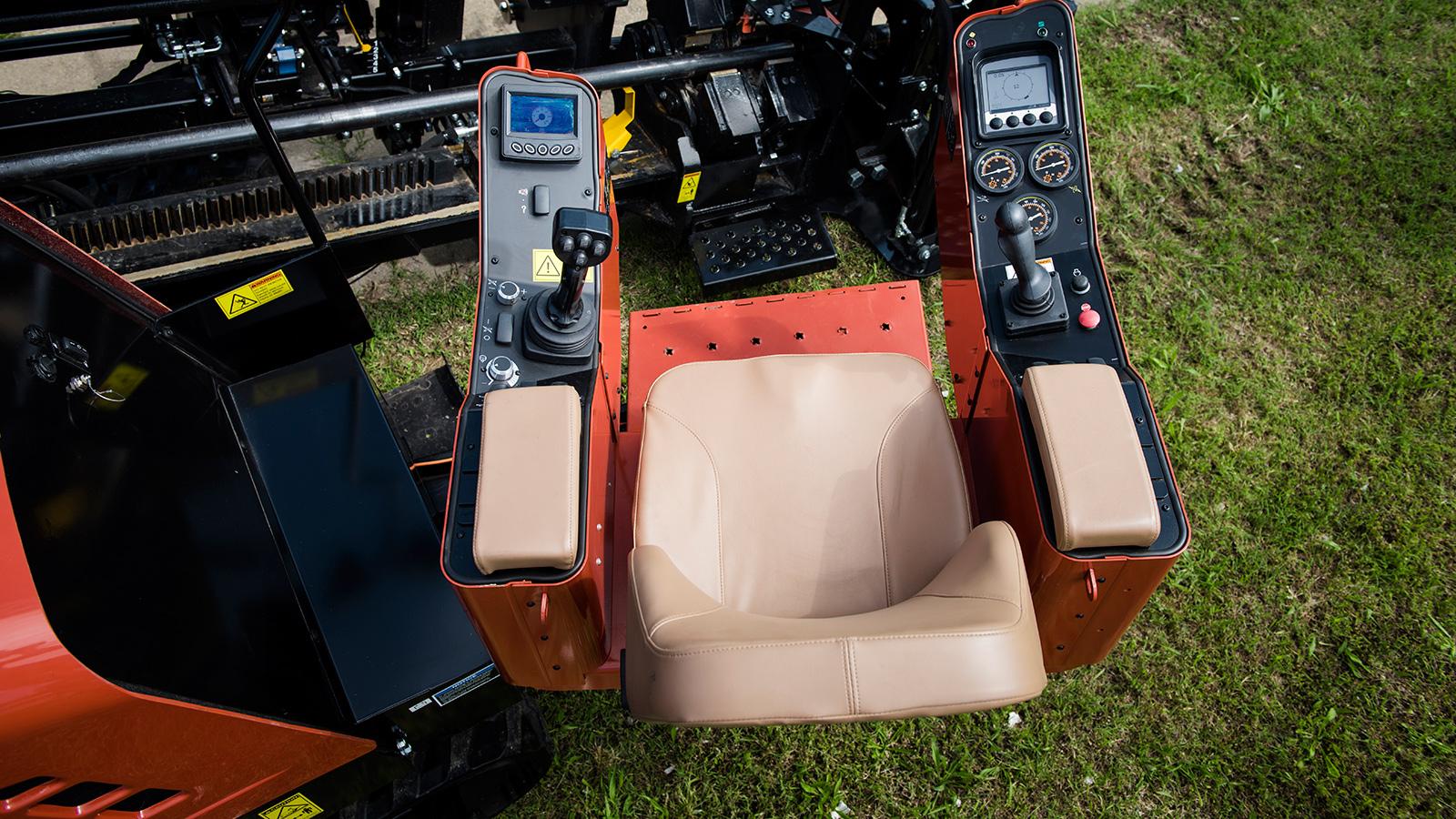

Comfortable operator's station with your choice of a single handled control or dual joysticks for thrust and rotation control, minimizing training time.
Excellent view of the tool joint when making up and breaking out pipe; open-top vise wrenches are angled toward the operator.
LCD display provides engine diagnostics and informational messages.
-
Superior Support
JT25Superior Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
-
FLUID CAPACITIES (Tier 4)
FLUID CAPACITIES (Tier 4) Fuel tank 48 gal 182 L Engine lubrication oil w/filter 13.7 qt 13 L Hydraulic reservoir 27 gal 102 L Engine cooling system 24 qt 22.7 L Drilling fluid for antifreeze tank 8 gal 30 L Diesel exhaust fluid tank 5 gal 18.9 L -
FLUID CAPACITIES (Tier 3)
FLUID CAPACITIES (Tier 3) Fuel tank 56 gal 212 L Engine lubrication oil w/filter 13.7 qt 13 L Hydraulic reservoir 27 gal 102 L Engine cooling system 24 qt 22.7 L Drilling fluid for antifreeze tank 8 gal 30 L Diesel exhaust fluid tank 5 gal 18.9 L -

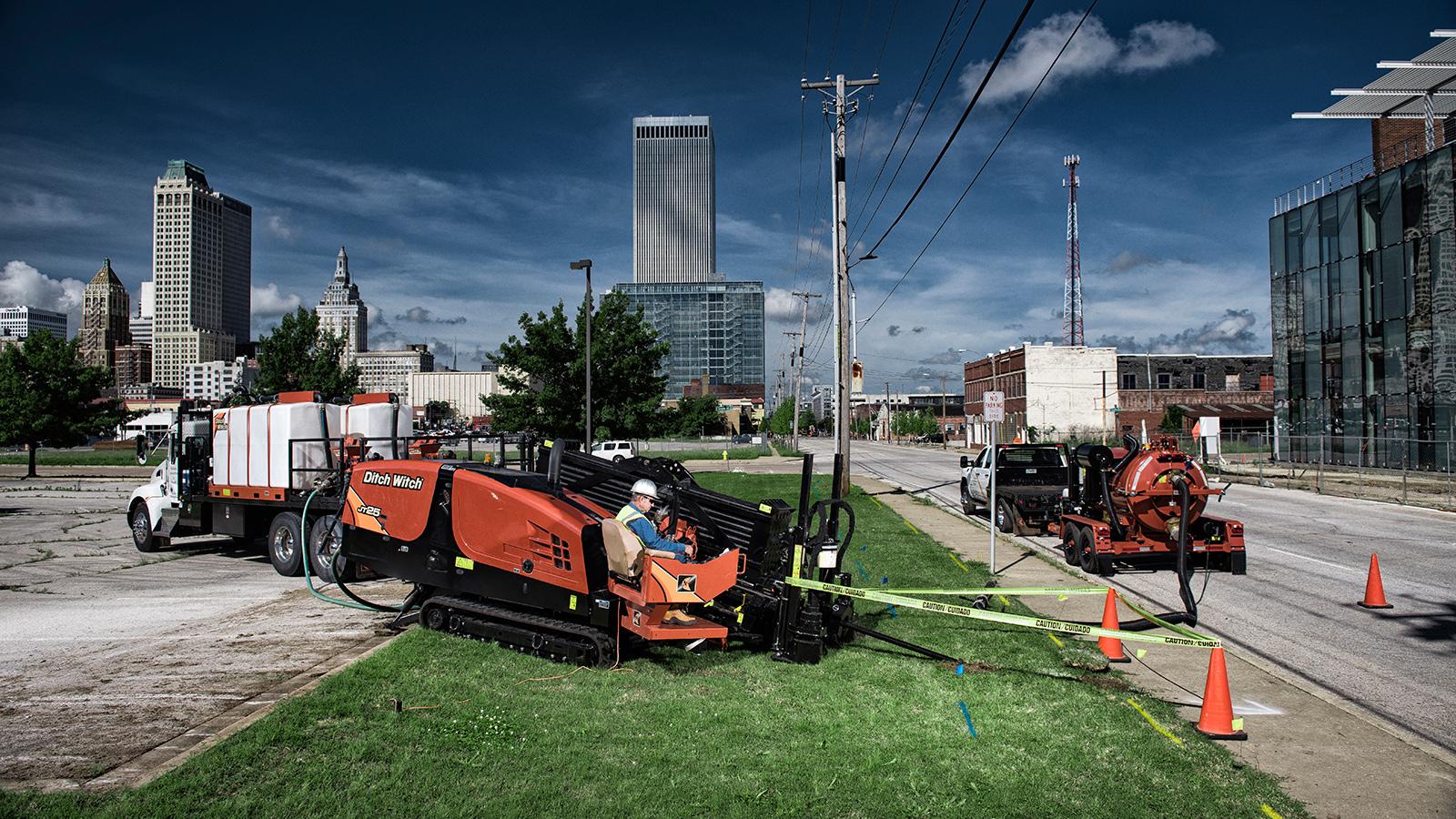

Productivity
JT25Productivity
Exceptionally productive drill for installing utility pipe and cables of up to 12 inches (30 cm) in diameter at lengths of up to 500 feet (152 m).
Narrower operational width than competitors’ models, for greater maneuverability and productivity in tight spaces.
Intuitive, easy-to-use carve mode simplifies operation and improves productivity.
-
DIMENSIONS (*Full Rack, 50 pipe)
DIMENSIONS (*Full Rack, 50 pipe) Transport length 232.5 in 5.90 m Width 87 in 2.21 m Width, w/cab 87 in 2.21 m Transport height 93 in 2.36 m Transport height, w/cab 99.5 in 2.53 m Weight 20,760 lb 9417 kg Weight, w/cab 21,360 lb 9689 kg Ground clearance 5.7 in 145 mm Drill rack entry angle, max 9-20° Drill rack entry angle, tracks on ground 9-17° -

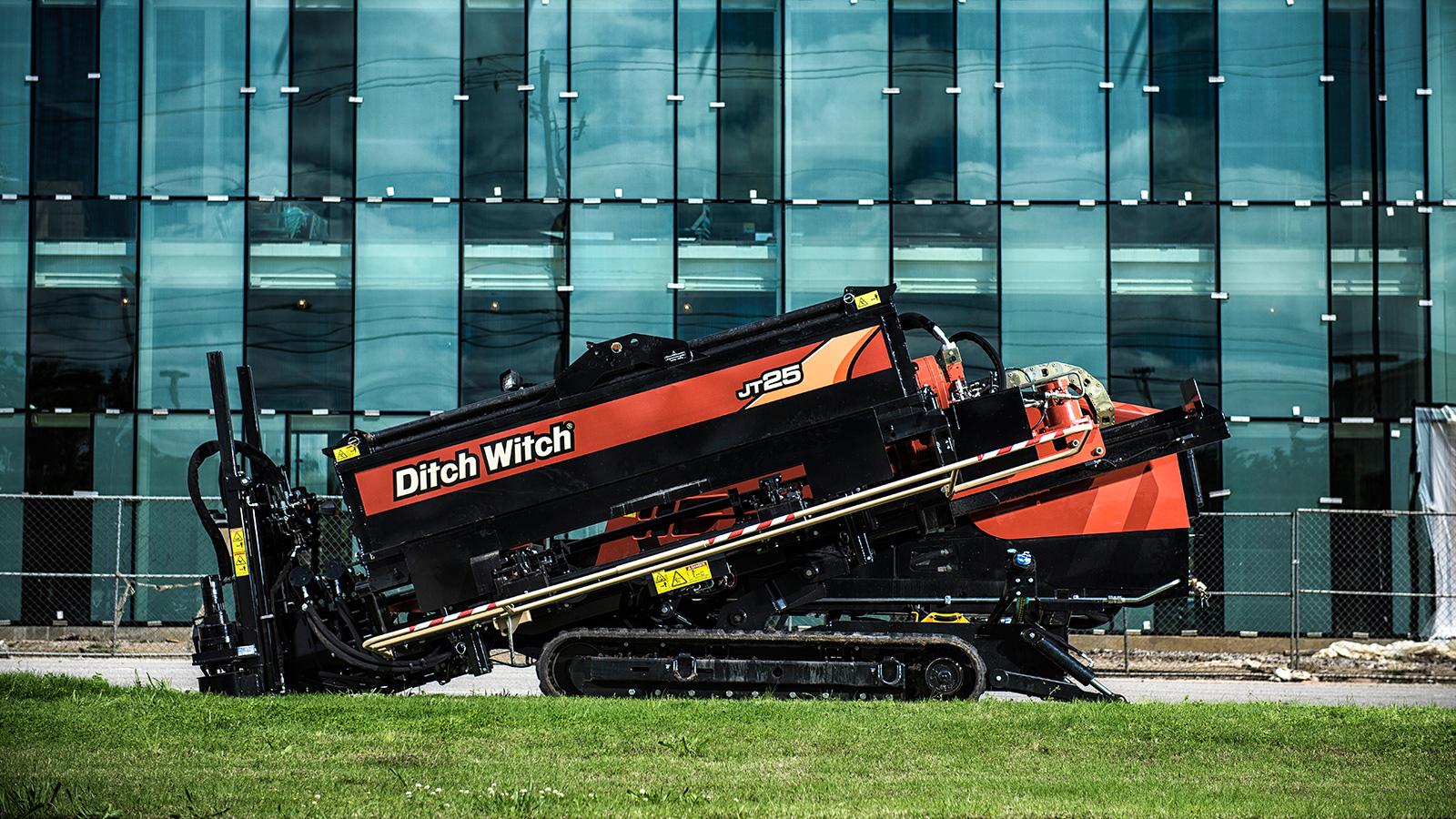

Innovative Design
JT25Innovative Design
Simple, durable, customer-driven JT25 is designed for low-maintenance, high-quality performance.
Simple, field-proven pipeloading system with a lower center of gravity helps makes JT25 the most stable mid-size drill across all terrains.
Dual rear independent stabilizers are easy to set up and enhance stability.
Dual-pivot drill frame allows steeper entry angles without raising tracks off the ground.
Daily maintenance points in one easy-to-access location, and no grease zerks, minimizing upkeep and downtime.
-
SINGLE PIECE FORGED DRILL PIPE
SINGLE PIECE FORGED DRILL PIPE Length 120 in 3.05 m Joint diameter 2.63 in 66.7 mm Pipe diameter 2.38 in 60 mm Bend radius, min 108.2 ft 33 m Weight per drill pipe, forged 73 lb 33 kg Weight w/drill pipe & large box (50 pipe) 4,522 lb 2187 kg Weight w/drill pipe & small box (25 pipe) 2,395 lb 1086 kg -
DRILLING FLUID SYSTEM (On Board)
DRILLING FLUID SYSTEM (On Board) Pressure, max 1,200 psi 83 bar Flow, max 50 gpm 189 l/min
