Key Features & Specs

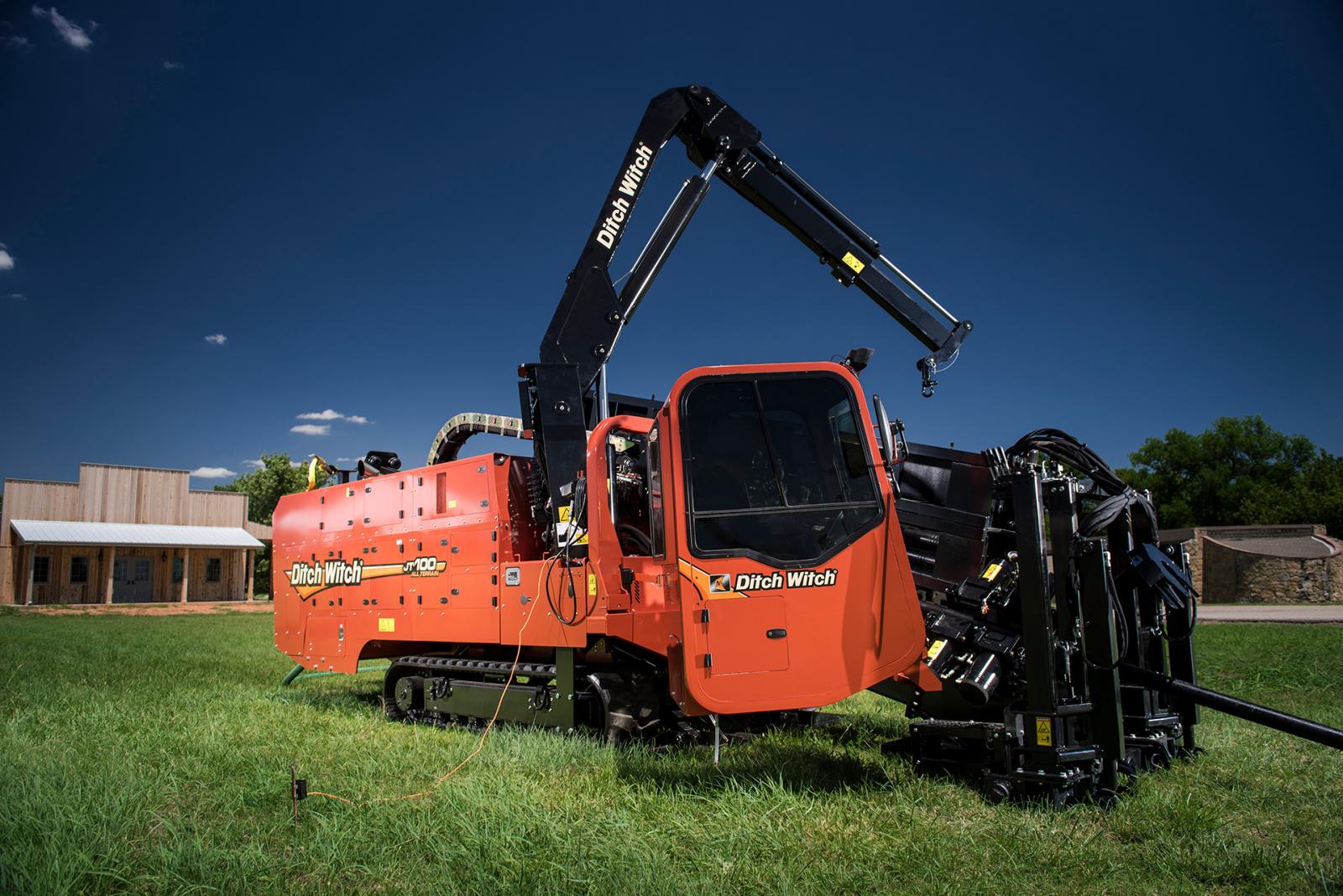

The 268-hp (200-kW) JT100 is an incredibly powerful machine, but it's not power that makes it so productive—it's how the power is distributed. The JT100 is designed to deliver power where it's needed to complete the bore in the most efficient manner, without compromising power to other machine functions. There's plenty of power for an optional pipebox loader and onboard anchor system, too, which eliminate the need for additional equipment for pipeloading, anchoring, and other tasks and give the JT100 a unique ability: the power to reduce the size of the jobsite.
- + Expand All
- - Close All
-
POWER
POWER U.S. METRIC Engine Cummins QSB6.7 Fuel Diesel Cooling medium Liquid Injection Direct Aspiration Turbocharged & charge air cooled Number of cylinders 6 Displacement 409 in3 6.7 L Bore 4.21 in 107 mm Stroke 4.88 in 124 mm Manufacturer's gross power rating 260 hp 194 kW Rated speed 2,200 rpm Emissions compliance EPA Tier 4 EU Stage IV -
Superior Support
JT100Superior Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
-
Productivity
JT100Productivity

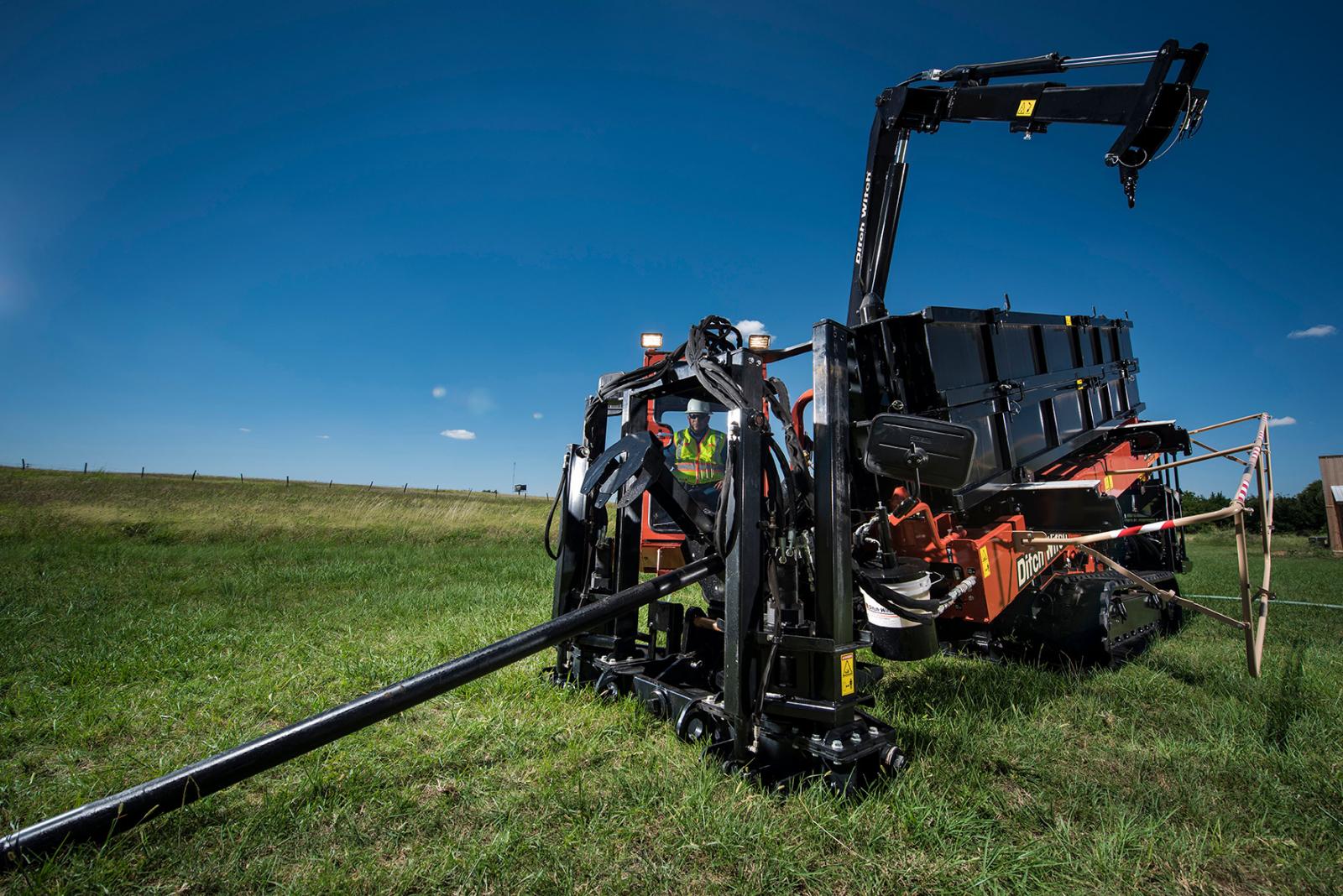

The exclusive Ditch Witch heavy-duty anchor system eliminates the need for large and expensive support equipment, reducing transportation costs, setup time, and jobsite size.

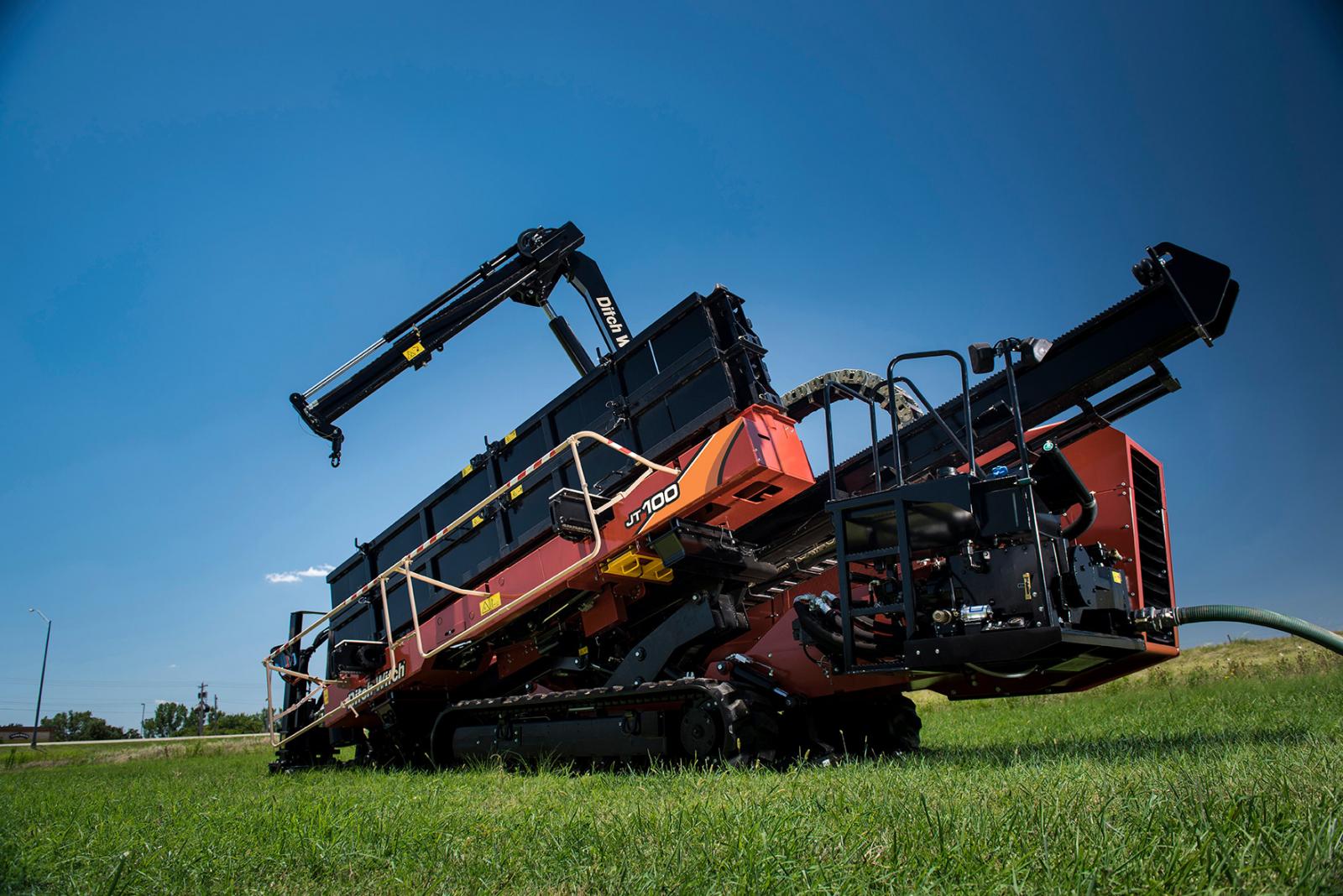

The JT100 is the only drill in its class that enables the transfer of drill pipe from one box to another—and add or remove the upper pipe box—without additional support equipment, so the pipe box is never empty.
Large-capacity, 230-gpm (870 l/min) fluid pump plus larger hoses and fittings help move fluid downhole faster, for greater productivity; special damping feature reduces the downhole shockloads associated with greater fluid flow.
Ditch Witch designs and manufactures the long-lasting Power Pipe® HD drill pipe compatible with the JT100. Ditch Witch drill pipe provides the most return on your investment—each piece is inspected and gauged to ensure quality and reliability bore after bore.
-
Innovative Design
JT100Innovative Design

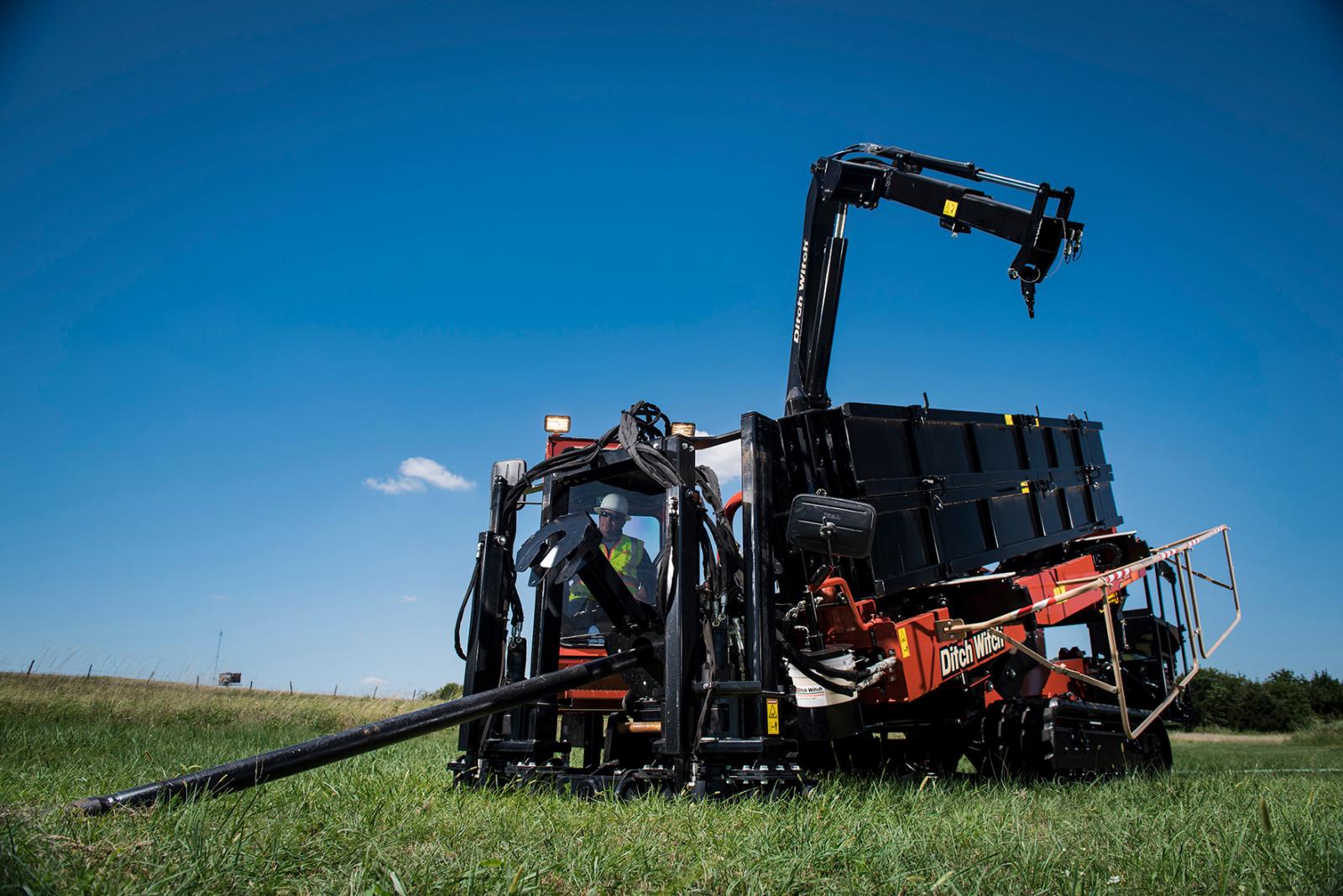

Exclusive dual-pivot drill frame allows for steeper entry angles without raising the tracks off the ground, for outstanding machine stability and greater operator comfort.

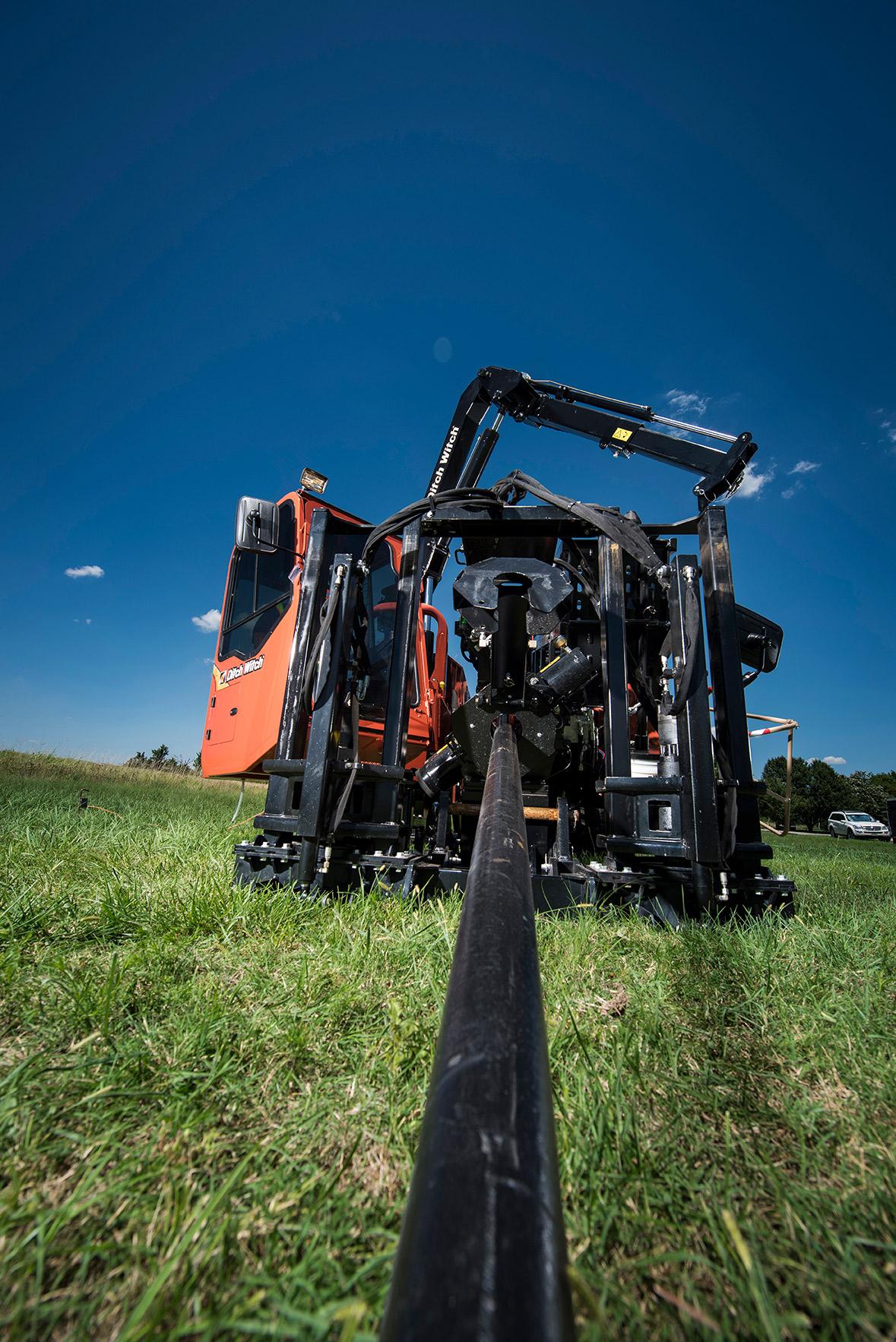

Heavy-duty, double rack-and-pinion thrust drive is field-proven to push through the longest, toughest bores.
Exclusive coordinated makeup feature automatically adjusts carriage thrust speed when making up and breaking out drill pipe, minimizing wear on pipe threads and extending the life of the drill pipe.
Efficient hydraulic cooling system requires significantly less hydraulic fluid than competitors' models, reduces maintenance costs and keeps the engine operating efficiently throughout the workday.

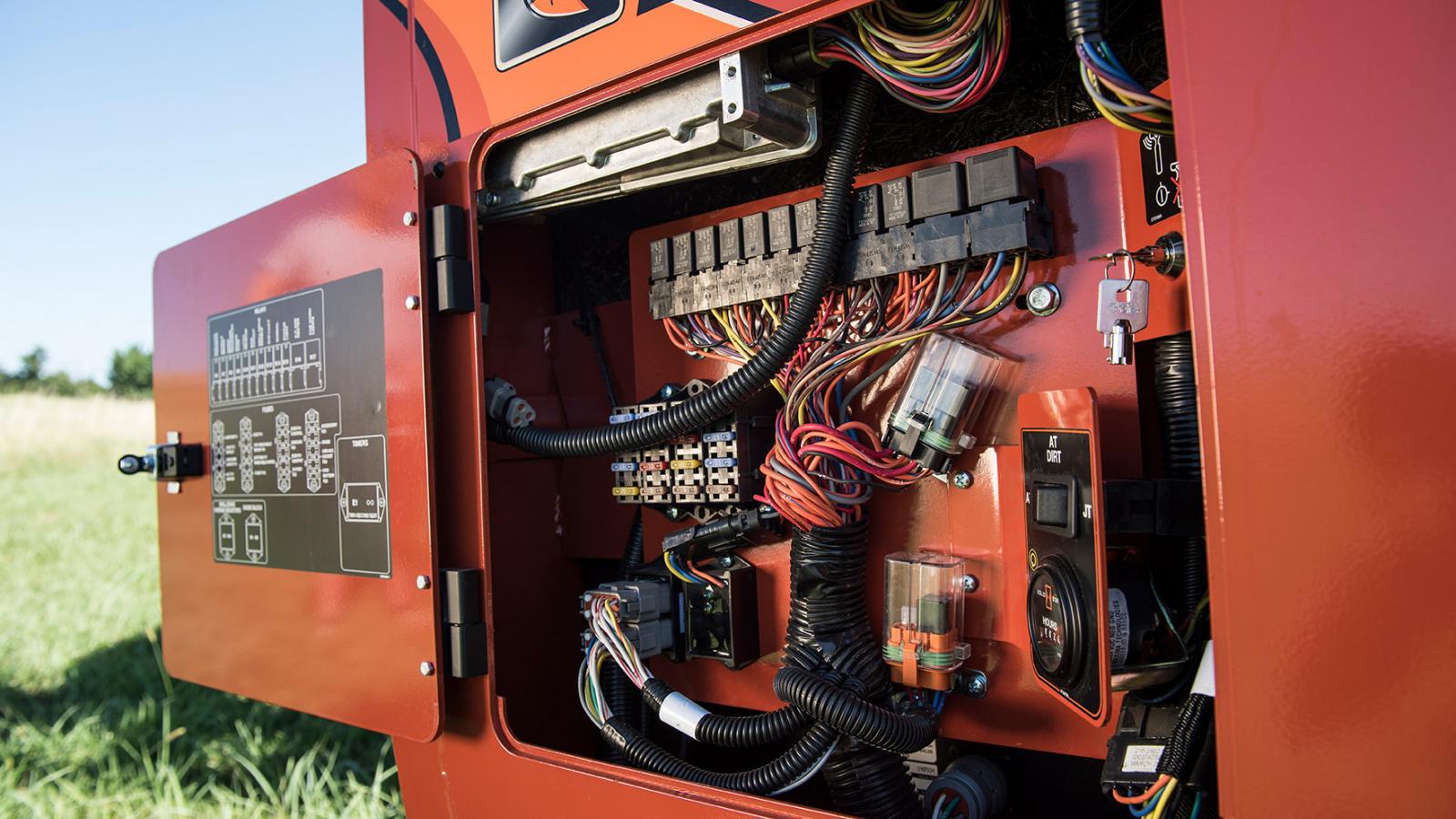

Daily maintenance points can be easily accessed from one side of the machine resulting in more uptime each day.
-
DRILL PIPE
DRILL PIPE U.S. METRIC Length of drill pipe, nominal 177 in 4.5 m Diameter of drill pipe, tool joint end 4 in 102 mm Diameter of drill pipe 3.63 in 92 mm Bend radius, min 205 ft 63 m Weight of drill pipe 229 lb 104 kg Weight of drill pipe & box (12 pipe) 3,760 lb 1710 kg -
Operator's Station
JT100Operator's Station

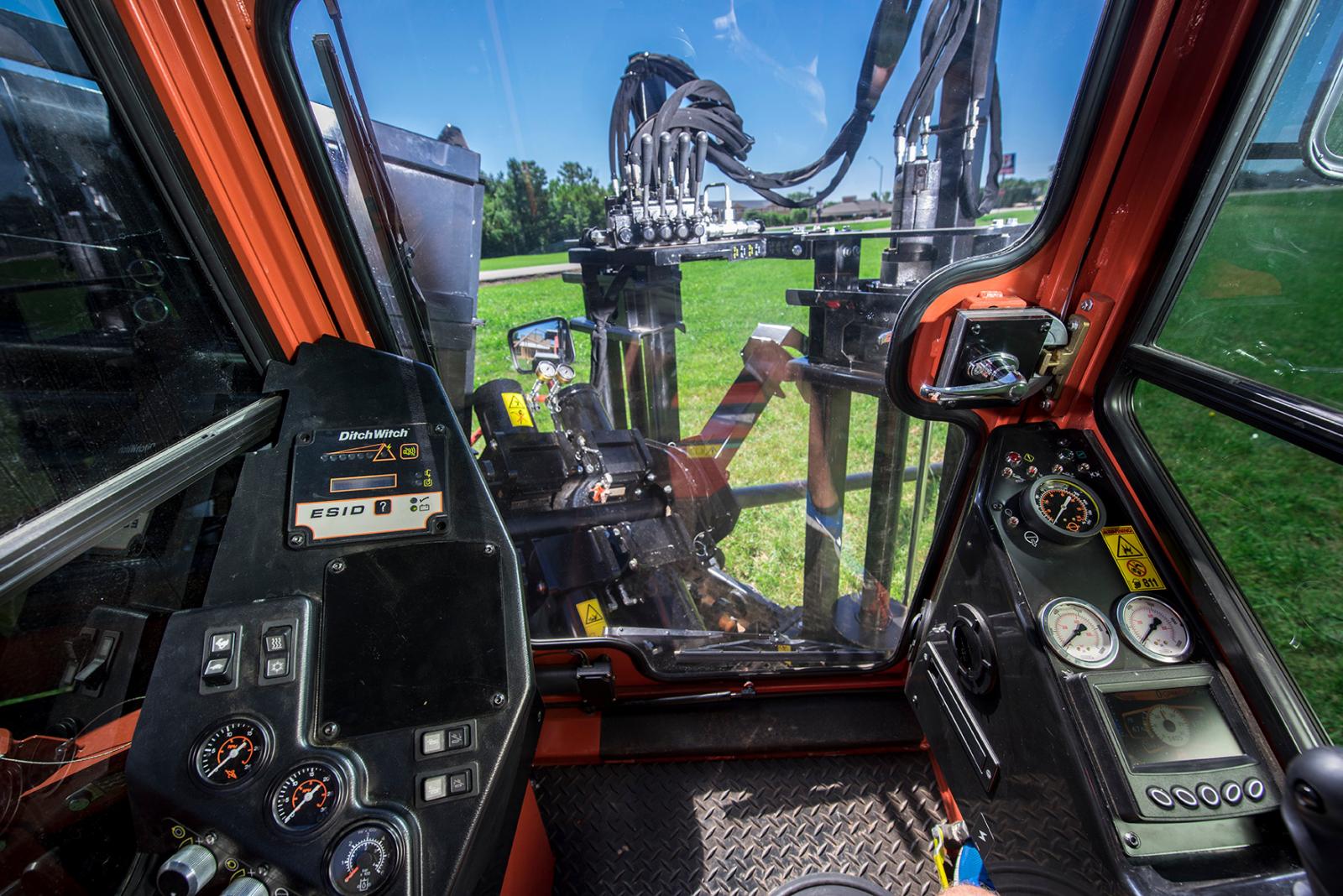

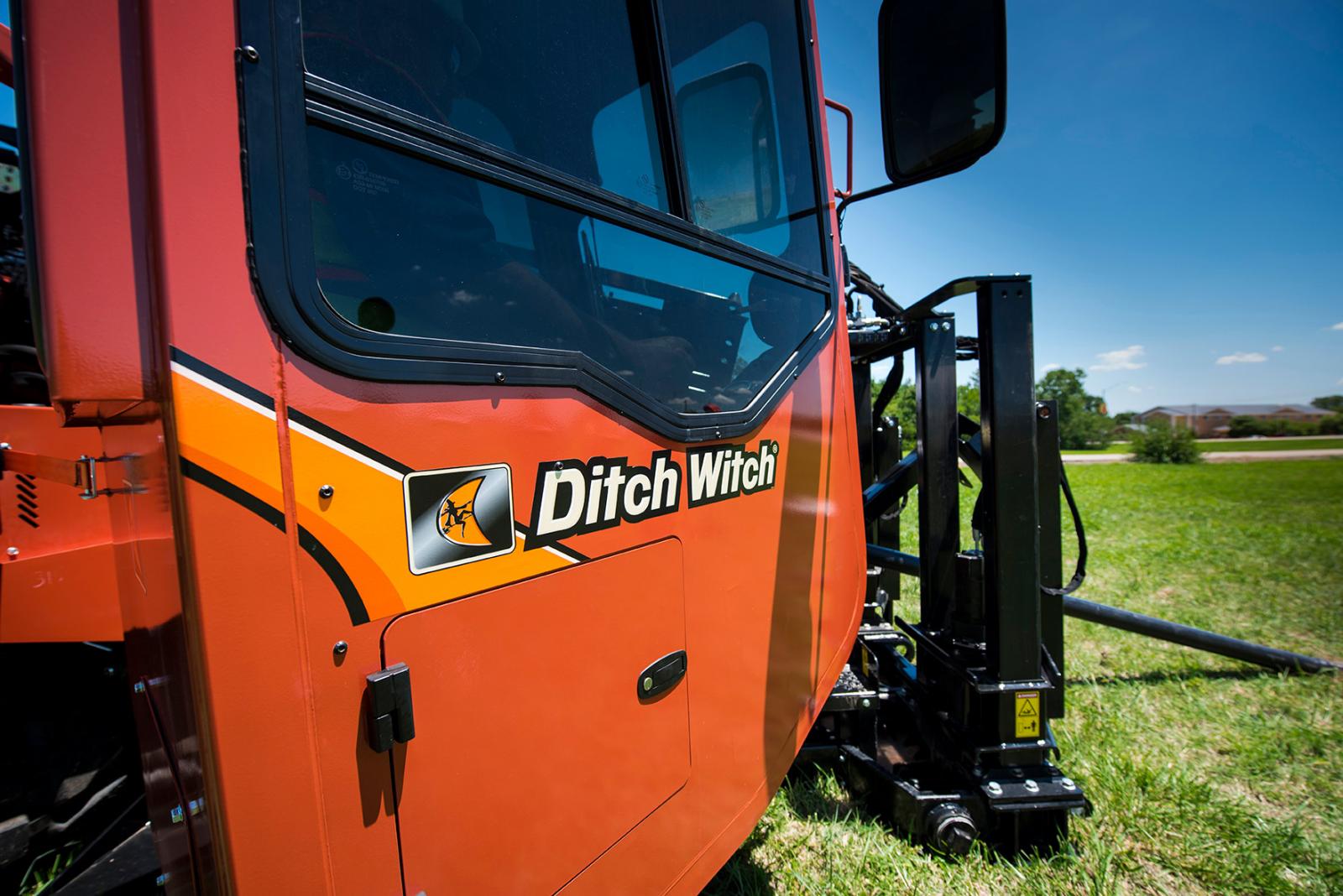

Fully enclosed tinted window cab features instrument panel gauges that are positioned for visibility and conveniently placed controls.

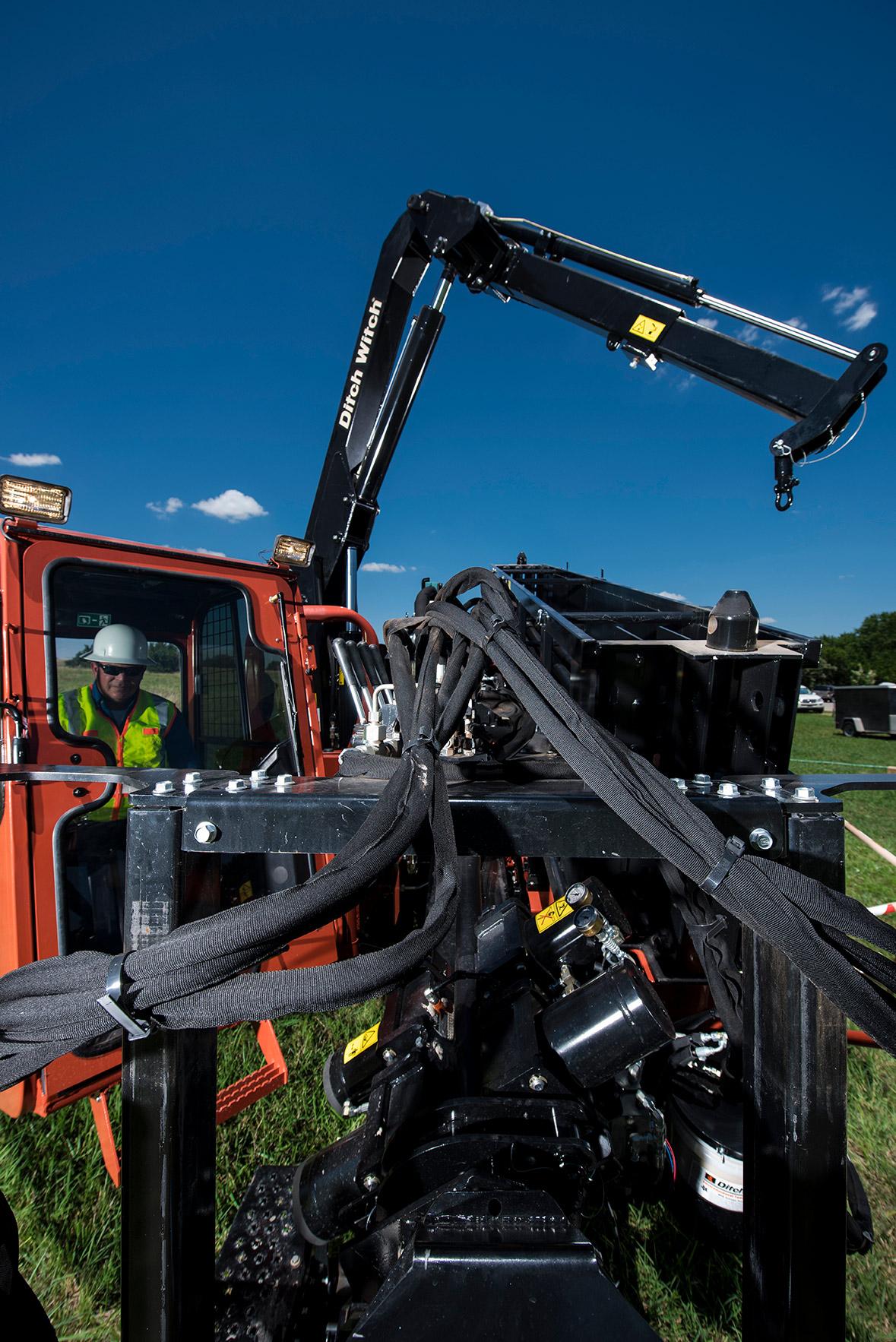

Excellent view of the tool joint when making up and breaking out pipe; open-top vise wrenches are angled toward the operator.
Full color LCD display provides easily to understand engine diagnostics and informational messages which allows operators to stay informed on machine performance.
New extreme comfort operator’s seat improves overall comfort for those long days on the jobsite.
-
FLUID CAPACITIES
FLUID CAPACITIES U.S. METRIC Hydraulic reservoir 47 gal 180 L Fuel tank 97 gal 370 L -
Power
JT100Power
JT100's 260-hp (194-kW) Cummins® engine delivers raw power more efficiently to all machine functions so the installation can be completed faster. The 268-hp (200-kW) Tier 3 Duetz® engine is available in less regulated countries.
With 100,000 lb (445 kN) of pullback and 12,000 ft·lb (16270 N·m) of torque, the JT100 is the ideal HDD unit for long bores, such as river crossings, and installations of large-diameter pipe.
With its infinitely variable rotary drive, the JT100 is the only drill in its class that can truly match spindle speed and torque, enabling it to power through virtually any soil condition.
-
DRILLING FLUID SYSTEM (ON BOARD)
DRILLING FLUID SYSTEM (ON BOARD) U.S. METRIC Drilling fluid pressure, max 1,000 psi 69 bar Drilling fluid flow, max 230 gpm 870 l/min -
OPERATION
OPERATION U.S. METRIC Spindle speed, max 210 rpm Spindle torque, max 12,000 ft·lb 16300 N·m Carriage thrust travel speed 150 fpm 46 m/min Carriage pullback travel speed 150 fpm 46 m/min Thrust force 70,000 lb 311 kn Pullback force 100,000 lb 445 kn Bore diameter 6 in 152 mm Backream diameter Soil dependent Ground travel speed Forward/reverse 3.6 mph 5.8 km/h -
DIMENSIONS
DIMENSIONS U.S. METRIC Length 368 in 9.35 m Width 101 in 2.57 m Height 110 in 2.79 m Weight 47,470 lb 21,532 kg Entry angle 10-15° Angle of approach 13° Angle of departure 17° -
BATTERY (2 USED)
BATTERY (2 USED) SAE reserve capacity rating 450 min SAE cold crank rating @ 0ºF (-18ºC) 1,400 amps Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
